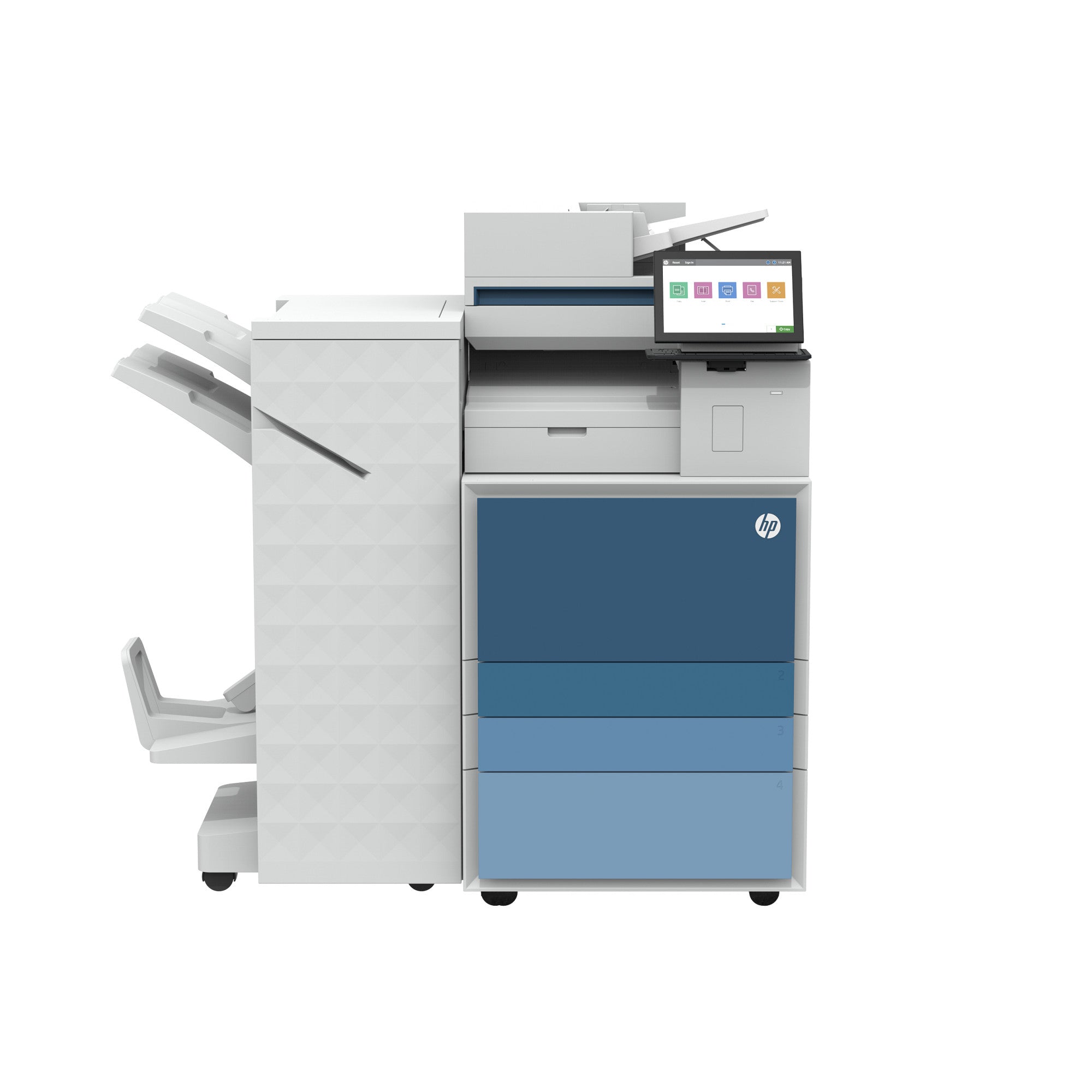

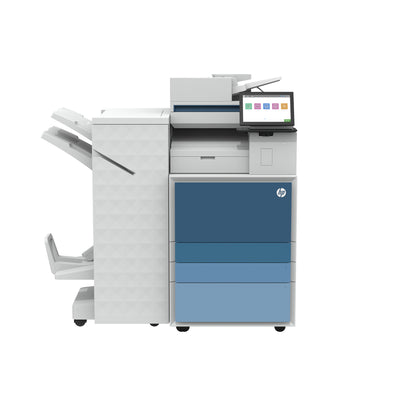

HP LaserJet Enterprise Flow MFP 8601zb+ (BD5G9A#BGJ)
- Regular price
- 14,379.98$
- Sale price
- 14,379.98$
- Regular price
-
Free shipping
Couldn't load pickup availability
This item works with these cartridges :
HP LaserJet Enterprise Flow MFP 8601zb+
Brand:HP
Product name:HP LaserJet Enterprise Flow MFP 8601zb+
Product code:BD5G9A
EAN/UPC:
199251062780
Description
Boost office productivity with blazing-fast print and scan speeds, and effortless management.
Reasons to buy
Be more productive with the fastest scan speeds and HP's latest, easy-to-use features.
Text editing has never been easier. Quickly scan and convert documents to Office formats with Editable OCR.[2]
Stay productive and always ready for what’s next with upgradeable HP FutureSmart features.[3]
Save time with blazing-fast scan speeds up to 300 ipm[4], and enjoy high-quality prints at speeds up to 70 ppm. [5]
Rest assured with the world's most secure printers[6] that protect, detect and self-recover.
Your work is secure with HP Wolf Security[6], silently detecting and repairing your printer from cyber attacks.
Protect your network with the world’s first quantum-resistant business printers.[6]
Keep your data safe with the built-in HP Trusted Platform Module[7]. Secure passwords, keys, and more.
A no-stress solution: effortless to buy, set up and manage.
Receive an easy-to-install printer at your office. No third-party technician needed.
Easily maintain on your own—or get assistance from HP Services when you need it.
Simplify management with long-lasting consumables and parts that minimize intervention.
Reduce your environmental impact before, during, and after use.
Our energy efficient designs meet the rigorous criteria of EPEAT Gold, Energy Star and Blue Angel.[8]
With HP Planet Partners, we offer a convenient way to recycle HP supplies after their use.[9]
With every page you print, HP invests in helping to protect, manage, and restore forests.[10]
Specs
PSG_Accessories_Headsets[TS]
Compatible Operating Systems
Windows 11; Windows 10; Windows Client OS; Android; iOS; macOS 12 Monterey; macOS 13 Ventura; MacOS v14 Sonoma; Windows 8.1
Security
HP Access Control; HP Security Manager; HP Advance; HP Secure Print and Insights
Minimum System Requirements
2 GB available hard disk space, Internet connection, or USB port, Internet browser. For additional OS hardware requirements see microsoft.com
What's in the box
Installation guide; regulatory flyer; power cords; keyboard/overlay for z/z+; manual
Manufacturer Warranty
One-year, onsite warranty. Warranty and support options vary by product, country and local legal requirements.
Battery and Power
Power consumption
1,088.16 watts (printing), 35.07 watts (ready), 0.74 watts (sleep), 0.13 watts (auto-off), 0.13 watts (manual-off)
Power
Input voltage: 110 to 127 VAC (+/-10%), 50/60 Hz (+/-3 Hz), 12.0 A 220 to 240 VAC (+/-10%), 50/60 Hz (+/-3 Hz), 7.0 A 100 VAC (+/-10%), 50/60 Hz (+/-3 Hz), (Not dual voltage, power supply varies by part number with # Option code identifier)
Power supply type
Internal (Built-in) power supply
Cartridges and Printheads
Page yield (set-up/inbox cartridges)
HP 176A Black LJ Starter Toner Cartridge (ISO Yield 25,000) W1760AS
Print Cartridges/Bottle, Number
1 (black)
Replacement cartridges
HP 176A Black LJ Toner Cartridge W1760A (ISO Yield 45,000)
Replacement cartridges footnote
[7] Approximate average yield based on ISO/IEC 19752. Actual yield varies considerably based on content of printed pages and other factors. For details see http://www.hp.com/go/learnaboutsupplies.
Replacement cartridges footnote number
[7]
Segment (filter)
Enterprise
Print Technology
Laser
Compatibility
Orderable supplies
HP 176A Black Original LaserJet Toner Cartridge W1760A, HP 176A LaserJet Black Original Imaging Drum W1766A, HP LaserJet Toner Collection Unit 9U1Q5A, HP LaserJet ADF Maintenance Kit A91Z5A, HP 300 ADF Roller Replacement Kit J8J95A
Connection and Communication
Connectivity
Apple AirPrint™; Ethernet networking; Mopria™; USB; Wireless optional (with accessory)
Number of users
Over 25 Users
Connectivity and Communications
Connectivity, optional
HP Jetdirect 3100w BLE/NFC/Wireless Accessory 3JN69A
Connectivity, standard
1 Gigabit Ethernet 10/100/1000T network; 1 Hardware Integration Pocket 2nd generation (HIP2); 1 Hi-Speed USB 2.0 (host); 1 SuperSpeed USB 3.0 (device); 1 SuperSpeed USB 3.0 (host)
Mobile printing capability
Apple AirPrint™; Mopria™ Certified; Wi-Fi® Direct Printing; PrinterOn Print
Modem
33.6 kbps (fax modem max speed)
Network capabilities
Standard (built-in GIGABIT 10/100/1000T Ethernet)
Network protocols, supported
IPv4/IPv6: Apple Bonjour Compatible (Mac OS 10.2.4 or higher), AirPrint, SNMPv1/v2c/v3, HTTP, HTTPS, Port 9100, LPD, WS Discovery, IPP, Secure-IPP, IPsec/Firewall; IPv6: DHCPv6, MLDv1, ICMPv6; IPv4: Auto-IP, SLP, LLMNR, IGMPv2, BOOTP/DHCP, WINS, IP Direct Mode, WS Print; HP Web Services
Wireless capability
Optional, enabled with purchase of a hardware accessory
Copy Speed
Copy speed black duplex (A4)
Up to 70 ipm
Copy speed black duplex (Letter)
Up to 70 ipm
Copy speed note
[2] Based on HP internal evaluation measuring the time beginning from scan start to print page exit. Exact speed varies depending on the system configuration, software application, driver, and document complexity. Additionally, for information of First Copy Out measured using ISO/IEC 29183, see http://www.hp.com/go/printerclaims.
Copy speed footnote number
[2]
Copy speed black (normal, A3)
Up to 35 cpm
Copy speed (black, normal quality, A4)
Up to 70 cpm
Copy speed black (normal, Tabloid)
Up to 35 cpm
Copy speed black (normal, letter)
Up to 70 cpm
Display Specifications
Display area (imperial)
8.54 x 5.34 in
Display area (metric)
21.7 x 13.56 cm
Environmental
Acoustic power emissions (active, printing)
7.4 B(A) (printing mono simplex A4 at 70 ppm)
Acoustic power emissions (active scan)
Base: 6.8 B(A) (ADF scan A4 at 90 ipm); Flow: 7.3 B(A) (ADF scan A4 at 150 ipm)
Acoustic power emissions (ready)
Inaudible
Acoustic power footnote number
[8]
Acoustic power note
[8] Acoustic values are subject to change. For current information see https://www.hp.com/support.
Acoustic pressure emissions bystander (active, printing)
58 B(A) (printing mono simplex A4 at 70 ppm)
Acoustic pressure emissions bystander (active scan)
Base: 54 dB(A) (ADF scan A4 at 90 ipm); Flow: 59 dB(A) (ADF scan A4 at 150 ipm)
Acoustic pressure emissions bystander (ready)
Inaudible
Consumables CO2e (kg)
20
Energy Usage CO2e (kg)
9
End of Life CO2e (kg)
202
Operating humidity range
20 to 80% RH
Recommended operating humidity range
20 to 80% RH
Operating temperature range
15 to 30°C
Operating temperature range
59 to 86°F
Recommended operating temperature range
15 to 30°C
Recommended operating temperature range
59 to 86°F
Production CO2e (kg)
1569
Storage temperature range
-10 to 40°C
Storage temperature range
14 to 104°F
Total CO2e (kg)
1885
Total CO2e (kg) note
A product carbon footprint is defined as the total amount of greenhouse gases emitted directly and indirectly by a product over its lifetime. Greenhouse gas emissions are reported as global warming potential for 100-year time horizon (GWP-100) in units of CO2 equivalence. Calculations are done in accordance with ISO 14040 & ISO 14044. Individual values may not sum to total due to rounding.
Transportation CO2e (kg)
85
Fax Speed
Fax transmission speed (letter)
3 sec per page
Fax Transmission Speed
33.6 kbps
Form Factor
Form factor
Multifunction
Information Pointers
Additional information about HP in the countries
hp.com
Media Handling
Paper size
Letter; A4; Legal; B5; A3; Tabloid 11 x 17; Executive; 4 x 6 in
Monthly printed pages
60,000
Memory
Maximum Memory
6 GB
Memory
6 GB
Metadata
Segment
Enterprise
Usage
Department
Packaging
Cartons per layer
1
Count of layers in pallet
1
Quantity per pallet
1
Print Area
Maximum print area
311.5 x 448.7 mm
Bottom margin (A4)
4.23 mm
Left margin (A4)
4.23 mm
Right margin (A4)
4.23 mm
Top margin (A4)
4.23 mm
Print Speed
Print speed
Print speed up to 70 ppm (black)
Print speed (A3/tabloid) footnote number
[5]
Print speed duplex (A4)
Up to 70 ipm
Print speed duplex (letter)
Up to 70 ipm
Print speed black (ISO, letter)
Up to 70 ppm
Print speed black (normal, A3)
Up to 35 ppm
Print speed black (ISO, A4)
Up to 70 ppm
Print speed black (normal, tabloid)
Up to 35 ppm
Print speed footnote
[5] Measured using ISO/IEC 24734, excludes first set of test documents. For more information see http://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document complexity.
Print speed footnote (A3/Tabloid)
[5] Measured using ISO/IEC 24734, excludes first set of test documents. For more information see http://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document complexity.
Print speed (A4/letter) footnote number
[5]
Printing Media Handling
ADF Capacity
300
Tray capacity
2180
Maximum input capacity (sheets)
Up to 2,180 sheets
Maximum Input Capacity (envelopes)
Up to 50 envelopes
Input capacity
Up to 2,180 sheets (Tray 1: up to 100 sheets; Tray 2: up to 520 sheets; Tray 3: up to 520 sheets; Tray 4: up to 520 sheets; Tray 5: up to 520 sheets)
Finished output handling
Stacking; stapling; booklet making
Media type and capacity, ADF
Sheets: 300 or 200
Media type and capacity, tray 1
Sheets: 100; transparencies: 20; envelopes: 10
Media type and capacity, tray 2
Sheets: 520; transparencies: 100; envelopes: 40
Media type and capacity, tray 3
Sheets: 520; transparencies: 100
Maximum output capacity (sheets)
Up to 2,250 sheets
Output capacity
Up to 2,250 sheets
Standard output capacity (envelopes)
Up to 40 envelopes
Standard output capacity (transparencies)
Up to 100 sheets
Paper handling input, standard
100-sheet multi-purpose tray, 4 x 520-sheet input tray
Paper handling output, standard
Up to 2,250 sheets
Product Numbers
RMN number
SEOLA-1905-02
Product number
BD5G9A
Tariff numbers
8443310000
UNSPSC code
43212110
Rack and Power Specifications
Blue Angel compliant
Yes, Blue Angel DE-UZ 219—only ensured when using Original HP supplies
Number of users
Over 25 Users
Typical electricity consumption (TEC) number
1.032 kWh/Week
Scan Speed
Scan speed duplex (normal, A4)
Up to 300 ipm
Scan speed duplex (normal, letter)
Up to 300 ipm
Scan speed footnote
[1] Scan speeds measured from ADF. Actual processing speeds may vary depending on scan resolution, network conditions, computer performance, and application software.
Scan speed footnote number
[1]
Scan speed (normal, A3)
Up to 85 ipm
Scan speed (normal, A4)
Up to 150 ipm
Scan speed (normal, letter)
Up to 150 ipm
Scan speed (normal, tabloid)
Up to 85 ipm
Scan speed duplex (normal, A3)
Up to 170 ipm
Scan speed duplex (normal, Tabloid)
Up to 170 ipm
Security Management
Security management
Identity management: Kerberos authentication, LDAP authentication, 1000 user PIN codes, Optional HP and 3rd party advanced authentication solutions (e.g., badge readers); Network: IPsec/firewall with Certificate/Pre-shared Key authentication, Supports WJA-10 IPsec configuration Plug-in, 802.1X authentication (EAP-PEAP; EAP-TLS), SNMPv3, HTTPS, Certificates; Data: Storage Encryption, Encrypted PDF & Email, SSL/TLS (HTTPS), Encrypted Credentials; Device: HP Sure Start Secure Boot (BIOS Integrity Checking with self-healing capability), Intrusion Detection (Constant in-device monitoring for attacks), Whitelisting (loads only known good code), HP Memory Shield™, Embedded Trusted Platform Module, HP Connection Inspector, Security lock slot, USB port disablement; Security management: Compatible with HP Security Manager, Device Security Syslog Messages processed and accessible in Arcsight and Splunk SIEMs
Software and Applications
Downloadable software
From http://hp.com for Windows OS - Full-solution software and drivers, Basic-solution software and drivers, Product Documentation and Support; From http://hp.com for Mac OS-, HP Mac OS Print Driver, HP Easy Admin; From http://hp.com for printer administrators-, Printer Administrator Resource Kit (Driver Configuration, Utility - Driver Deployment Utility - Managed Printing Administrator), HP Universal Print Drivers PCL6 GDI & PS GDI for Windows; For more information on the supported operating systems go to http://support.hp.com; HP Web JetAdmin, HPLIP Linux, Printer Driver for more information see https://developers.hp.com/hp-linux-imaging-and-printing/install; For more information on the supported operating systems go to http://support.hp.com, Enter your product name and search, Click on User Guides and enter your product name and search for User Guide, Search for your (Product Name) - User Guide, Search for the Supported Operating Systems section, Supported Operating systems; For more information on the supported operating systems also see https://support.hp.com/us-en/drivers/hp-universal-print-driver-series-for-windows/503548, HP PrintScanDr, HP WebJetAdmin + Workpath, HP Command Center, Android Plug-in
Driver updates
Current HP printer drivers and software can be obtained from the HP Customer Care Web site: Go to https://support.hp.com/ (country/region may need to be selected), Select “Software and Drivers”, Select “Printer”, Enter a product name/number, (The operating system is automatically detected), Select a driver or other software, Select “Download” for the software desired
Mac compatible
Yes
Software included
No software solutions are included in the Box only on http://hp.com, https://support.hp.com/
Special Products
Contractual flag
No
Product classification flag
Standard HP Product
Structure flag
Generic
Storage Specifications
Storage
256 GB SSD
Supported Operating Systems
Compatible Network Operating Systems
Windows Server; Citrix; Linux
Compatible Operating Systems
Windows 11; Windows 10; Windows Client OS; Android; iOS; macOS 12 Monterey; macOS 13 Ventura; MacOS v14 Sonoma; Windows 8.1
Supported Printing Media
Standard media sizes (duplex, imperial)
Letter; Letter-R; Legal; Statement; Executive; 11x17; 8K; 16k; Tabloid Extra; Oficio (8.5 x 13 in)
Recommended media weight (duplex)
60 to 300 g/m²
Recommended media weight (duplex)
16 to 79.5 lb
Media sizes supported, key
A4; A3; Envelopes; 10 x 15 cm
Media sizes supported, key
4 x 6 in; Letter; Legal; 11 x 17 in; Envelopes
Media size (ADF)
Legal, oficio, executive, statement, ledger, A3, A4, A4R, A5, A6, B4, B5, B6, 16K, Dpostcard (JIS)
Media sizes, custom
Tray 1: 98 x 139.7 to 320 x 457.2 mm; Tray 2: 98 x 139.7 to 297 x 390 mm; Tray 3: 140 x 182 to 320 x 457.2 mm; Tray 4: 140 x 182 to 320 x 457.2 mm; Tray 5: 140 x 182 to 320 x 457.2 mm
Media sizes, custom
Tray 1: 3.86 x 5.5 to 12.59 x 18 in; Tray 2: 3.86 x 5.5 to 11.69 x 15.35 in; Tray 3: 5.5 x 7.17 to 12.59 x 18 in; Tray 4: 5.5 x 7.17 to 12.59 x18 in; Tray 5: 5.5 x 7.17 to 12.59 x 18 in
Standard media sizes (duplex)
A3; A4; A5; 8K; RA4; SRA3; B4 (JIS); B5 (JIS); 16K (195 x 270 mm, 184 x 260 mm, 197 x 273 mm); Oficio (216 x 340 mm); B4; B5; RA3; SRA4; A4R; A5R
Media sizes supported
Tray 1: A3, A4, A4R, A5, A5R, A6, RA3, SRA3, RA4, SRA4, B4 (JIS), B5 (JIS), B6 (JIS), 10x15cm, Oficio, 8K, 16k, Postcard (JIS), Postcard (JIS), Envelope B5, Envelope C5, Envelope C6, Envelope DL; Tray 2: A4, A4R, A5, A5R, A6, RA4, B4 (JIS), B5 (JIS), B6(JIS), Oficio, 8K, 16k, Envelope B5, Envelop C5, Envelope C6, Envelope DL; Tray 3: A3, A4, A4R, A5, RA3, RA4, B4 (JIS), B5 (JIS), Oficio, 8K, 16k; Tray 4: A3, A4, A4R, A5, RA3, RA4, B4 (JIS), B5 (JIS), Oficio, 8K, 16k; Tray 5: A3, A4, A4R, A5, RA3, RA4, B4 (JIS), B5 (JIS), Oficio, 8K, 16k
Media sizes supported
Tray 1: Letter, Letter R, Legal, Executive, Statement, Oficio, 11 x 17, 12 x 18, 4 x 6, 5 x 7, 5 x 8,10 x 15, 8k, 16k, envelope #9, Envelope #10, Envelope Monarch; Tray 2: Letter, Letter R, Legal, Executive, Statement, Oficio, 4 x 6, 5 x 7, 5 x 8,10 x 15, 16k, envelope #9, Envelope #10, Envelope Monarch; Tray 3: Letter, Letter R, Legal, Executive, Statement, Oficio, 11 x 17, 12 x 18, 8k, 16k; Tray 4: Letter, Letter R, Legal, Executive, Statement, Oficio, 11 x 17, 12 x 18, 8k, 16k; Tray 5: Letter, Letter R, Legal, Executive, Statement, Oficio, 11 x 17, 12 x 18, 8k, 16k
Media size, tray 1
A3, A4, A4R, A5, A5R, A6, RA3, SRA3, RA4, SRA4, B4 (JIS), B5 (JIS), B6 (JIS), 10x15cm, Oficio, 8K, 16k, Postcard (JIS), Postcard (JIS), Envelope B5, Envelope C5, Envelope C6, Envelope DL
Media size, tray 2
A4, A5, A5R, A6, B6 (JIS), 10x15cm, Envelope C5, Envelope C6, Envelope DL
Media size, tray 3
A3, A4, A4R, A5, RA3, SRA3, RA4, SRA4, B4 (JIS), B5 (JIS), Oficio, 8K, 16k
Media types
Plain, HP EcoEFICIENT, HP Matte 90 g, Light 60-74 g, Bond, Recycled, HP Matte 105 g, HP Matte 120 g, Mid-Weight 96-110 g, Heavy 111-130 g, Extra-Heavy 131-175 g, Card-stock 176-220 g, Light Paperboard 221-255 g, Paperboard 256-300 g, Heavy Paperboard, Mono Transparency, Labels, Letterhead, Envelope, Heavy Envelope, Preprinted, Pre-punched, Colored
Media weights, supported ADF
45 to 199 g/m2 or 45 to 255 g/m2
Media weights, supported ADF
12 to 53 lb or 12 to 68 lb
Media weight, supported
Tray 1, 2, 3: 60 to 325 g/m²; Tray 4, 5: 60 to 300 g/m²
Media weight (tray 1)
60 to 325 g/m²
Media weight (tray 2)
60 to 325 g/m²
Media weight (tray 3)
60 to 325 g/m²
Media weight, supported
Tray 1, 2, 3: 16 to 86.5 lb (bond); Tray 4, 5: 16 to 80 lb
Sustainability
Production CO2e (kg)
1569
Transportation CO2e (kg)
85
Energy Usage CO2e (kg)
9
End of Life CO2e (kg)
202
Total CO2e (kg)
1885
Total CO2e (kg) note
A product carbon footprint is defined as the total amount of greenhouse gases emitted directly and indirectly by a product over its lifetime. Greenhouse gas emissions are reported as global warming potential for 100-year time horizon (GWP-100) in units of CO2 equivalence. Calculations are done in accordance with ISO 14040 & ISO 14044. Individual values may not sum to total due to rounding.
Ecolabels
IT ECO Declaration; EPEAT® registered; ENERGY STAR® certified
Certifications and compliances
UL/cUL (US/Canada), ACA (Australia), TUV and GS Mark (Germany), Department of Industrial Standards of Cambodia, Bureau of Standards, Metrology and Inspection Ministry of Economic Affairs - BSMI (Taiwan), Certificate for China Compulsory Product Certification - CCC (China), Bureau of Indian Standards - BIS Registration (India), PSB Singapore, Eastern European country approvals, CE Marking and other Safety & EMC certification approvals as required by individual countries.
Energy star certified
Yes
Advanced Features
Copier smart software features
Optimized text/picture (auto); auto tone; multi-feed detection; document editing; auto paper color removal
Energy savings feature technology
Power save
Printer smart software features
Print preview, duplex printing, print multiple pages per sheet (2, 4, 6, 9, 16), collation, watermarks, store print jobs, easy-access USB
Scanner advanced features
Embedded OCR; optimize text/picture (auto); scan to multi-destination; automatic tone; auto orientation; multi-feed detection; reverse and retry; document editing; auto paper color removal; job separation (blank page, barcode); watermark; stamps
Barcodes
UPC number
(201) 199251062759; (202) 199251062773; (BGJ) 199251062780
Box contents
Cable included
No, please purchase USB cable separately (EMEA, APJ, AMS, LATAM)
What's in the box
Installation guide; regulatory flyer; power cords; keyboard/overlay for z/z+; manual
Care Pack Registration Flag
Registration required
No
Category
Brand
HP
Product type
Laser printers
Sub brand
LaserJet Enterprise
Subcategory
Single and multifunction printers
Certification and Compliance
Blue Angel compliant
Yes, Blue Angel DE-UZ 219—only ensured when using Original HP supplies
Certifications and compliances
UL/cUL (US/Canada), ACA (Australia), TUV and GS Mark (Germany), Department of Industrial Standards of Cambodia, Bureau of Standards, Metrology and Inspection Ministry of Economic Affairs - BSMI (Taiwan), Certificate for China Compulsory Product Certification - CCC (China), Bureau of Indian Standards - BIS Registration (India), PSB Singapore, Eastern European country approvals, CE Marking and other Safety & EMC certification approvals as required by individual countries.
Electromagnetic compatibility
CISPR 22:2008 (International) - Class A, CISPR 32:2015 (International) - Class A, EN 55032: 2015 (EU) - Class A, CISPR 11:2016, EN 55011:2016, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 55024: 2010+A1:2015, EN 55035:2017+A11:2020, EN60601-1-2:2015, EMC Directive 2014/30/EU, FCC CFR 47 Part 15 Class A / ICES-003, Issue 7:2020 Class A, Other EMC approvals as required by individual countries
Ecolabels
IT ECO Declaration; EPEAT® registered; ENERGY STAR® certified
Energy star certified
Yes
FCC Class A emissions
FCC Class A emissions - for use in commercial environments, not residential environments
Safety
IEC 60950-1:2005 +A1:2009 +A2:2013 (International); EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013; IEC 62368-1:2018; EN 62368-1:2020+A11:2020 (EU); EN 60825-1:2014 / IEC 60825-1:2014 (Class 1 Laser Product); EN 62479:2010 / IEC 62479:2010; EN 62471:2008 /IEC 62471:2006; Low Voltage Directive 2014/35/EU with CE Mark (Europe); GS Certificate (Germany, Europe); UL/cUL Listed and UC CoC (US/Canada); CAN/CSA C22.2 No. 60950-1-07 2nd Ed. 2014-10; Compliance with Laser safety standards 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser notice No. 50, Dated June 24, 2007 Other safety approvals as required by individual countries
Telecom compliance (fax capability)
Optional telecom kit (BOSIB-1814-00 / BOISB-1814-01); TIA-968-B-3; FCC Part 68 (USA); IC CS-03 Part I Issue 9, Amendment 5, March 2016 (CANADA); ETSI ES 203 021-1 V2.1.1; ETSI ES 203 021-2 V2.1.2; ETSI ES 203 021-3 V2.1.2 (EU); TE-001 Issue 5 (South Africa); AS/CA S002"2010 (Australia); PTC 200:2006 (New Zealand), Other Telecom approvals as required by individual countries
Copier Specifications
Copy reduce / enlarge settings
25 to 400%
Copier scaling (ADF)
25 to 200%
Copier settings
Two-sided copying; reduce/enlarge; image adjustments (darkness, contrast, background cleanup, sharpness); optimize text/picture (text, mixed, printed picture, photograph); N-Up; N or Z-ordering; content orientation; collate; booklet; scan mode (book, 2-sided ID); watermark; stamps; image overlay; erase edges; job build; image preview; image shift; paper selection; blank page suppression; automatically straighten; scan to job storage; optimized text/picture (auto); automatic tone; multi-feed detection; document editing; auto paper color removal
Copies, maximum
Up to 9999 copies
Copy Resolution
Copy resolution (black text)
Up to 600 x 600 dpi
Copy Time
First copy out black (A4)
As fast as 2.7 sec
First copy out black (A4, sleep)
As fast as 11.1 sec (15 min)
First copy out black (letter, sleep)
As fast as 11.1 sec (15 min)
First copy out black (letter)
As fast as 2.7 sec
Core Features
Product type
Laser printers
Digital Sender Specifications
File Format Supported
CSV (OCR); HTML (OCR); JPEG; TIFF; MTIFF; RTF (OCR); PDF; PDF/A; Searchable PDF (OCR); Searchable PDF/A (OCR); TEXT (OCR); Unicode TEXT (OCR); XPS; High-Compression PDF; High-Compression PDF/A
Digital sending standard features
Scan to Email; scan to network folder; scan to USB drive; scan to SharePoint; scan to FTP; scan to sFTP; scan to LAN fax; scan to Internet Fax; local address book; SMTP over SSL; automatically detect color/monochrome; high compression PDF; image adjustments (darkness, contrast, background cleanup, sharpness); optimize text/picture (text, mixed, printed picture, photograph); content orientation; scan mode (book, 2-sided ID); erase edges; auto page crop; job build; image preview; blank page suppression; automatically straighten; embedded OCR; optimize text/picture (auto); scan to multi-destination; automatic tone; auto orientation; multi-feed detection; reverse and retry; document editing; auto paper color removal; job separation (blank page, barcode); watermark; stamps
Dimensions
Maximum dimensions (W x D x H)
66.03 x 51.5 x 59.07 in
Maximum dimensions (W x D x H)
1677.2 x 1308.1 x 1500.5 mm
Maximum metric depth
972
Maximum metric height
1418
Maximum metric width
1565
Metric depth
972
Metric height
1418
Metric width
1565
Package dimensions (W x D x H)
61.6 x 38.3 x 55.8 in
Package dimensions (W x D x H)
1,565 x 972 x 1,418 mm
Pallet dimensions
61.6 x 38.3 x 55.8 in
Pallet dimensions (W x D x H)
1,565 x 972 x 1,418 mm
Dimensions (W x D x H)
50.9 x 27.4 x 46.8 in
Dimensions (W x D x H)
1293 x 695 x 1189 mm
Fax Resolution
Fax Resolution Black (best)
Up to 300 x 300 dpi (400 x 400 dpi for received faxes only)
Resolution (black photo grayscale)
300 x 300 dpi (400 x 400 dpi for received faxes only)
Fax resolution black
Up to 203 x 196 dpi
Resolution (black and white, standard mode)
203 x 98 dpi
Resolution (black and white, superfine mode)
Up to 300 x 300 dpi
Fax Specifications
Auto fax reduction supported
Yes
Distinctive ring detection supported
No
Fax Auto Redial
Yes
Fax Broadcast Locations
210
Fax delayed sending
No
Fax forwarding
Yes
Fax memory
Up to 500 pages
Fax memory
Up to 500 pages
Fax Polling
Yes (poll to receive only)
Fax Speed Dials, Maximum Number
Up to 1000 numbers (each with 210 destinations)
Fax telephone mode supported
No
Faxing
Yes
Junk fax barrier
Yes
Fax PC Interface Supported
Yes
Fax Remote Retrieval
No
Telephone handset supported
No
Multimedia and Input Devices
Fax phone TAM interface supported
No
Resolution
600 dpi
Print
Color or black
Black and white
Color or black
Black and white
Print speed, black
70
Print Resolution
Print resolution black (fine lines)
Up to 1,200 x 1,200 dpi
Print quality black (normal)
Up to 600 x 600 dpi
Print Resolution Technologies
1,200 x 1,200 dpi (Fine lines); 600 x 600 dpi (Normal); 300 x 300 dpi (Quick view)
Print Server Specifications
Network protocols, supported
IPv4/IPv6: Apple Bonjour Compatible (Mac OS 10.2.4 or higher), AirPrint, SNMPv1/v2c/v3, HTTP, HTTPS, Port 9100, LPD, WS Discovery, IPP, Secure-IPP, IPsec/Firewall; IPv6: DHCPv6, MLDv1, ICMPv6; IPv4: Auto-IP, SLP, LLMNR, IGMPv2, BOOTP/DHCP, WINS, IP Direct Mode, WS Print; HP Web Services
Print Time
First page out black (A4, ready)
As fast as 5.3 sec
First page out black (A4, sleep)
As fast as 12.9 sec (15 min)
First page out footnote
[6] Based on HP internal evaluation measuring the time from print initiation to page exit. Exact speed varies depending on the system configuration, software application, driver, and document complexity. Additionally, for information of First Page Out measured using ISO/IEC 17629, see hp.com/go/printer claims.
First page out footnote number
[6]
First page out black (letter, ready)
As fast as 5.3 sec
First page out black (letter, sleep)
As fast as 12.9 sec (15 min)
Printer Specifications
Functions
Print, copy, scan, fax
Automatic paper sensor
No
Duplex printing
Automatic
Duty cycle (monthly, A4)
Up to 250,000 pages (printer); up to 250,000 pages (copier)
Duty cycle (monthly, letter)
Up to 250,000 pages (printer); up to 250,000 pages (copier)
Envelope Feeder
No
Fonts and typefaces
84 scalable TrueType fonts
Internal Storage
None
Paper trays, maximum
5
Paper trays, standard
5
Print colors
No
Print languages
HP PCL 5e, HP PCL 6, HP Postscript level 3 emulation, PDF (v 1.7), AirPrint™ compatible
Printer Management
HP Web JetAdmin Software, HP Security Manager, HP SNMP Proxy Agent (Part of HP WebJetAdmin), HP WS Pro Proxy Agent (Part of HP WebJetAdmin), Printer Administrator Resource Kit for HP Universal Print Driver (Driver Configuration, Utility - Driver, Deployment Utility - Managed Printing Administrator)
Print technology
Laser
Recommended monthly page volume
Up to 60,000
Target user and print volume
For teams over 25 users; Prints up to 60,000 pages/month
Top key features
Two-sided printing; Two-sided scanning; Scan to email/PDF; Strong Security
Warm-up time
100 sec
Processor
Processor speed
1.6 GHz (Quad Core), 1.4 GHz (Dual Core)
Product Images
Photo (product photo, jpg, 70x100)
Printers and Multifunction/hp-laserjet-m5035-mfp-series_70x100.jpg
Product Names
Code name
MOONSTONE T
Model number
8601zb+
Product long name
HP LaserJet Enterprise Flow MFP 8601zb+
Product long name specifications
HP LaserJet Enterprise Flow MFP 8601zb+, Black and white Printer for Enterprise, Print, copy, scan, fax, Two-sided printing; Two-sided scanning; Scan to email/PDF; Strong Security
Product name
HP LaserJet Enterprise Flow MFP 8601zb+
Short product name
HP LaserJet Enterprise MFP 8601 Series
Product short name specifications
HP LaserJet Enterprise 8601zb+ Multifunction Black and white Printer, Only Ethernet; Duplex; Copier, Scanner
Scan Resolution
Enhanced scanning resolution
Up to 600 x 600 dpi
Scan resolution, hardware
Up to 600 x 600 dpi
Scan resolution, optical
Up to 600 x 600 dpi
Scanner Specifications
Automatic document feeder capacity
Standard, 300 sheets
Auto document feeder capacity footnote
[3] ADF Capacity is defined based on 75 g/m² paper.
Auto document feeder capacity footnote number
[3]
Bit depth
24-bit
Color scanning
Yes
Duplex ADF scanning
Yes, single pass duplex scanning
Levels of grayscale
256
Native scan file format
JPG; MTIFF; PDF; TIFF
Scan file format
JPEG; TIFF; MTIFF; XPS; PDF; PDF/A; High-Compression PDF; High-Compression PDF/A; Searchable PDF (OCR); Searchable PDF/A (OCR); High-Compression PDF (OCR); High-Compression PDF/A (OCR); High-Compression Searchable PDF (OCR); High-Compression Searchable PDF/A (OCR); TEXT (OCR); Unicode TEXT (OCR); RTF (OCR); HTML (OCR); CSV (OCR)
Scan file format footnote
[4] For Scan software, we support: Windows (JPG, RAW(BMP), PDF, TIFF, PNG, RTF) and Mac (JPG, JPG-2000, TIFF, PNG, PDF, Searchable PDF, RTF, TXT).
Scan file format footnote number
[4]
Scan input modes
Front panel applications: Copy; Fax; Scan to Email; Scan to Network Folder; Scan to USB; Scan to Job Storage; Open Extensibility Platform (OXP)
Scan size (ADF), maximum
297 x 420 mm
Scan size (ADF), maximum
11 x 17 in
Scan size, maximum
297 x 432 mm
Scan size, maximum
11.69 x 17 in
Scan size (ADF), minimum
68 x 127 mm
Scan size (ADF), minimum
2.7 x 5 in
Scan technology
Platen Scanner CCD Digital-CIS
Scanner type
Flatbed, ADF
Software scan file format
For Scan software, we support: Windows (JPG, RAW(BMP), PDF, TIFF, PNG, RTF) and Mac (JPG, JPG-2000, TIFF, PNG, PDF, Searchable PDF, RTF, TXT)
Twain version
Version 2.4
System Components
Control panel
10.1-in (25.65 cm) Color Graphics Display (CGD) with touchscreen; rotating (adjustable angle) display; Speaker
Capacity
256 GB SSD
System Features
Technical features
ADF; Automatic two-sided printing; Color Touchscreen with Apps; ENERGY STAR®; Ethernet; Scan-to-cloud; Scan-to-email; Scan-to-folder
System Internal
Tangible flag
Y
System Requirements
Minimum System Requirements for Macintosh
2 GB available hard drive space; Internet connection or USB port; Internet browser. For additional OS hardware requirements see apple.com
Minimum System Requirements
2 GB available hard disk space, Internet connection, or USB port, Internet browser. For additional OS hardware requirements see microsoft.com
Warranty
Manufacturer Warranty
One-year, onsite warranty. Warranty and support options vary by product, country and local legal requirements.
Warranty
HP's Premium Protection Warranty. This HP product is warranted to be free from defects in materials and workmanship. This warranty does not apply to print cartridges that (a) have been refilled, refurbished, remanufactured or tampered with in any way, (b) experience problems resulting from misuse, improper storage, or operation outside of the published environmental specifications for the printer product or (c) exhibit wear from ordinary use. To obtain warranty service, please return the product to place of purchase (with a written description of the problem and print samples) or contact HP customer support. At HP’s option, HP will either replace products that prove to be defective or refund your purchase price. TO THE EXTENT ALLOWED BY LOCAL LAW, THE ABOVE WARRANT Y IS EXCLUSIVE AND NO OTHER WARRANTY OR CONDITION, WHETHER WRITTEN OR ORAL, IS EXPRESSED OR IMPLIED AND HP SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY, SATISFACTORY QUALITY, AND FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ALLOWED BY LOCAL LAW, IN NO EVENT WILL HP OR ITS SUPPLIERS BE LIABLE FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL (INCLUDING LOST PROFIT OR DATA), OR OTHER DAMAGE, WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. THE WARRANTY TERMS CONTAINED IN THIS STATEMENT, EXCEPT TO THE EXTENT LAWFULLY PERMITTED, DO NOT EXCLUDE, RESTRICT OR MODIFY AND ARE IN ADDITION TO THE MANDATORY STATUTORY RIGHTS APPLICABLE TO THE SALE OF THIS PRODUCT TO YOU.
Weights
Package weight
531.35 lb
Package weight
241.02 kg
Pallet weight
531.35 lb
Pallet weight
241.02 kg
Waste electrical and electronic weight
171,216 g
Weight
385.63 lb
Weight
174.92 kg
Weight (imperial) footnote number
[9]
Weight (metric) footnote number
[9]
Weight note (imperial)
[9] Including Starter toner cartridge weight
Weight note (metric)
[9] Including Starter toner cartridge weight
Logistics
UPC number
(201) 199251062759; (202) 199251062773; (BGJ) 199251062780
Cable included
No, please purchase USB cable separately (EMEA, APJ, AMS, LATAM)
What's in the box
Installation guide; regulatory flyer; power cords; keyboard/overlay for z/z+; manual
Maximum dimensions (W x D x H)
1677.2 x 1308.1 x 1500.5 mm
Maximum metric depth
972
Maximum metric height
1418
Maximum metric width
1565
Metric depth
972
Metric height
1418
Metric width
1565
Package dimensions (W x D x H)
1,565 x 972 x 1,418 mm
Pallet dimensions (W x D x H)
1,565 x 972 x 1,418 mm
Dimensions (W x D x H)
1293 x 695 x 1189 mm
Cartons per layer
1
Count of layers in pallet
1
Quantity per pallet
1
Material Type for item
FERT
Product number
BD5G9A
RMN number
SEOLA-1905-02
Tariff numbers
8443310000
UNSPSC code
43212110
Package weight
241.02 kg
Pallet weight
241.02 kg
Waste electrical and electronic weight
171,216 g
Weight
174.92 kg
Weight (metric) footnote number
[9]
Weight note (metric)
[9] Including Starter toner cartridge weight
