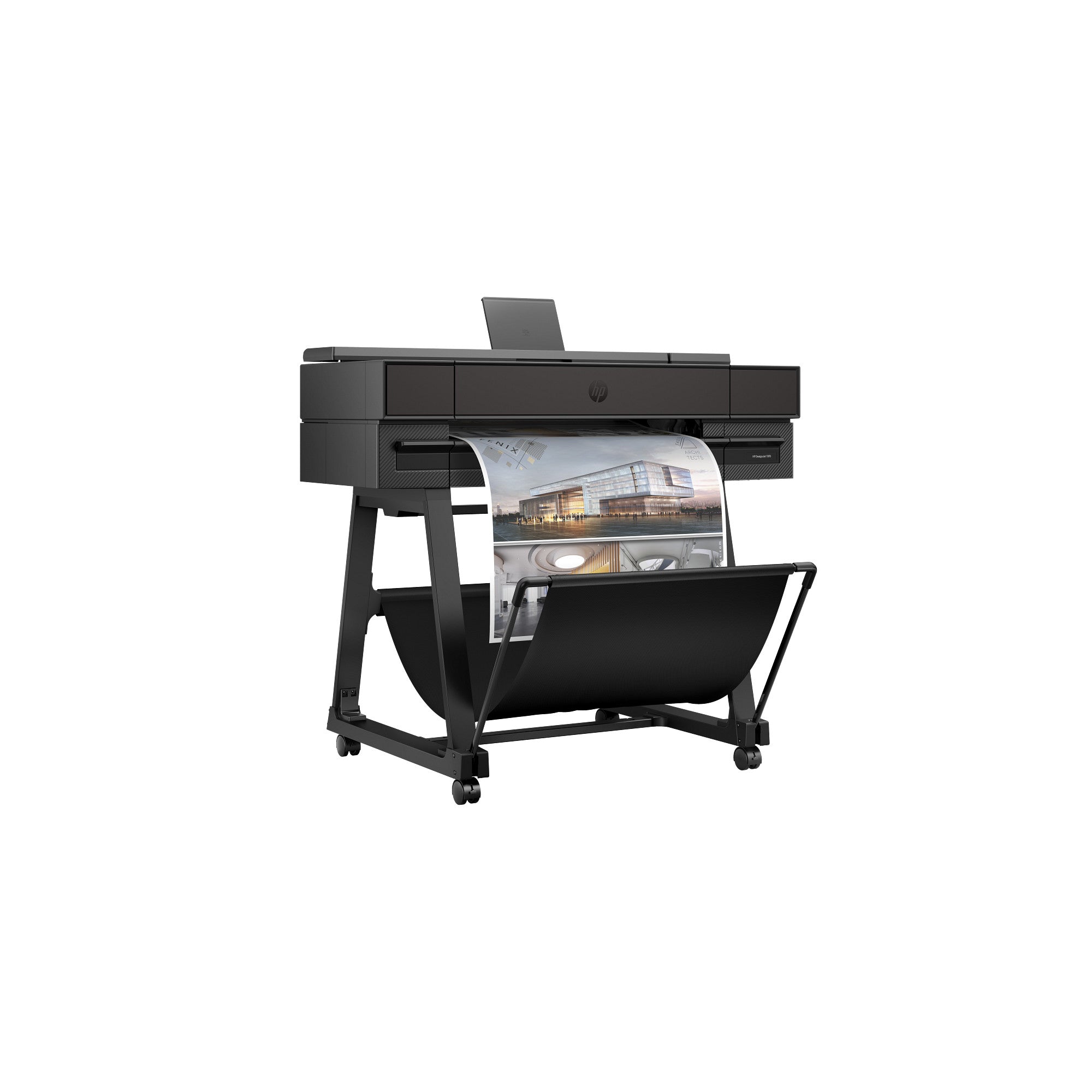

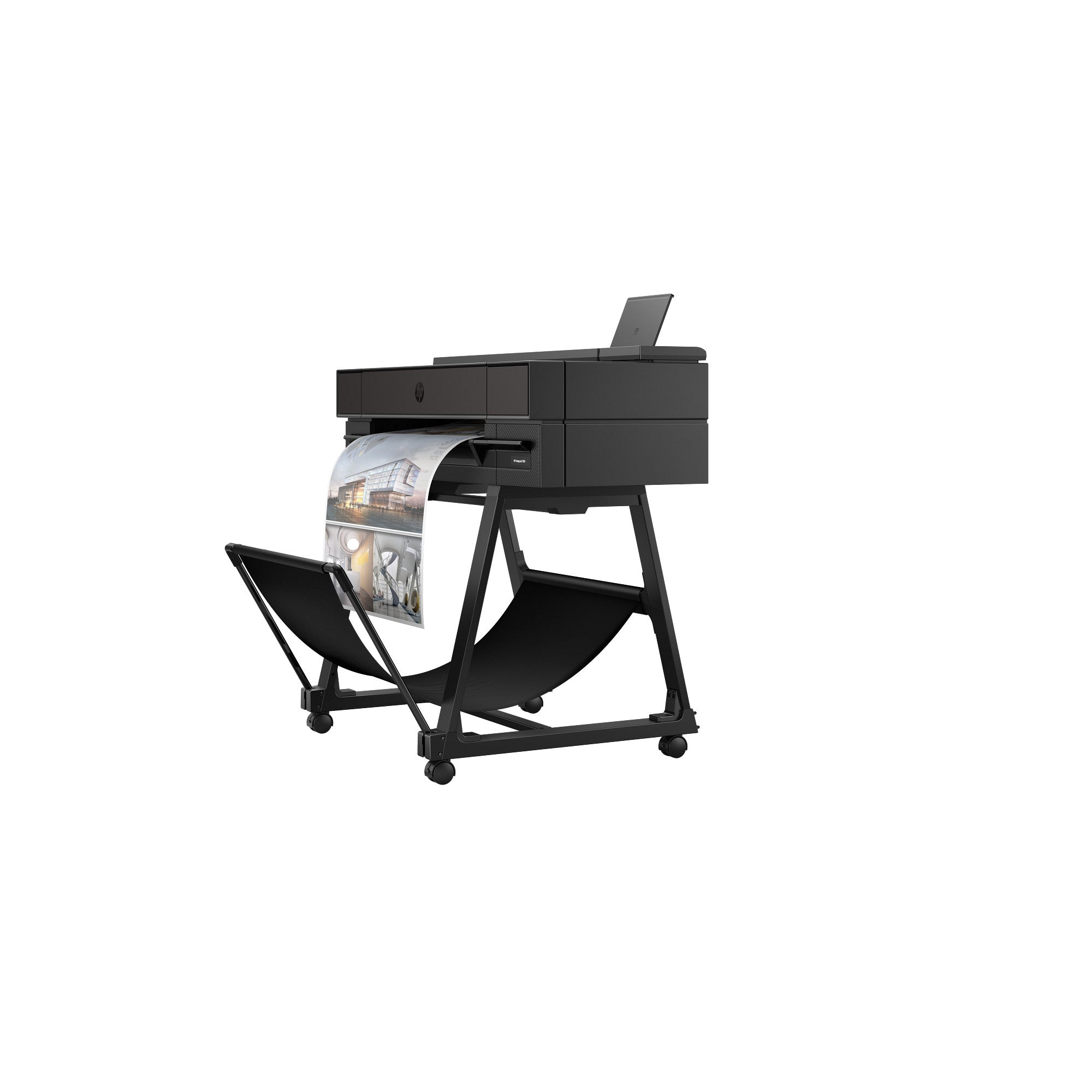

HP DesignJet T870 24-in Printer with 2-year warranty (AM0X9H#B1K)
- Regular price
- 3,378.99$
- Sale price
- 3,378.99$
- Regular price
-
Free shipping
Couldn't load pickup availability
This item works with these cartridges :

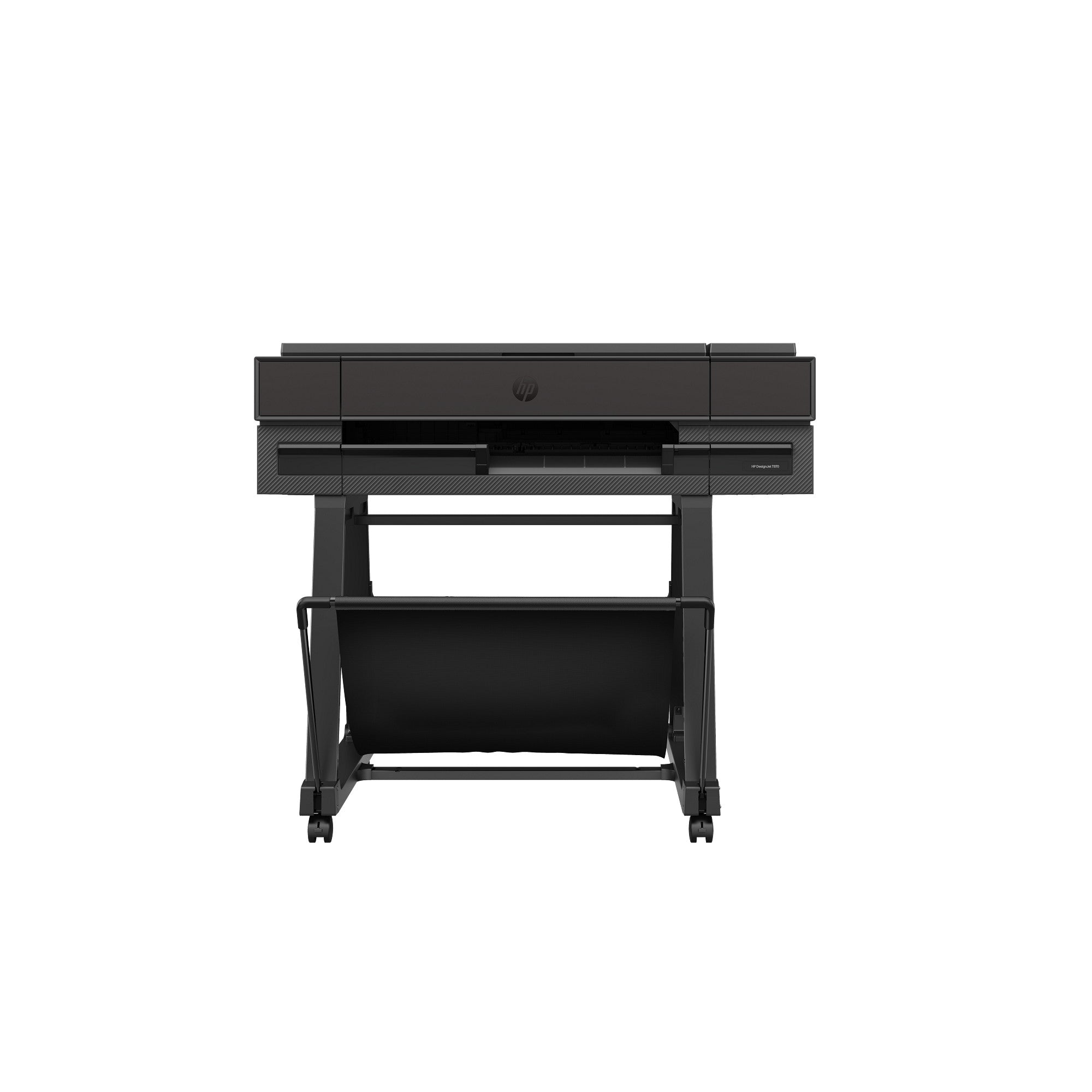

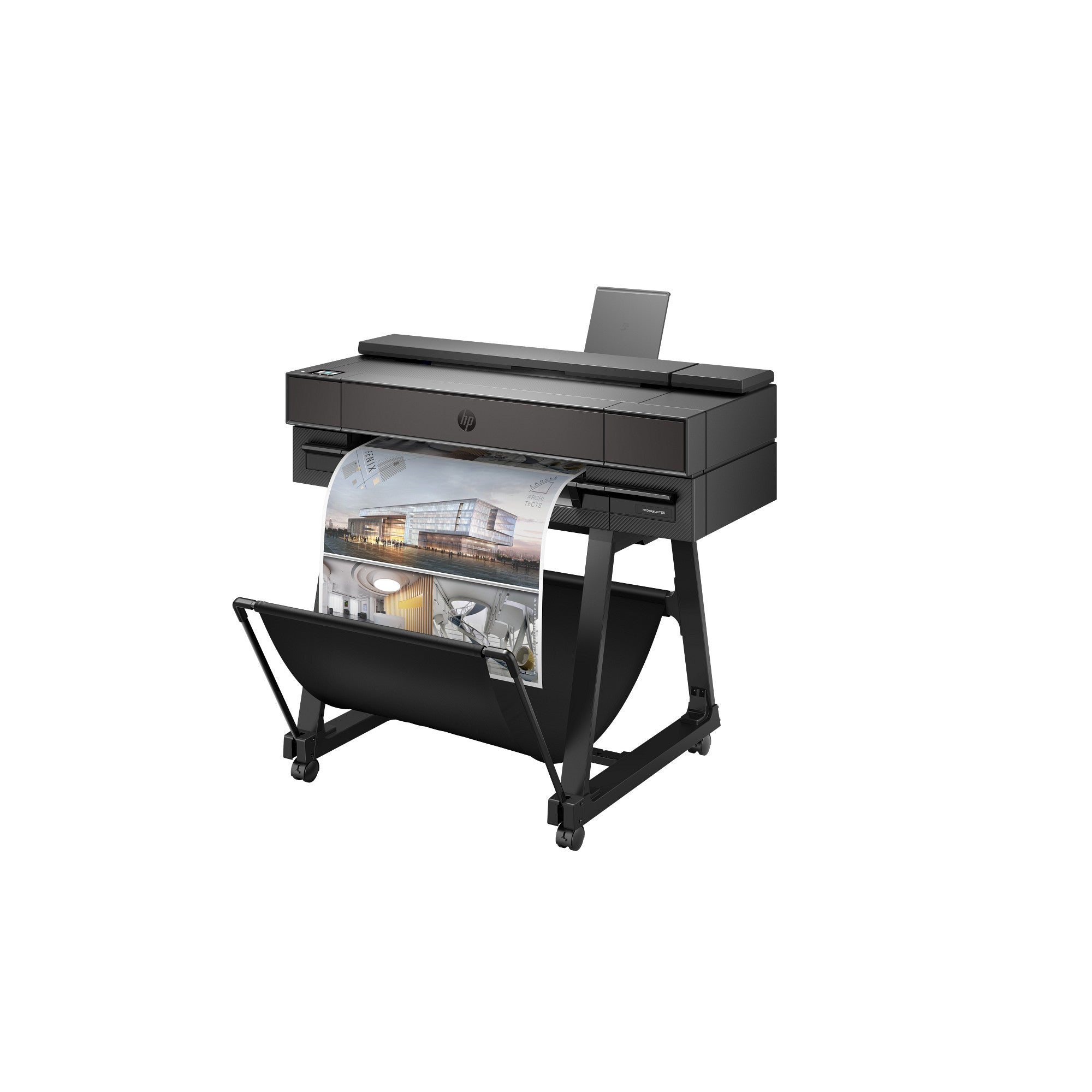

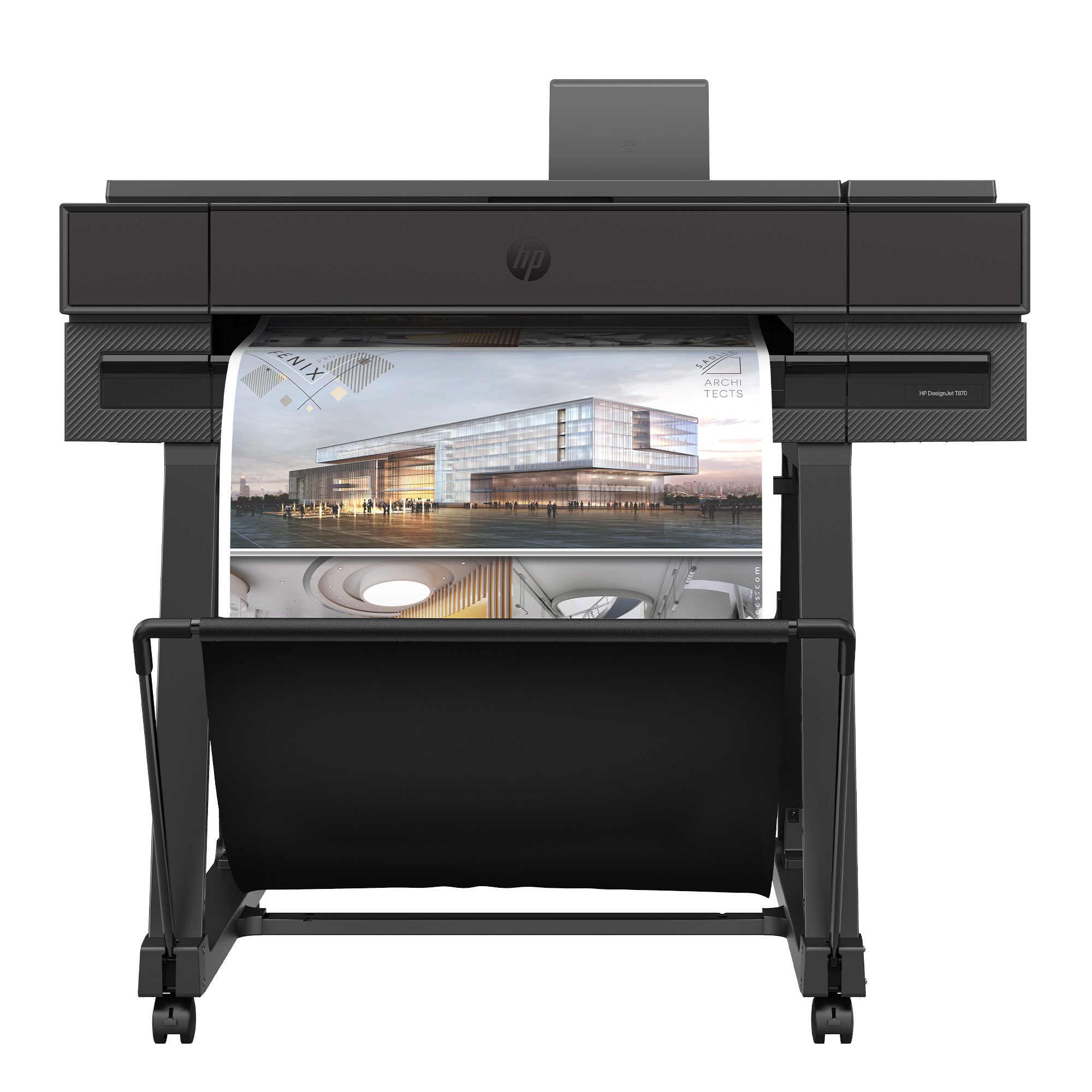

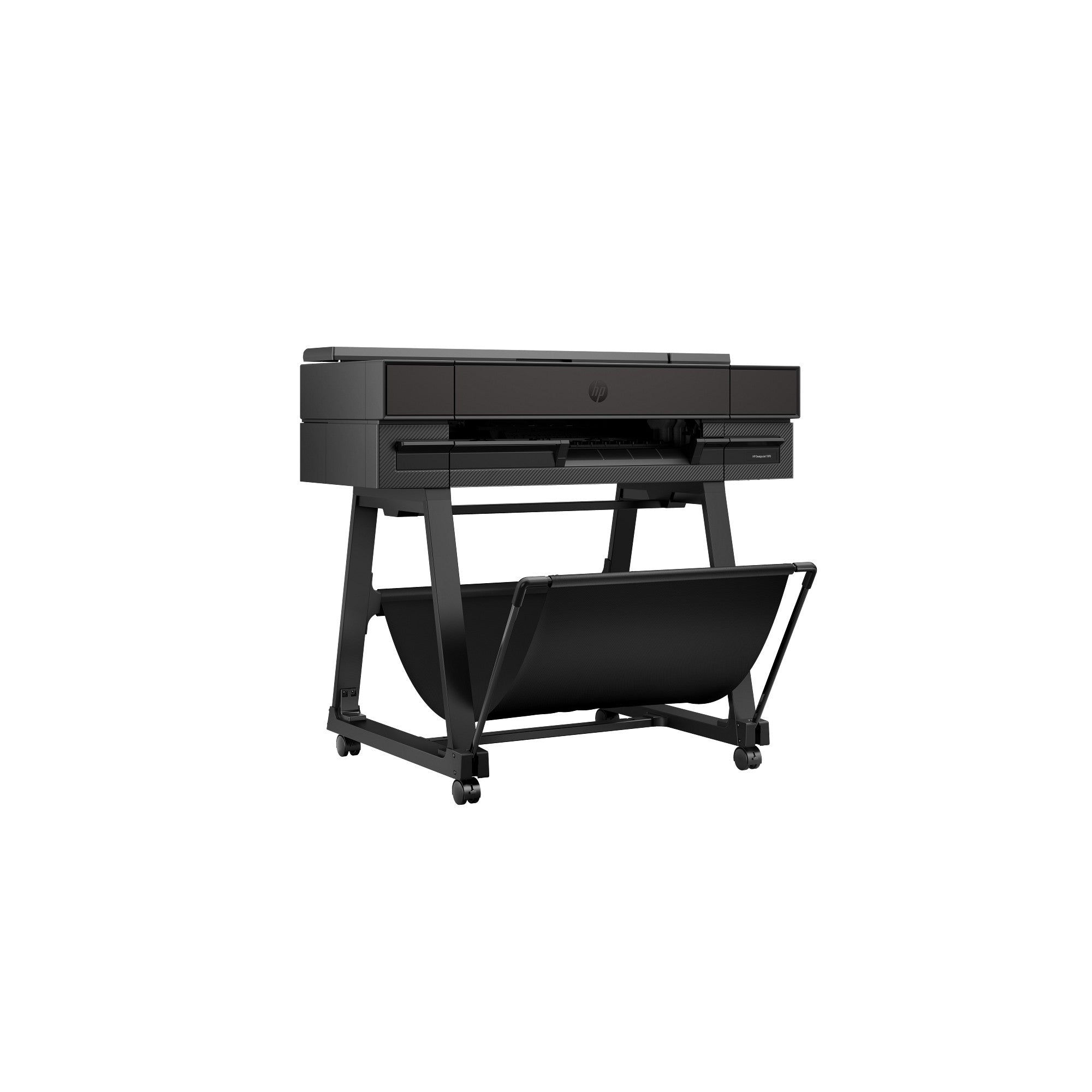

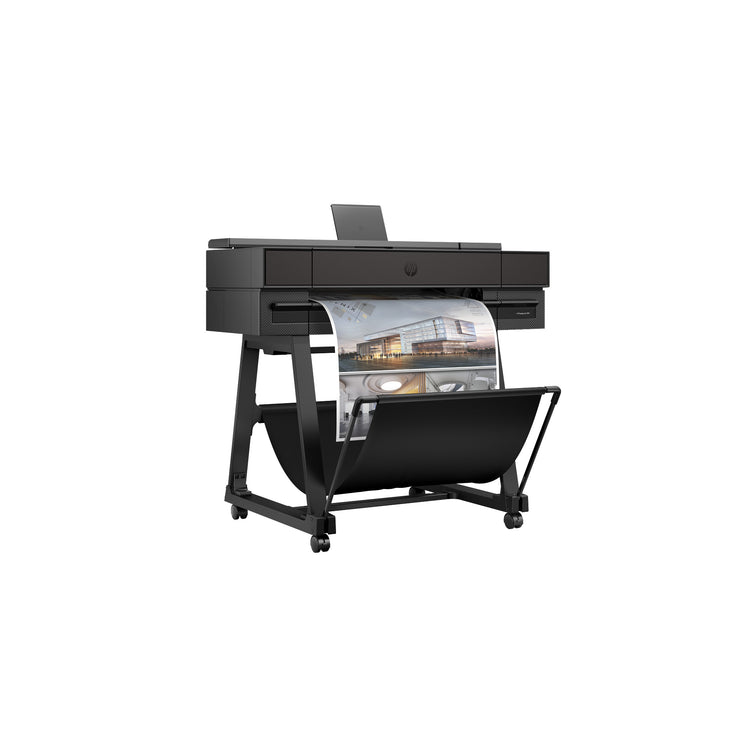

HP DesignJet T870 24-in Printer with 2-year warranty
Brand:HP
Product name:HP DesignJet T870 24-in Printer with 2-year warranty
Product code:AM0X9H
EAN/UPC:
199251089398
Description
Produce CAD drawings, posters, and signage with a printer that delivers the world's easiest multi-size printing experience.[1] Simplify with HP Click[2], keep your data secure, and enhance your sustainability efforts with this compact printer.
Reasons to buy
Print CAD drawings, educational posters, and durable retail signs with HP Flex Tech Inks. Seamlessly print multi-size A4/A to A1/D projects using the integrated input tray. And stay productive with fast print speeds and 130/300 ml cartridges.
Print it all—from renders and CAD drawings to educational posters and durable retail signage, you’ll see high-quality results across print sizes with pigment-based HP Flex Tech Inks.
Easily print multi-size A4/A to A1/D projects using the integrated input tray or roll, without manually changing from roll to sheet.
Stay focused—print A1/D-sized plots in as fast as 21 seconds[2] and experience fewer ink interruptions with 130/300 ml cartridges.
Experience seamless setup and smart protection. HP Click[3] makes printing simple with live previews and automatic error detection, while HP Wolf Pro Security adds built-in defenses for your device and data.
Simplify printing with HP Click[3]—available as a driver and app. Save time with real-print preview and automatic error detection.
Protect your printer and data from cyberthreats without any effort thanks to HP Wolf Pro Security.
This compact printer is made with 45% recycled plastic, 10% recycled metal[5] and includes 100% polystyrene-free packaging.[7] Save energy[4] with auto on/off scheduling, and recycle your HP cartridges through HP Planet Partners.[8]
Invest in a compact, robust printer made with at least 45% recycled plastic and 10% recycled metal.[5]
Lower energy use by up to 60% with automatic on/off scheduling[4], and use up to 95% less ink[6] during printhead cleaning routines.
Reduce plastic waste with 100% polystyrene-free packaging[7] and recycle your HP cartridges through HP’s Planet Partners program.[8]
Specs
PSG_Accessories_Headsets[TS]
What's in the box
HP DesignJet T870 Printer, printhead, introductory ink cartridges, printer stand, spindle, guide, warranty flyer, power cord
Manufacturer Warranty
Two-year limited hardware warranty.
Box contents
What's in the box
HP DesignJet T870 Printer, printhead, introductory ink cartridges, printer stand, spindle, guide, warranty flyer, power cord
Care Pack Registration Flag
Registration required
No
Category
Primary applications
Office documents and presentations; Engineering and construction documents; Advertising posters, roll-ups, and banners; Maps
Product type
Office Printers for CAD and GIS
Sub brand
DesignJet
Subcategory
Large format
Certification and Compliance
Electromagnetic compatibility
Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (RED Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Korea (KCC)
Energy star certified
Yes
Environmental certification
ENERGY STAR®, EPEAT[7], UL ECOLOGO® certified inks, CE marking (including WEEE, RoHS, REACH, ErP). In compliance with applicable WW RoHS materials restriction requirements
Safety
USA and Canada (CSA certified); EU (RED Directive, EN 62368-1 compliant); Singapore (PSB); China (CCC); Mexico (NYCE); Argentina (IRAM); India (BIS)
Sustainability Impact
ENERGY STAR®; EPEAT®; UL Ecologo
Compatibility
Compatibility
698G7A HP DesignJet Sheet Organizer; B3Q36A HP DesignJet 24-in Spindle; CN538A HP DesignJet 3-in Core Adapter
Orderable supplies
HP Original Ink: HP 738 cartridges (Black, Cyan, Magenta, Yellow), and HP 739 printhead
Connectivity and Communications
Connectivity, standard
Gigabit Ethernet (1000Base-T), Wi-Fi 802.11b/g/n
HP ePrint capability
No
Network ready
Standard
Print multi-size files in one click
Yes
Remote print enabled
Yes
Security features
HP Wolf Pro Security, HP Secure Boot, Allowlisting, Security event logging, Disable network ports and protocols, SNMPv3, 802.1x compatibility, TLS 1.3, HP Web JetAdmin, HP Security Manager, SIEM Integration
Environmental
Acoustic power emissions (active, printing)
5.6 B (A) (operating)
Acoustic pressure emissions
40 dB (A) (operating)
Energy Usage CO2e (kg)
71
End of Life CO2e (kg)
126
Non-Operating Humidity Range
0 to 95% RH
Operating altitude
Up to 9842.5 ft
Operating altitude
Up to 3000 m
Operating humidity range
20 to 70% RH (non-condensing)
Operating temperature range
5 to 40°C
Operating temperature range
41 to 104°F
Post consumer recycled plastic in hardware by weight of plastic
45%
Production CO2e (kg)
745
Storage temperature range
-25 to 55°C
Storage temperature range
-13 to 131°F
Total CO2e (kg)
993
Total CO2e (kg) note
A product carbon footprint is defined as the total amount of greenhouse gases emitted directly and indirectly by a product over its lifetime. Greenhouse gas emissions are reported as global warming potential for 100-year time horizon (GWP-100) in units of CO2 equivalence. Calculations are done in accordance with ISO 14040 & ISO 14044. Individual values may not sum to total due to rounding.
Transportation CO2e (kg)
51
Printing Media
Maximum roll diameter
5.2 in
Media sizes standard (metric rolls)
369 to 610 mm
Media sizes standard (sheets, rolls)
14.5 to 24 in
Media thickness
Up to 11.8 mil
Media width, maximum
24 in
Printer Applications
Architecture; Engineering; Construction; Maps; Presentation graphics
Recommended media
HP Universal Bond Paper (FSC® certified)[4] (recyclable)[5]; HP Coated Paper (FSC® certified)[4] (recyclable)[5]; HP Heavyweight Coated Paper (FSC® certified)[4] (recyclable)[5]; HP Recycled[6] Removable Adhesive Fabric; HP Opaque Scrim Banner; HP Production Matte Canvas; HP Backlit Polyester Film; HP Universal Instant‑dry Gloss Photo Paper(FSC® certified)[4]; HP Universal Instant‑dry Satin Photo Paper (FSC® certified)[4]; HP Everyday Matte Polypropylene
Roll external diameter
5.1 in (rolls up to 300 ft)
Roll external diameter
130 mm (rolls up to 91.4 m)
Roll maximum input
1
Roll maximum weight
13.2 lb
Roll maximum weight
8 kg
Roll size
Up to 24 in
Supported Primary Applications
Banners; Line drawings; Maps; Posters; Presentations; Renderings; Signage
Product Numbers
Product number
AM0X9H
UNSPSC code
43212110
Software and Applications
Software included
HP Click Driver for Windows 11, HP Click App for Windows and Mac, HP App for Windows, Mac, Android and iOS, PartnerLink
Supported Printing Media
Media sizes, custom
Auto sheet feeder: 210 x 279 to 305 x 457 mm; Manual feed: 210 x 279 to 609 x 1676 mm
Media sizes, custom
Auto sheet feeder: 8.3 x 11 to 12 x 18 in; Manual feed: 8.3 x 11 to 24 x 66 in
Media sizes supported
Auto sheet feeder: A4, A3; Manual feed: A4, A3, A2, A1
Media sizes supported
Auto sheet feeder: A, B; Manual feed: A, B, C, D
Media thickness maximum (metric)
0.3 mm
Media thickness maximum
0.0118 in
Media types
Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte, backlit), photographic paper (ID satin, ID gloss), self-adhesive (matte/gloss, polypropylene gloss, removable fabric), banner (polypropylene matte, PVC banner), fine art material (canvas)
Media weight, recommended
60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (auto sheet feeder)
Media weight, recommended
0.01 to 0.057 lb/ft² (roll/manual feed); 0.01 to 0.045 lb/ft² (auto sheet feeder)
Media width, maximum
610 mm
Logistics
UPC number
(AC4) 199642790827; (AKV) 199642790834; (B19) 199251089381; (B1K) 199251089398
What's in the box
HP DesignJet T870 Printer, printhead, introductory ink cartridges, printer stand, spindle, guide, warranty flyer, power cord
Package dimensions (W x D x H)
1310 x 570 x 640 mm
Dimensions (W x D x H)
1100 x 690 x 935 mm
Country of origin
Made in Thailand
Material Type for item
FERT
Product number
AM0X9H
UNSPSC code
43212110
Package weight
48.5 kg
Weight
38.5 kg
Barcodes
UPC number
(AC4) 199642790827; (AKV) 199642790834; (B19) 199251089381; (B1K) 199251089398
Battery and Power
Power consumption
35 W (printing), <5.5 W (ready), <2.5 W (sleep), <0.2 W (off); auto-scheduled printer on/off usage
Power
Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1.2 A max
Cartridges and Printheads
Cartridge volume
130 ml; 300 ml
Color ink technology
Pigment
Ink drop
6 pl (C, M, Y); 12.6 pl (mK)
Ink types
Pigment-based (C, M, Y, mK)
Number of cartridges
4
Print Cartridge/Bottle, Color(s)
Cyan, magenta, yellow, matte black
Print Cartridges/Bottle, Number
4 (C, M, Y, mK) cartridges
Print cartridge/bottle volume
300 ml per cartridge; 130 ml per cartridge
Print head nozzles
1376 per color; 5504 in total
Print heads
1 (C, M, Y, mK)
Print Technology
Ink
Connection and Communication
Connectivity
Apple AirPrint™; Ethernet networking; USB; Wireless direct printing
Core Features
Product type
Office Printers for CAD and GIS
Dimensions
Package dimensions (W x D x H)
51.7 x 22.44 x 25.19 in
Package dimensions (W x D x H)
1310 x 570 x 640 mm
Dimensions (W x D x H)
43.3 x 27.1 x 36.8 in
Dimensions (W x D x H)
1100 x 690 x 935 mm
Drives
Job storage memory
2.7 GB reprint queue
Geographic
Country of origin
Made in Thailand
Information Pointers
Additional information about HP in the countries
hp.com
Media Handling
Media size maximum (mm)
610
Memory
Memory
1 GB
Metadata
Taxonomy
Large Format Printers/ Plotters
Segment
Business
Print
Color or black
Color
Print Area
Non-printable area (cut-sheet)
5 x 5 x 5 x 5 mm
Non-printable area (cut-sheet)
0.2 x 0.2 x 0.2 x 0.2 in
Non-printable area (roll media)
5 x 5 x 5 x 5 mm
Non-printable area (roll media)
0.2 x 0.2 x 0.2 x 0.2 in
Print Resolution
Maximum optical density (black)
15 L* min/1.7 D[3]
Print quality color (best)
Up to 2400 x 1200 optimized dpi
Print Speed
Print speed
20 to 30 sec/page on D size
Print speed
21 sec/page on A1, 120 A1 prints per hour[1]
Print speed
21 sec/page for D size, 120 D size 24-in prints per hour[1]
Printer Specifications
Functions
Print
Functions
Print
Internal Storage
None
Line accuracy
±0.1%[2]
Model size
610 mm
Model size
24 in
Printer drivers included
Raster driver for macOS and Windows, HP Click Driver for Windows 11, HP-GL/2 driver for Windows
Features
Automatic roll and sheet switching (ARSS); Automatic horizontal cutter; Stand; Wi-Fi; USB
Print languages
TIFF, JPEG, URF, PDF, HP-GL/2, HP-RTL, CALS G4
Printing path
HP Click App for Windows and Mac, HP Click Driver for Windows 11, Apple AirPrint and HP app for Android and iOS devices, Windows and macOS printer drivers, printing support for Chrome OS, Wi-Fi Direct, remote printing, print from USB pen drive
Print technology
HP Thermal Inkjet
Theoretical minimum line width
0.0008 in (via raster driver)
Theoretical minimum line width
0.02 mm (via raster driver)
Printing Media Handling
Finished output handling
Roll feed, automatic sheet feeder (50 sheet capacity), media bin, automatic horizontal cutter
Product Names
Code name
RAY
Product long name
HP DesignJet T870 24-in Printer
Product name
HP DesignJet T870 24-in Printer with 2-year warranty
Special Products
Product classification flag
Standard HP Product
System Internal
Tangible flag
Y
Warranty
Manufacturer Warranty
Two-year limited hardware warranty.
Weights
Package weight
104 lb
Package weight
48.5 kg
Weight
85 lb
Weight
38.5 kg
Sustainability
Production CO2e (kg)
745
Transportation CO2e (kg)
51
Energy Usage CO2e (kg)
71
End of Life CO2e (kg)
126
Total CO2e (kg)
993
Total CO2e (kg) note
A product carbon footprint is defined as the total amount of greenhouse gases emitted directly and indirectly by a product over its lifetime. Greenhouse gas emissions are reported as global warming potential for 100-year time horizon (GWP-100) in units of CO2 equivalence. Calculations are done in accordance with ISO 14040 & ISO 14044. Individual values may not sum to total due to rounding.
Environmental certification
ENERGY STAR®, EPEAT[7], UL ECOLOGO® certified inks, CE marking (including WEEE, RoHS, REACH, ErP). In compliance with applicable WW RoHS materials restriction requirements
Energy star certified
Yes
Country of origin
Made in Thailand
