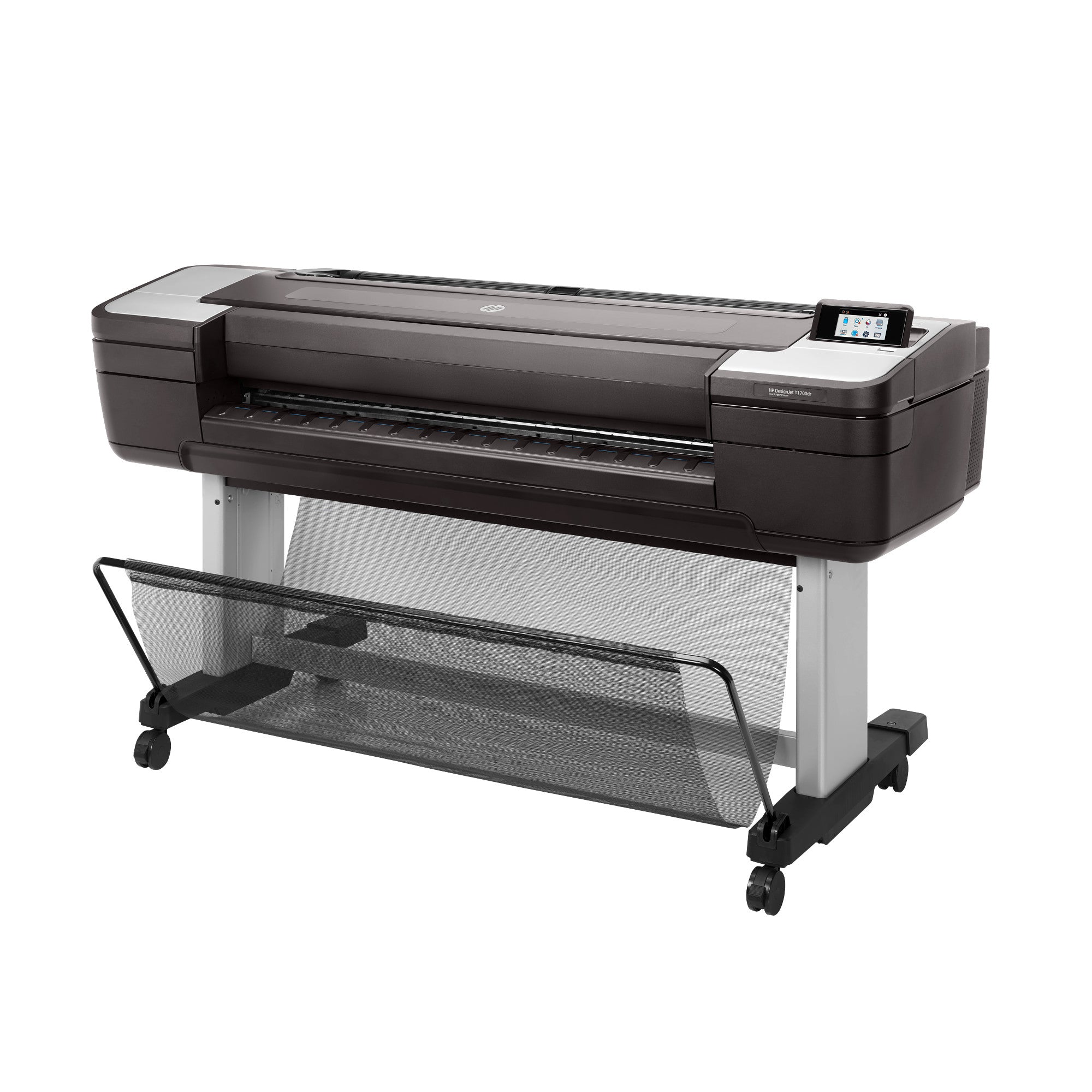

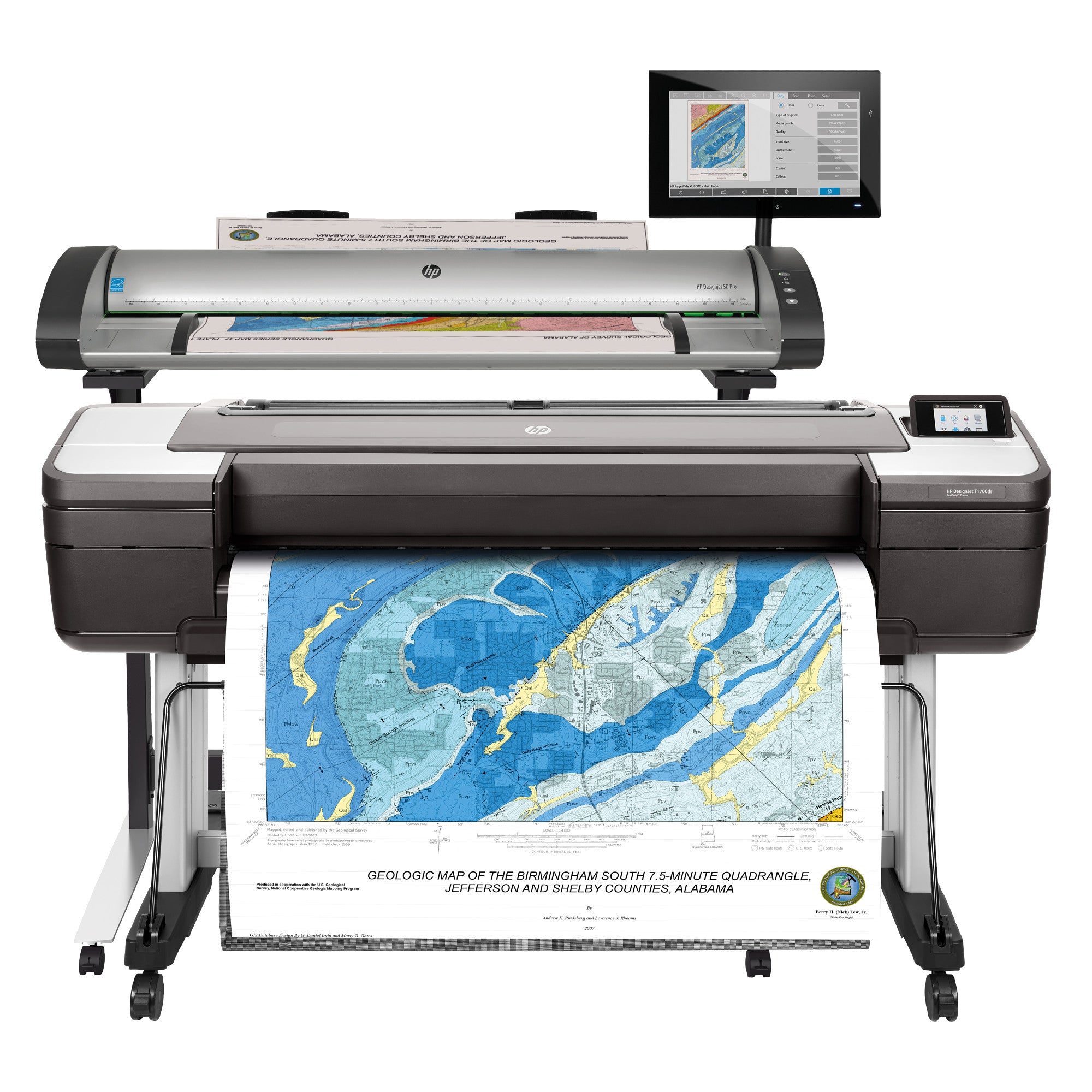

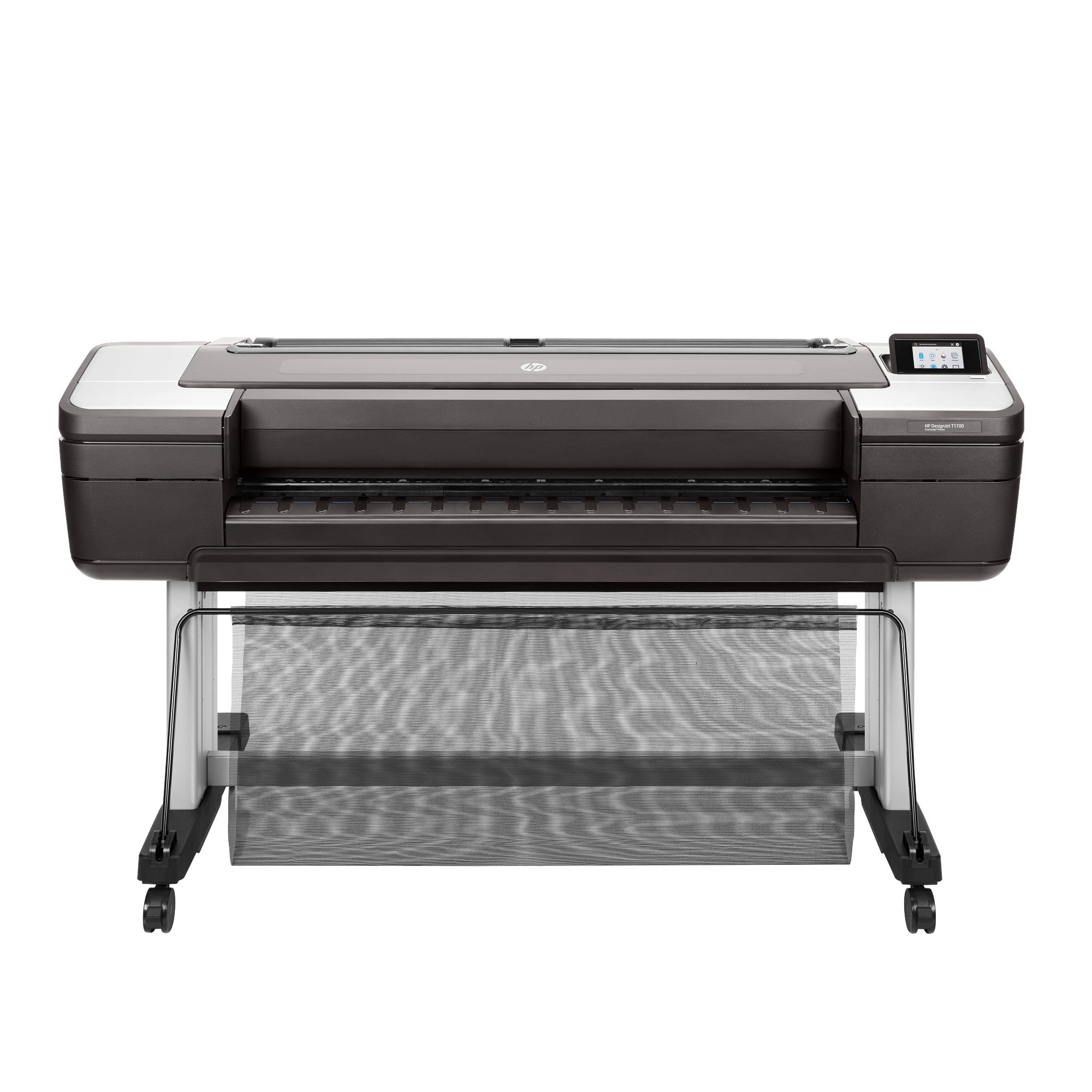

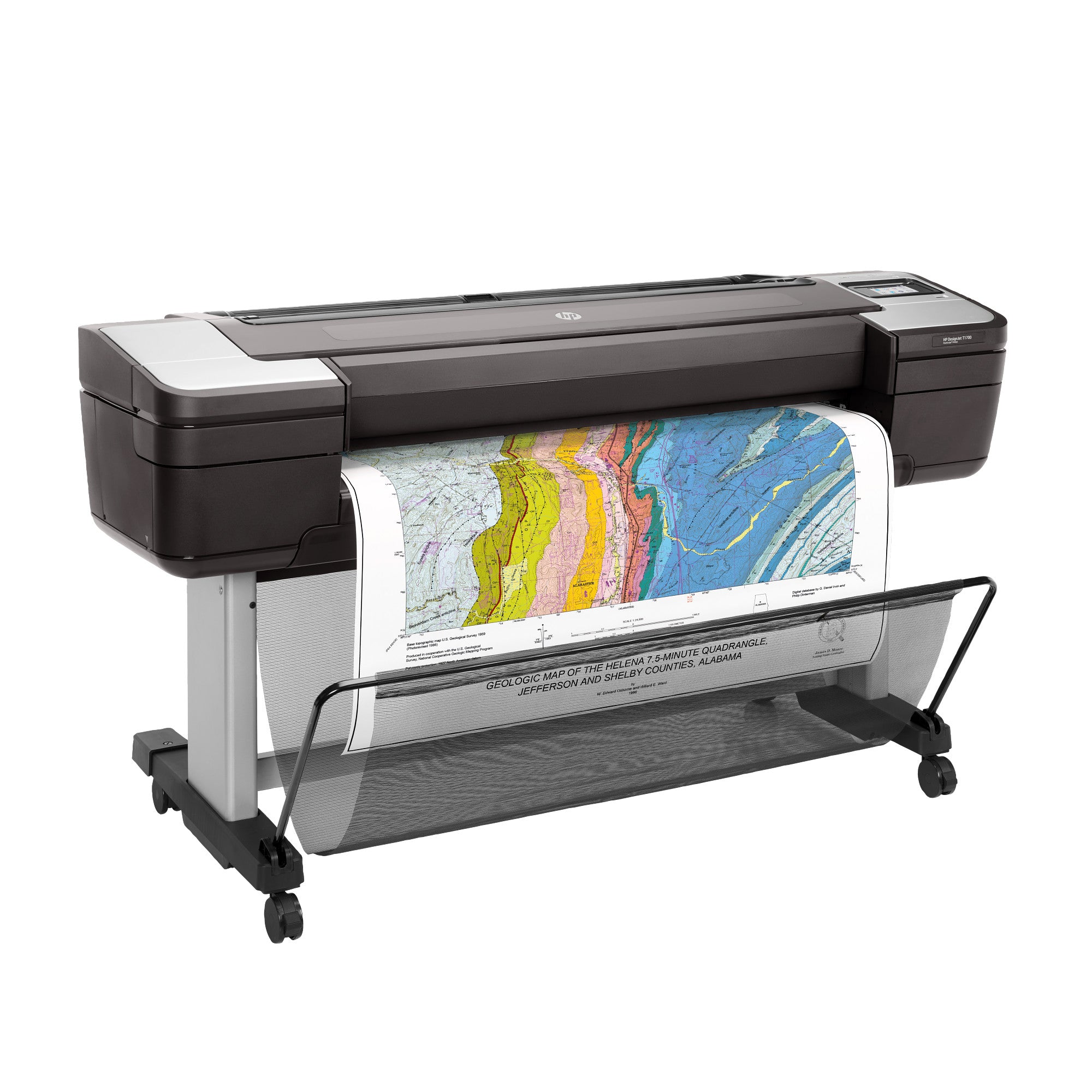

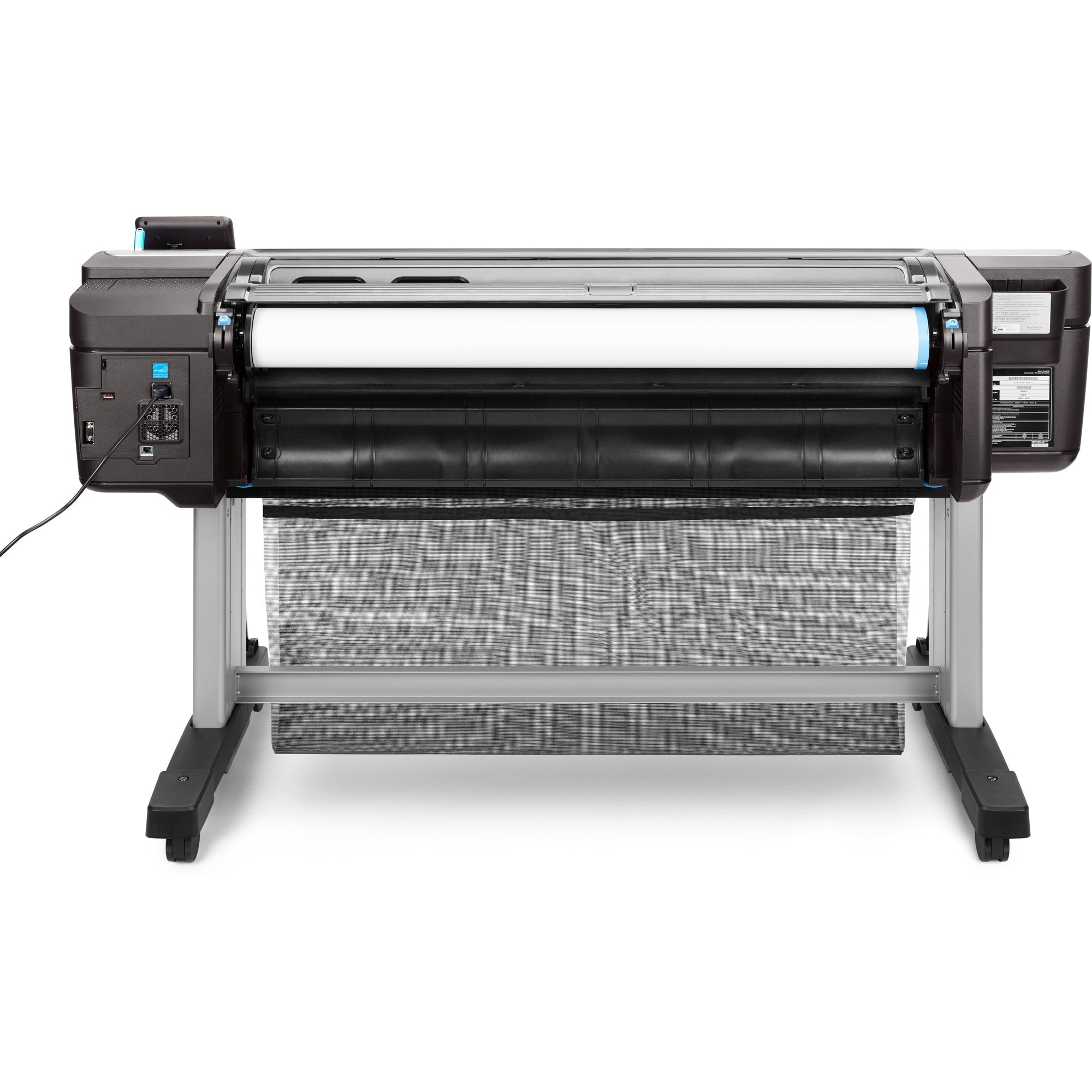

HP DesignJet T1700dr 44-in Printer (W6B56A#B1K)
- Regular price
- 10,378.99$
- Sale price
- 10,378.99$
- Regular price
-
Free shipping
Couldn't load pickup availability

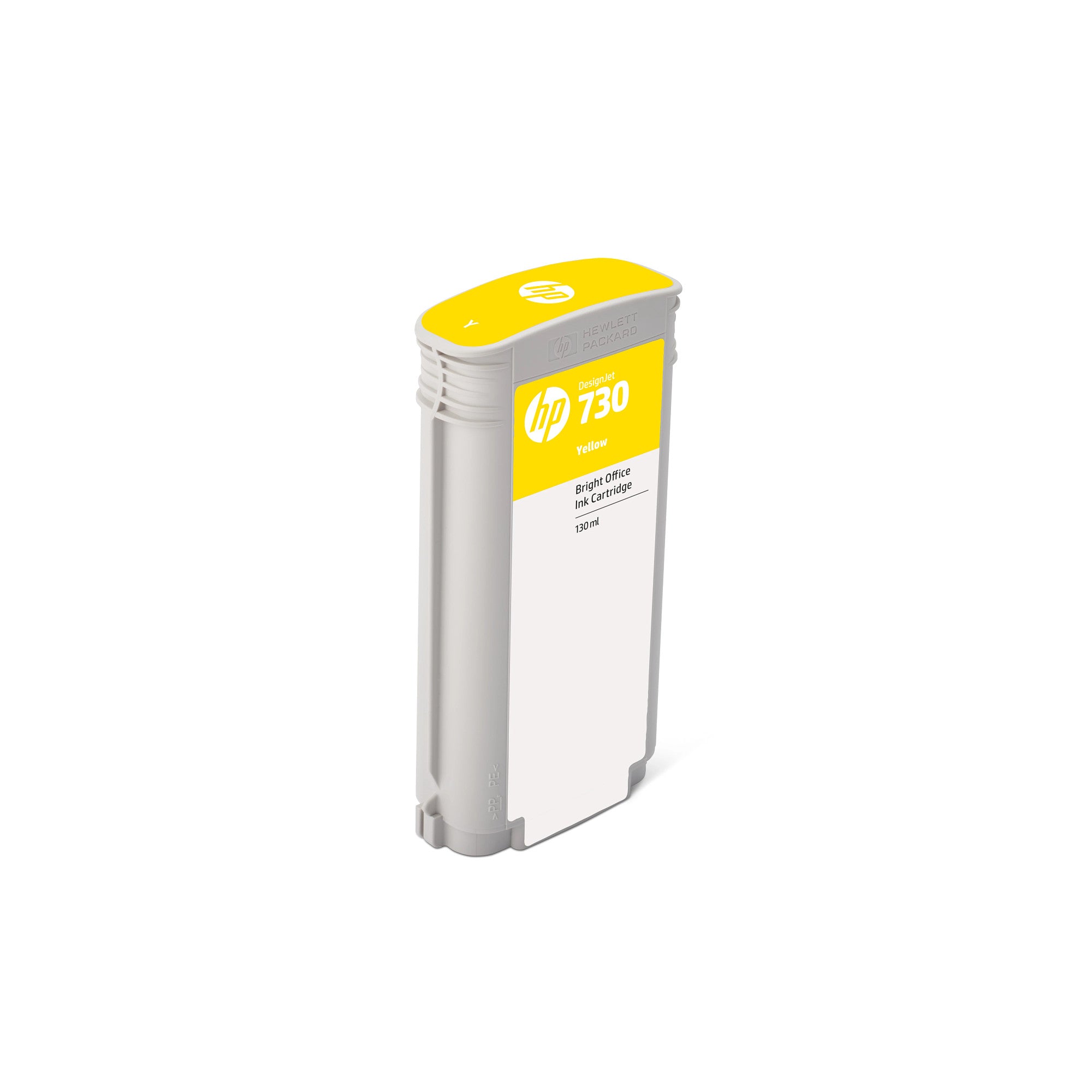

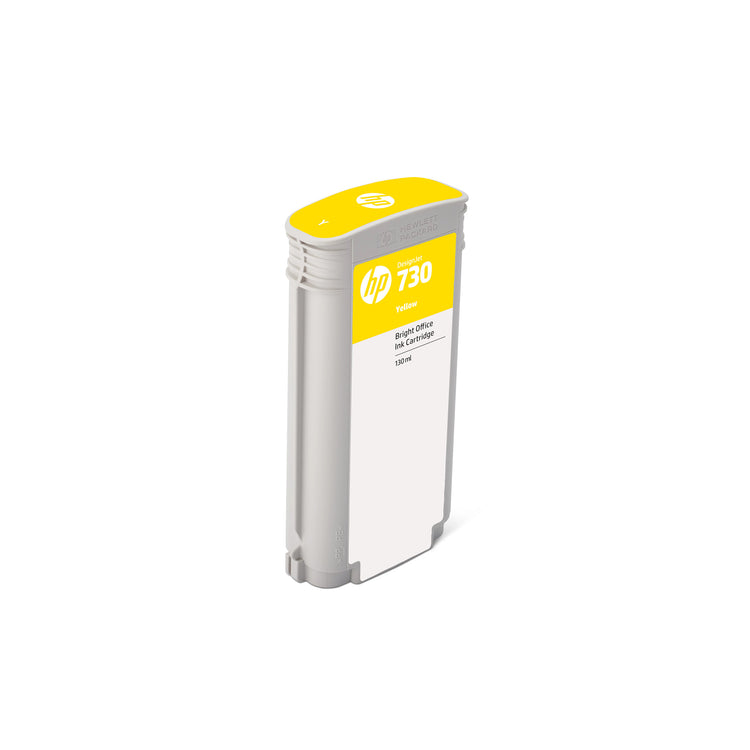

This item works with these cartridges :
HP DesignJet T1700dr 44-in Printer
Brand:HP
Product name:HP DesignJet T1700dr 44-in Printer
Product code:W6B56A
EAN/UPC:
191628122141
Description
Confidently take CAD, GIS color reproduction to the next level with a 44-in HP DesignJet printer that delivers powerful security features, high productivity on even the most complex files with the Adobe PDF driver[2], and bright and precise colors.
Reasons to buy
Protect your printer and your data from external or unintended access with advanced security features. Simplify device and fleet management, including security management. Control and optimize printing costs with accounting solutions.
Safeguard your device from attacks by validating the integrity of your firmware and BIOS with Allowlisting and HP Secure Boot.
Control who accesses the printer and its confidential documents with secure user authentication.
Keep your fleet secure at any time with HP Security Manager[3].
Stay productive—with the Adobe PDF driver[2], you can handle even the most complex CAD/GIS files without freezing up your PC. Work uninterrupted with dual-roll capabilities. Easily print project sets and PDF documents with HP Click printing software.
Adobe PDF drivers[2] free up your computer immediately after sending to print—even for the most complex files.
No interruptions—with two rolls, you can reduce roll changes, double capacity, and help switch paper types.
Handle complex files—powerful processing architecture[1], 128 GB memory[4], 500 GB HDD at 116 A1/D pgs/hr.
Easily print project sets and PDF documents with HP Click printing software.
For complex CAD/GIS files, precise colors enable better decisions. Six HP Bright Office Inks provide bright color, bold image quality, color/gray/photo black for soft colors, dark tones. Reproduce layers of data with the Adobe PDF Print Engine.[2]
Get bright color and bold image quality—even on plain papers—with HP Bright Office Inks.
Reproduce transparencies, layers, color palettes, and gradients with embedded Adobe PDF Print Engine.[2]
Tuned profiles reproduce distinct shades of color; color/gray/photo black inks make soft colors, dark tones.
Accurately display data—high-density printheads provide 2400 nozzles per inch, enabling 0.1% line accuracy.[5]
Specs
PSG_Accessories_Headsets[TS]
What's in the box
HP DesignJet T1700 Printer, printheads, ink cartridges, printer stand, spindles (x2), setup poster, introductory information, warranty, power cords, label kits
Manufacturer Warranty
One-year limited hardware warranty
Box contents
What's in the box
HP DesignJet T1700 Printer, printheads, ink cartridges, printer stand, spindles (x2), setup poster, introductory information, warranty, power cords, label kits
Care Pack Registration Flag
Registration required
No
Category
Primary applications
Office documents and presentations; Engineering and construction documents; Maps
Product type
Office Printers for CAD and GIS
Sub brand
DesignJet
Subcategory
Large format
Certification and Compliance
Electromagnetic compatibility
Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC), South Africa (SABS)
Energy star certified
Yes
Environmental certification
ENERGY STAR; WEEE; RoHS (EU, China, Korea, India); REACH; EPEAT Silver
Safety
USA and Canada (CSA certified); EU (LVD and EN 60950-1 compliant); Russia, Belarus, Khazakstan (EAC); Singapore (PSB); China (CCC); Argentina (IRAM); India (BIS)
Sustainability Impact
ENERGY STAR®; EPEAT®
Compatibility
Accessories
HP DesignJet 44-in Spindle Q6709A; HP HD Pro 42-in Scanner G6H51B; HP SD Pro 44-in Scanner G6H50B; HP DesignJet 3-in Core Adapter CN538A; HP USB 3.0 to Gigabit LAN Adapter N7P47AA; HP DesignJet PostScript/PDF Upgrade Kit C0C66B
Connectivity and Communications
Connectivity, optional
HP USB 3.0 to Gigabit LAN Adapter
Connectivity, standard
Ethernet, Fast Ethernet, Gigabit Ethernet, 10/100/1000Base-T Ethernet (802.3, 802.3u, 802.3ab); USB Type-A host port
HP ePrint capability
Yes
Mobile printing capability
Direct print from mobile apps on iOS, Android and Chrome OS; email printing with HP ePrint and HP Smart app for iOS and Android
Network ready
Standard
Security features
HP Wolf Pro Security, HP Secure Boot, Allowlisting, Role Based Access Control, SNMPv3, HTTPS, Secure-IPP, IPsec/Firewall, Certificates management, 802.1X, TLS 1.0/1.1/1.2, HP Web Jetadmin compatible, HP JetAdvantage Security Manager compatible, Secure Disk erase (DoD 5220.22-M), Secure File erase, self-encrypting HDD, PIN printing
Geographic
Country of origin
China(B19, ACJ, B1K, BCD, ABG)
Media Handling
Media size maximum (mm)
1118
Media size maximum (in)
44
Monthly printed pages
Very frequently
Memory
Maximum Memory
128 GB (virtual)
Memory
128 GB (virtual)[3]
Memory Note
Based on 4 GB DDR3 RAM
Metadata
Taxonomy
Large Format Printers/ Plotters
Segment
Business
Print Area
Non-printable area (cut-sheet)
3 x 17 x 3 x 3 mm
Non-printable area (cut-sheet)
0.12 x 0.67 x 0.12 x 0.12 in
Non-printable area (roll media)
3 x 3 x 3 x 3 mm
Non-printable area (roll media)
0.12 x 0.12 x 0.12 x 0.12 in
Print Resolution
Maximum optical density (black)
2.15 maximum black optical density (6 L*min)
Print quality color (best)
Up to 2400 x 1200 optimized dpi
Printer Specifications
Functions
Print
Functions
Print
Internal Storage
500 GB self-encrypting
Line accuracy
±0.1%[2]
Model size
1118 mm
Model size
44 in
Printer drivers included
Raster drivers for Windows and macOS; PostScript and PDF Windows drivers and macOS PostScript driver with optional PostScript/PDF Upgrade Kit
Features
Dual-roll with automatic roll-switching; Adobe PostScript; Hard disk; Automatic horizontal cutter; Stand; USB
Optional printer languages
Adobe PostScript 3; Adobe PDF 1.7 ext 3
Print languages
HP-GL/2, TIFF, JPEG, URF, CALS G4
Printing path
Direct printing from USB flash drive, email printing, HP driver for Windows, HP Print Service for Android, Apple AirPrint for MacOS and for iOS, HP Print for Chrome OS, HP Click, HP Smart App for iOS and Android
Print technology
HP Thermal Inkjet
Theoretical minimum line width
0.0008 in (PDF addressable @ 1200 dpi)
Theoretical minimum line width
0.02 mm (PDF addressable @ 1200 dpi)
Printing Media Handling
Finished output handling
Sheet feed, two automatic roll feeds, automatic roll-switching, media bin, automatic horizontal cutter
Product Names
Code name
Juno
Product long name
HP DesignJet T1700dr 44-in Printer
Product name
HP DesignJet T1700dr 44-in Printer
Short product name
T1700dr
Software and Applications
Software included
HP Click, HP Utility for Mac and Windows, HP WebJet Admin, HP Embedded Web Server, HP JetAdvantage Security Manager, HP Partner Link, HP MPS
Supported Printing Media
Media sizes, custom
210 x 279 to 1118 x 1676 mm
Media sizes, custom
8.3 x 11 to 44 x 66 in
Media sizes supported
A4, A3, A2, A1, A0
Media sizes supported
A, B, C, D, E
Media thickness maximum (metric)
Up to 0.8 mm
Media thickness maximum
0.03 in
Media types
Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte), technical paper (natural tracing, translucent bond), film (clear, matte), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (polypropylene, vinyl)
Media weight, recommended
60 to 328 g/m²
Media weight, recommended
0.012 to 0.067 lb/ft²
Media width, maximum
1118 mm
Logistics
UPC number
191628122141
What's in the box
HP DesignJet T1700 Printer, printheads, ink cartridges, printer stand, spindles (x2), setup poster, introductory information, warranty, power cords, label kits
Package dimensions (W x D x H)
1955 x 770 x 710 mm
Dimensions (W x D x H)
1802 x 695 x 998 mm
Country of origin
China(B19, ACJ, B1K, BCD, ABG)
Material Type for item
FERT
Product number
W6B56A
UNSPSC code
43212104
Package weight
128 kg
Weight
89.4 kg
Barcodes
UPC number
191628122141
Battery and Power
Power consumption
< 100 W (printing); < 24 W (ready); < 0.3 W (< 6.5 W with embedded Digital Front End) (sleep); 0.1 W (off)
Power
Input voltage (auto ranging) 100-240 V (±10%), 50/60 Hz (±3 Hz), 2 A max
Cartridges and Printheads
Cartridge volume
130 ml; 300 ml
Color ink technology
Pigment; Dye
Ink drop
6 pl
Ink types
Dye-based (C, M, Y, PK, G); pigment-based (MK)
Number of cartridges
6
Print Cartridge/Bottle, Color(s)
Cyan, magenta, yellow, photo black, matte black, gray
Print Cartridges/Bottle, Number
6 (cyan, magenta, yellow, photo black, matte black, gray)
Print cartridge/bottle volume
Cyan, magenta, yellow, photo black, matte black, gray (300 ml); Cyan, magenta, yellow, photo black, matte black, gray (130 ml)
Print head nozzles
2112 each color
Print heads
3 universal printheads, 2 colors each
Print Technology
Ink
Core Features
Product type
Office Printers for CAD and GIS
Dimensions
Package dimensions (W x D x H)
77 x 30.3 x 28 in
Package dimensions (W x D x H)
1955 x 770 x 710 mm
Dimensions (W x D x H)
70.9 x 27.4 x 39.3 in
Dimensions (W x D x H)
1802 x 695 x 998 mm
Environmental
Acoustic power emissions (active, printing)
6.1 B(A) (operating), 5.0 B(A) (idle), <3.1 B(A) (sleep)
Acoustic pressure emissions
45 dB(A) (operating), 32 dB(A) (idle), <15 dB(A) (sleep)
Energy Usage CO2e (kg)
5
End of Life CO2e (kg)
29
Non-Operating Humidity Range
0 to 90% RH
Operating humidity range
20 to 80% RH
Operating temperature range
5 to 40ºC
Operating temperature range
41 to 104ºF
Production CO2e (kg)
538
Storage temperature range
-25 to 55ºC
Storage temperature range
-13 to 131ºF
Total CO2e (kg)
611
Total CO2e (kg) note
A product carbon footprint is defined as the total amount of greenhouse gases emitted directly and indirectly by a product over its lifetime. Greenhouse gas emissions are reported as global warming potential for 100-year time horizon (GWP-100) in units of CO2 equivalence. Calculations are done in accordance with ISO 14040 & ISO 14044. Individual values may not sum to total due to rounding.
Transportation CO2e (kg)
39
Print Speed
Print speed
20 to 30 sec/page on D size
Print speed
116 A1/hr, 26 sec/A1[1]
Print speed
116 D/hr, 26 sec/D[1]
Printing Media
Maximum roll diameter
5.3 in
Media sizes standard (metric rolls)
279 to 1118-mm
Media sizes standard (sheets, rolls)
11 to 44-in
Media thickness
Up to 31.5 mil
Media width, maximum
44 in
Printer Applications
Architecture; Retail signage; Maps; Presentation graphics
Recommended media
C6810A HP Bright White Inkjet Paper (FSC® certified) 914 mm x 91.4 m (36 in x 300 ft);C6569C HP Heavyweight Coated Paper 1067 mm x 30.5 m (42 in x 100 ft);Q6581A HP Universal Instant-dry Satin Photo Paper (FSC® certified) 1067 mm x 30.5 m (42 in x 100 ft);Q1406B HP Universal Coated Paper (FSC® certified) 1067 mm x 45.7 m (42 in x 150 ft)
Roll external diameter
5.3 in
Roll external diameter
135 mm
Roll maximum input
2
Roll maximum weight
26.3 lb
Roll maximum weight
11.9 kg
Roll size
Up to 44 in
Supported Primary Applications
Line drawings; Maps; Orthophotos; Presentations; Renderings
Product Number Description
Product description
HP DesignJet T1700dr 44-in Printer
Product Numbers
Product number
W6B56A
UNSPSC code
43212104
Product Sequencing
Product sequencing
1650
Special Products
Product classification flag
Standard HP Product
System Internal
Tangible flag
Y
Warranty
Manufacturer Warranty
One-year limited hardware warranty
Weights
Package weight
282 lb
Package weight
128 kg
Weight
197.1 lb
Weight
89.4 kg
Sustainability
Production CO2e (kg)
538
Transportation CO2e (kg)
39
Energy Usage CO2e (kg)
5
End of Life CO2e (kg)
29
Total CO2e (kg)
611
Total CO2e (kg) note
A product carbon footprint is defined as the total amount of greenhouse gases emitted directly and indirectly by a product over its lifetime. Greenhouse gas emissions are reported as global warming potential for 100-year time horizon (GWP-100) in units of CO2 equivalence. Calculations are done in accordance with ISO 14040 & ISO 14044. Individual values may not sum to total due to rounding.
Environmental certification
ENERGY STAR; WEEE; RoHS (EU, China, Korea, India); REACH; EPEAT Silver
Energy star certified
Yes
Country of origin
China(B19, ACJ, B1K, BCD, ABG)
