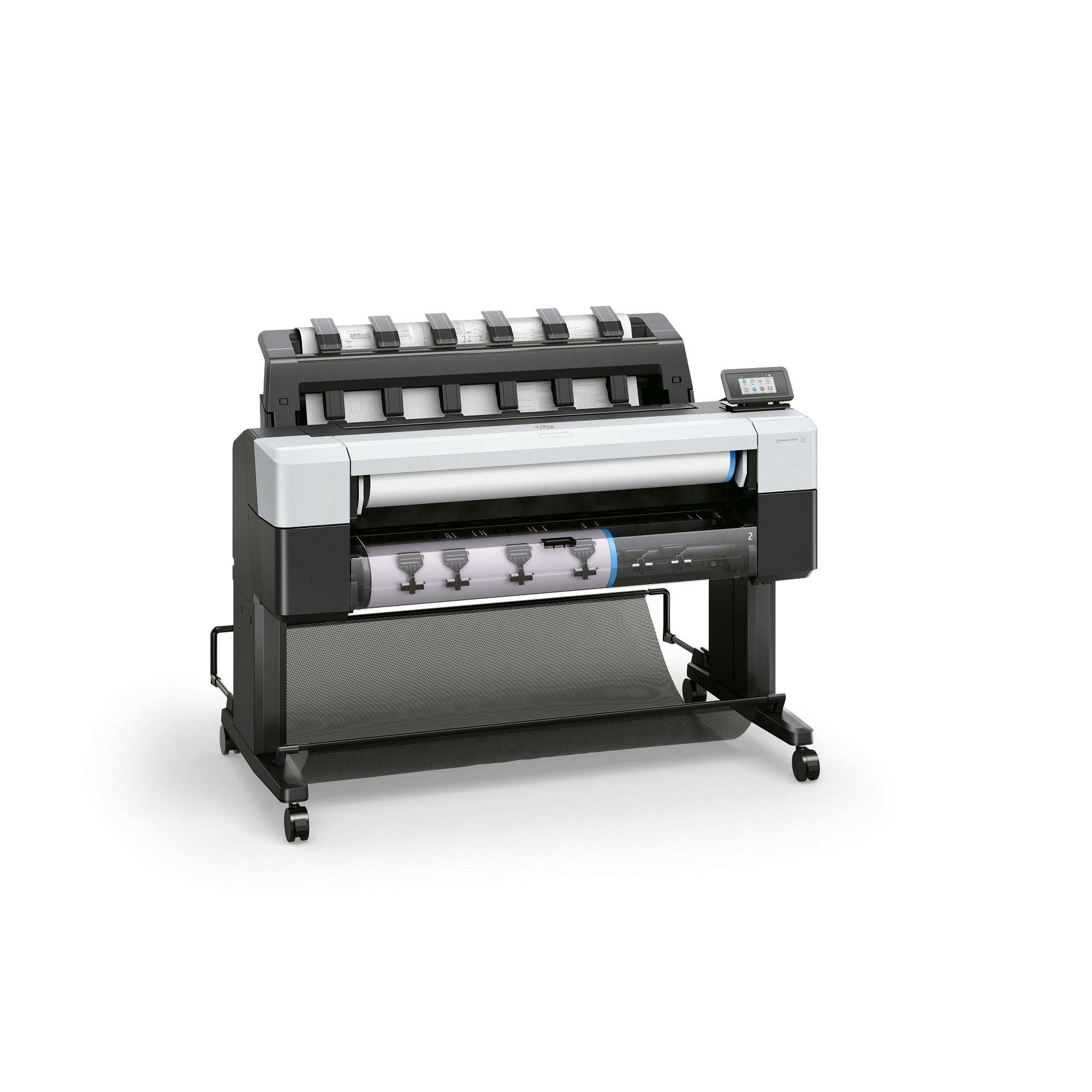

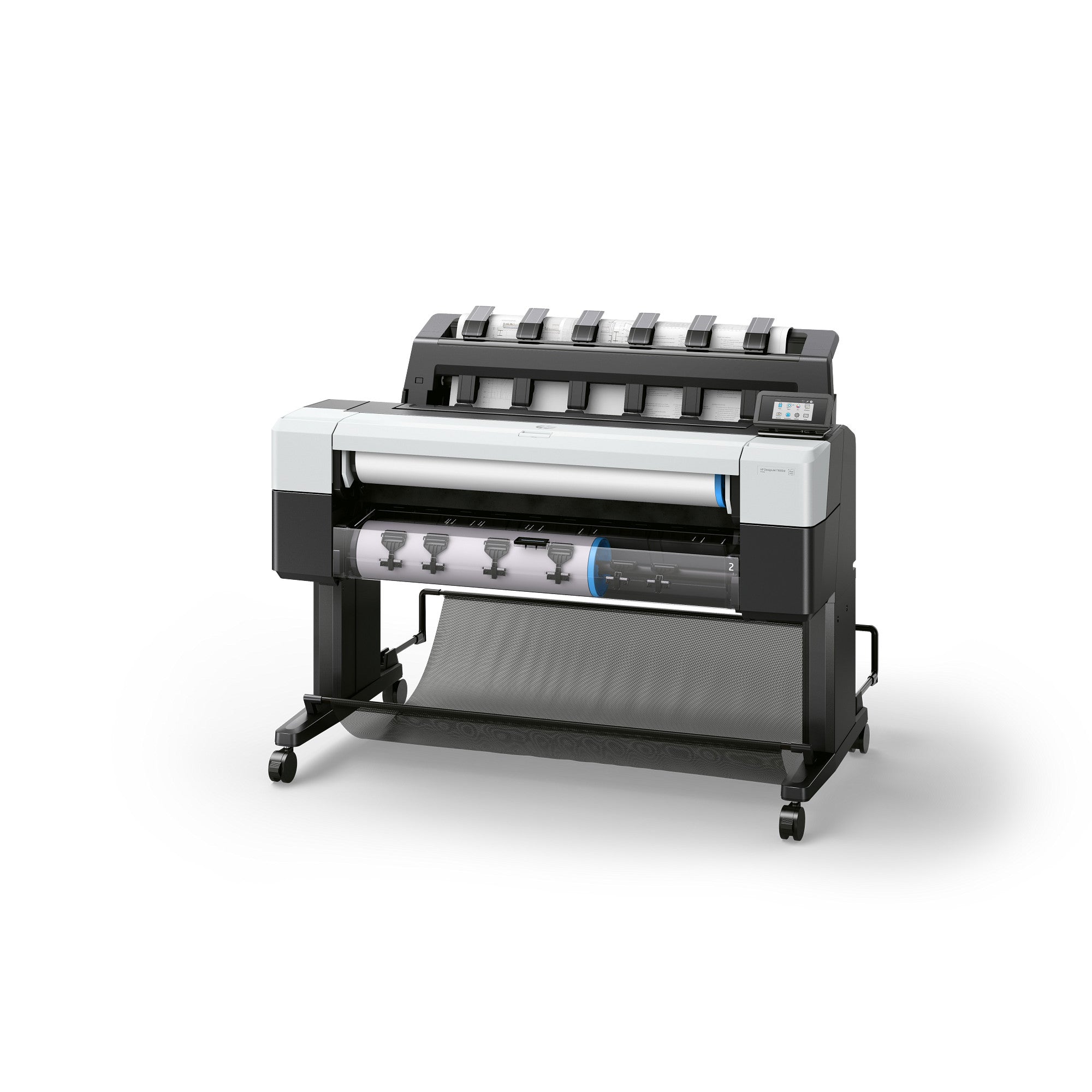

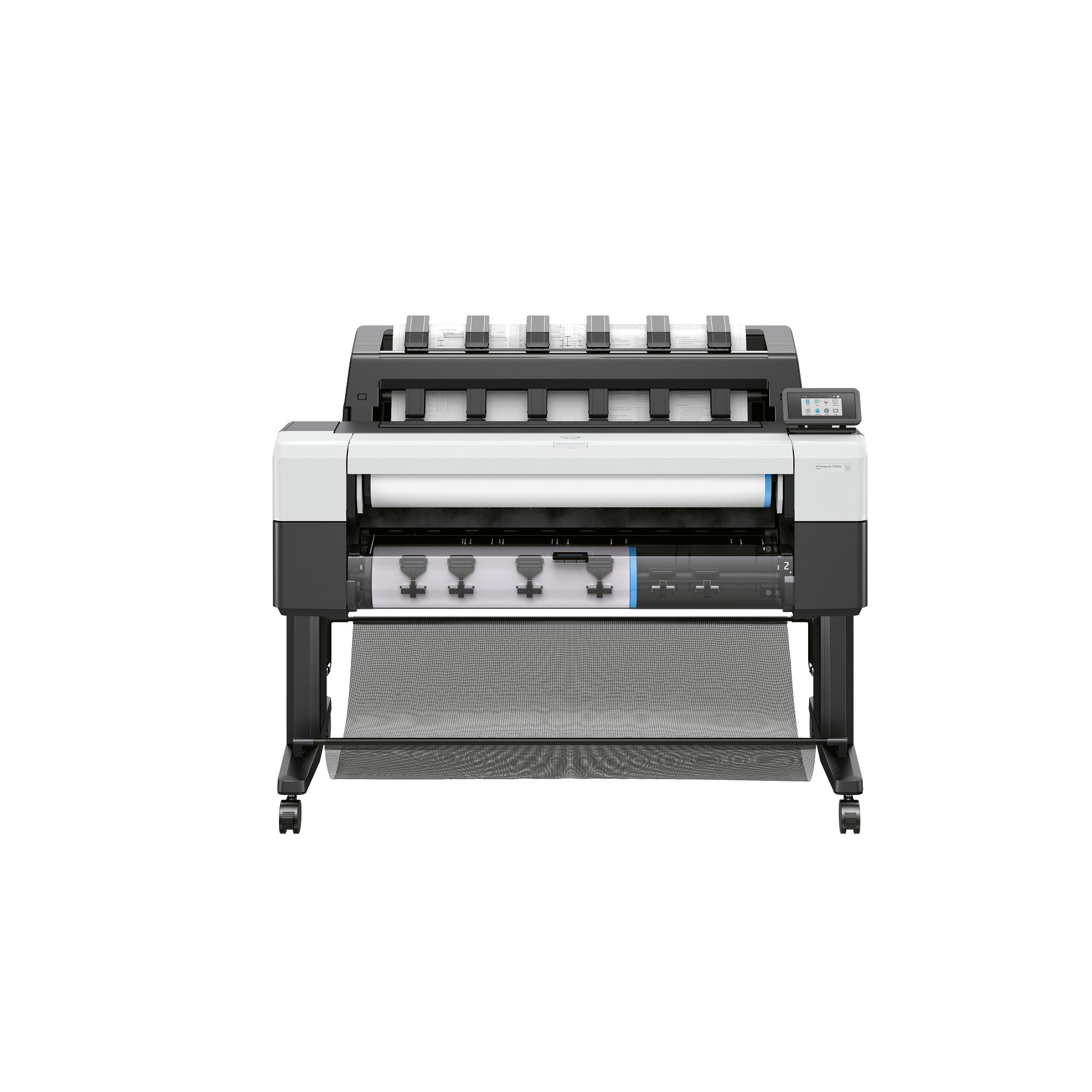

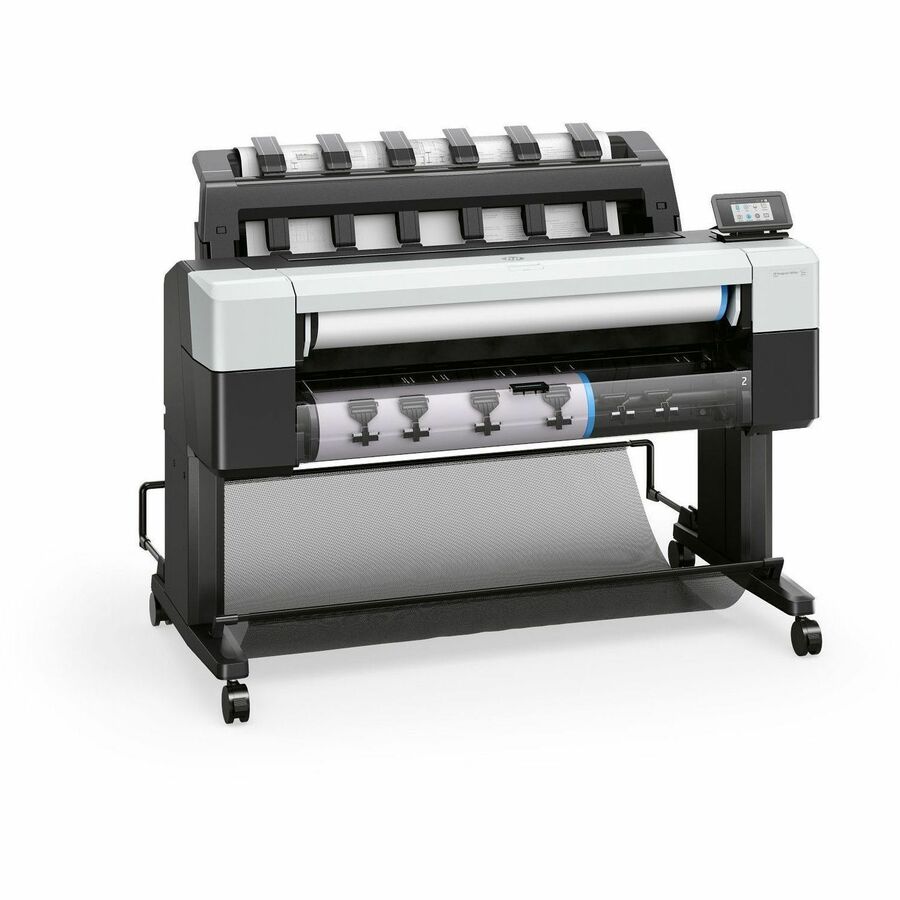

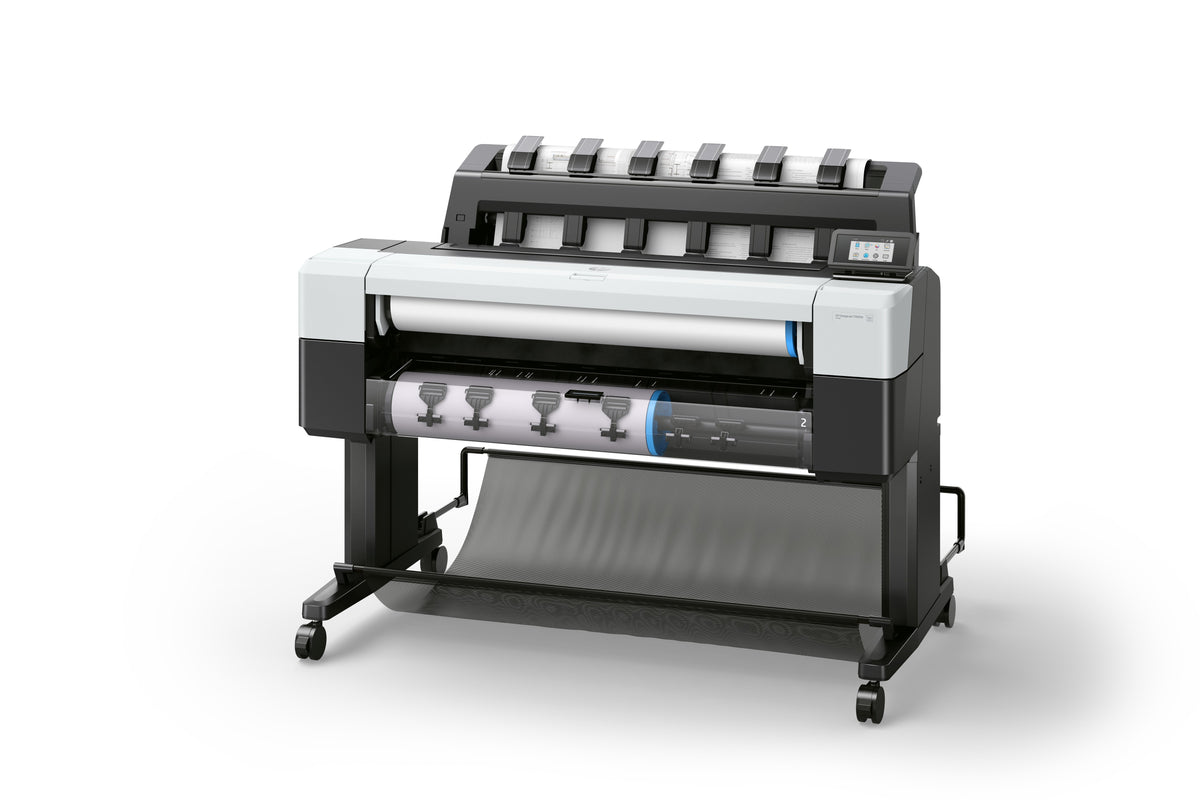

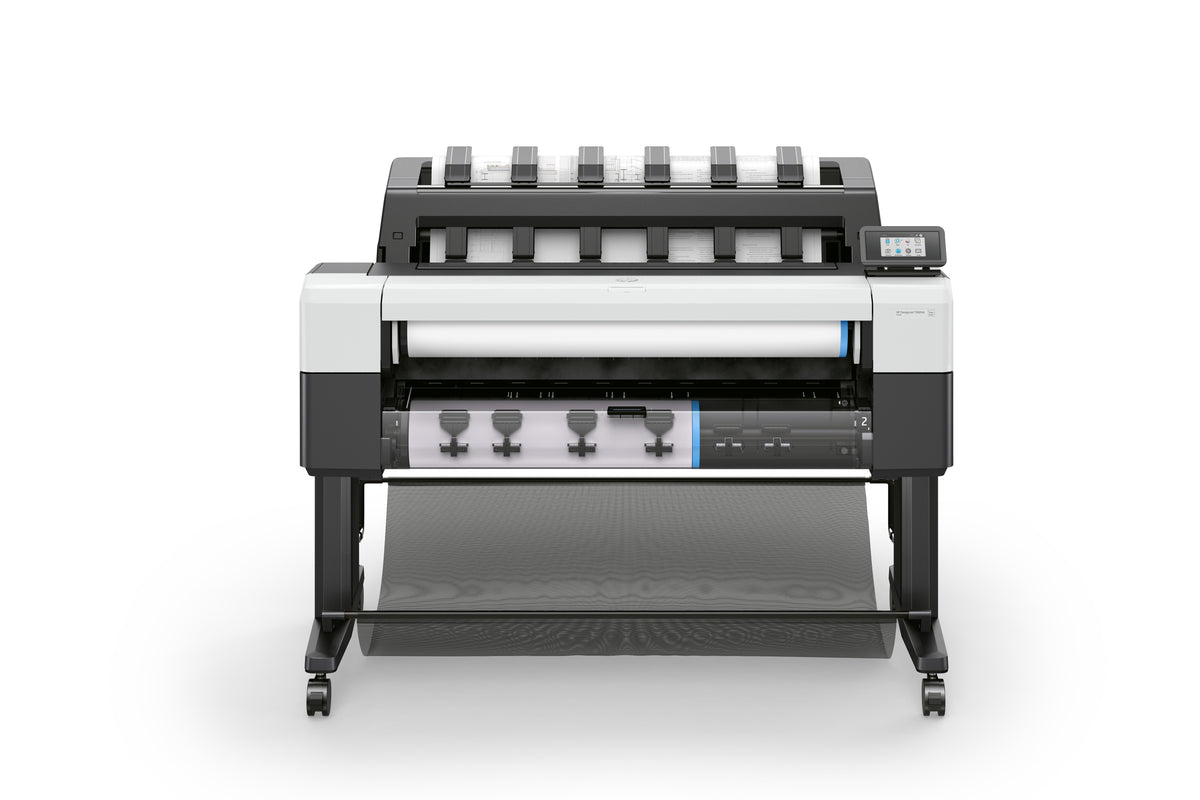

HP DesignJet T1600dr 36-in PostScript Printer Plus Edition (3EK13D#B1K)
- Regular price
- 10,341.95$
- Sale price
- 10,341.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
This item works with these cartridges :
HP DesignJet T1600dr 36-in PostScript Printer Plus Edition
Brand:HP
Product name:HP DesignJet T1600dr 36-in PostScript Printer Plus Edition
Product code:3EK13D
EAN/UPC:
199896726030
Description
Deliver design with the easiest printing experience[1], maximum productivity with speeds up to 180 D/hr[7] and auto stacking5],[ and world-class security—built for workgroups.
Reasons to buy
Speed up printing with simple solutions like HP Click[2] for the easiest experience[1]. Front-operated access keeps work moving. Fits any workplace with the most compact, quietest design[3]. Sync with HP Build Workspace Version Control[4].
Speed up your printing process with radically simple solutions such as HP Click software and HP Click Driver[2] for the easiest printing experience[1].
Front-operated access to media, inks, and prints helps keep work moving with less effort.
Fits your workplace with the most compact footprint and quietest operation, with up to 87% less noise[3].
Collaborate on the latest drawing. With HP Build Workspace[4] Version Control, enable QR‑linked access to a single, validated version to sync physical drawings with the latest cloud update.
Cut unproductive tasks with auto print stacking[5] for up to 100 pages. Deliver the highest accuracy with Adobe PDF Print Engine[6]. Meet deadlines at up to 180 D/hr[7] with dual-roll options[8], and showcase versatility with HP Bright Office Inks.
Cut out unproductive tasks with the most advanced, fully integrated automatic print stacking[5]—handling up to 100 pages at a time.
Provide the highest accuracy and finest details with the unique Adobe PDF Print Engine[6].
Meet deadlines with fast speeds, up to 180 D/hr[7], with single- or dual-roll options[8] for continuous printing.
Showcase design versatility—from precise line drafts to boldly colored 3D renders—with HP Bright Office Inks.
Safeguard your device with firmware and BIOS validation through HP Secure Boot. Control printer access with secure user authentication. Ensure end-to-end data protection with advanced encryption, including TLS 1.3 and IPsec.
Safeguard your device from attacks by validating the integrity of your firmware and BIOS with allowlisting and HP Secure Boot.
Control who accesses the printer and its confidential documents with secure user authentication.
Ensure end-to-end data protection with advanced encryption, including TLS 1.3 and IPsec.
Specs
PSG_Accessories_Headsets[TS]
What's in the box
HP DesignJet T1600 Printer, printer stand and media bin, spindle(s)[6], printheads, introductory ink cartridges, user guide, power cords
Manufacturer Warranty
One-year limited hardware warranty
Box contents
What's in the box
HP DesignJet T1600 Printer, printer stand and media bin, spindle(s)[6], printheads, introductory ink cartridges, user guide, power cords
Care Pack Registration Flag
Registration required
No
Category
Primary applications
Office documents and presentations; Engineering and construction documents; Design and illustrations; Maps
Product type
Office Printers for CAD and GIS
Sub brand
DesignJet
Subcategory
Large format
Certification and Compliance
Electromagnetic compatibility
Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC)
Energy star certified
Yes
Environmental certification
ENERGY STAR, WEEE, RoHS (EU, China, Korea, India), REACH, EPEAT
Safety
USA and Canada (CSA certified); EU (LVD compliant); Khazakstan (EAC); Ukraine (UA); Singapore (PSB); China (CCC); Mexico; India (BIS)
Sustainability Impact
ENERGY STAR®; EPEAT®
Connection and Communication
Connectivity
Apple AirPrint™; Ethernet networking; USB; Wireless (Wi-Fi®)
Core Features
Product type
Office Printers for CAD and GIS
Dimensions
Package dimensions (W x D x H)
58.1 x 30.2 x 31.5 in
Package dimensions (W x D x H)
1477 x 767 x 800 mm
Dimensions (W x D x H)
55 x 30 x 43 in
Dimensions (W x D x H)
1390 x 760 x 1080 mm
Information Pointers
Additional information about HP in the countries
hp.com
Media Handling
Media size maximum (mm)
914
Memory
Memory
128 GB (file processing)[5]
Metadata
Taxonomy
Large Format Printers/ Plotters
Segment
Business
Print
Color or black
Color
Print Area
Non-printable area (cut-sheet)
3 x 22 x 3 x 3 mm
Non-printable area (cut-sheet)
0.12 x 0.87 x 0.12 x 0.12 in
Non-printable area (roll media)
3 x 3 x 3 x 3 mm
Non-printable area (roll media)
0.12 x 0.12 x 0.12 x 0.12 in
Printer Specifications
Functions
Print
Functions
Print
Internal Storage
500 GB self-encrypting
Line accuracy
±0.1%[2]
Model size
914 mm
Model size
36 in
Printer drivers included
HP Click Driver for Windows 11, Raster, PostScript and PDF drivers for Windows, AirPrint for macOS
Features
Front-loading roll feed; Adobe PostScript; Hard disk; Automatic horizontal cutter; Stand; USB
Print languages
Adobe PostScript 3, Adobe PDF 1.7, HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4
Printing path
Direct printing from USB flash drive, print from network shared folder, email printing, HP driver for Windows, HP Print Service for Android, Apple AirPrint driver for MacOS and for iOS, HP Print for Chrome OS, HP Click App, HP App for iOS and Android, HP Click Driver for Windows 11, HP Smart Stream (optional)
Print technology
HP Thermal Inkjet
Theoretical minimum line width
0.0008 in (PDF addressable @ 1200 dpi)
Theoretical minimum line width
0.02 mm (PDF addressable @ 1200 dpi)
Printing Media Handling
Finished output handling
Sheet feed, automatic front-loading roll feed, smart roll switching[3], integrated output stacker[4], media bin, automatic horizontal cutter
Product Numbers
Product number
3EK13D
UNSPSC code
43212104
Software and Applications
Software included
HP Click App, HP App, HP Web Jetadmin, HP Security Manager, HP Click Driver for Windows 11, HP Build Workspace, HP SmartStream (optional)
Special Products
Product classification flag
Standard HP Product
System Internal
Tangible flag
Y
Warranty
Manufacturer Warranty
One-year limited hardware warranty
Weights
Package weight
258 lb
Package weight
117 kg
Weight
187 lb
Weight
85 kg
Sustainability
Environmental certification
ENERGY STAR, WEEE, RoHS (EU, China, Korea, India), REACH, EPEAT
Energy star certified
Yes
Logistics
UPC number
(ABA) 199896725972; (ABG) 199896725989; (ACJ) 199896726009; (B19) 199896726023; (B1K) 199896726030; (BCD) 199896726047
What's in the box
HP DesignJet T1600 Printer, printer stand and media bin, spindle(s)[6], printheads, introductory ink cartridges, user guide, power cords
Package dimensions (W x D x H)
1477 x 767 x 800 mm
Dimensions (W x D x H)
1390 x 760 x 1080 mm
Material Type for item
FERT
Product number
3EK13D
UNSPSC code
43212104
Package weight
117 kg
Weight
85 kg
Barcodes
UPC number
(ABA) 199896725972; (ABG) 199896725989; (ACJ) 199896726009; (B19) 199896726023; (B1K) 199896726030; (BCD) 199896726047
Battery and Power
Power consumption
100 W (printing); <36 W (ready); <10 W (sleep); 0.3 W (off)
Power
Input voltage (auto ranging) 100-240 V (±10%), 50/60 Hz (±3 Hz), 2 A max
Cartridges and Printheads
Cartridge volume
130 ml; 300 ml
Color ink technology
Pigment; Dye
Ink drop
6 pl (C, M, Y, G, pK); 9 pl (mK)
Ink types
Dye-based (C, M, Y, pK, G); pigment-based (mK)
Number of cartridges
6
Print Cartridge/Bottle, Color(s)
Cyan, magenta, yellow, photo black, matte black, gray
Print Cartridges/Bottle, Number
6 (C, M, Y, G, pK, mK)
Print cartridge/bottle volume
300 ml (C, M, Y, G, pK, mK); 130 ml (C, M, Y, G, pK, mK)
Print heads
1 universal printhead
Print Technology
Ink
Connectivity and Communications
Connectivity, standard
Gigabit Ethernet (1000Base-T), Wi-Fi (with optional Jetdirect accessory), supporting the following standards: TCP/IP, BootP/DHCP (IPv4 only), DHCPv6, TFTP (IPv4 only), SNMP (v1, v2c, v3), Apple Bonjour Compatible, WS Discovery, Embedded Web Server (HTTP, HTTPS), IPsec, SMTP (email), Raw IP printing (9100), LPD, IPP, WS print, NTLM v2, SMBv3, SSL/TLS, 802.1X authentication (LEAP, PEAP, EAP-TLS), DFS
HP ePrint capability
Yes
Network ready
Standard
Security features
HP Wolf Pro Security, HP Secure Boot, Allowlisting, TPM, Role Based Access Control, LDAP and Kerberos authentication, SNMPv3, HTTPS, Secure-IPP, IPsec/Firewall, Certificates management, 802.1X, TLS 1.0/1.1/1.2/1.3, HP Web Jetadmin compatible, HP JetAdvantage Security Manager compatible, Secure Disk erase, self-encrypting storage, encrypted PIN printing, Syslog security logging
Environmental
Acoustic power emissions (active, printing)
≤5.9 B(A) (operating), 4.9 B(A) (idle), ≤3.5 B(A) (sleep)
Acoustic pressure emissions
42 dB(A) (operating), 32 dB(A) (idle), <17 dB(A) (sleep)
Non-Operating Humidity Range
0 to 90% RH
Operating humidity range
20 to 80% RH
Operating temperature range
5 to 35ºC
Operating temperature range
41 to 95ºF
Storage temperature range
-25 to 55ºC
Storage temperature range
-13 to 131ºF
Print Resolution
Print quality color (best)
Up to 2400 x 1200 optimized dpi
Print Speed
Print speed
Less than 20 sec/page on D size
Print speed
180 A1/hr, 19.3 sec/A1[1]
Print speed
180 D/hr, 19.3 sec/D[1]
Printing Media
Maximum roll diameter
5.5 in
Media sizes standard (metric rolls)
279 to 914 mm
Media sizes standard (sheets, rolls)
11 to 36 in
Media thickness
Up to 19.7 mil
Media width, maximum
36 in
Printer Applications
Architecture; Maps; Presentation graphics
Recommended media
C6810A HP Bright White Inkjet Paper (FSC® certified)[7] (recyclable)[8] 914 mm x 91.4 m (36 in x 300 ft); C6980A HP Coated Paper (PEFC™ certified)[7] (recyclable)[8] 914 mm x 91.4 m (36 in x 300 ft); L5C80A HP Universal Heavyweight Coated Paper, 3-in Core (FSC® certified)[7] (recyclable)[8] 914 mm x 91.4 m (36 in x 300 ft); D9R28A HP Everyday Matte Polypropylene, 3-in Core 914 mm x 61 m (36 in x 200 ft)
Roll external diameter
5.5 in
Roll external diameter
140 mm
Roll maximum weight
26.3 lb
Roll maximum weight
11.9 kg
Roll size
Up to 36 in
Supported Primary Applications
Line drawings; Maps; Orthophotos; Presentations; Renderings
Product Names
Code name
Neptune+
Product long name
HP DesignJet T1600dr 36-in PostScript Printer Plus Edition
Product name
HP DesignJet T1600dr 36-in PostScript Printer Plus Edition
Short product name
T1600
Supported Printing Media
Media sizes, custom
210 x 279 to 914 x 1219 mm
Media sizes, custom
8.3 x 11 to 36 x 48 in
Media sizes supported
A4, A3, A2, A1, A0
Media sizes supported
Letter, Tabloid, C-size, D-size, E-size
Media thickness maximum (metric)
Up to 0.5 mm
Media thickness maximum
0.019 in
Media types
Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte, colored), technical paper (natural tracing, translucent bond, vellum), film (clear, matte, polyester), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (two-view cling, indoor paper, polypropylene, vinyl)
Media weight, recommended
60 to 328 g/m²
Media weight, recommended
0.0011 to 0.0062 lb/ft²
Media width, maximum
914 mm
