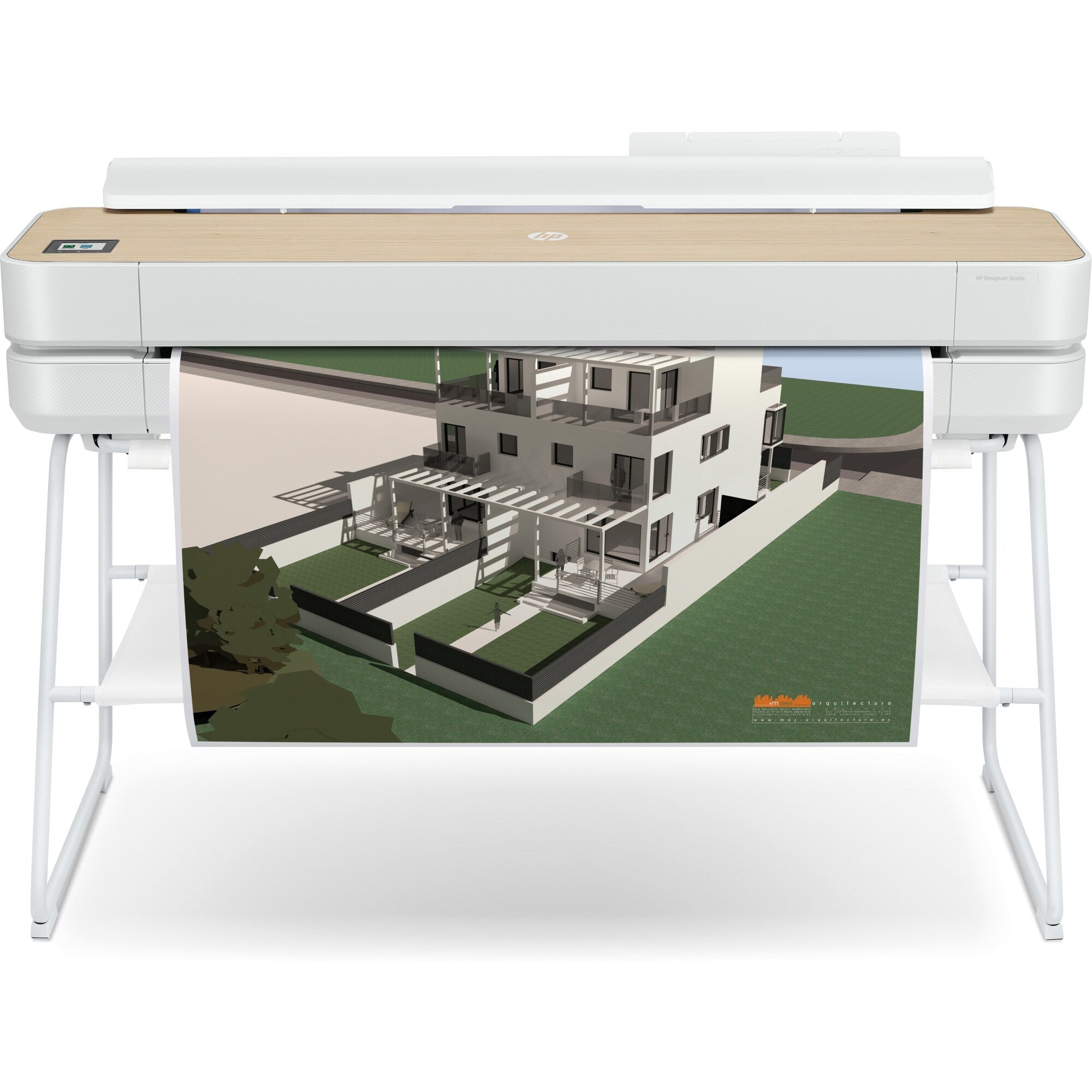

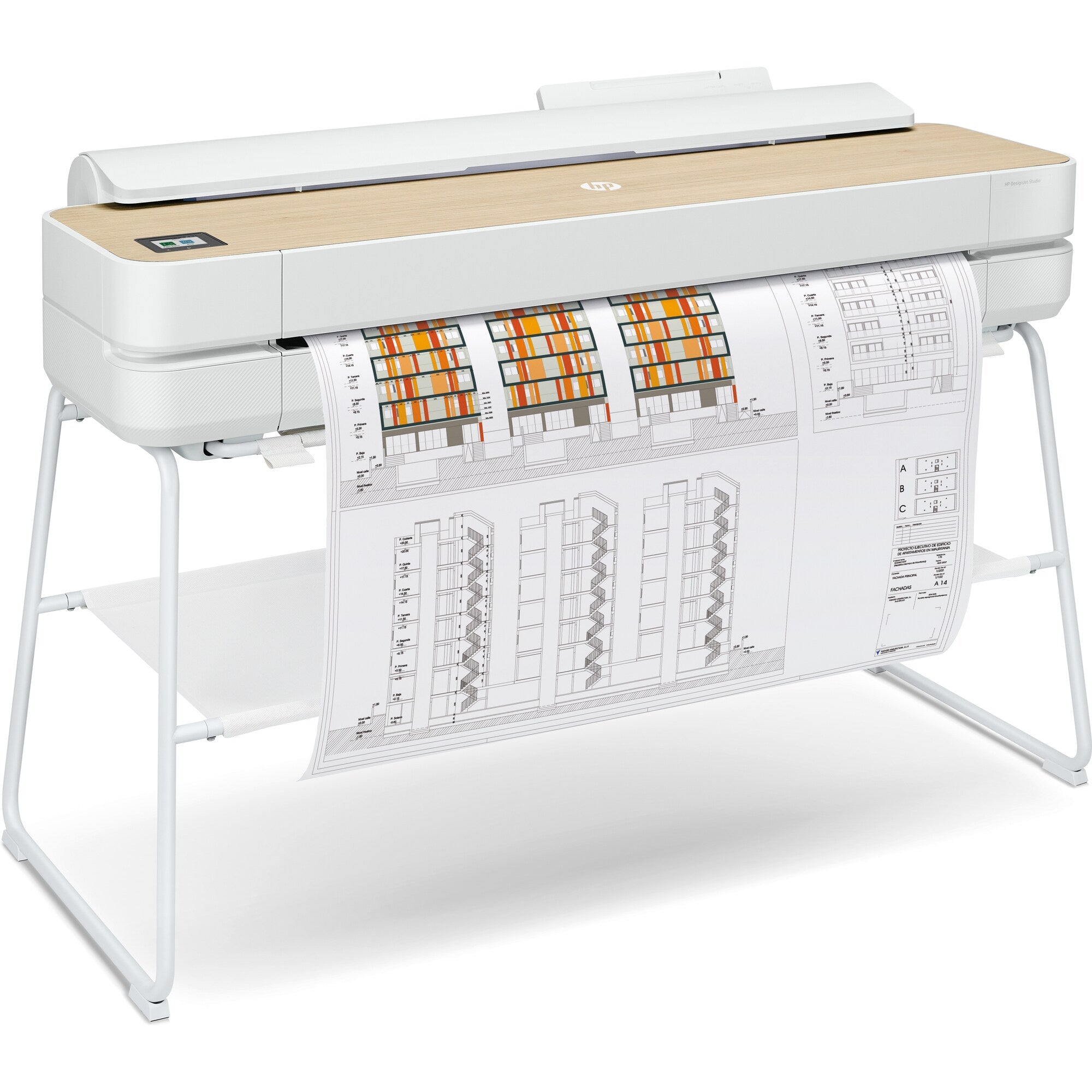

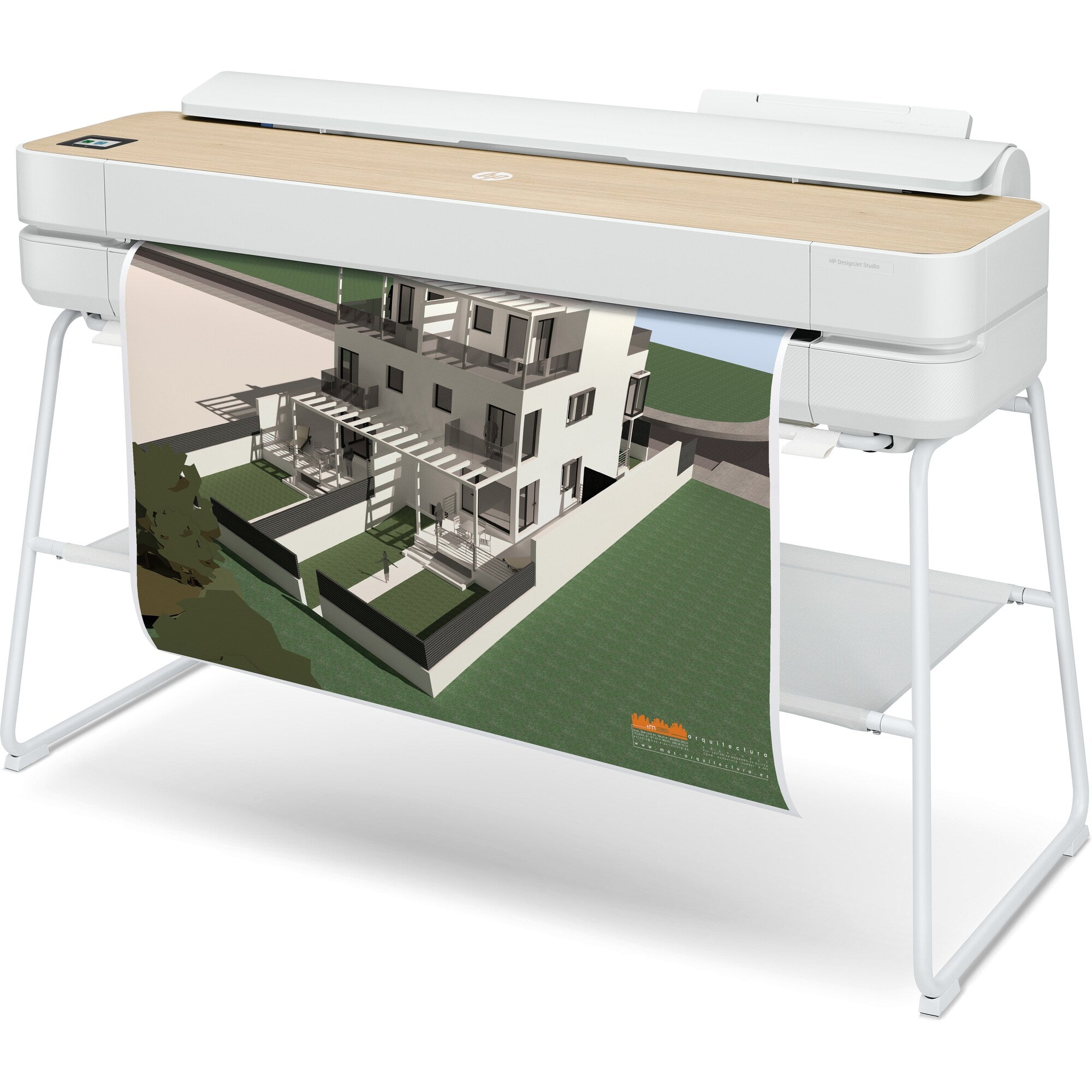

HP DesignJet Studio 36-in Printer with 3-year Warranty (5HB14H#B1K)
- Regular price
- 4,628.99$
- Sale price
- 4,628.99$
- Regular price
-
Free shipping
Couldn't load pickup availability
This item works with these cartridges :
HP DesignJet Studio 36-in Printer with 3-year Warranty
Brand:HP
Product name:HP DesignJet Studio 36-in Printer with 3-year Warranty
Product code:5HB14H
EAN/UPC:
196548501717
Description
Featuring a modern office design that compliments its environment and performance to match. Print multi-size jobs easily with auto switching between roll and tray. Enjoy high-speed printing as fast as 26 sec per A1 plot.[5] 1 GB memory.
Reasons to buy
First net carbon neutral HP DesignJet plotter.[2] Save time with the world's easiest job submission[3] tool - HP Click.[4] Manage your large-format printing virtually anywhere and anytime with the HP Smart app. 1 GB memory. Includes printer stand.
Design that performs, technology that stands out.
Easily set up your plotter using your smartphone.
First net carbon neutral HP DesignJet plotter.[2]
Print multi-size A3 and A1 or A0 projects automatically, without manually switching the media source. Save time with the world's easiest job submission.[3] And print with confidence you'll get the results you expect.
Print multi-size A3 and A1 or A0 projects automatically, without manually switching the media source.
Save time with the world's easiest job submission[3]—send multiple files in one click with HP Click.[4]
Print with confidence you'll get the results you expect with an intuitive driver and true print preview.
Avoid waiting with high-speed printing as fast as 26 sec per A1 plot.[5] Save time from job prep to final print. Print, and manage your plotter, from virtually anywhere, anytime with the HP Smart app. Get quality results with HP Bright Office Inks.
Avoid waiting by the printer with high-speed printing as fast as 26 seconds per A1 plot.[5]
Be more productive—save time from job prep to final print by printing your projects up to 2X faster.[3]
Print your jobs and manage your plotter from virtually anywhere, anytime with the HP app.
Get high-quality results—HP Bright Office Inks plot up to 31% more line accuracy and up to 65% more gamut.[5]
Specs
PSG_Accessories_Headsets[TS]
What's in the box
HP DesignJet Studio 36-in Printer, printer stand, automatic sheet feeder, roll cover, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord

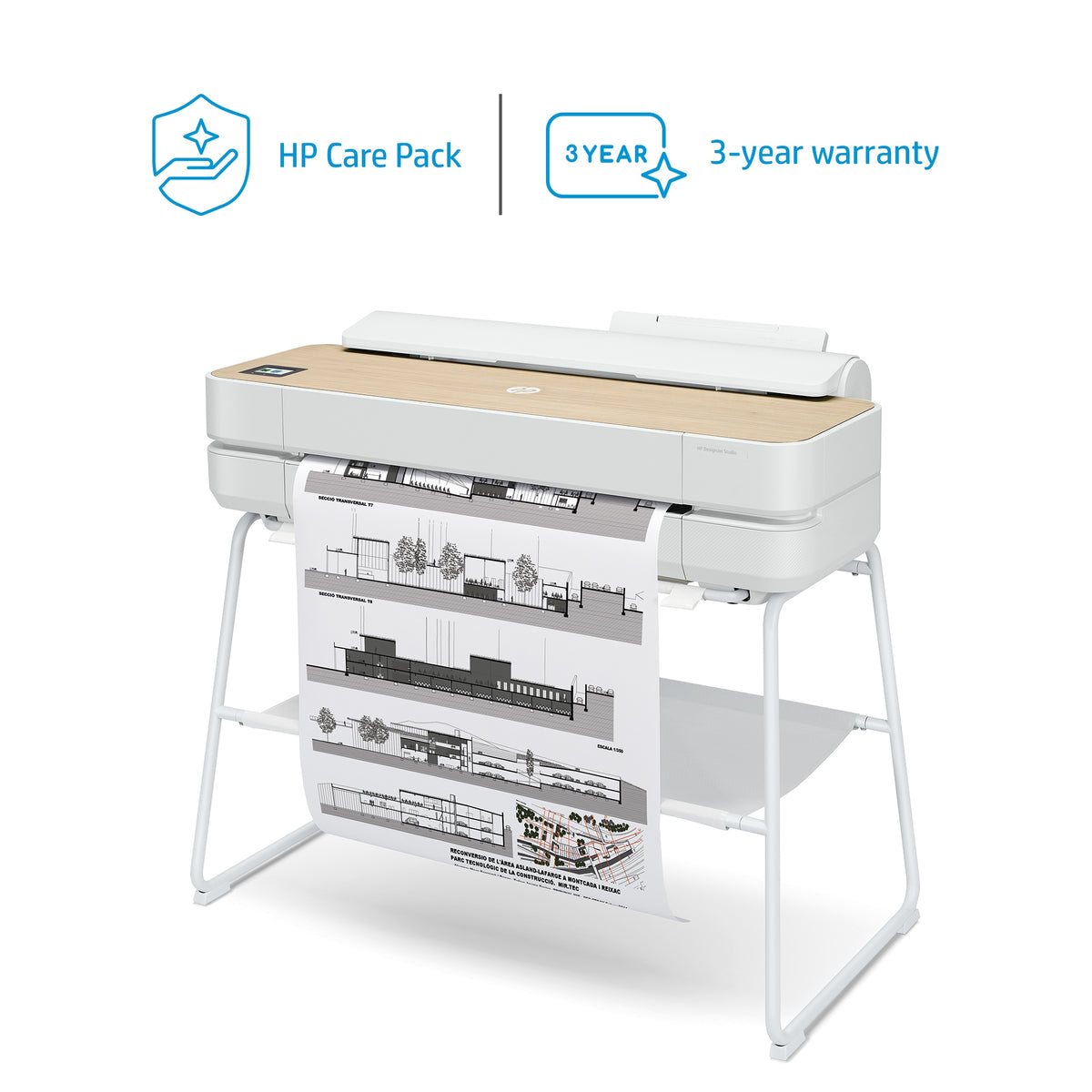

Manufacturer Warranty
Three-year limited hardware warranty
Box contents
What's in the box
HP DesignJet Studio 36-in Printer, printer stand, automatic sheet feeder, roll cover, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord
Care Pack Registration Flag
Registration required
No
Category
Primary applications
Office documents and presentations; Engineering and construction documents
Product type
Office Printers for CAD and GIS
Sub brand
DesignJet
Subcategory
Large format
Certification and Compliance
Electromagnetic compatibility
Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/RED Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class B product: Korea (KCC)
Energy star certified
Yes
Environmental certification
ENERGY STAR; WEEE; EU RoHS; EAEU RoHS; REACH; ErP
Safety
USA and Canada (CSA certified); EU (LVD, EN 60950-1 and EN 62368-1 compliant); Russia, Belarus, Khazakstan (EAC); Ukraine (UA); Singapore (PSB); China (CCC); Argentina (IRAM); India (BIS); Mexico (NYCE)
Sustainability Impact
ENERGY STAR®
Sustainability specifications
Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; FSC®-certified papers and a range of recyclable HP media with a take-back program; ENERGY STAR® certified
Compatibility
Accessories
B3Q36A HP DesignJet 24-in Spindle;B3Q37A HP DesignJet 36-in Spindle
Connection and Communication
Connectivity
Apple AirPrint™; Ethernet networking; USB; Wireless (Wi-Fi®); Wireless direct printing
Core Features
Product type
Office Printers for CAD and GIS
Dimensions
Package dimensions (W x D x H)
57.9 x 22.6 x 25.4 in
Package dimensions (W x D x H)
1470 x 575 x 646 mm
Dimensions (W x D x H)
51.9 x 21.9 x 36.7 in
Dimensions (W x D x H)
1317 x 555 x 932 mm
Geographic
Country of origin
China(B1K)
Information Pointers
Additional information about HP in the countries
hp.com
Media Handling
Media size maximum (mm)
914
Media size maximum (in)
36
Monthly printed pages
Occasionally
Memory
Memory
1 GB
Metadata
Taxonomy
Large Format Printers/ Plotters
Segment
Business
Print
Color or black
Color
Print Area
Non-printable area (cut-sheet)
5 x 5 x 5 x 17 mm (manual feed); 5 x 5 x 5 x 5 mm (input tray)
Non-printable area (cut-sheet)
0.2 x 0.2 x 0.2 x 0.7 in (manual feed); 0.2 x 0.2 x 0.2 x 0.2 in (input tray)
Non-printable area (roll media)
5 x 5 x 5 x 5 mm
Non-printable area (roll media)
0.2 x 0.2 x 0.2 x 0.2 in
Print Resolution
Maximum optical density (black)
8 L* min/2.10 D[4]
Print quality color (best)
Up to 2400 x 1200 optimized dpi
Printer Specifications
Functions
Print
Functions
Print
Internal Storage
None
Line accuracy
±0.1%[3]
Model size
914 mm
Model size
36 in
Printer drivers included
Raster driver for Windows and macOS, HP Click Driver for Windows 11
Features
Automatic horizontal cutter; Stand
Print languages
HP-GL/2, HP-RTL, CALS G4, JPEG, URF
Printing path
Print Anywhere with HP Smart app, HP Click App, HP Click Driver for Windows 11, HP driver for macOS, HP driver for Windows, printing support for Chrome OS, email printing, HP Print Service Plugin for Android, Apple AirPrint
Print technology
HP Thermal Inkjet
Theoretical minimum line width
0.0008 in
Theoretical minimum line width
0.02 mm
Printing Media Handling
Finished output handling
Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter
Product Names
Code name
Greta
Product long name
HP DesignJet Studio 36-in Printer with 3-year Warranty
Product name
HP DesignJet Studio 36-in Printer with 3-year Warranty
Short product name
Studio
Software and Applications
Software included
HP Click App, HP Click Driver for Windows 11, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant
Supported Printing Media
Media sizes, custom
Auto sheet feeder: 210 x 279 to 330 x 482 mm; manual feed: 210 x 279 to 914 x 1897 mm
Media sizes, custom
Auto sheet feeder: 8.3 x 11 to 13 x 19 in; manual feed: 8.3 x 11 to 36 x 74.7 in
Media sizes supported
Auto sheet feeder: A4, A3; manual feed: A4, A3, A2, A1, A0
Media sizes supported
Auto sheet feeder: A, B; manual feed: A, B, C, D, E
Media thickness maximum (metric)
Up to 0.3 mm
Media types
Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)
Media weight, recommended
60 to 280 g/m² (roll/manual feed); 60 to 220 g/m² (auto sheet feeder)
Media width, maximum
914 mm
Logistics
UPC number
196548501717
What's in the box
HP DesignJet Studio 36-in Printer, printer stand, automatic sheet feeder, roll cover, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord
Package dimensions (W x D x H)
1470 x 575 x 646 mm
Dimensions (W x D x H)
1317 x 555 x 932 mm
Country of origin
China(B1K)
Material Type for item
FERT
Product number
5HB14H
UNSPSC code
43212104
Package weight
62 kg
Weight
41.7 kg
Barcodes
UPC number
196548501717
Battery and Power
Power consumption
<35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (off)
Power
Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max
Cartridges and Printheads
Cartridge volume
Less than 130 ml
Color ink technology
Pigment; Dye
Ink drop
5.5 pl (C, M, Y); 12 pl (K)
Ink types
Dye-based (C, M, Y); pigment-based (K)
Number of cartridges
4
High capacity of page yield (colour)
20 ml of ink yields 101 A1/D pages, taking into account maintenance routines[2]
Print Cartridge/Bottle, Color(s)
Cyan, magenta, yellow, black
Print Cartridges/Bottle, Number
4 (C, M, Y, K)
Print cartridge/bottle volume
80 ml (K); 38 ml (K); 29 ml (C, M, Y)
Print head nozzles
1376
Print heads
1 (cyan, magenta, yellow, black)
Print Technology
Ink
Connectivity and Communications
Connectivity, standard
Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct
Print multi-size files in one click
Yes
Remote print enabled
Yes
Environmental
Acoustic power emissions (active, printing)
5.8 B(A) (operating), <3.4 B(A) (idle)
Acoustic pressure emissions
42 dB(A) (operating), <16 dB(A) (idle)
Energy Usage CO2e (kg)
5
End of Life CO2e (kg)
20
Non-Operating Humidity Range
0 to 95% RH
Operating altitude
Up to 9843 ft
Operating altitude
Up to 3000 m
Operating humidity range
20 to 80% RH
Operating temperature range
5 to 40ºC
Operating temperature range
41 to 104ºF
Post consumer recycled plastic in hardware by weight of plastic
10%
Production CO2e (kg)
263
Storage temperature range
-25 to 55ºC
Storage temperature range
-13 to 131ºF
Total CO2e (kg)
311
Total CO2e (kg) note
A product carbon footprint is defined as the total amount of greenhouse gases emitted directly and indirectly by a product over its lifetime. Greenhouse gas emissions are reported as global warming potential for 100-year time horizon (GWP-100) in units of CO2 equivalence. Calculations are done in accordance with ISO 14040 & ISO 14044. Individual values may not sum to total due to rounding.
Transportation CO2e (kg)
23
Print Speed
Print speed
20 to 30 sec/page on D size
Print speed
25 sec/page on A1, 82 A1 prints per hour[1]
Print speed
25 sec/page on D, 82 D prints per hour[1]
Printing Media
Maximum roll diameter
3.9 in
Media sizes standard (metric rolls)
279 to 914 mm
Media sizes standard (sheets, rolls)
11 to 36 in
Media thickness
Up to 11.8 mil
Media width, maximum
36 in
Printer Applications
Architecture; Engineering; Construction; Technical documents
Recommended media
HP Universal Bond Paper (FSC® certified)[5] (recyclable)[6];HP Coated Paper (FSC® certified)[5] (recyclable)[6];HP Heavyweight Coated Paper (FSC® certified)[5] (recyclable)[6]
Roll external diameter
3.9 in
Roll external diameter
100 mm
Roll maximum input
1
Roll maximum weight
13.6 lb
Roll maximum weight
6.2 kg
Roll size
Up to 36 in
Supported Primary Applications
Line drawings; Presentations; Renderings
Product Numbers
Product number
5HB14H
UNSPSC code
43212104
Special Products
Product classification flag
Standard HP Product
System Internal
Tangible flag
Y
Warranty
Manufacturer Warranty
Three-year limited hardware warranty
Weights
Package weight
136.7 lb
Package weight
62 kg
Weight
91.9 lb
Weight
41.7 kg
Sustainability
Production CO2e (kg)
263
Transportation CO2e (kg)
23
Energy Usage CO2e (kg)
5
End of Life CO2e (kg)
20
Total CO2e (kg)
311
Total CO2e (kg) note
A product carbon footprint is defined as the total amount of greenhouse gases emitted directly and indirectly by a product over its lifetime. Greenhouse gas emissions are reported as global warming potential for 100-year time horizon (GWP-100) in units of CO2 equivalence. Calculations are done in accordance with ISO 14040 & ISO 14044. Individual values may not sum to total due to rounding.
Environmental certification
ENERGY STAR; WEEE; EU RoHS; EAEU RoHS; REACH; ErP
Energy star certified
Yes
Sustainability specifications
Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; FSC®-certified papers and a range of recyclable HP media with a take-back program; ENERGY STAR® certified
Country of origin
China(B1K)
