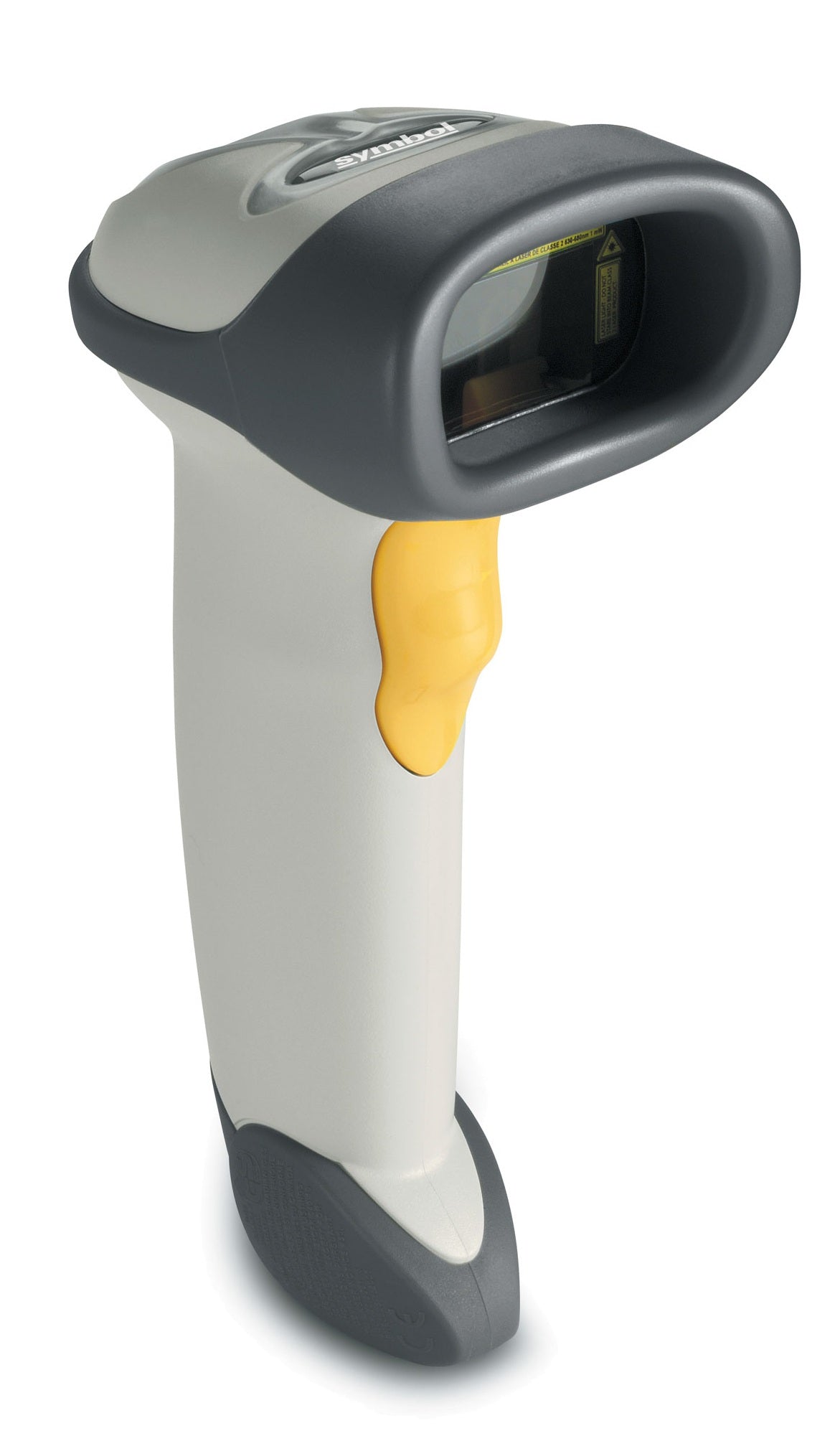

ZEBRA LS2208 Handheld bar code reader 1D Laser Black, White (LS2208-7AZU0100ZNA)
- Regular price
- 193.95$
- Sale price
- 193.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
Zebra LS2208 Handheld bar code reader 1D Laser Black, White
Brand:Zebra
Product name:LS2208
Product code:LS2208-7AZU0100ZNA
EAN/UPC:
Description
LS2208-7AZU0100ZNA
KIT,LS2208,WHT,USB CBL,NO STAND - NA ONLY
Our best selling handheld laser scanner
With over eight million sold, the LS2208 remains our best selling handheld laser scanner. The LS2208 has it all — enterprise class scanning in a very ergonomic and durable lightweight design that delivers all day comfort, an extra-long read range for easy scanning, plus support for everyday 1D bar codes, including high-density. With multiple interfaces, a universal cable and support for keyboards in 97 languages, the LS2208 delivers plug-and-play simplicity in virtually every corner of the world. The LS2208 — the well-proven scanner powering the checkout lines all around the world.
Capture high-density bar codes for greater application flexibility
With just one scanner, you can capture the high density bar codes common on small items.
Deploy in every corner of the world
With support for 97 international keyboards, the LS2208 is ready for operation in your country, right out of the box.
Class-leading working range
Workers can capture everyday 13 mil UPC bar codes on items that are over 25 in./63.5 cm away, improving productivity and the customer checkout experience.
More decode feedback options
Choose from a variety of options to indicate the successful capture of a bar code: the Direct Decode Indicator (a blinking laser line), a beep tone, a red/green LED indicator — or any combination of the three.
All day comfort your workers can count on
The well-proven ergonomic and lightweight balanced design provides maximum comfort, even in the most scan intensive environments. The result? Reduced user fatigue and increased worker productivity.
Durable construction
With its patented single board construction, patented frictionless liquid polymer scan element, scratch resistant tempered glass exit window and a stringent drop and tumble specification, the LS2208 delivers reliable all-day, every day operation.
Flexible handheld or hands-free operation
The optional Intellistand enables presentation scanning and allows workers to automatically switch between hands-free and handheld modes in the time it takes to drop the LS2208 into the stand.
Multiple interfaces
No matter what host you need to connect to today or tomorrow, the future proof LS2208 is ready.
Truly plug-and-play
The universal cable connects to any computing environment, practically eliminating setup and training time.
Advanced Data Formatting (ADF)
Format data properly before it is sent to your host computer, eliminating the costly modification of host software.
KIT,LS2208,WHT,USB CBL,NO STAND - NA ONLY
Our best selling handheld laser scanner
With over eight million sold, the LS2208 remains our best selling handheld laser scanner. The LS2208 has it all — enterprise class scanning in a very ergonomic and durable lightweight design that delivers all day comfort, an extra-long read range for easy scanning, plus support for everyday 1D bar codes, including high-density. With multiple interfaces, a universal cable and support for keyboards in 97 languages, the LS2208 delivers plug-and-play simplicity in virtually every corner of the world. The LS2208 — the well-proven scanner powering the checkout lines all around the world.
Capture high-density bar codes for greater application flexibility
With just one scanner, you can capture the high density bar codes common on small items.
Deploy in every corner of the world
With support for 97 international keyboards, the LS2208 is ready for operation in your country, right out of the box.
Class-leading working range
Workers can capture everyday 13 mil UPC bar codes on items that are over 25 in./63.5 cm away, improving productivity and the customer checkout experience.
More decode feedback options
Choose from a variety of options to indicate the successful capture of a bar code: the Direct Decode Indicator (a blinking laser line), a beep tone, a red/green LED indicator — or any combination of the three.
All day comfort your workers can count on
The well-proven ergonomic and lightweight balanced design provides maximum comfort, even in the most scan intensive environments. The result? Reduced user fatigue and increased worker productivity.
Durable construction
With its patented single board construction, patented frictionless liquid polymer scan element, scratch resistant tempered glass exit window and a stringent drop and tumble specification, the LS2208 delivers reliable all-day, every day operation.
Flexible handheld or hands-free operation
The optional Intellistand enables presentation scanning and allows workers to automatically switch between hands-free and handheld modes in the time it takes to drop the LS2208 into the stand.
Multiple interfaces
No matter what host you need to connect to today or tomorrow, the future proof LS2208 is ready.
Truly plug-and-play
The universal cable connects to any computing environment, practically eliminating setup and training time.
Advanced Data Formatting (ADF)
Format data properly before it is sent to your host computer, eliminating the costly modification of host software.
Specs
Scanning
Type
Characteristics of the device.
Handheld bar code reader
Scanner type
Indicates the type of scanner this product is.
1D
Sensor type
A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.
Laser
Linear (1D) barcodes supported
The product can read linear (1D) barcordes.
Codabar, Code 11, Code 128, Code 39 (ASCII), Code 93, GS1 DataBar, Pharmacode, Plessey, Standard 2 of 5
Scanner resolution
3 mm
Working distance
63.5 cm
Read rate (max)
100 reads/s
Light levels (direct sunlight)
0 - 86080 lx
Wavelength
The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light.
650 nm
Tilt reading angle
-10 - 10°
Pitch reading angle
-65 - 65°
Yaw reading angle
-60 - 60°
Ports & interfaces
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
Standard interfaces
Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB.
RS-232, RS-485, Keyboard wedge, USB
Performance
International Protection (IP) code
The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
IP30
Protection features
Physical effects from which the product is protected e.g. water resistant, crash proof.
Drop resistant, Scratch resistant
LED indicators
Yes
Product colour
The colour e.g. red, blue, green, black, white.
Black, White
Certification
EN 60950-1: 2006 + A11: 2009 + A1: 2010
+ A12: 2011 + AC 2011; IEC 60950-1: 2005
+ A1: 2009; UL 60950-1, second edition;
CAN/CSA-C22.2 No. 60950-1-07
FCC 47 CFR Part 15, Subpart B, Class B; ICES-003 Issue 4, Class B; Compliant with EMC Directive 2004/108/EC
CDRH Class II; IEC Class 2
Power
Power source type
What the power source is.
DC
Input voltage
The voltage (V) which is required to power the product.
4.5 - 5.5 V
Power consumption
175 mA
Weight & dimensions
Width
The measurement or extent of something from side to side.
64 mm
Depth
The distance from the front to the back of something.
85 mm
Height
The measurement of the product from head to foot or from base to top.
152 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
150 g
Packaging data
Cables included
USB
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 50 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Drop resistance
0.5 m
Technical details
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
Federal Communications Commission (FCC), RoHS
