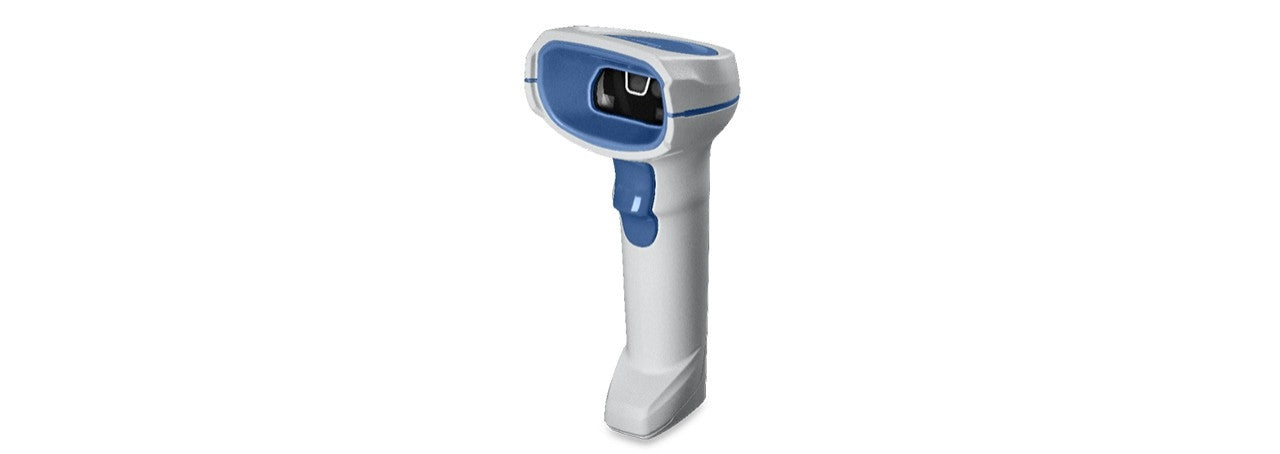

ZEBRA DS8178-HC Handheld bar code reader 1D/2D LED White (DS8178-HCBU210MP5W)
- Regular price
- 1,303.95$
- Sale price
- 1,303.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
Zebra DS8178-HC Handheld bar code reader 1D/2D LED White
Brand:Zebra
Product name:DS8178-HC
Product code:DS8178-HCBU210MP5W
EAN/UPC:
5706998265173
Description
Zebra's premium DS8178-HC cordless scanner is purpose-built for healthcare environments and clinician workflows. With unparalleled performance to read the toughest barcodes in any condition, clinicians can stay focused on patient care. Two interchangeable power options can be swapped at any time, right in your facility, providing the flexibility to meet changing business needs while protecting your original investment.
Specs
Scanning
Type
Characteristics of the device.
Handheld bar code reader
Scanner type
Indicates the type of scanner this product is.
1D/2D
Sensor type
A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.
LED
Linear (1D) barcodes supported
The product can read linear (1D) barcordes.
Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, Plessey, U.P.C.
2D (matrix & stacked) barcodes supported
The product can read matrix (2D) barcordes.
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Wavelength
The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light.
528 nm
Tilt reading angle
0 - 360°
Pitch reading angle
0 - 60°
Yaw reading angle
0 - 60°
Ports & interfaces
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless.
Wired & Wireless
Standard interfaces
Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB.
RS-232, USB, Keyboard wedge
Wireless range
100 m
Bluetooth version
The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).
4.0
Bluetooth Low Energy (BLE)
PC connection
RS-232/USB
Performance
International Protection (IP) code
The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
IP42
Product colour
The colour e.g. red, blue, green, black, white.
White
Power
Power source type
What the power source is.
Battery
Battery type
Description of battery supplied with the product, such battery form factor (e.g. AA/AAA).
Built-in battery
Number of batteries supported
The number of batteries that can be used with the product.
1
Number of reads per charge
65000
Battery life
The amount of time that the battery will last for.
83 h
Input voltage
The voltage (V) which is required to power the product.
5 V
Weight & dimensions
Width
The measurement or extent of something from side to side.
66 mm
Depth
The distance from the front to the back of something.
107 mm
Height
The measurement of the product from head to foot or from base to top.
168 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
235 g
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 50 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Battery
Battery technology
The type of battery in the device, e.g. nickel–cadmium (NiCd).
Lithium-Ion (Li-Ion)
Battery capacity
A measure of the charge stored by the battery. Determined by the mass of active material contained in the battery.
2500 mAh
Logistics data
Harmonized System (HS) code
84716070
