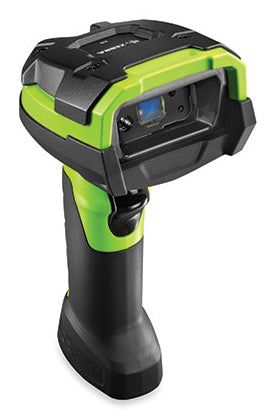

ZEBRA DS3678-ER Handheld bar code reader 1D/2D Laser Black, Green (DS3678-ER3U4602FVW)
- Regular price
- 2,364.95$
- Sale price
- 2,364.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
Zebra DS3678-ER Handheld bar code reader 1D/2D Laser Black, Green
Brand:Zebra
Product name:DS3678-ER
Product code:DS3678-ER3U4602FVW
EAN/UPC:
8596375044968
8596375044968, 0013609674374, 013609674374
Description
UNSTOPPABLE PERFORMANCE FOR EXTENDED-RANGE 1D/2D BARCODE CAPTURE
As a member of the Zebra 3600 Ultra-Rugged Series of scanners, the practically indestructible 1D/2D DS3608-ER corded and DS3678-ER cordless scanners are ready for one of the world’s toughest environments — the warehouse. Designed to capture any 1D or 2D barcode from near contact to as far as 70 ft./ 21.4 m away, these scanners provide the ultimate in versatility — workers can capture large picklist codes and small codes at near contact as easily as barcodes on pallets and location codes on the top of your warehouse racks. And truly unstoppable performance helps you drive throughput, accuracy and customer service to a new level.
SUPERIOR PERFORMANCE
You get the ultimate in scanning performance — period. Your workers can scan virtually any 1D or 2D barcode from near contact to as far as 70 ft./ 21.4 m away in practically any condition, as fast as they can pull the trigger. Even if barcodes are under shrinkwrap on a pallet; damaged, dirty or poorly printed; on a picklist; or on your highest warehouse rack, no problem — this intelligent scanner can handle it all.
ULTRA-RUGGED DESIGN
The warehouse and manufacturing plant floor is as tough as its gets. That’s why we created a new product category — the ultra-rugged scanner. These freezer-ready corded and cordless models are the only scanners in this class that are dust-tight, sprayproof and waterproofed to IP67, with an IP65-sealed cradle for a complete rugged cordless solution.
UNRIVALED MANAGEABILITY
With our complimentary industry-best tools, managing these scanners couldn’t be easier. You can remotely configure and upgrade your scanners, format data properly for instant transmission into your business applications, monitor battery statistics for your cordless models and more.
As a member of the Zebra 3600 Ultra-Rugged Series of scanners, the practically indestructible 1D/2D DS3608-ER corded and DS3678-ER cordless scanners are ready for one of the world’s toughest environments — the warehouse. Designed to capture any 1D or 2D barcode from near contact to as far as 70 ft./ 21.4 m away, these scanners provide the ultimate in versatility — workers can capture large picklist codes and small codes at near contact as easily as barcodes on pallets and location codes on the top of your warehouse racks. And truly unstoppable performance helps you drive throughput, accuracy and customer service to a new level.
SUPERIOR PERFORMANCE
You get the ultimate in scanning performance — period. Your workers can scan virtually any 1D or 2D barcode from near contact to as far as 70 ft./ 21.4 m away in practically any condition, as fast as they can pull the trigger. Even if barcodes are under shrinkwrap on a pallet; damaged, dirty or poorly printed; on a picklist; or on your highest warehouse rack, no problem — this intelligent scanner can handle it all.
ULTRA-RUGGED DESIGN
The warehouse and manufacturing plant floor is as tough as its gets. That’s why we created a new product category — the ultra-rugged scanner. These freezer-ready corded and cordless models are the only scanners in this class that are dust-tight, sprayproof and waterproofed to IP67, with an IP65-sealed cradle for a complete rugged cordless solution.
UNRIVALED MANAGEABILITY
With our complimentary industry-best tools, managing these scanners couldn’t be easier. You can remotely configure and upgrade your scanners, format data properly for instant transmission into your business applications, monitor battery statistics for your cordless models and more.
Specs
Scanning
Type
Characteristics of the device.
Handheld bar code reader
Optical sensor resolution
1280 pixels
Scanner type
Indicates the type of scanner this product is.
1D/2D
Sensor type
A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.
Laser
Linear (1D) barcodes supported
The product can read linear (1D) barcordes.
Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C.
2D (matrix & stacked) barcodes supported
The product can read matrix (2D) barcordes.
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Wavelength
The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light.
655 nm
Tilt reading angle
-65 - 65°
Pitch reading angle
-65 - 65°
Yaw reading angle
-45 - 45°
Ports & interfaces
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless.
Wired & Wireless
Standard interfaces
Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB.
RS-232, USB, Keyboard wedge
Wireless range
100 m
Bluetooth version
The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).
4.0
Bluetooth Low Energy (BLE)
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Performance
International Protection (IP) code
The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
IP67
Protection features
Physical effects from which the product is protected e.g. water resistant, crash proof.
Dust resistant, Shock resistant, Water resistant
LED indicators
Yes
Product colour
The colour e.g. red, blue, green, black, white.
Black, Green
Programming function
Power
Power source type
What the power source is.
Battery
Number of reads per charge
70000
Weight & dimensions
Width
The measurement or extent of something from side to side.
142 mm
Depth
The distance from the front to the back of something.
76 mm
Height
The measurement of the product from head to foot or from base to top.
185 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
436 g
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
-20 - 50 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Battery
Battery technology
The type of battery in the device, e.g. nickel–cadmium (NiCd).
Lithium-Ion (Li-Ion)
Battery capacity
A measure of the charge stored by the battery. Determined by the mass of active material contained in the battery.
3100 mAh
Technical details
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Logistics data
Harmonized System (HS) code
84716070
