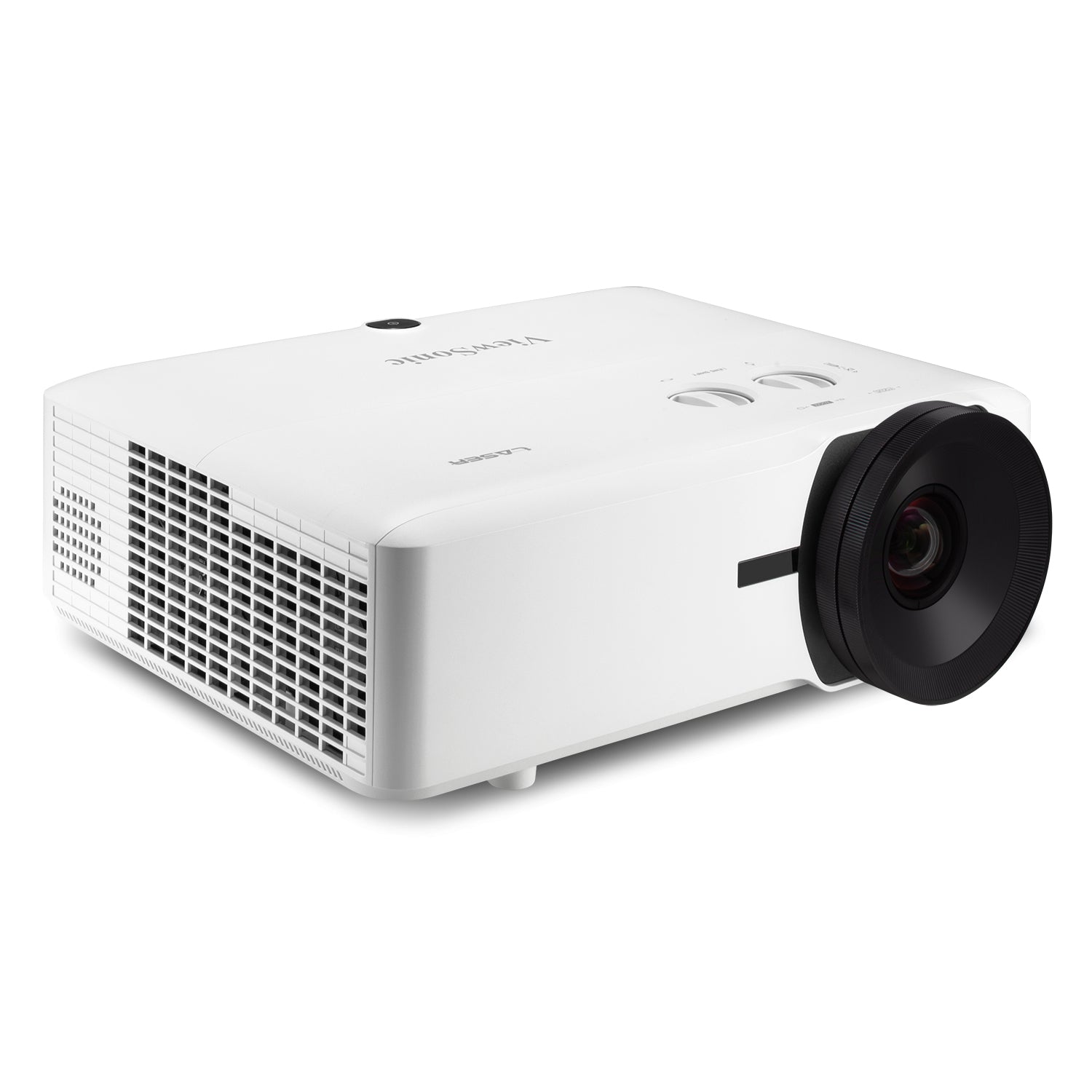

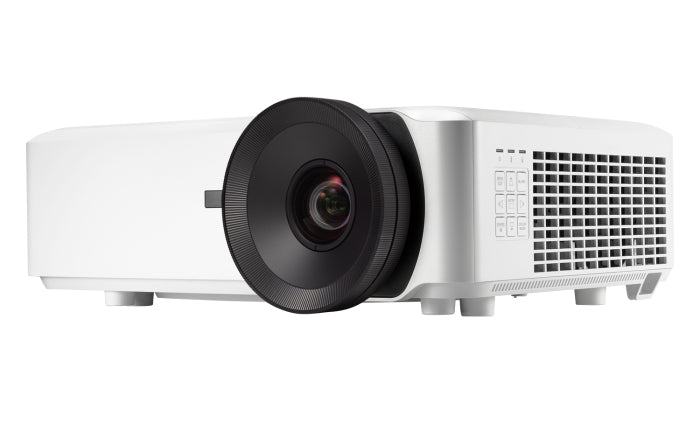

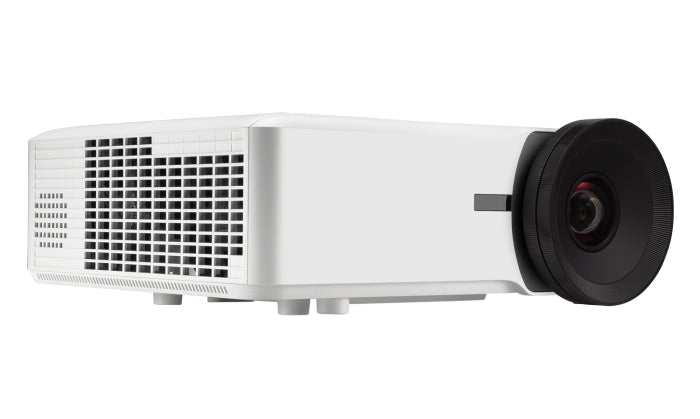

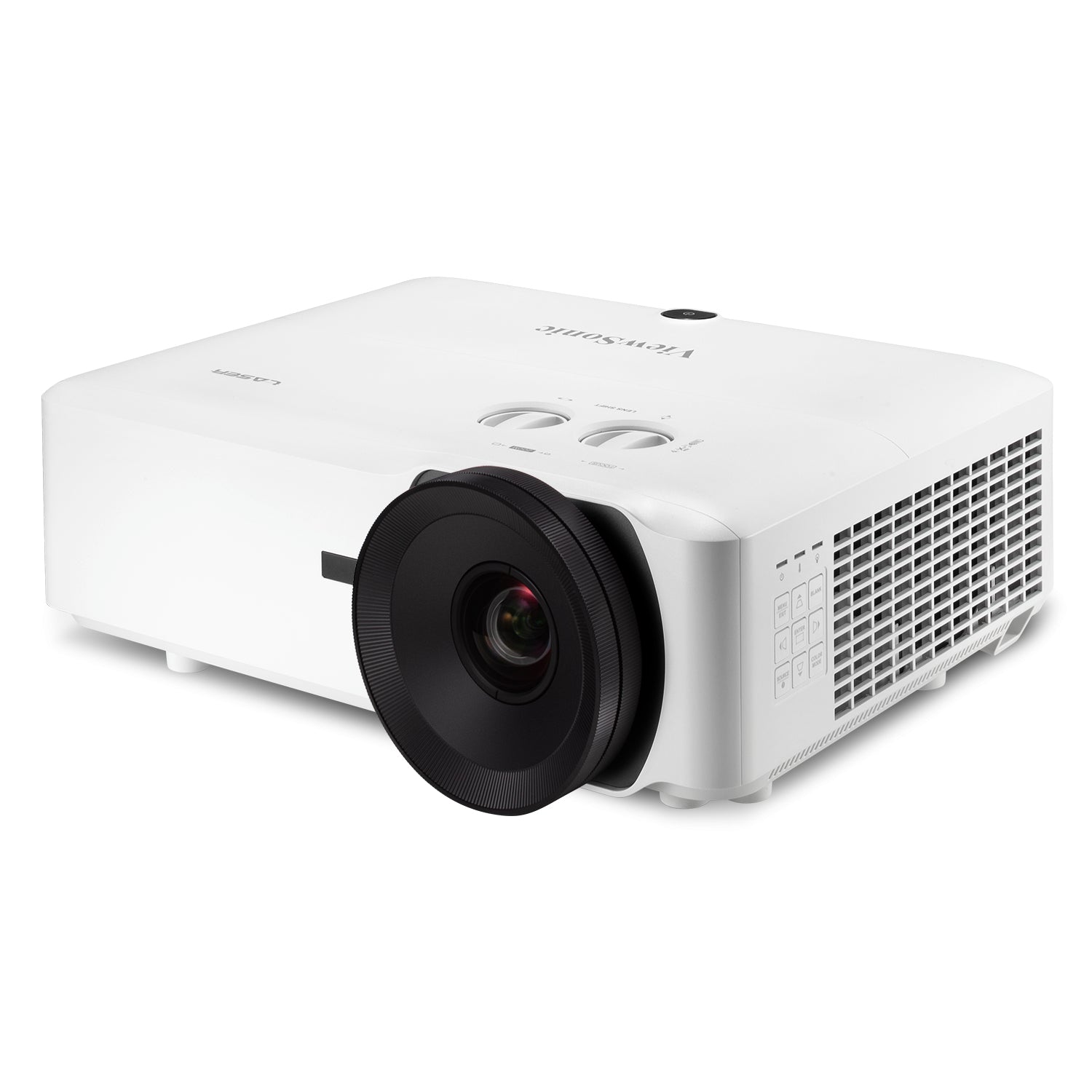

VIEWSONIC data projector Short throw projector 6000 ANSI lumens DMD WUXGA (1920x1200) White (LS921WU)
- Regular price
- 6,358.95$
- Sale price
- 6,358.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
Viewsonic LS921WU data projector Short throw projector 6000 ANSI lumens DMD WUXGA (1920x1200) White
Brand:Viewsonic
Product name:LS921WU
Product code:LS921WU
EAN/UPC:
0766907008739
0766907008739, 766907008739
- Bright Images in Large Spaces
- Long-lasting Laser Phosphor Light Source
- No Shadows, No Blinding Lights
- 360-degree Orientation
- Dual HDMI 2.0b with 4K HDR/HLG Support
- One-wire HDBT® Input
Description
LS921WU - 6000 Lumens WUXGA Short Throw Laser Projector with Portrait Mode and Dual HDMI
Bright and versatile for any professional installation, the ViewSonic® LS921WU WUXGA short throw laser projector delivers everything you need for big screens in big venues. Delivering 6,000 ANSI lumens of advanced high brightness, up to 20,000 hours* of light source life, and a screen size of up to 200”, this projector is ideal for auditoriums, restaurants, gyms and other large venues. This top-notch performer is also easy to deploy and manage with its short-throw lens, 1.1x optical zoom adjustment, wide lens shift, 360° projection, and portrait mode that provide extreme flexibility in even the most challenging installations. Dual HDMI 2.0b / HDCP 2.2 ports ensure access to original 4K quality content with HDR/HLG support. In addition, its compact size and built-in HDBaseT deliver the perfect mix of high-quality projection and cost-effectiveness. *Light source life may vary based on actual usage and other factors.
Bright Images in Large Spaces
Packed with 6,000 lumens and a high contrast ratio, this projector is guaranteed to produce bright images in large commercial spaces with high ambient light including auditoriums, convention centers, lecture halls, houses of worship and more.
Long-lasting Laser Phosphor Light Source
Designed with a laser phosphor light source lasting up to 20,000 hours*, this projector delivers long-term, virtually maintenance-free usage for a lower overall total cost of ownership.
*Light source lifespan may vary based on actual usage and other factors.
360-degree Orientation
A robust mechanical construction allows the projector to be installed in nearly any position, at any angle from floor to ceiling. You can mount the projector pointing straight down at the floor, or mount the projector upside-down at a 45-degree angle if need be.
One-wire HDBT® Input
With an integrated HDBT input, this projector can receive uncompressed HD video and audio over long distances via a single network cable.
Reliable 24/7 Operation
Featuring a long lifespan, this professional-grade projector is designed for reliable, continuous 24/7 use.
Network Monitoring & Control
IT admin can monitor, schedule, and manage the projector remotely, as well as receive projector status alerts, with the integrated Crestron® e-Control™ system and RoomView Express™ management software. Because this projector is Crestron® and AMX® certified, IT admin can control and monitor the projector for any size campus or enterprise.
Bright and versatile for any professional installation, the ViewSonic® LS921WU WUXGA short throw laser projector delivers everything you need for big screens in big venues. Delivering 6,000 ANSI lumens of advanced high brightness, up to 20,000 hours* of light source life, and a screen size of up to 200”, this projector is ideal for auditoriums, restaurants, gyms and other large venues. This top-notch performer is also easy to deploy and manage with its short-throw lens, 1.1x optical zoom adjustment, wide lens shift, 360° projection, and portrait mode that provide extreme flexibility in even the most challenging installations. Dual HDMI 2.0b / HDCP 2.2 ports ensure access to original 4K quality content with HDR/HLG support. In addition, its compact size and built-in HDBaseT deliver the perfect mix of high-quality projection and cost-effectiveness. *Light source life may vary based on actual usage and other factors.
Bright Images in Large Spaces
Packed with 6,000 lumens and a high contrast ratio, this projector is guaranteed to produce bright images in large commercial spaces with high ambient light including auditoriums, convention centers, lecture halls, houses of worship and more.
Long-lasting Laser Phosphor Light Source
Designed with a laser phosphor light source lasting up to 20,000 hours*, this projector delivers long-term, virtually maintenance-free usage for a lower overall total cost of ownership.
*Light source lifespan may vary based on actual usage and other factors.
360-degree Orientation
A robust mechanical construction allows the projector to be installed in nearly any position, at any angle from floor to ceiling. You can mount the projector pointing straight down at the floor, or mount the projector upside-down at a 45-degree angle if need be.
One-wire HDBT® Input
With an integrated HDBT input, this projector can receive uncompressed HD video and audio over long distances via a single network cable.
Reliable 24/7 Operation
Featuring a long lifespan, this professional-grade projector is designed for reliable, continuous 24/7 use.
Network Monitoring & Control
IT admin can monitor, schedule, and manage the projector remotely, as well as receive projector status alerts, with the integrated Crestron® e-Control™ system and RoomView Express™ management software. Because this projector is Crestron® and AMX® certified, IT admin can control and monitor the projector for any size campus or enterprise.
Specs
Projector
Smart projector
Screen size compatibility
The different screen sizes which the device can work with.
762 - 7620 mm (30 - 300")
Projection distance
The maximum length at which an image can be projected.
1.04 - 3.83 m
Contrast ratio (dynamic)
A property of a display system, defined as the ratio of the luminance of the brightest color (white) to that of the darkest color (black) that the system is capable of producing.
3000000:1
Projector brightness
6000 ANSI lumens
Projection technology
DMD
Projector native resolution
WUXGA (1920x1200)
Native aspect ratio
The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.
16:10
Number of colours
1.07 billion colours
Horizontal scan range
15 - 135 kHz
Vertical scan range
23 - 120 Hz
Keystone correction, horizontal
-40 - 40°
Keystone correction, vertical
-40 - 40°
Light source
Light source type
Laser
Service life of light source
20000 h
Lamp power
74 W
Lamps quantity
The number of lamps in/with the product.
2 lamp(s)
Lens system
Focus
Manual
Focal length range
Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′).
8.6 - 9.4 mm
Aperture range (F-F)
Aperture range of the device's optics, expressed in f-stops.
1.83 - 1.86
Zoom capability
The amount that the camera lens can zoom.
Zoom type
Manual
Zoom ratio
Measures how much the camera can adjust its focus for distance shots. A 3x zoom ratio changes the camera's focal length by a factor of three, from 35 mm to 105 mm for example.
2.0:1
Throw ratio
0.81-0.89

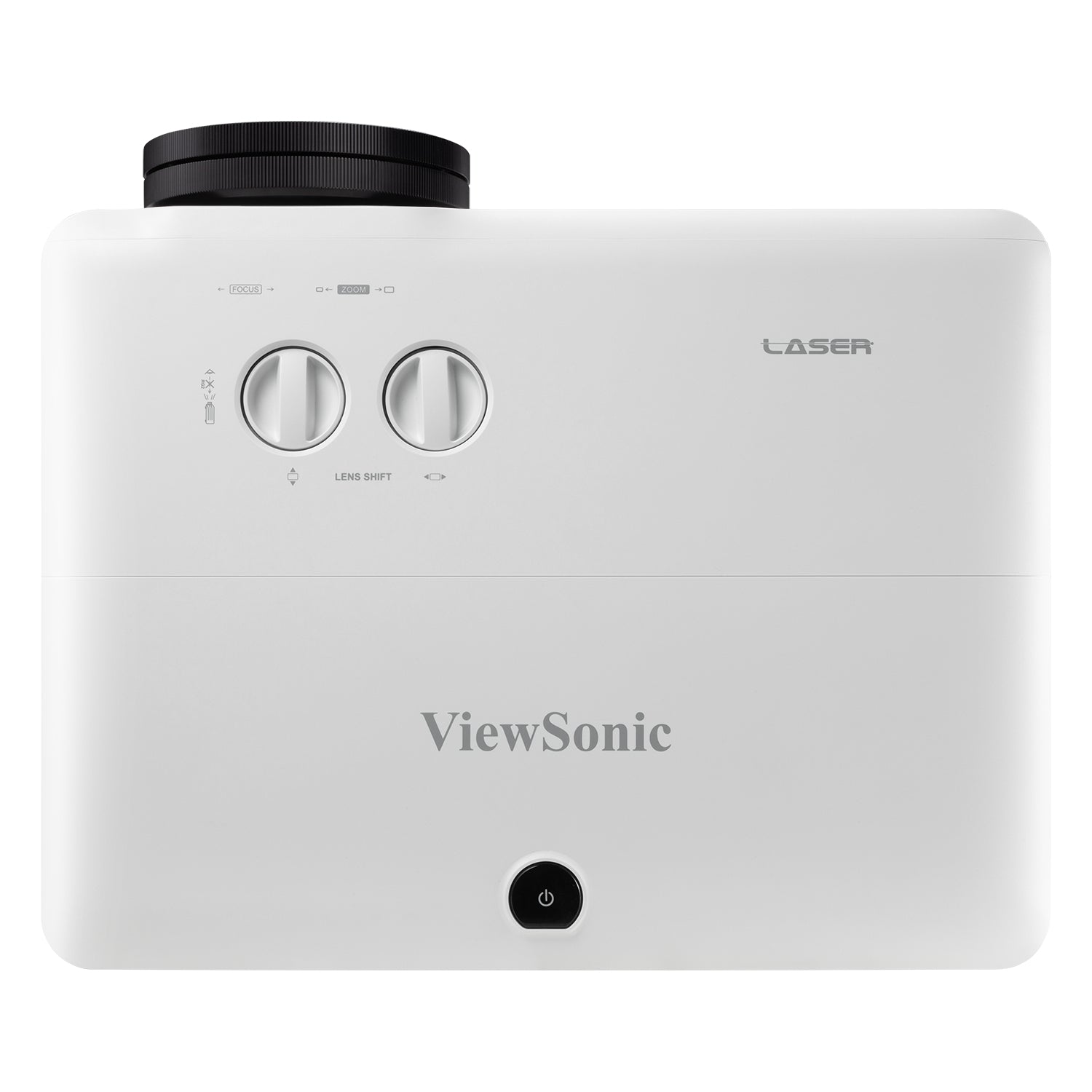

Horizontal lens shift range
50 - -50%
Vertical lens shift range
23 - -23%
Offset
0%
Video
Analog signal format system
The supported protocols for exchanging analog signals.
NTSC, PAL, SECAM
Full HD
Full High Definition (HD) means that a display supports a resolution of 1920 x 1080 pixel, and has a digital TV connection.
Supported graphics resolutions
The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.
640 x 480 (VGA), 3840 x 2160

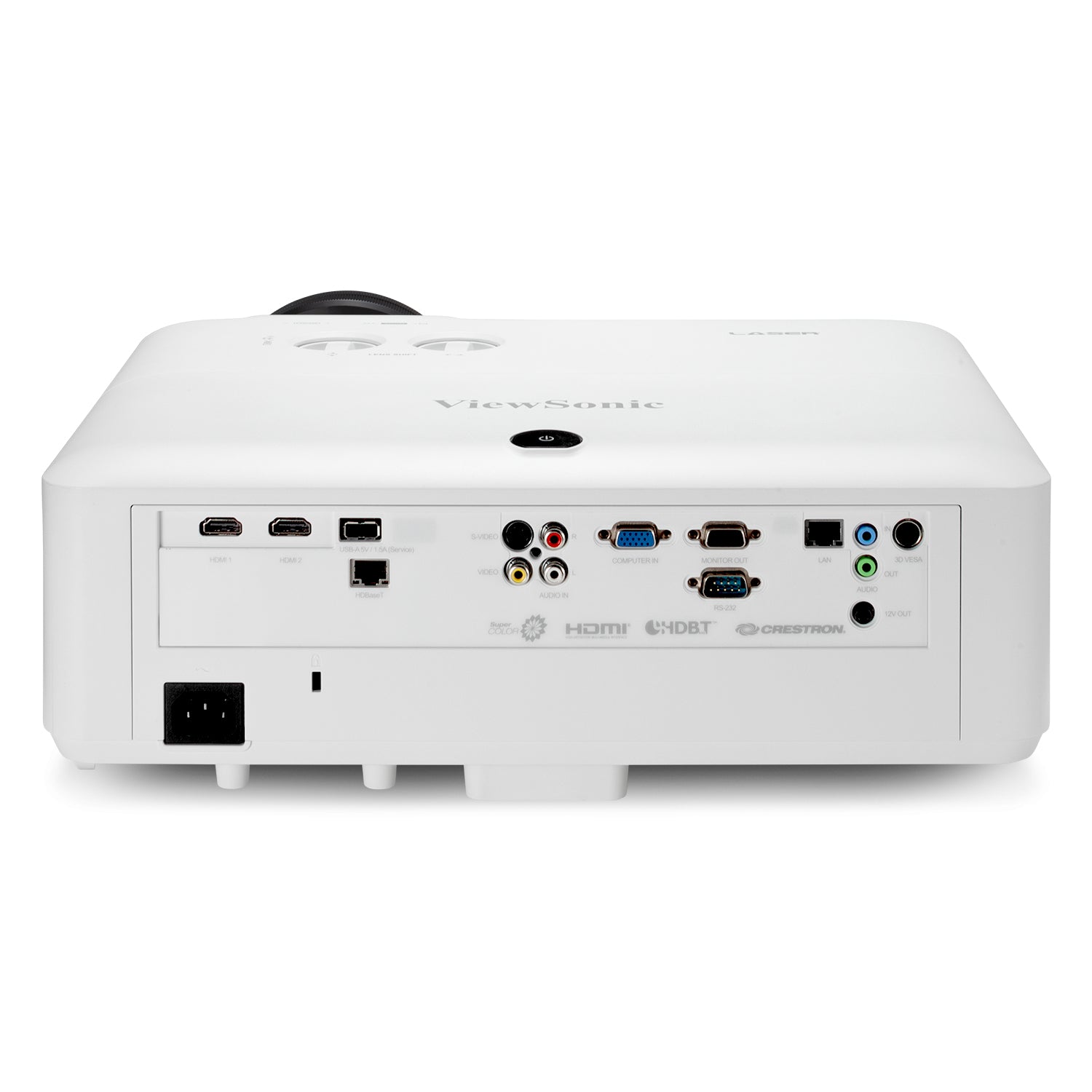

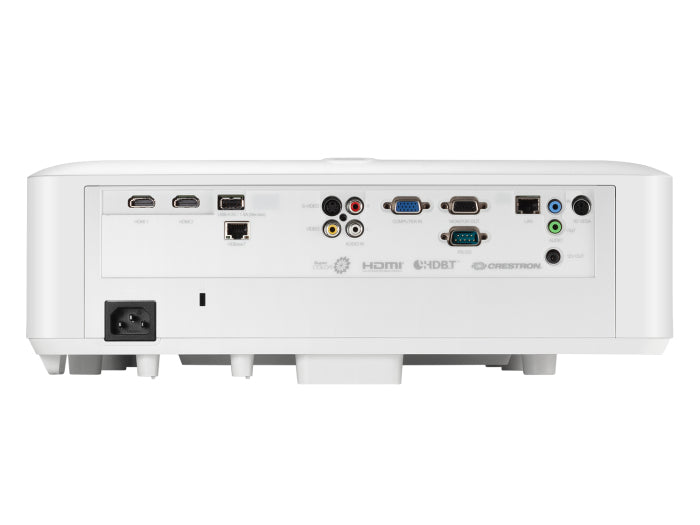

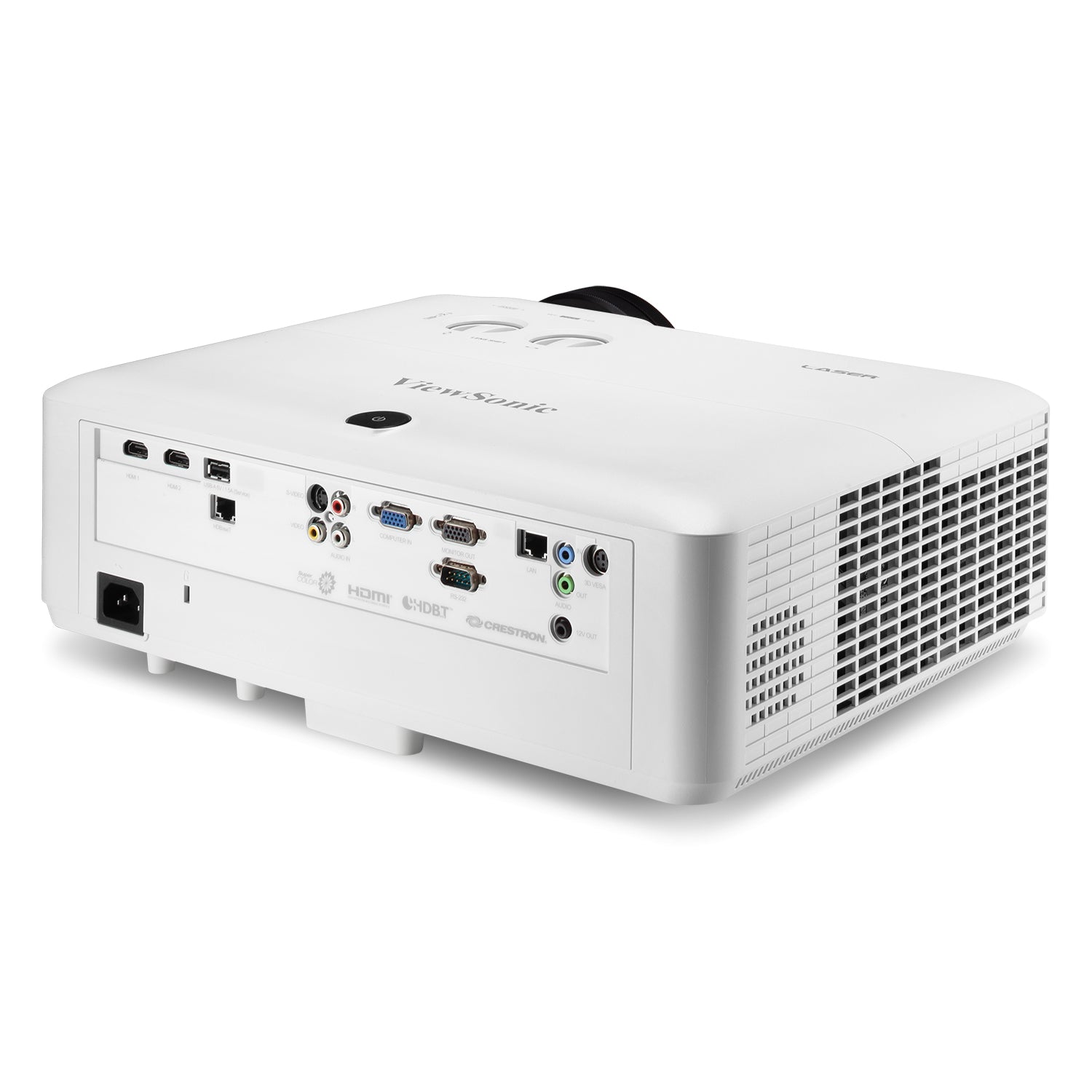

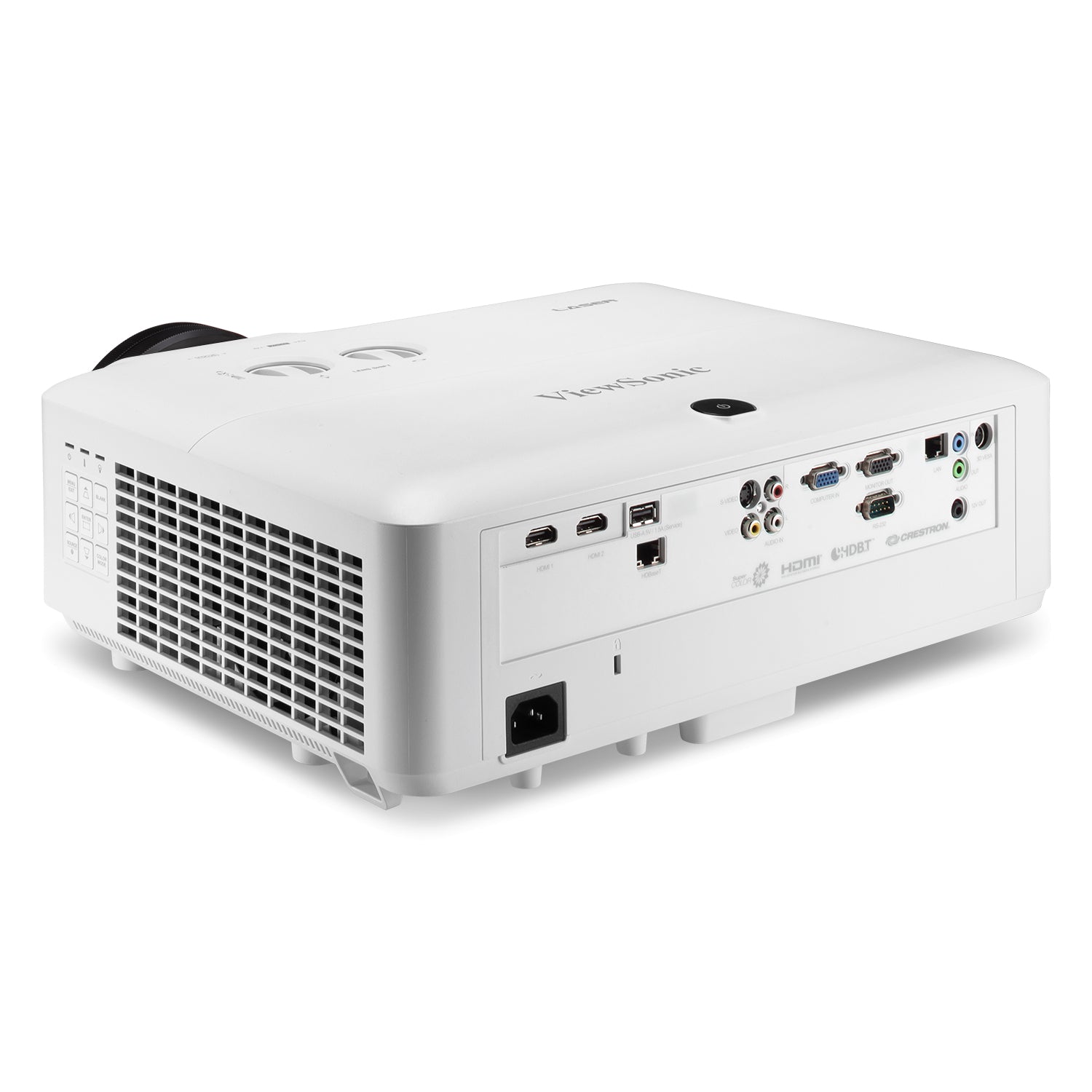

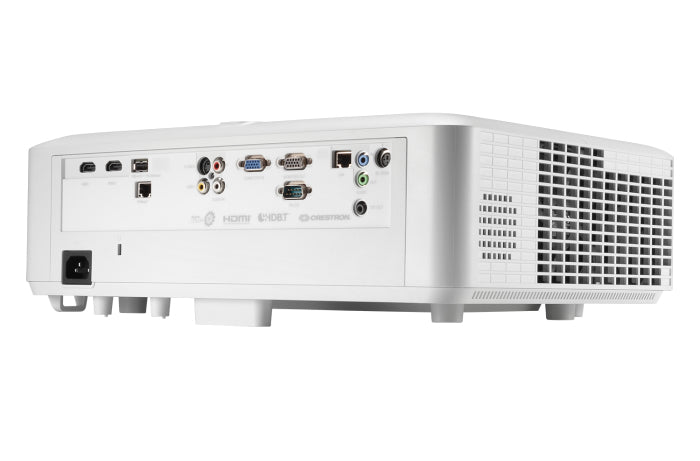

Ports & interfaces
HDMI connector type
Full-size
HDMI version
2.0b
S-Video inputs quantity
The number of ports (input sockets) for S-Video, which is a signalling standard for standard definition video, typically 480i or 576i.
1
HDBaseT port
USB 2.0 ports quantity
Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.
1
USB 2.0 Type-A ports quantity
1
Audio (L/R) in
The two sockets (ports) for receiving left audio signal (white cable) and right audio signal (red cable).
1
Headphone outputs
Number of sockets /ports where headphones are connected.
1
Microphone in
The socket where a microphone is connected to the device.
Serial interface type
RS-232
PC Audio in
The socket (port) for the PC audio input.
PC Audio out
VGA (D-Sub) ports quantity
Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.
2
HDMI ports quantity
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
2
3D sync port
Composite video in
The socket (port) for the composite video input (white cable).
1
DVI port
Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor.
AC (power) in
Network
Smart TV
Smart TV features access to a large number of channels that offer TV programs, movies, and music without the need to connect a TV antenna or subscribe to a cable/satellite service. Some smart TVs provide web browsing, gaming, and access to compatible media content stored on computers.
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Wi-Fi
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Storage
Card reader integrated
A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.
Features
Interactive
Noise level (economic mode)
29 dB
HDCP
High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.
Projection modes
Ceiling, Front, Rear
On Screen Display (OSD)
On Screen Display (OSD) languages
Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese
Number of OSD languages
23
Noise level
The amplitude level of the undesired background noise, usually measured in decibels (db).
36 dB
Multimedia
Built-in speaker(s)
The device contains speaker(s) to produce sound.
RMS rated power
RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers.
20 W
Number of built-in speakers
2
Design
Market positioning
Under which category can the device be positioned in the market, e.g. camera phone.
Business
Product type
The sub-category of the product.
Short throw projector
Product colour
The colour e.g. red, blue, green, black, white.
White
Placement
Where the product can be placed e.g. floor, wall.
Desktop, Ceiling
Display
Built-in display
A display which is part of the product, so you do not need to attach another display.
Power
Power source
What is providing power for the product e.g. mains electricity.
AC
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
450 W
Power consumption (standby)
The amount of electricity that is consumed when the product is on standby.
0.5 W
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100-120 V
AC input frequency
50 - 60 Hz
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 60 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
10 - 90%
Operating altitude
0 - 3000 m
Weight & dimensions
Width
The measurement or extent of something from side to side.
405 mm
Depth
The distance from the front to the back of something.
305 mm
Height
The measurement of the product from head to foot or from base to top.
145 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
6.6 kg
Package width
The distance from one side of the packaging to the other.
515 mm
Package depth
The distance from the front to the back of the packaging.
490 mm
Package height
The distance from the top to the bottom of the packaging.
276 mm
Package weight
Weight of the packaged product.
9.1 kg
Packaging content

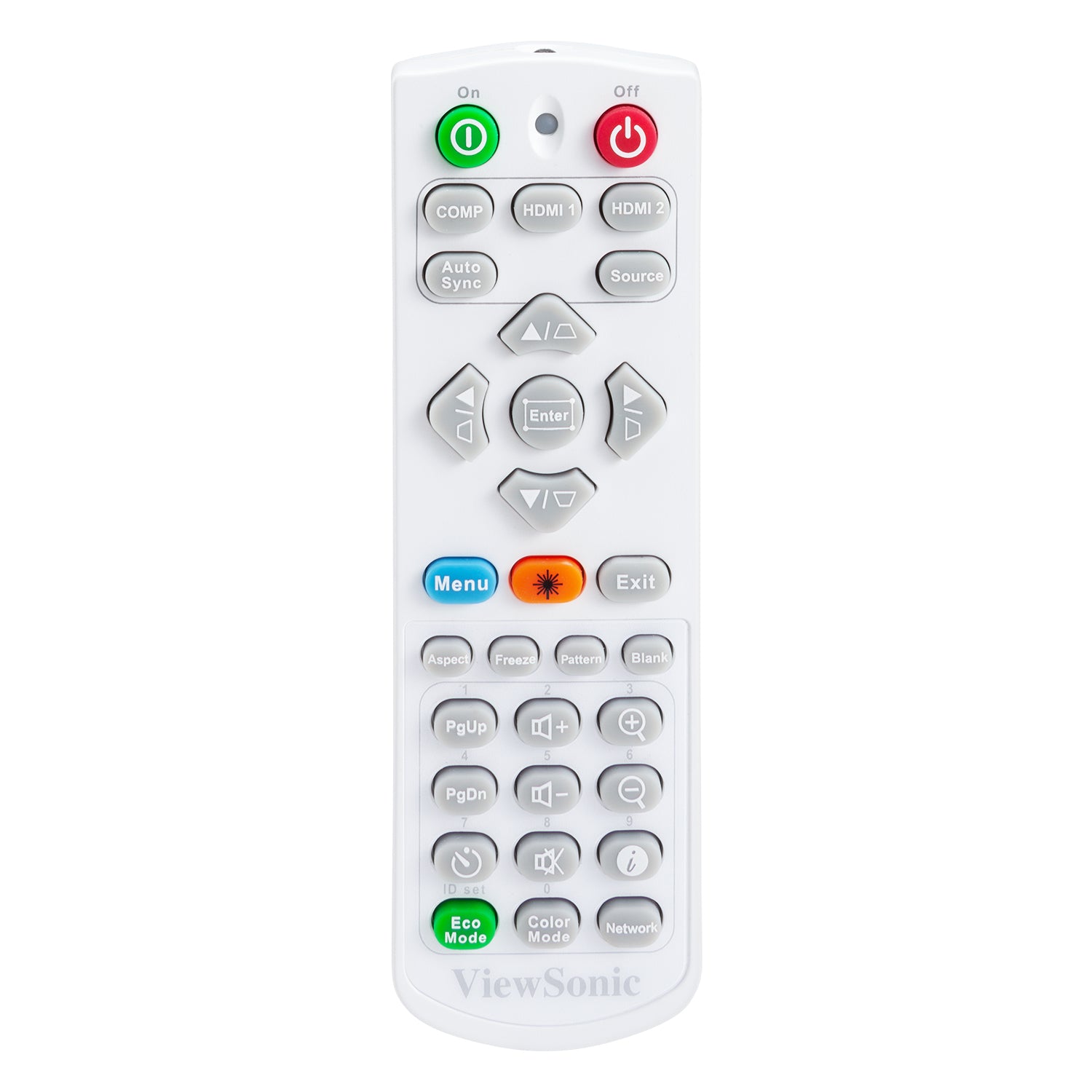

Remote control included
Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.
Cables included
AC, VGA
Manual
Logistics data
Pallet gross length
98 cm
Pallet gross width
103 cm
Pallet gross height
178 cm
Products per master (outer) case
1 pc(s)
Harmonized System (HS) code
8528620000
