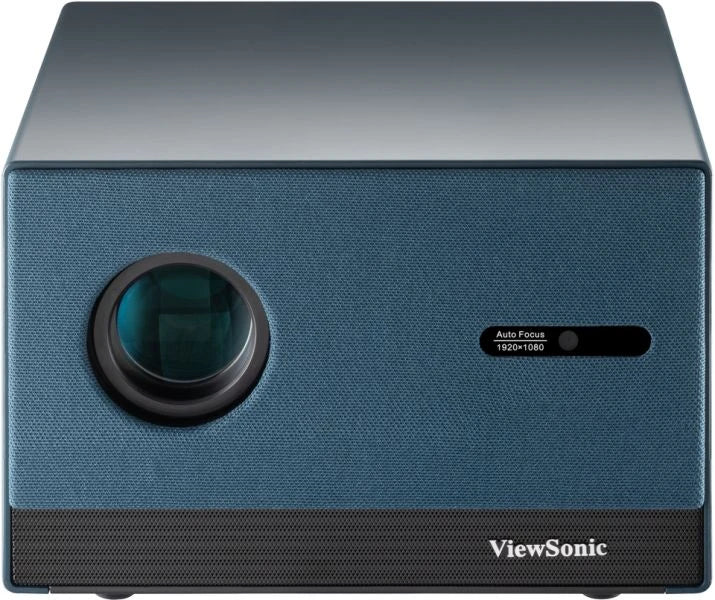

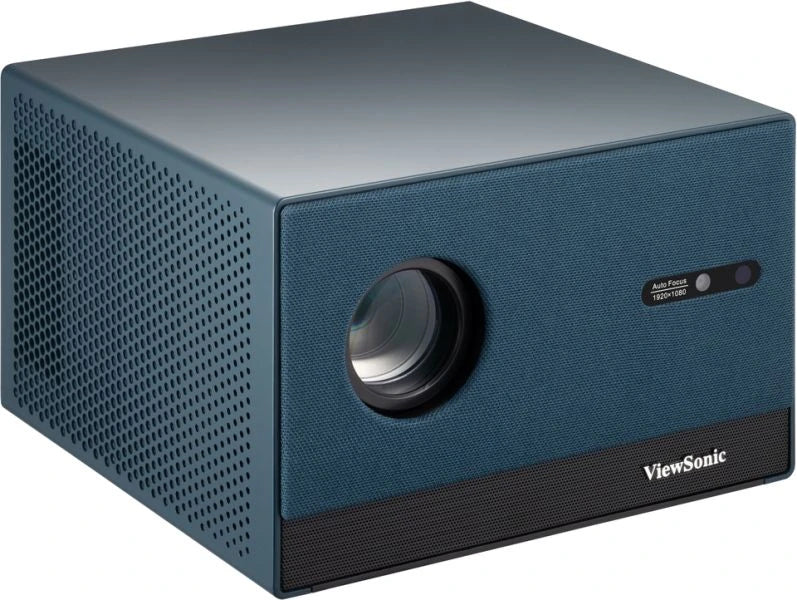

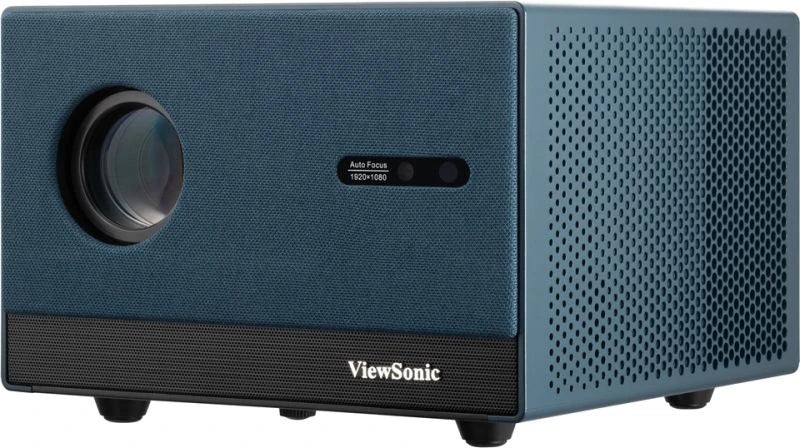

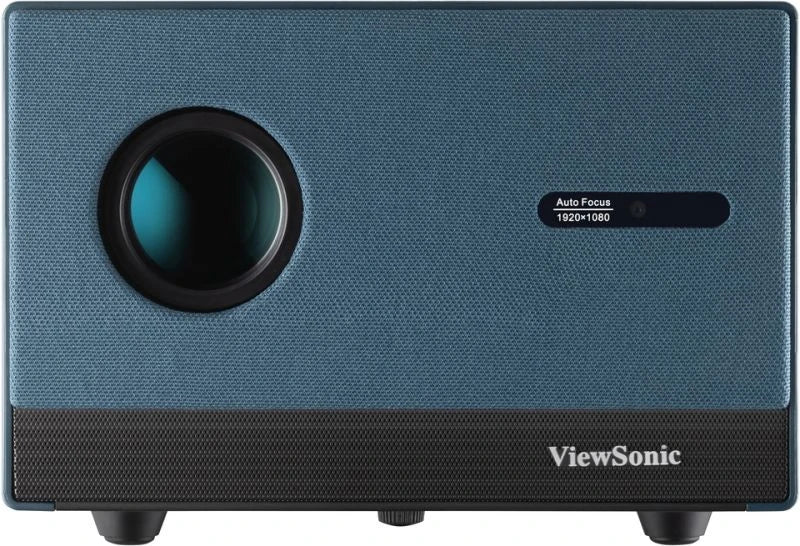

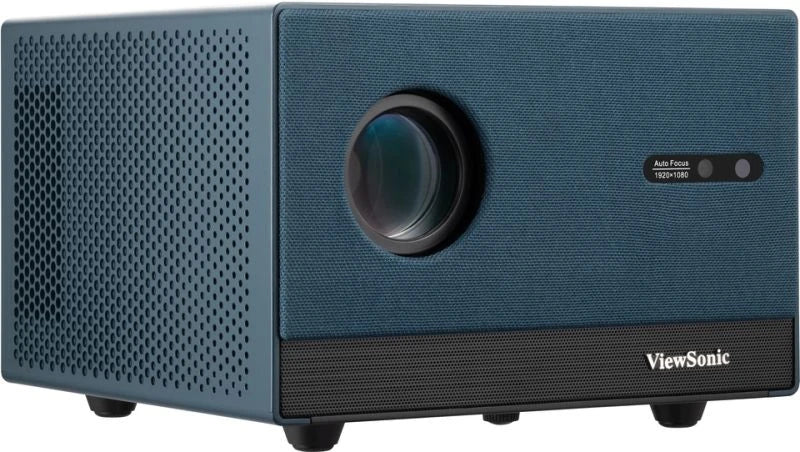

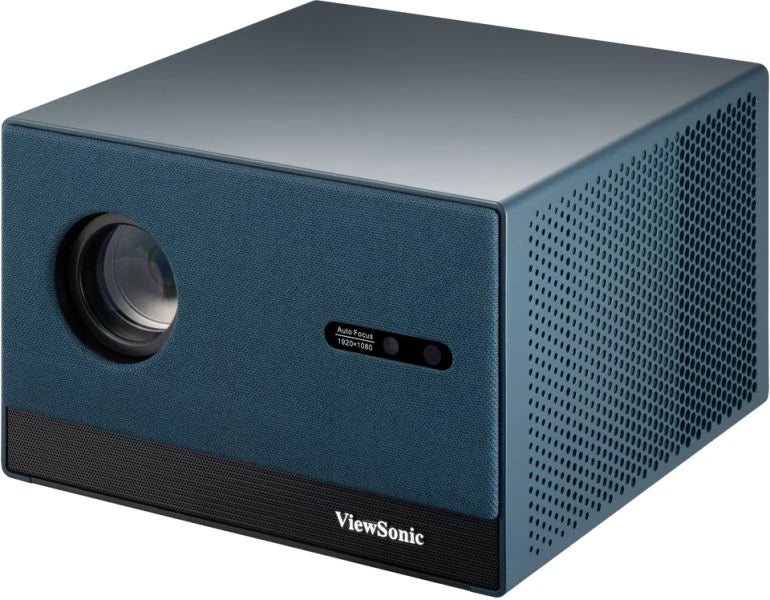

VIEWSONIC data projector Projector module 630 ANSI lumens LCD 1080p (1920x1080) Black, Blue (LX60HD)
- Regular price
- 450.95$
- Sale price
- 450.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
Viewsonic LX60HD data projector Projector module 630 ANSI lumens LCD 1080p (1920x1080) Black, Blue
Brand:Viewsonic
Product name:LX60HD
Product code:LX60HD
EAN/UPC:
0766907028386
0766907028386, 766907028386
- Built-in Google TV and native Netflix app for seamless streaming entertainment
- 1080p Full HD resolution on up to a 140" large screen
- Enhanced durability with a dust-proof sealed engine design
- Hassle-free setup: auto focus, auto H/V keystone, and auto screen fit
- Built-in Wi-Fi and Bluetooth connectivity
Description
Indulge in big-screen entertainment without breaking the bank with the ViewSonic LX60HD. This 1080p Full HD projector is equipped with Google TV and a native Netflix app, delivering seamless streaming pleasure on a screen of up to 140 inches without the need for an external dongle. Setting up is a breeze with automatic functions like auto focus for clear images, auto screen fit, and auto obstacle avoidance for hassle-free experience. Additionally, the auto H/V keystone correction and 4-corner adjustment ensure the projected image is always symmetrical, allowing you to achieve perfect images and enjoy your favorite content regardless of the projector's position. With a sealed engine design, it offers enhanced durability against dust and moisture for long-lasting image quality. Enjoy wireless screen mirroring with built-in Wi-Fi and Bluetooth for easy connectivity.
Streaming Heaven with Built-in Google TV
Enjoy your favorite streaming content on a large screen effortlessly with the built-in Google TV system. Access popular services like Netflix, Disney+, YouTube, and more without needing an external dongle. Google TV's unified interface and personalized recommendations, paired with the ultra-large screen, provide a seamless and immersive streaming experience.
Captivating Large Visuals
Experience every detail with ultra-sharp Full HD 1080p resolution on a screen up to 140 inches. Enjoy enhanced clarity and immersive viewing, ensuring you never miss a moment of your favorite movies and shows.
Sealed Engine, Enhanced Durability
Thanks to its sealed optical engine design, the projector offers superior dust and moisture resistance, ensuring a longer lifespan and consistent image quality without the hassle and cost of filter maintenance. Additionally, you won't have to worry about black dots on the projection screen or light leakage disrupting your viewing experience.
Auto Image Focus in Seconds
Auto focus ensures you achieve clear images effortlessly within seconds by automatically measuring the distance to the projected surface and making the necessary adjustments, saving you time and effort.
Hands-Free Setup from Any Angle
Experience instant cinematic immersion with a quick and hassle-free setup. Featuring a comprehensive automatic horizontal and vertical keystone with 4-corner adjustment, the projector effortlessly displays symmetrical images from different angles.
Perfect Screen Size Match
Thanks to the auto screen fit feature, the projector automatically adjusts the image size and shape to perfectly match the screen. Just sit back, relax, and enjoy!
Smart Obstacle Avoidance
Featuring auto obstacle avoidance, the projector can detect objects like paintings and plants that overlap the projected image and automatically resize it to maintain a clear view. No need to stand up and rearrange things—just let the show begin.
Bluetooth Audio Streaming
Wirelessly stream audio from the projector to your Bluetooth headphones, letting you escape the outside world and fully immerse yourself in big-screen entertainment.
Wireless Screen Mirroring from Your Smart Devices
Dive into your favorite contents within seconds thanks to 5GHz high-speed Wi-Fi connectivity. You can cast or mirror content from your devices to the big screen cable-free.
One-Click Entertainment
Enjoy an immersive visual experience at the push of a button. Instant power-on lets you start watching your favorite shows immediately.
Flexible Setup with Digital Zoom
Setting up is now more convenient with the 0.8X-1.0X digital zoom function. Zoom out the projected image to fit your desired screen size from the same distance without moving the projector.
Streaming Heaven with Built-in Google TV
Enjoy your favorite streaming content on a large screen effortlessly with the built-in Google TV system. Access popular services like Netflix, Disney+, YouTube, and more without needing an external dongle. Google TV's unified interface and personalized recommendations, paired with the ultra-large screen, provide a seamless and immersive streaming experience.
Captivating Large Visuals
Experience every detail with ultra-sharp Full HD 1080p resolution on a screen up to 140 inches. Enjoy enhanced clarity and immersive viewing, ensuring you never miss a moment of your favorite movies and shows.
Sealed Engine, Enhanced Durability
Thanks to its sealed optical engine design, the projector offers superior dust and moisture resistance, ensuring a longer lifespan and consistent image quality without the hassle and cost of filter maintenance. Additionally, you won't have to worry about black dots on the projection screen or light leakage disrupting your viewing experience.
Auto Image Focus in Seconds
Auto focus ensures you achieve clear images effortlessly within seconds by automatically measuring the distance to the projected surface and making the necessary adjustments, saving you time and effort.
Hands-Free Setup from Any Angle
Experience instant cinematic immersion with a quick and hassle-free setup. Featuring a comprehensive automatic horizontal and vertical keystone with 4-corner adjustment, the projector effortlessly displays symmetrical images from different angles.
Perfect Screen Size Match
Thanks to the auto screen fit feature, the projector automatically adjusts the image size and shape to perfectly match the screen. Just sit back, relax, and enjoy!
Smart Obstacle Avoidance
Featuring auto obstacle avoidance, the projector can detect objects like paintings and plants that overlap the projected image and automatically resize it to maintain a clear view. No need to stand up and rearrange things—just let the show begin.
Bluetooth Audio Streaming
Wirelessly stream audio from the projector to your Bluetooth headphones, letting you escape the outside world and fully immerse yourself in big-screen entertainment.
Wireless Screen Mirroring from Your Smart Devices
Dive into your favorite contents within seconds thanks to 5GHz high-speed Wi-Fi connectivity. You can cast or mirror content from your devices to the big screen cable-free.
One-Click Entertainment
Enjoy an immersive visual experience at the push of a button. Instant power-on lets you start watching your favorite shows immediately.
Flexible Setup with Digital Zoom
Setting up is now more convenient with the 0.8X-1.0X digital zoom function. Zoom out the projected image to fit your desired screen size from the same distance without moving the projector.
Video
Specs
Projector
Smart projector
Screen size compatibility
The different screen sizes which the device can work with.
1270 - 3556 mm (50 - 140")
Projection distance
The maximum length at which an image can be projected.
1.42 - 3.8 m
Projector brightness
630 ANSI lumens
Projection technology
LCD
Projector native resolution
1080p (1920x1080)
Contrast ratio (typical)
The difference in light intensity between the brightest white and the darkest black.
4200:1
Number of colours
16.7 million colours
Horizontal scan range
15 - 135 kHz
Vertical scan range
23 - 85 Hz
Keystone correction, horizontal
-40 - 40°
Keystone correction, vertical
- 40 -40°
Light source
Light source type
LED
Service life of light source
20000 h
Light source brightness
630 lm
Lens system
Focus
Auto
Fixed focal length
125 mm
F-number (relative aperture)
2.9
Zoom capability
The amount that the camera lens can zoom.
Zoom type
Auto
Zoom ratio
Measures how much the camera can adjust its focus for distance shots. A 3x zoom ratio changes the camera's focal length by a factor of three, from 35 mm to 105 mm for example.
0.8-1:1
Throw ratio
1.2
Offset
0%
Video
Full HD
Full High Definition (HD) means that a display supports a resolution of 1920 x 1080 pixel, and has a digital TV connection.
Supported video modes
The video modes that can be displayed by the device.
480i, 480p, 576i, 576p, 720p, 1080i, 1080p

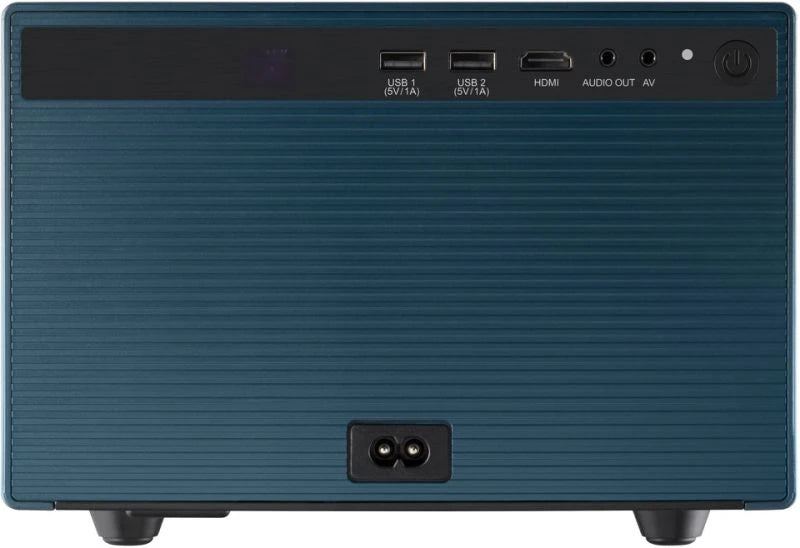

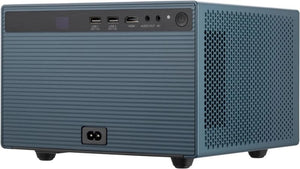

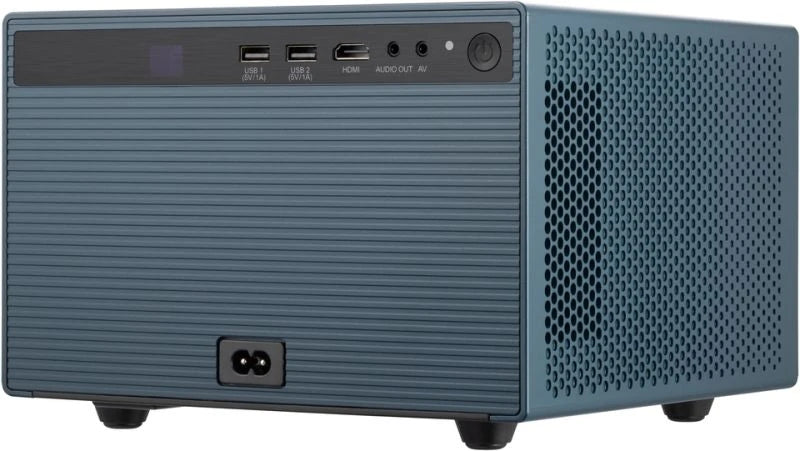

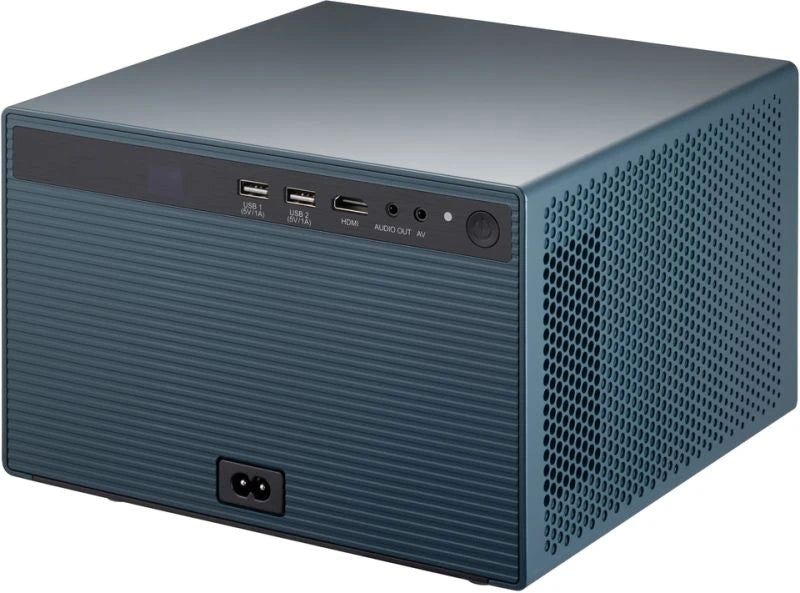

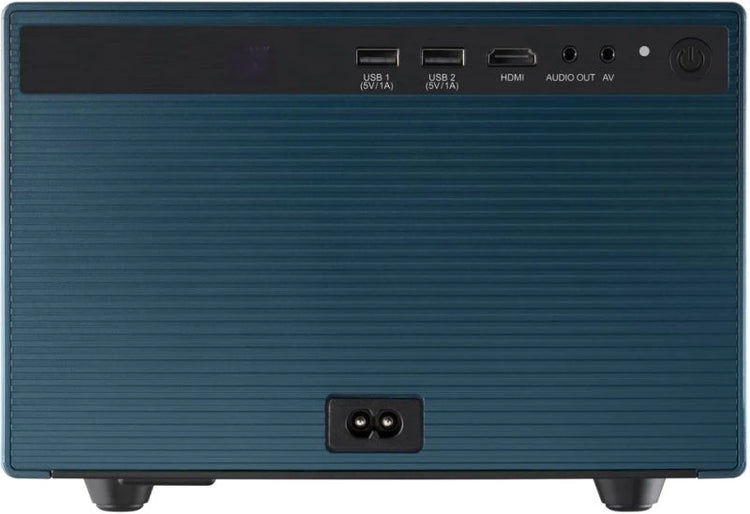

Ports & interfaces
HDMI version
1.4
USB 2.0 Type-A ports quantity
2
Audio (L/R) out
The two sockets (ports) for transmitting left audio signal (white cable) and right audio signal (red cable).
1
VGA (D-Sub) ports quantity
Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.
1
HDMI ports quantity
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
1
Network
Smart TV
Smart TV features access to a large number of channels that offer TV programs, movies, and music without the need to connect a TV antenna or subscribe to a cable/satellite service. Some smart TVs provide web browsing, gaming, and access to compatible media content stored on computers.
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Wi-Fi
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Wi-Fi standards
The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.
Wi-Fi 5 (802.11ac)
Bluetooth
Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Bluetooth version
The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).
5.0
Storage
Card reader integrated
A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.
Internal storage capacity
The amount e.g of data which can be stored inside the device.
8 GB
Features
Interactive
HDCP
High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.
On Screen Display (OSD)
On Screen Display (OSD) languages
Arabic, Simplified Chinese, Traditional Chinese, Czech, German, English, Finnish, French, Japanese, Korean, Polish, Romanian, Swedish, Turkish
Number of OSD languages
24
Noise level
The amplitude level of the undesired background noise, usually measured in decibels (db).
40 dB
Multimedia
Built-in speaker(s)
The device contains speaker(s) to produce sound.
RMS rated power
RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers.
10 W
Number of built-in speakers
2
Design
Market positioning
Under which category can the device be positioned in the market, e.g. camera phone.
Home cinema
Product type
The sub-category of the product.
Projector module
Product colour
The colour e.g. red, blue, green, black, white.
Black, Blue
Display
Built-in display
A display which is part of the product, so you do not need to attach another display.
Power
Power source
What is providing power for the product e.g. mains electricity.
AC
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
144 W
Power consumption (standby)
The amount of electricity that is consumed when the product is on standby.
0.5 W
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
AC input frequency
50/60 Hz
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 35 °C
Weight & dimensions
Width
The measurement or extent of something from side to side.
228 mm
Depth
The distance from the front to the back of something.
227 mm
Height
The measurement of the product from head to foot or from base to top.
159 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
3.13 kg
Package width
The distance from one side of the packaging to the other.
315 mm
Package depth
The distance from the front to the back of the packaging.
232 mm
Package height
The distance from the top to the bottom of the packaging.
323 mm
Package weight
Weight of the packaged product.
4.3 kg
Packaging content
Remote control included
Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.
Remote control type
Bluetooth
Cables included
Power
Manual
Technical details
Image lag time
163 ms
