TP-LINK VIGI SP9030 Solar panel (VJB-300)
- Regular price
- 19.95$
- Sale price
- 19.95$
- Regular price
-
Free shipping on orders over $99
Couldn't load pickup availability

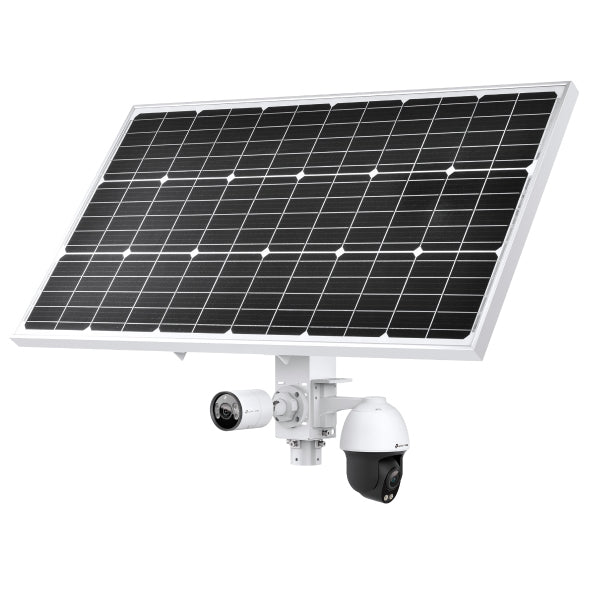

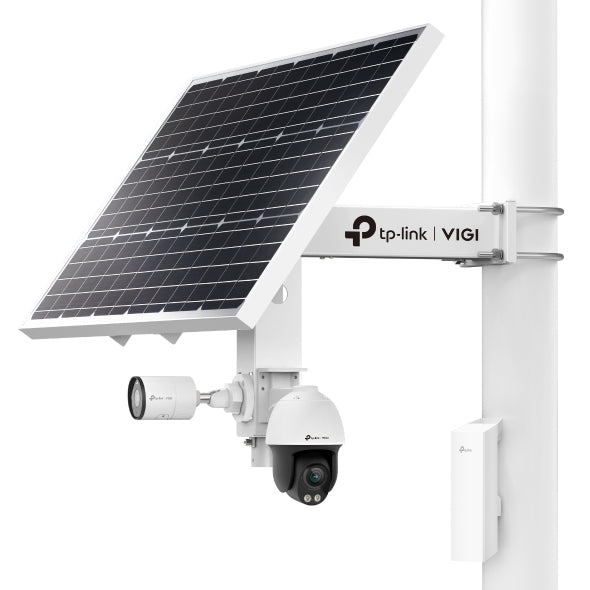

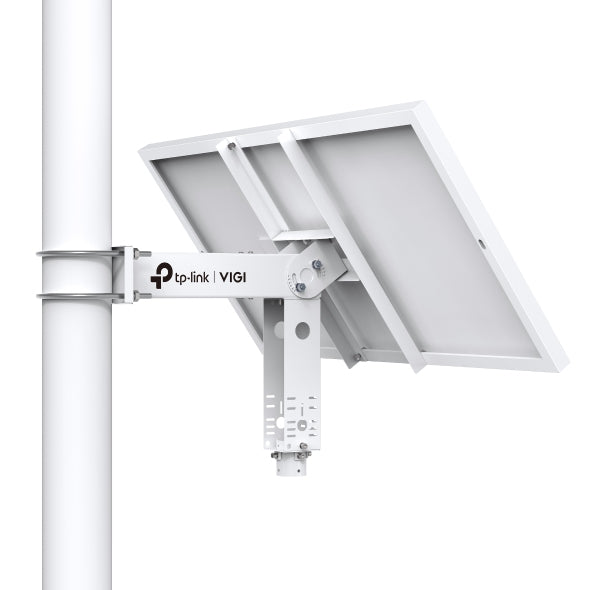

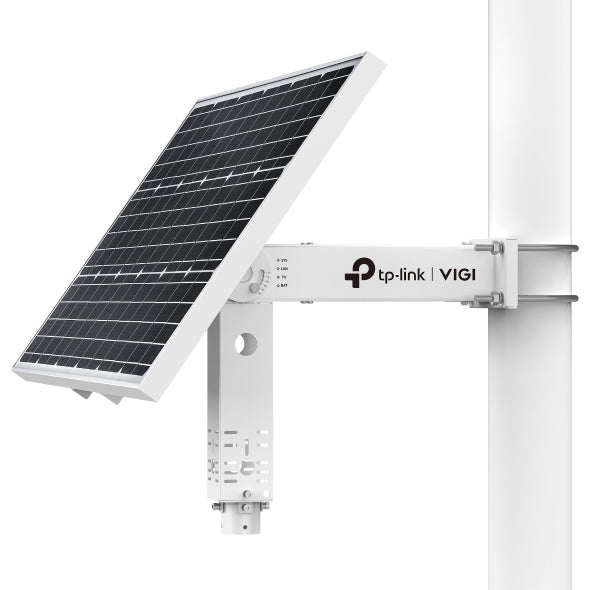

TP-Link VIGI SP9030 Solar panel
Brand:TP-Link
Product name:SP9030
Product code:VIGISP9030
EAN/UPC:
4895252504897
4895252504897, 1210002610193
- 90W Photovoltaic Panel and 31.2Ah/10.8V Lithium Battery
- 3× DC Voltage Output Ports
- Modular Design
- 5°/15°/25°/35°/45°/55° Adjustable Angles
- Intelligent Auxiliary Heating Technology
- Maximum Power Point Tracking (MPPT) Charging Controller
- IP66 Weatherproof
- Remote Management and Simple Installation
Description
Remote Management
Control devices centrally, monitor power statistics, get low-battery alerts, update firmware, and reboot
the system via the mobile app. Enjoy peace of mind, no matter your location.
Intelligent Auxiliary Heating Technology
The built-in smart battery supports intelligent auxiliary heating technology, which allows the battery to operate normally across a wide temperature range.
MPPT Controller Boosts Charging Efficiency
An MPPT (Maximum Power Point Tracking) controller optimizes solar panel power, reduce power losses, and increase charging efficiency by 20% compared to PWM (Pulse Width Modulation) controllers.
Control devices centrally, monitor power statistics, get low-battery alerts, update firmware, and reboot
the system via the mobile app. Enjoy peace of mind, no matter your location.
Intelligent Auxiliary Heating Technology
The built-in smart battery supports intelligent auxiliary heating technology, which allows the battery to operate normally across a wide temperature range.
MPPT Controller Boosts Charging Efficiency
An MPPT (Maximum Power Point Tracking) controller optimizes solar panel power, reduce power losses, and increase charging efficiency by 20% compared to PWM (Pulse Width Modulation) controllers.
Specs
Features
Type
Characteristics of the device.
Solar panel
Placement supported
Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.
Outdoor
Product color
The colour e.g. red, blue, green, black, white.
White
International Protection (IP) code
The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
IP66
LED indicators
Yes
Packaging data
Package weight
Weight of the packaged product in gram.
17,5 kg
Packaging content
Quick installation guide
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
-30 - 60 °C
Operating relative humidity (H-H)
10 - 90%
Ports & interfaces
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
10,100 Mbit/s
Power
Rated power
The maximum active power under the rated operation conditions.
90 W
Weight & dimensions
Width
The measurement or extent of something from side to side.
516 mm
Depth
The distance from the front to the back of something.
998 mm
Height
The measurement of the product from head to foot or from base to top.
60 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
15 kg
Battery
Battery technology
The type of battery in the device, e.g. nickel–cadmium (NiCd).
Lithium
Battery capacity
A measure of the charge stored by the battery. Determined by the mass of active material contained in the battery.
31200 mAh
