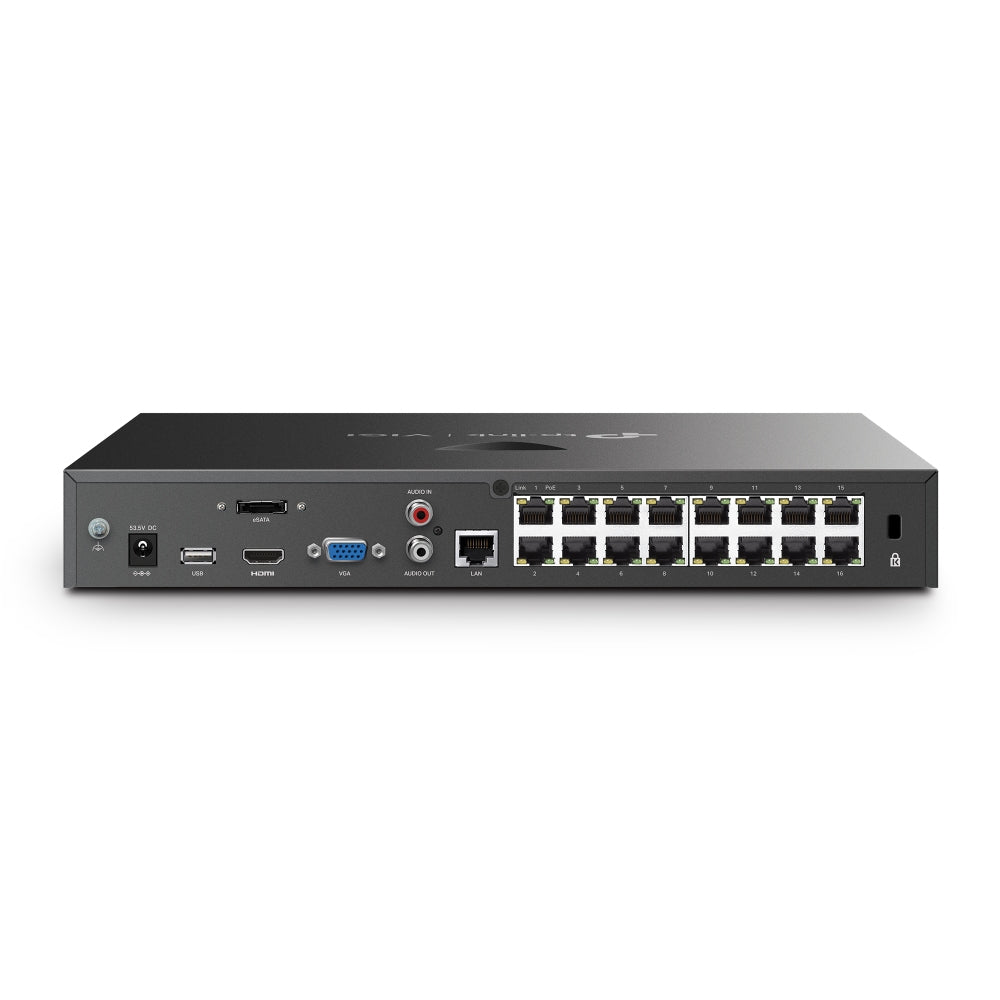

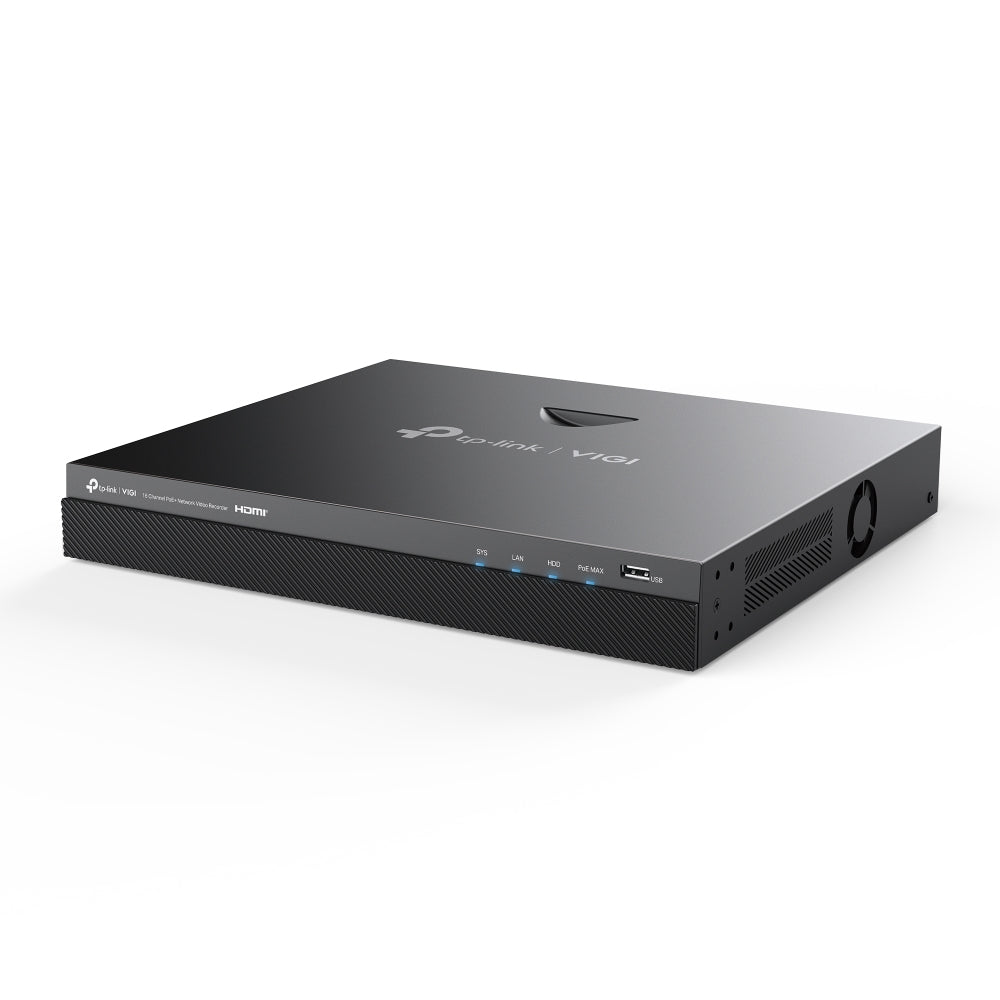

TP-LINK VIGI NVR2016H-16P network video recorder Black (VIGI-NVR2016H-16P)
- Regular price
- 347.95$
- Sale price
- 347.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
TP-Link VIGI NVR2016H-16P network video recorder Black
Brand:TP-Link
Product name:VIGI NVR2016H-16P
Product code:VIGI NVR2016H-16P
EAN/UPC:
4895252504040
4895252504040, 0840030710360, 840030710360
- 4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP, and 8-ch@2MP† decoding capacity allows you to enjoy more-channels live view and playback at the same time
- 90 W PoE Budget: 16× 802.3af/at-compliant PoE+ ports with a total power supply of 90 W.‡
- 16-Channel Simultaneous Playback*: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage
- H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space
- ONVIF Ensures Compatibility△: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility
- Auto Initialize for Quick Configuration: Just click "Auto Initialize" to set up basic IPC and hard disk parameters, significantly reducing your configuration time
- 24/7 Continuous Recording: Stores up to 20 TB of footage (1048 storage days***) from connected cameras to secure your data for quick, convenient access
- Two-Way Audio: With voice intercom support, scare off any potential thieves or intruders from wherever you are
- Remote Monitoring: The dedicated VIGI app and client enable remote monitoring, providing ease and convenience
Description
Security Never Shuts Down
Every Angle All on One Screen
4K HDMI Video Output & 16MP Decoding Capacity
Sharp image definition up to 8MP (4K) ensures you capture every detail. 8-ch@2MP decoding capacity allows you to enjoy more-channels live view and playback at the same time.†
Dedicated 16 PoE+ Ports for Simplified IP Camera Deployment.
Designed to use a single Ethernet cable for both data and power transmission, this NVR offers flexible installation to fit in various surveillance scenarios for small businesses, such as groceries, warehouses, restaurants, and financial institutions.
Reviewing Footage is Faster than Ever
16-Channel Simultaneous Playback*
Replay the feed from up to 16 cameras at the same time, increase replay speed,
and find events in the video schedule to easily review footage.
More Compression. More Savings. More Quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
No Need to Check Long Compatibility Lists
ONVIF Ensures Compatibility
Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility. △
Auto Initialize for Quick Configuration
Just click "Auto Initialize" to set up basic IPC and hard disk parameters, including initialization and recording plans, significantly reducing your configuration time.
Security for Every Hour and Every Day
27/4 Continuous Recording
With the storage capacity of up to 20TB, the NVR supports 24/7 continuous local recording. Customize record schedule or record type to save storage space and quickly search out target footage.
Two-Way Audio
With voice intercom support, scare off any potential thieves or intruders from wherever you are.
Remote Management
Take full control over your security anytime and anywhere on the VIGI app or client.
Live Views and Real-Time Alerts
Easily check your business security via 24/7 live views. Get notifications as soon as the cameras detect something abnormal.
Easy & Smart Playback
Quickly review and locate certain video clips by event, vehicle, person, time, and more. This will greatly improve event backtracking efficiency and reduce labor costs.
Customized Monitoring Patterns
Based on your monitoring needs, you can freely preset motion zones, adjust the rotation angle, set zoom in & out, customize patrol routes, control patrol routes, and more.
Four-Way Management
Flexibly manage your cameras via the web UI, NVR UI, VIGI app, and VIGI Security Manager for ease and convenience.
One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
Every Angle All on One Screen
4K HDMI Video Output & 16MP Decoding Capacity
Sharp image definition up to 8MP (4K) ensures you capture every detail. 8-ch@2MP decoding capacity allows you to enjoy more-channels live view and playback at the same time.†
Dedicated 16 PoE+ Ports for Simplified IP Camera Deployment.
Designed to use a single Ethernet cable for both data and power transmission, this NVR offers flexible installation to fit in various surveillance scenarios for small businesses, such as groceries, warehouses, restaurants, and financial institutions.
Reviewing Footage is Faster than Ever
16-Channel Simultaneous Playback*
Replay the feed from up to 16 cameras at the same time, increase replay speed,
and find events in the video schedule to easily review footage.
More Compression. More Savings. More Quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
No Need to Check Long Compatibility Lists
ONVIF Ensures Compatibility
Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility. △
Auto Initialize for Quick Configuration
Just click "Auto Initialize" to set up basic IPC and hard disk parameters, including initialization and recording plans, significantly reducing your configuration time.
Security for Every Hour and Every Day
27/4 Continuous Recording
With the storage capacity of up to 20TB, the NVR supports 24/7 continuous local recording. Customize record schedule or record type to save storage space and quickly search out target footage.
Two-Way Audio
With voice intercom support, scare off any potential thieves or intruders from wherever you are.
Remote Management
Take full control over your security anytime and anywhere on the VIGI app or client.
Live Views and Real-Time Alerts
Easily check your business security via 24/7 live views. Get notifications as soon as the cameras detect something abnormal.
Easy & Smart Playback
Quickly review and locate certain video clips by event, vehicle, person, time, and more. This will greatly improve event backtracking efficiency and reduce labor costs.
Customized Monitoring Patterns
Based on your monitoring needs, you can freely preset motion zones, adjust the rotation angle, set zoom in & out, customize patrol routes, control patrol routes, and more.
Four-Way Management
Flexibly manage your cameras via the web UI, NVR UI, VIGI app, and VIGI Security Manager for ease and convenience.
One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
Specs
Performance
Video input channels
The number of channels for video input that the device features.
16 channels
Number of simultaneously playbacked channels
16 channels
Video recording modes
720p, 1080p
Maximum resolution
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
3840 x 2160 pixels
Supported resolutions
HDMI Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz, 3840x2160/30Hz
VGA Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz
Video motion detection
Audio formats supported
The audio formats which this device or software can read/use e.g. MP3, MP4.
G.711 A-law, G.711 μ-law, G.726
Video formats supported
The type of video formats that can be used by this device.
H.264, H.264+, H.265, H.265+
Playback modes
Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop
Playback controls
Maximum frame rate
This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz).
30 fps
Input bandwidth
80 Mbit/s
Output bandwidth
60 Mbit/s
Recording modes
The different ways in which this device can record.
Manual, Schedule
Features
Reset button
Product color
The colour e.g. red, blue, green, black, white.
Black
Certification
CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
Power
Power consumption (max)
The maximum amount of power used by the device.
40 W
Output current
2,43 A
Output voltage
53.5 V
Total Power over Ethernet (PoE) budget
90 W
Weight & dimensions
Width
The measurement or extent of something from side to side.
330 mm
Depth
The distance from the front to the back of something.
285 mm
Height
The measurement of the product from head to foot or from base to top.
45 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
1,9 kg
Package weight
Weight of the packaged product in gram.
3,2 kg
Wireless LAN features
Wi-Fi
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Hard drive
HDD capacity
The maximum storage capacity of the hard disk, usually measured in bytes e.g. GB.
0 GB
Number of HDDs supported
The total number of hard drives that can be used in/with this product.
2
Maximum storage capacity
The maximum amount of data that can be stored in the device.
10 TB
HDD interface
The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI.
SATA
Ports & interfaces
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
10,100,1000 Mbit/s
Power over Ethernet (PoE) ports quantity
16
HDMI ports quantity
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
1
VGA (D-Sub) output ports
1
USB 2.0 ports quantity
USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
2
eSATA ports quantity
The number of ports (interfaces) for eSATA. eSATA is a a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives.
1
Internal SATA ports quantity
2
eSATA
Line-in
Audio output
The type of audio output that the device produces, and the connector(s).
1
DC-in jack
The socket/plug where the DC electricity supply connects to the device.
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3af, IEEE 802.3at
Supported network protocols
Network protocols tested as compatible with this product e.g. FTP,HTML, POP.
UPnP (Plug and Play), NTP (Network Timing)
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
-10 - 55 °C
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Packaging content
Cables included
AC
AC adapter included
Quick installation guide
