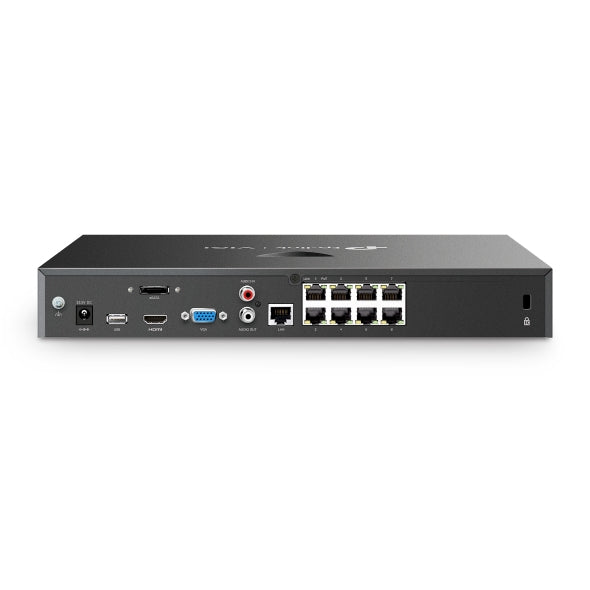

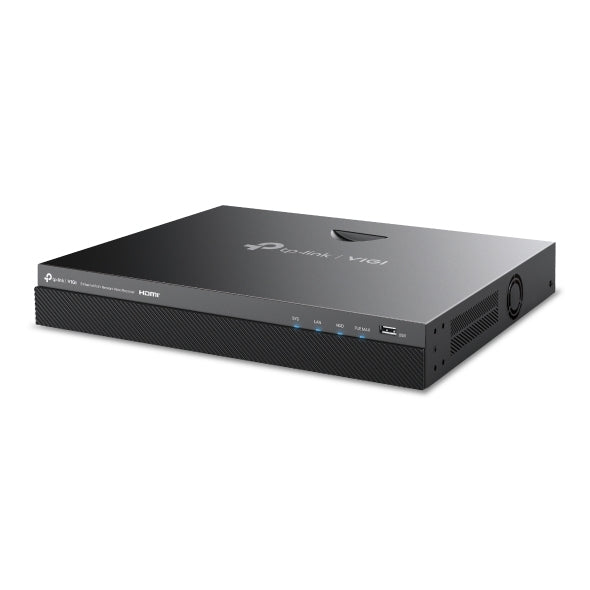

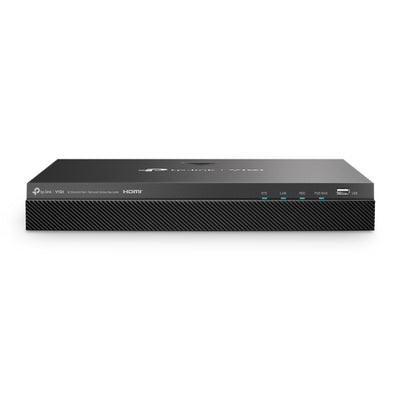

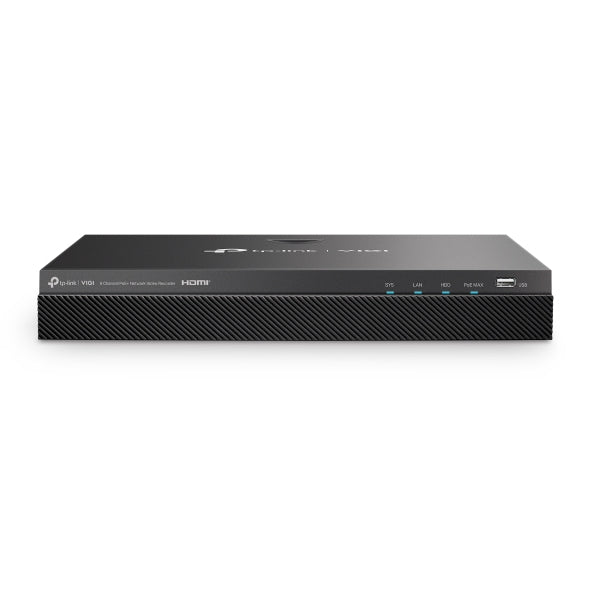

TP-LINK VIGI NVR2008H-8MP network video recorder Black (VIGI-NVR2008H-8MP)
- Regular price
- 356.95$
- Sale price
- 356.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
TP-Link VIGI NVR2008H-8MP network video recorder Black
Brand:TP-Link
Product name:VIGI 8 Channel PoE+ Network Video Recorder
Product code:VIGI NVR2008H-8MP
EAN/UPC:
8885020622027
8885020622027, 0810142821124, 810142821124
- 8-Channel Live View and 4K HDMI Video Output
- 8× 10/100 Mbps PoE+ Ports with 93 W PoE Budget
- 4-ch @ 4MP/ 8-ch @ 2MP Decoding Capability
- 8-Channel Synchronous Playback
- 80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth
- 2× SATA Interfaces and 1 Up to 16 TB
- H.265+ Compression Technology
- HDMI and VGA Simultaneous Output
- Remote Monitoring
Description
Security Never Shuts Down
VIGI NVR2008H-8MP 8 Channel PoE+ Network Video Recorder
- 8-Channel Live View
- 4K HDMI Video Output
- 93W PoE Budget
- 8-Channel Live View
- Smart Video Coding
- Comprehensive Compatibility
- Auto Initialize
- 2× SATA Interfaces (1 Up to 16 TB)
Auto Initialize for Quick Configuration
Just click “Auto Initialize” to set up basic IPC and hard disk parameters, greatly reducing your configuration time.
VIGI NVR2008H-8MP 8 Channel PoE+ Network Video Recorder
- 8-Channel Live View
- 4K HDMI Video Output
- 93W PoE Budget
- 8-Channel Live View
- Smart Video Coding
- Comprehensive Compatibility
- Auto Initialize
- 2× SATA Interfaces (1 Up to 16 TB)
Auto Initialize for Quick Configuration
Just click “Auto Initialize” to set up basic IPC and hard disk parameters, greatly reducing your configuration time.
Specs
Performance
Video input channels
The number of channels for video input that the device features.
8 channels
Maximum resolution
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
3840 x 2160 pixels
Supported resolutions
3840x2160, 1920x1080, 1680x1050, 1440x900, 1280x1024, 1280x720
Video motion detection
Video loss detection
Audio formats supported
The audio formats which this device or software can read/use e.g. MP3, MP4.
G.711, G.711u, G.726
Video formats supported
The type of video formats that can be used by this device.
H.264, H.264+, H.265, H.265+
Maximum frame rate
This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz).
60 fps
Input bandwidth
80 Mbit/s
Output bandwidth
60 Mbit/s
Features
LED indicators
Yes
Product color
The colour e.g. red, blue, green, black, white.
Black
Power
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
35 W
Output current
2,43 A
Output voltage
53.5 V
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
93 W
Weight & dimensions
Width
The measurement or extent of something from side to side.
330 mm
Depth
The distance from the front to the back of something.
285 mm
Height
The measurement of the product from head to foot or from base to top.
45 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
2,1 kg
Package weight
Weight of the packaged product in gram.
4,1 kg
Wireless LAN features
Wi-Fi
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Hard drive
Number of HDDs supported
The total number of hard drives that can be used in/with this product.
2
Maximum storage capacity
The maximum amount of data that can be stored in the device.
32 TB
HDD interface
The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI.
SATA
Ports & interfaces
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
9
Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
10,100 Mbit/s
HDMI ports quantity
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
1
VGA (D-Sub) output ports
1
USB 2.0 ports quantity
USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
2
Audio RCA inputs
1
Audio RCA outputs
1
eSATA
DC-in jack
The socket/plug where the DC electricity supply connects to the device.
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
-10 - 55 °C
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Storage relative humidity (H-H)
10 - 90%
