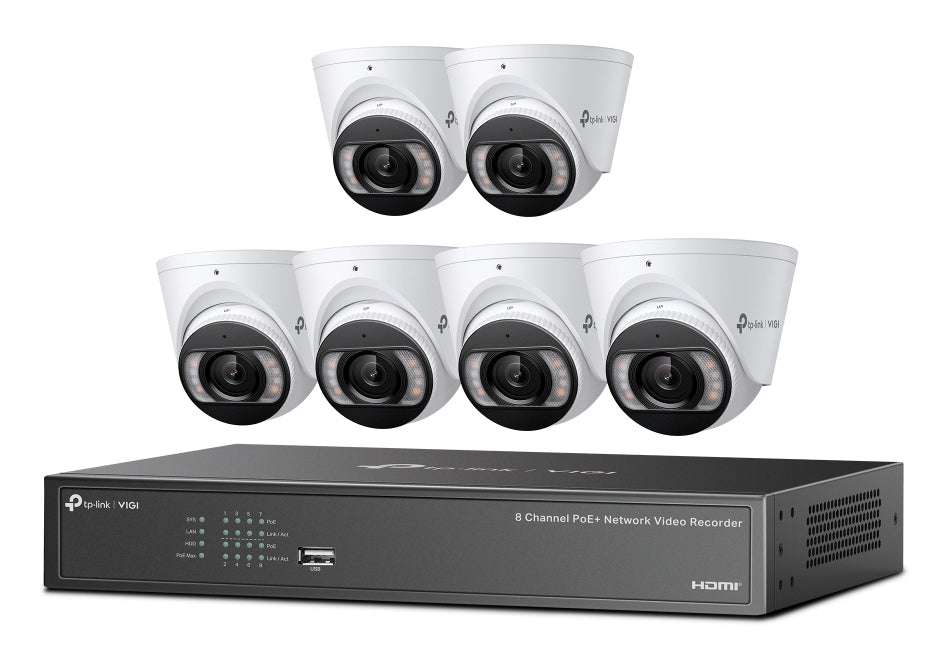

TP-LINK VIGI 4MP TURRET IPC & 8-CH NVR KIT video surveillance kit Wired 8 channels (VIGI NK8MP-T6425-2T)
- Regular price
- 1,063.95$
- Sale price
- 1,063.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
TP-Link VIGI 4MP TURRET IPC & 8-CH NVR KIT video surveillance kit Wired 8 channels
Brand:TP-Link
Product name:VIGI 4MP TURRET IPC & 8-CH NVR KIT
Product code:VIGI NK8MP-T6425-2T
EAN/UPC:
0810142820097
0810142820097, 810142820097
- Simpler Installation with PoE Technology
- Auto Initialize for Quick Configuration
- Non-Stop Protection
- Ideal for Small-scale Scenario
Specs

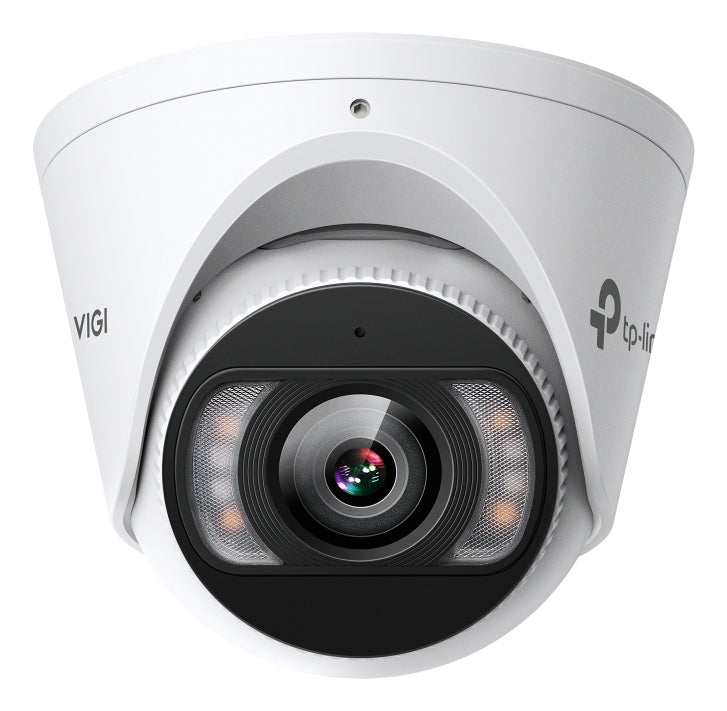

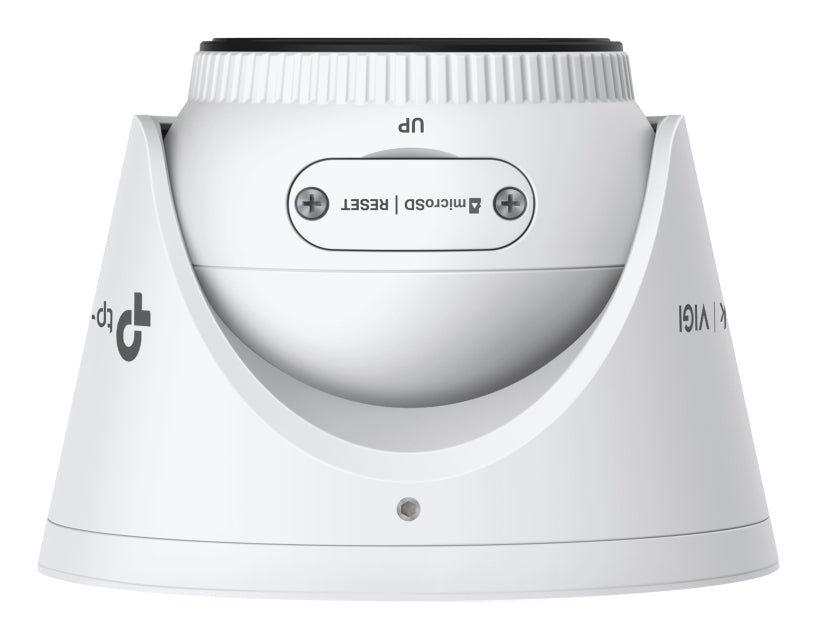

Camera
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
Camera included
This product includes a camera.
Color
The main colour of the product.
Surveillance camera form factor
Design of the surveillance (security) camera.
Turret
Camera interface
The place where the camera connects to other devices e.g. USB port.
RJ-45
Day/night mode
Infrared (IR) cut-off filter
Infra-red wavelength
850 nm
Placement supported
Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.
Indoor/outdoor
Fixed focal length
2,8 mm
Maximum aperture number
1,6
Rotating
Capability to rotate device.
Number of cameras
The quantity of cameras that product can support.
1
Housing material
What the casing of the product is made of.
Metal, Plastic
Night vision distance
30 m
Number of illumination LEDs
4
Sensor type
A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.
CMOS
Optical sensor size
Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes.
25,4 / 2,7 mm (1 / 2.7")
Minimum illumination
Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality.
0,005 lx
LED type
IR/White
Camera shutter speed
Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure.
1/3 - 1/10000 s
Supported resolutions
2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Minimum aperture number
The minimum size of the hole through which light enters a camera.
1,6
Progressive scan
Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television).
International Protection (IP) code
The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
IP67
Weight & dimensions
Camera width
11,1 cm
Camera depth
11,1 cm
Camera height
8,37 cm
Camera weight
480 g
Recorder width
29,4 cm
Recorder depth
18 cm
Recorder height
4,4 cm
Recorder weight
1,12 kg

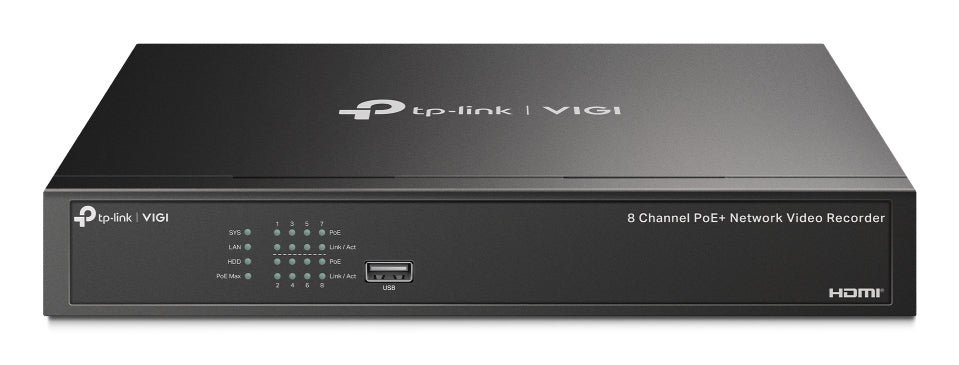

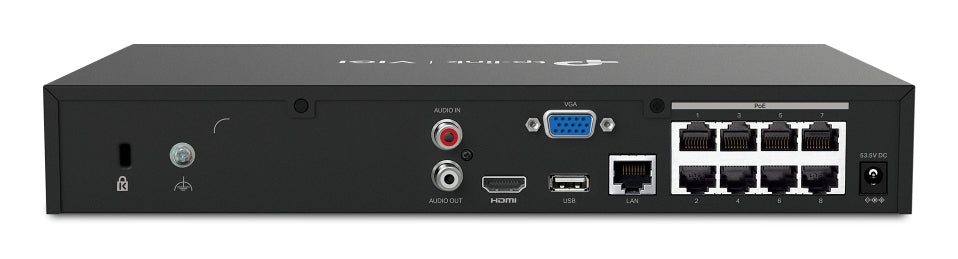

Recorder
Recorder included
The product includes a recorder.
Channels quantity
The number of channels the device has. There can be an individual input or output for each channel.
8 channels
Storage media type
Type of storage medium, like flash, hard disk drive, etc.
HDD
Maximum storage capacity
The maximum amount of data that can be stored in the device.
16 TB
Video recording modes
720p, 1080p
Frame rate
30 fps
VGA (D-Sub) ports quantity
Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.
1
USB 2.0 ports quantity
USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
2
HDD interface
The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI.
SATA
Supported network protocols
Network protocols tested as compatible with this product e.g. FTP,HTML, POP.
UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP, FTP/SFTP, IPv6, SNMP
DC-in jack
The socket/plug where the DC electricity supply connects to the device.
HDMI ports quantity
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
1
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Total Power over Ethernet (PoE) budget
113 W
Network
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet interface type
Fast Ethernet
Power
Power source type
What the power source is.
DC, PoE
Power consumption (max)
The maximum amount of power used by the device.
12,94 W
Audio
Built-in microphone
Microphone that is found inside the product.
Built-in speaker(s)
The device contains speaker(s) to produce sound.
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
-30 - 60 °C
Operating relative humidity (H-H)
0 - 95%
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 60 °C
Storage relative humidity (H-H)
0 - 95%
Technical details
Video compression formats
H.264, H.264+, H.265, H.265+
Product color
The colour e.g. red, blue, green, black, white.
White, Black
Reset button
