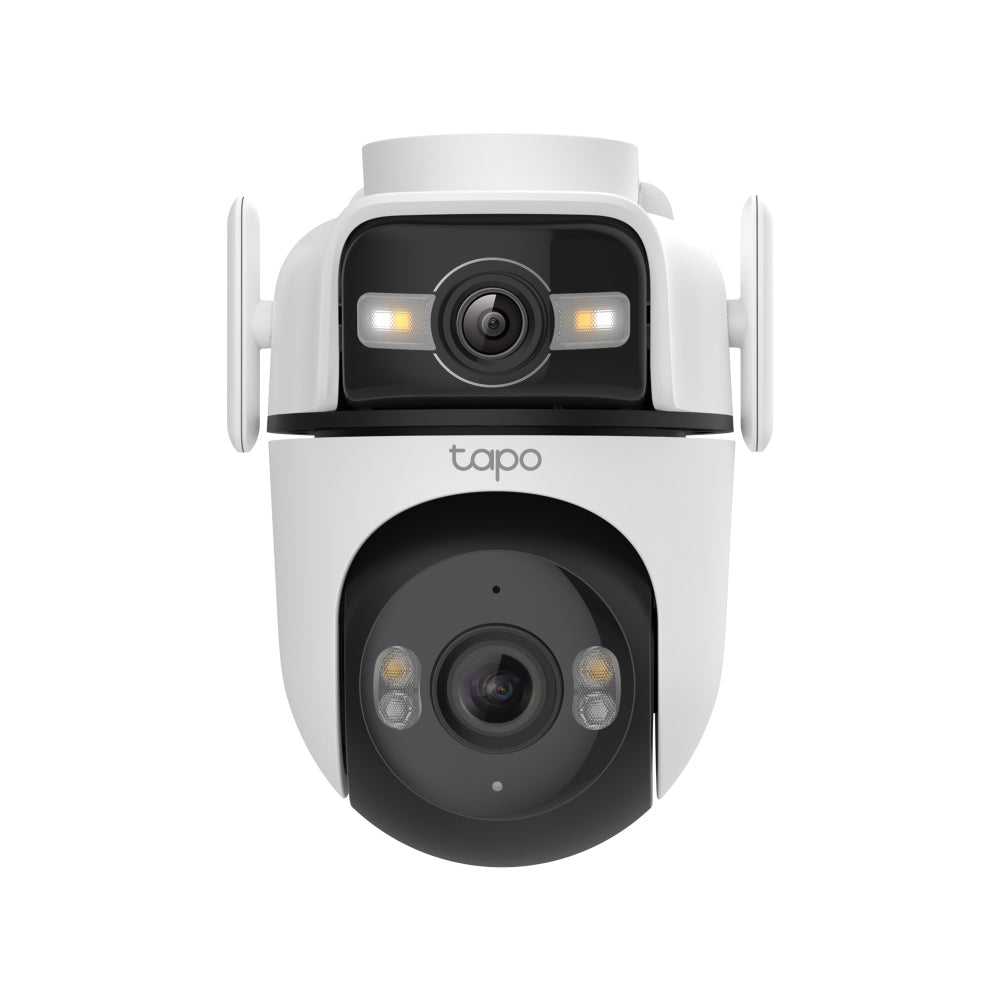

TP-LINK Tapo C545D Spherical IP security camera Outdoor 2304 x 1296 pixels Ceiling/Wall/Pole (TAPO-C545D)
- Regular price
- 173.95$
- Sale price
- 173.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
TP-Link Tapo C545D Spherical IP security camera Outdoor 2304 x 1296 pixels Ceiling/Wall/Pole
Brand:TP-Link
Product name:Outdoor Dual Lens Pan/Tilt Security Camera
Product code:TAPO C545D
EAN/UPC:
8885020629255

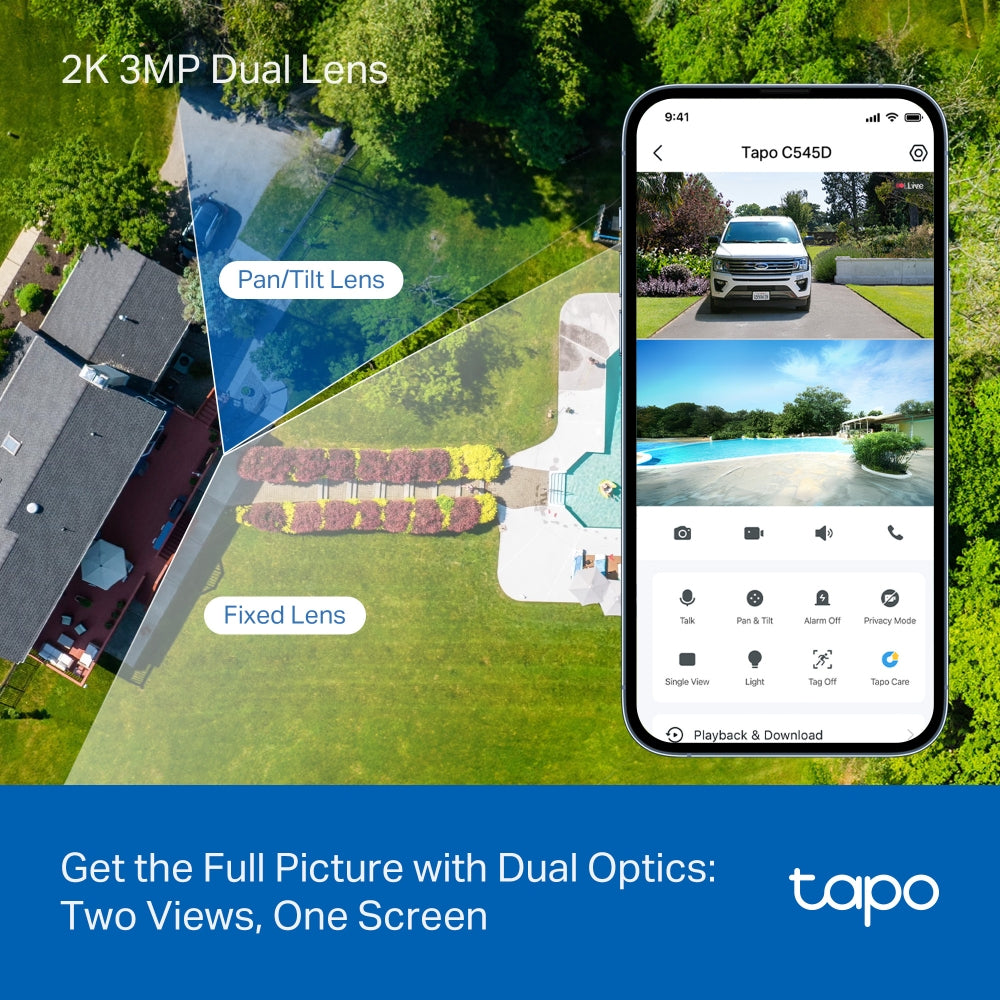

- 2K 3MP Dual Lens - Capture the full picture with dual 2K high definition optics, monitoring two separate areas at the same time with just one device. Engineered to minimize blind spots for optimal coverage
- Wide-Angle & Telephoto Lens - With 165° FOV wide-angle lens and 6mm telephoto lens, it ensures all-around awareness and down-to-the-detail protection of your home
- Synchronized Smart Tracking - When the fixed lens detects events, the pan/tilt lens will automatically pivot to focus on and track the moving object
- One-Tap Smart Focus - Select an area in the wide-angle view, and the pan/tilt camera will focus on it instantly
- IP66 Weather Resistance - Delivers reliable surveillance through rain, snow, dust, and scorching heat. Monitor your property with confidence, no matter the weather
- Ethernet Support - Ideal for areas with weak Wi-Fi, an Ethernet connection guarantees smooth live streaming and faster data transmission
- Free AI Detection & Notification - Get instant push notifications when motion, person, pets and vehicles are detected, there is no additional fee to use it
- Works with Alexa, Google Home & Samsung SmartThings - Fully compatible with Amazon Alexa, Google Assistant and Samsung SmartThings
- Smart Night Vision -Choose from vibrant full-color with spotlights, discreet black-and-white infrared, or an automatic Smart Mode based on Al light detection for optimal clarity in any nighttime scenario

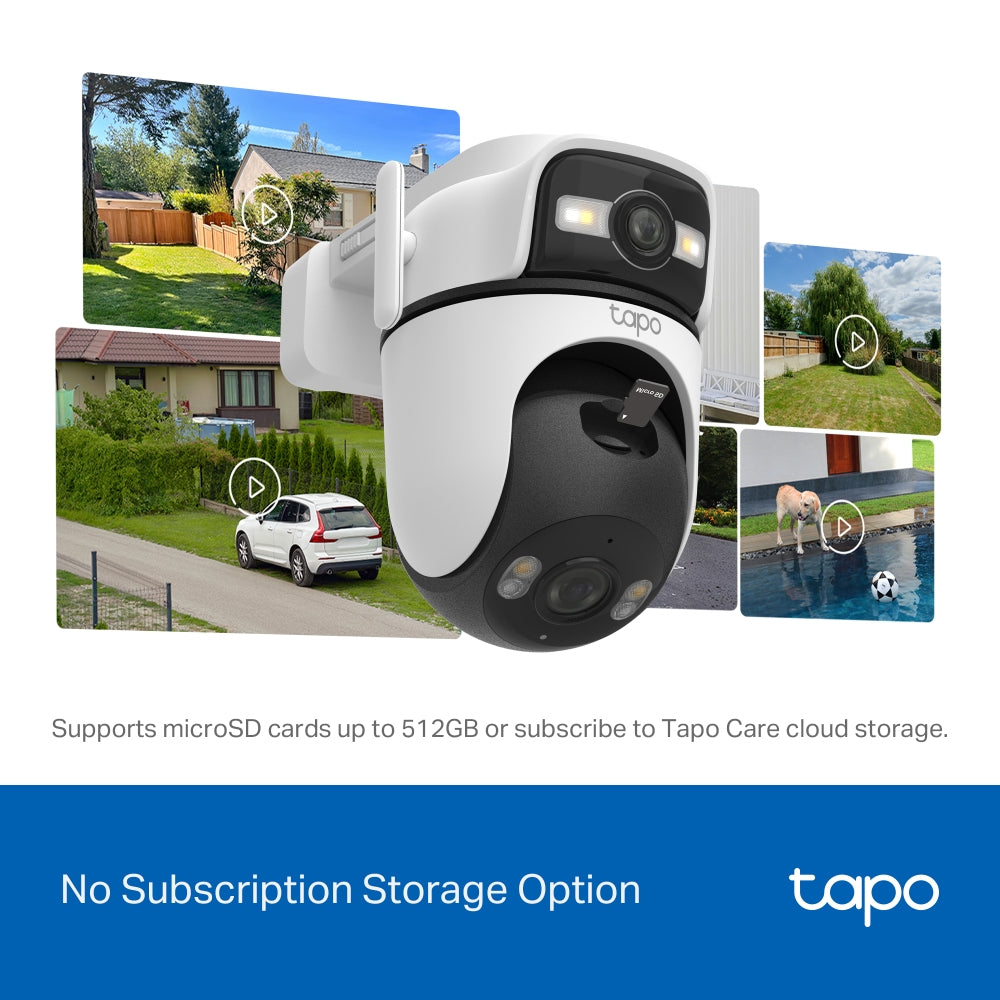

- Secure Local or Cloud Storage - Save footage continuously on up to a 512 GB microSD card (not included) or subscribe to Tapo Care for cloud storage which saves 30-day video
- 2-Way Audio - Engage in seamless, real-time conversations with our two-way audio feature, designed for minimal latency and exceptional sound clarity
Description
Wide View, Sharp Zoom, Full Protection

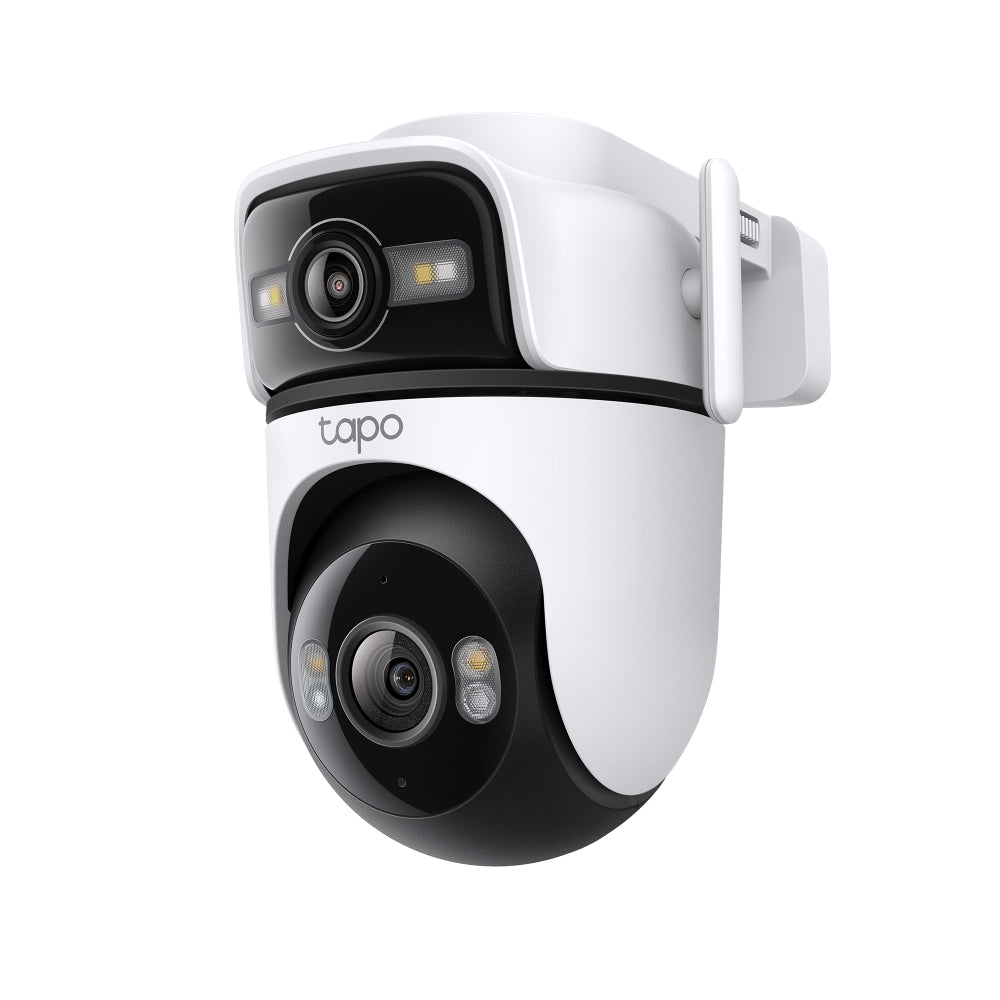

Outdoor Dual Lens Pan/Tilt Security Camera
Pan, Tilt, and Capture It All
The top wide-angle lens is fixed in place but supports manual Pan (270°) and Tilt (-30° to -10°) adjustment for the best viewing angle. The bottom telephoto lens features automatic pan and tilt to follow motion or shift focus between different areas as needed.

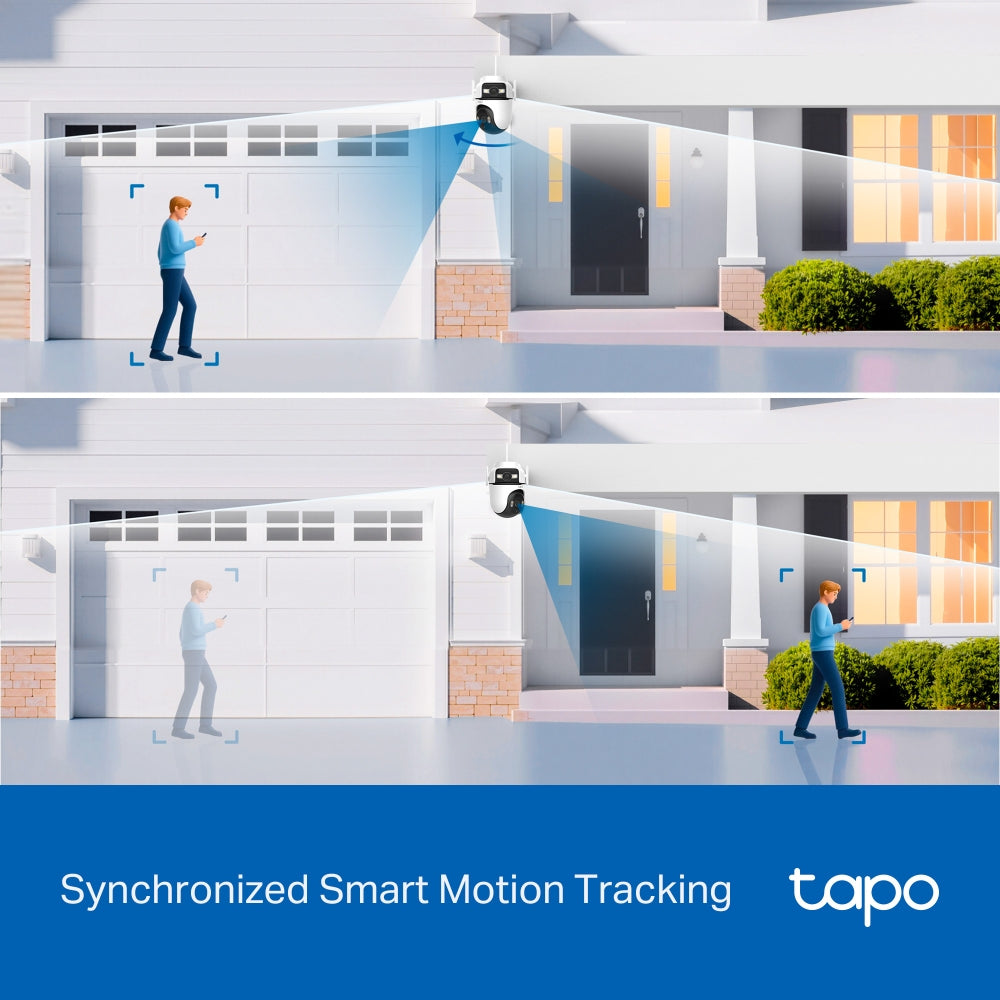

Synchronised Smart Tracking
The two cameras dynamically work together to seamlessly follow movement–when the fixed lens detects events like motion, people, and pets, the pan/tilt lens will automatically pivot to focus on and track the moving object.
Magnify Details with Telephoto Lens
The 6mm telephoto lens delivers 3× clarity compared to standard lens and supports up to 10.8× digital zoom, ensuring every detail is clearly visible when you zoom in.
Panoramic Coverage of Two Areas, Simultaneously
Monitor two separate areas at the same time with just one powerful camera. Reduce blind spots and get a more thorough, comprehensive overview of your home.

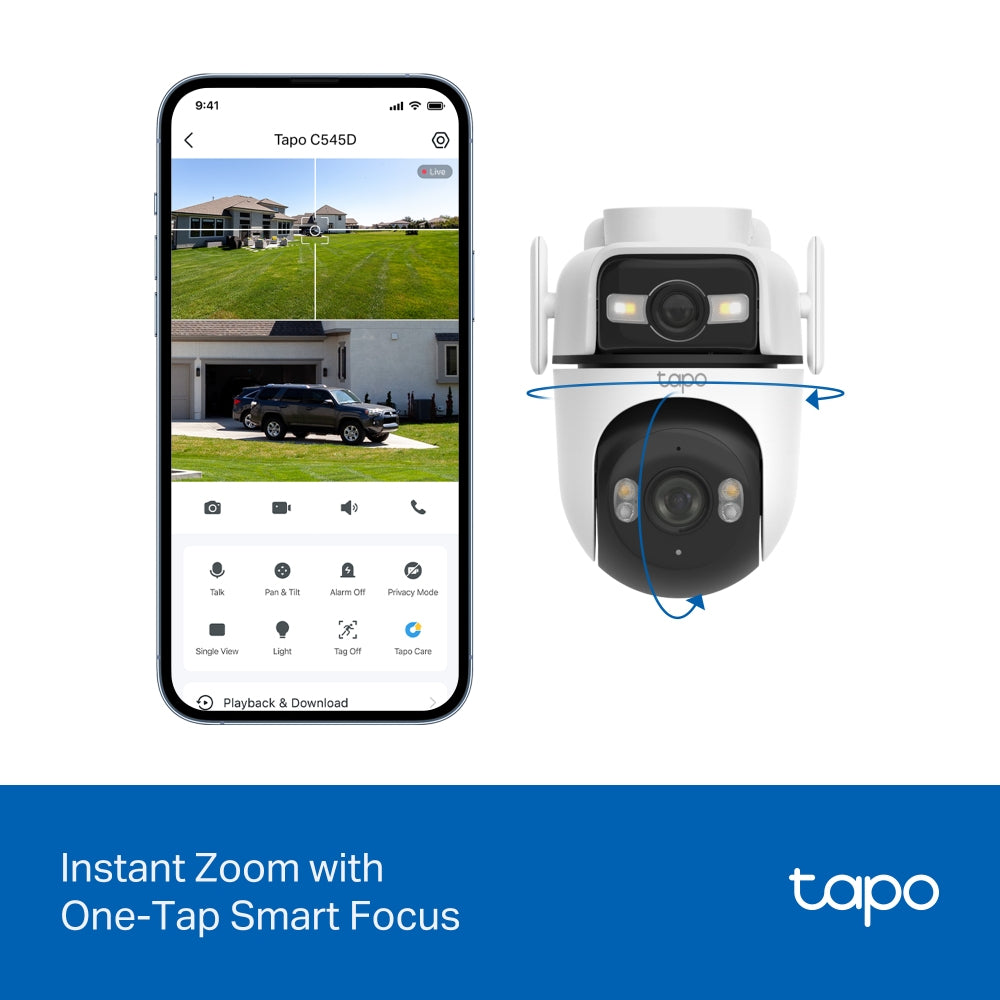

Instant Detail with One-Tap Smart Focus
One tap for instant clarity: select an area in the wide-angle view, and the pan/tilt camera will focus on it instantly.
Smarter, More Accurate Notifications Powered by AI
Stay informed with smart AI detection that recognises and notifies you of people, pets, and vehicles – all without any subscription fees. Tailor your alerts by selecting which types of detection will trigger notifications.
Smart & Versatile Night Vision Modes
Choose from vibrant full-colour with spotlights, discreet black-and-white infrared, or an automatic Smart Mode based on AI light detection for optimal clarity in any nighttime scenario.
Reliable Connectivity with Ethernet Support
Ensure a more stable and consistent connection for your camera with Ethernet support. Ideal for areas with weak Wi-Fi, an Ethernet connection guarantees smooth live streaming and faster data transmission.
Patrol Mode
Set the camera to automatically move between up to 8 preset viewing points at set times.

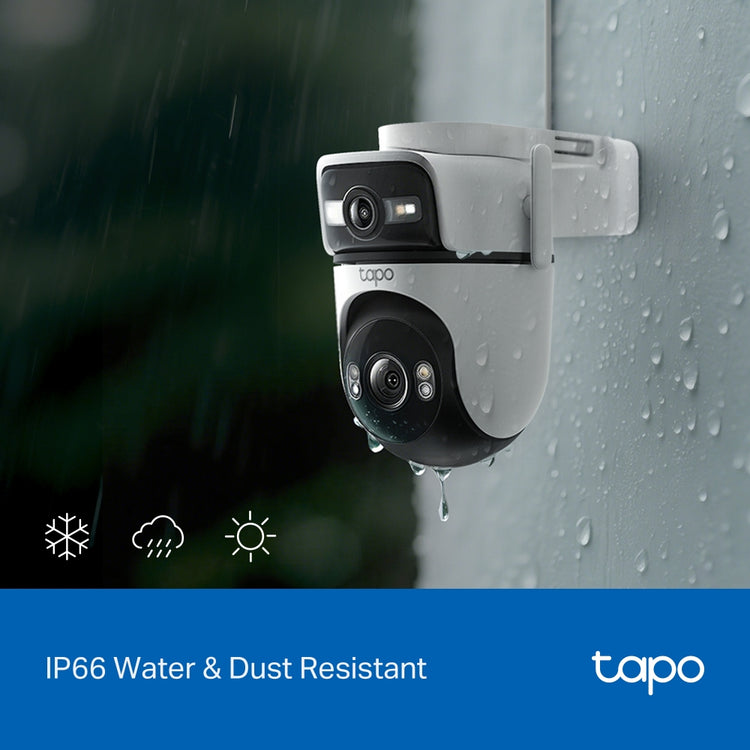

Engineered for Weather Resilience
Delivers reliable surveillance through rain, snow, dust, and scorching heat. Monitor your property with confidence, no matter the weather.
Pair with Smart Assistants
Includes seamless integration with Amazon Alexa, Google Assistant, and Samsung SmartThings. View live streams on your Echo Show or Chromecast.
Two-Way Audio
Built-in premium microphone and speakers ensure you can hear and be heard with exceptional clarity.

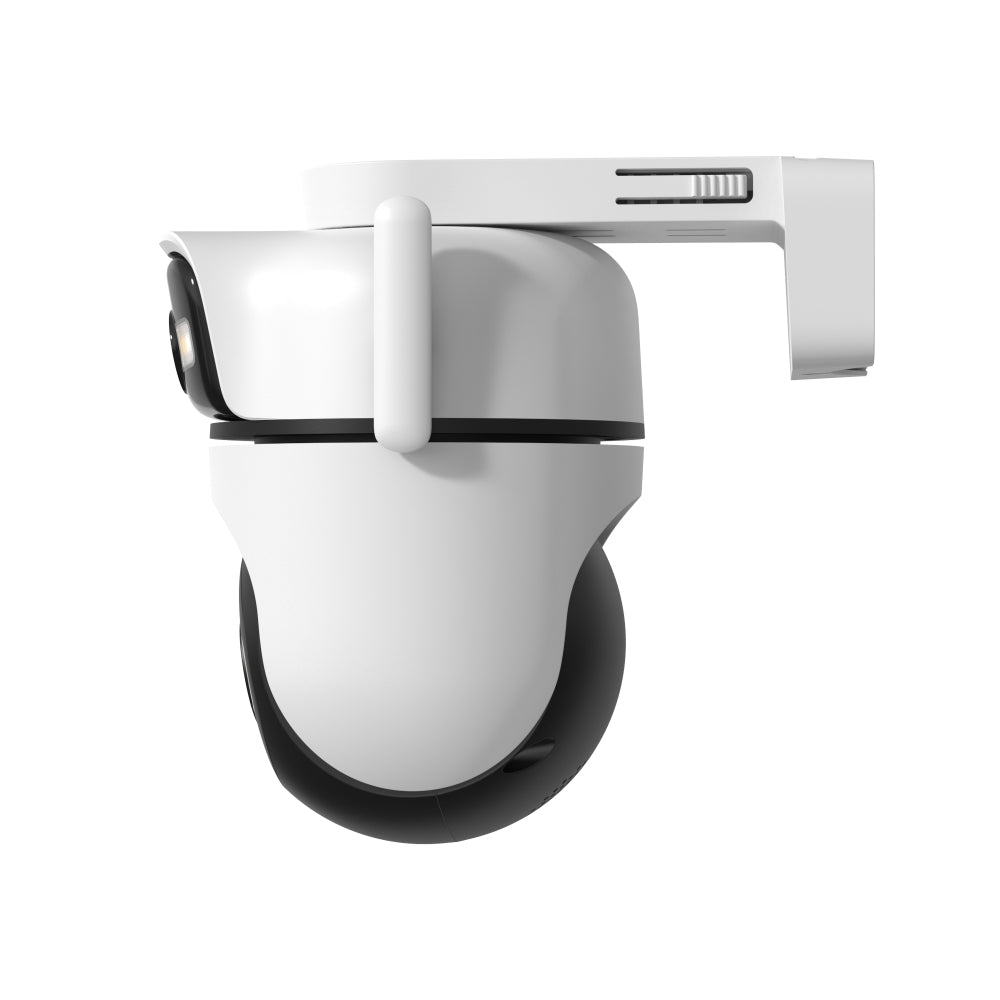

Adaptable Installation Options
Tapo C545D can be securely mounted on a wall, affixed to the celling, or even held by a rod - designed to withstand the elements and deliver dependable monitoring across diverse outdoor settings.
Outdoor Dual Lens Pan/Tilt Security Camera
Pan, Tilt, and Capture It All
The top wide-angle lens is fixed in place but supports manual Pan (270°) and Tilt (-30° to -10°) adjustment for the best viewing angle. The bottom telephoto lens features automatic pan and tilt to follow motion or shift focus between different areas as needed.
Synchronised Smart Tracking
The two cameras dynamically work together to seamlessly follow movement–when the fixed lens detects events like motion, people, and pets, the pan/tilt lens will automatically pivot to focus on and track the moving object.
Magnify Details with Telephoto Lens
The 6mm telephoto lens delivers 3× clarity compared to standard lens and supports up to 10.8× digital zoom, ensuring every detail is clearly visible when you zoom in.
Panoramic Coverage of Two Areas, Simultaneously
Monitor two separate areas at the same time with just one powerful camera. Reduce blind spots and get a more thorough, comprehensive overview of your home.
Instant Detail with One-Tap Smart Focus
One tap for instant clarity: select an area in the wide-angle view, and the pan/tilt camera will focus on it instantly.
Smarter, More Accurate Notifications Powered by AI
Stay informed with smart AI detection that recognises and notifies you of people, pets, and vehicles – all without any subscription fees. Tailor your alerts by selecting which types of detection will trigger notifications.
Smart & Versatile Night Vision Modes
Choose from vibrant full-colour with spotlights, discreet black-and-white infrared, or an automatic Smart Mode based on AI light detection for optimal clarity in any nighttime scenario.
Reliable Connectivity with Ethernet Support
Ensure a more stable and consistent connection for your camera with Ethernet support. Ideal for areas with weak Wi-Fi, an Ethernet connection guarantees smooth live streaming and faster data transmission.
Patrol Mode
Set the camera to automatically move between up to 8 preset viewing points at set times.
Engineered for Weather Resilience
Delivers reliable surveillance through rain, snow, dust, and scorching heat. Monitor your property with confidence, no matter the weather.
Pair with Smart Assistants
Includes seamless integration with Amazon Alexa, Google Assistant, and Samsung SmartThings. View live streams on your Echo Show or Chromecast.
Two-Way Audio
Built-in premium microphone and speakers ensure you can hear and be heard with exceptional clarity.
Adaptable Installation Options
Tapo C545D can be securely mounted on a wall, affixed to the celling, or even held by a rod - designed to withstand the elements and deliver dependable monitoring across diverse outdoor settings.
Specs
Performance
Type
Characteristics of the device.
IP security camera
Placement supported
Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.
Outdoor
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless.
Wired & Wireless
Auto-tracking
Wide Dynamic Range (WDR)
Day/night mode
Infrared (IR) cut-off filter
Image sensor
Optical sensor size
Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes.
25,4 / 2,8 mm (1 / 2.8")
Progressive scan
Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television).
Sensor type
A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.
CMOS
Night vision
Night vision
Night vision is technology which allows you to see in low light conditions.
Colour night vision distance
29,9 m
LED type
IR
Infra-red wavelength
850 nm
Audio
Built-in speaker(s)
The device contains speaker(s) to produce sound.
Audio system
System used to play music or speech.
2-way
Built-in microphone
Microphone that is found inside the product.
Network
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet interface type
Fast Ethernet
Supported network protocols
Network protocols tested as compatible with this product e.g. FTP,HTML, POP.
TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP
Wi-Fi
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Wi-Fi standards
The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.
802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
Wi-Fi data rate (max)
144 Mbit/s
Bluetooth
Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Frequency band
A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones.
2.4 GHz
Works with the Google Assistant
The Google Assistant is a virtual assistant developed by Google that is primarily available on mobile and smart home devices. Unlike Google Now, the Google Assistant can engage in two-way conversations
Works with Amazon Alexa
Live view
Management features
Reset button
Power
Power source type
What the power source is.
DC
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
5,3 W
Power consumption (max)
The maximum amount of power used by the device.
11,2 W
DC output voltage
12
DC output current
1 A
Packaging data
Package width
The distance from one side of the packaging to the other.
196 mm
Package depth
The distance from the front to the back of the packaging.
235 mm
Package height
The distance from the top to the bottom of the packaging.
136 mm
Package weight
Weight of the packaged product in gram.
890 g
Design
Form factor
The shape or design of the product.
Spherical
Mounting type
Type of mounting e.g. wall mounting.
Ceiling/Wall/Pole
Product color
The colour e.g. red, blue, green, black, white.
White
Protection features
Physical effects from which the product is protected e.g. water resistant, crash proof.
Dust resistant, Water resistant
International Protection (IP) code
The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
IP66
Camera
Lens viewing angle, horizontal
57.3 - 137.6°
Lens viewing angle, vertical
31.7 - 73°
Lens viewing angle, diagonal
66.5 - 165.1°
Lens system
Number of lenses
The number of lenses installed in the device.
2
Focal length range
Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′).
2.53 - 6 mm
Maximum aperture number
1,6
Video
Maximum resolution
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
2304 x 1296 pixels
Total megapixels
A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels).
3 MP
Video compression formats
H.264
Frame rate
15 fps
Noise reduction
Noise reduction technology
3D noise reduction
Storage
Built-in HDD
The product has a hard drive built into it.
Card reader integrated
A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.
Compatible memory cards
Types of memory cards which can be used with this product.
MicroSD (TransFlash)
Maximum memory card size
The maximum size of memory card that can be used with this device.
512 GB
Ports & interfaces
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Security
Built-in siren
Siren noise level
99 dB
Video motion detection
Active tampering alarm
Security algorithms
Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.
128-bit AES, SSL/TLS, WPA, WPA2-PSK, WPA3
Alert notification type
Snapshot alert message
Privacy protection
Intelligent Video Surveillance (IVS) system features
Human detection, Line crossing detection, Pet detection, Vehicle detection
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
-30 - 60 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 60 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
0 - 90%
Weight & dimensions
Width
The measurement or extent of something from side to side.
114,6 mm
Depth
The distance from the front to the back of something.
152,1 mm
Height
The measurement of the product from head to foot or from base to top.
159,6 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
491 g
Cable length
How long the cable is.
3 m
Packaging content
Number of cameras
The quantity of cameras that product can support.
1
Mounting kit
Screws included
Drilling template included
AC adapter included
Anchors included
Quick start guide
Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
Waterproof connector
