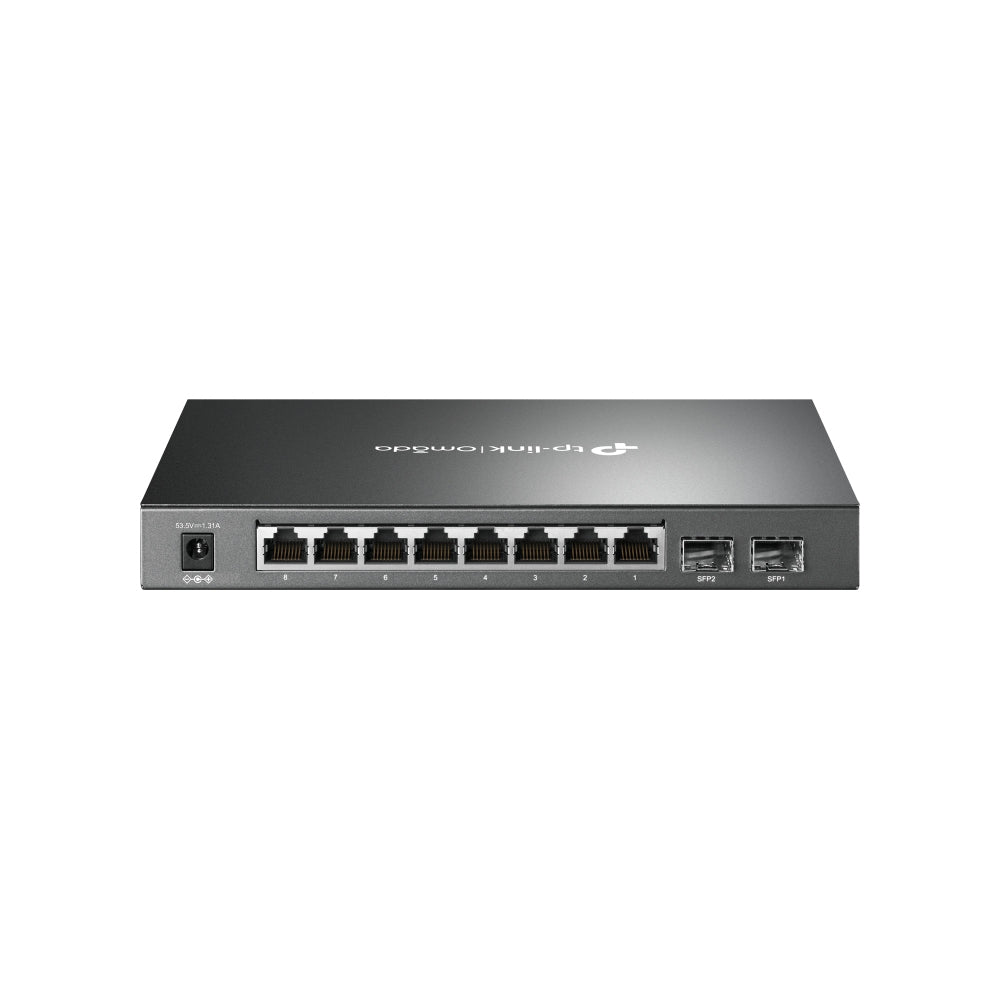

TP-LINK Omada SG2210P network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black (TL-SG2210P)
- Regular price
- 178.95$
- Sale price
- 178.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
TP-Link Omada SG2210P network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Brand:TP-Link
Product name:Omada 10-Port Gigabit Smart Switch with 8-Port PoE+
Product code:SG2210P
EAN/UPC:
6935364030698
6935364030698, 0840460605090, 840460605090, 1210002611800, 1210002611817
- 8× Gigabit 802.3af/at PoE+ ports and 2× Gigabit SFP slots
- 61 W total PoE budget with up to 30 W PoE output per port*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
Description
TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
Specs
Management features
Switch type
What switch device has, managed or unmanaged.
Managed
Switch layer
A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).
L2/L2+
Quality of Service (QoS) support
Web-based management
Using a website/web application to manage something.
Cloud-managed
ARP inspection
Configuring Location Settings (CLI)
System event log
Data transmission
Switching capacity
The data transfer capacity of the switch per second.
20 Gbit/s
Forwarding rate
14,88 Mpps
MAC address table
The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
8000 entries
Jumbo frames support
Jumbo frames
9000
Packet buffer memory
4,1 MB
Security
Access Control List (ACL)
IGMP snooping
Static port security
SSH/SSL support
BPDU filtering/protection
IP-MAC-Port binding
Authentication
MAC-based authentication, Port-based authentication
Power
Power source
What is providing power for the product e.g. mains electricity.
DC/PoE
Power supply included
There is a power supply with this product.
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (max)
The maximum amount of power used by the device.
77,8 W
Weight & dimensions
Width
The measurement or extent of something from side to side.
209 mm
Depth
The distance from the front to the back of something.
126 mm
Height
The measurement of the product from head to foot or from base to top.
26 mm
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
The number of basic switching RJ-45 Ethernet ports (sockets).
8
Basic switching RJ-45 Ethernet ports type
The type/category of basic switching RJ-45 Ethernet ports (sockets).
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
2
Power connector
DC-in jack
Network
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
The product can use Oracle 10G, which is a database management system introduced in 2003.
Port mirroring
Flow control support
Link aggregation
Broadcast storm control
Rate limiting
Auto MDI/MDI-X
A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Spanning tree protocol
Auto-negotiation
VLAN support
A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.
Multicast features
Multicast support
Multicast Listener Discovery (MLD) snooping
Y
Protocols
IPv4 & IPv6 features
Dual stack IPv4/IPv6
Design
Product color
The colour e.g. red, blue, green, black, white.
Black
LED indicators
Yes
Performance
Firmware upgradeable
Power over Ethernet (PoE)
Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Packaging content
Cables included
AC
Manual
Certificates
Certification
CE, FCC, RoHS
