TP-LINK Omada network switch Managed L2 2.5G Ethernet (100/1000/2500) Desktop/Wall-Mounting Black (ES206X-M2)
- Regular price
- 105.95$
- Sale price
- 105.95$
- Regular price
-
Free shipping
Couldn't load pickup availability

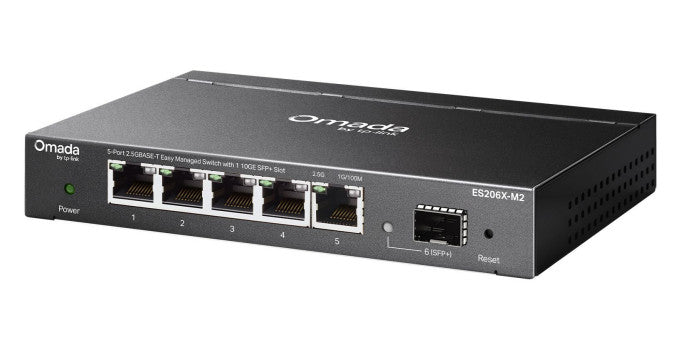

TP-Link Omada ES206X-M2 network switch Managed L2 2.5G Ethernet (100/1000/2500) Desktop/Wall-Mounting Black
Brand:TP-Link
Product name:ES206X-M2
Product code:ES206X-M2
EAN/UPC:
1210002600729
1210002600729, 0840460600323, 840460600323, 1210002600736
- 5× 2.5 Gbps RJ45 Ports
- 1× 10 Gbps SFP+ Slot
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- VLAN, Port Isolation, Cable Test△, QoS△ for reliable networking
- Automatic Loop Prevention and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
Specs
Management features
Switch type
What switch device has, managed or unmanaged.
Managed
Switch layer
A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).
L2
Quality of Service (QoS) support
Network
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1ab
10G support
The product can use Oracle 10G, which is a database management system introduced in 2003.
Port mirroring
Flow control support
Link aggregation
Broadcast storm control
VLAN support
A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.
Virtual LAN features
MTU VLAN, Port-based VLAN
Design
Form factor
The shape or design of the product.
Desktop/Wall-Mounting
Product color
The colour e.g. red, blue, green, black, white.
Black
LED indicators
Yes
Power
Power source
What is providing power for the product e.g. mains electricity.
AC
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
Power consumption (max)
The maximum amount of power used by the device.
5,63 W
Weight & dimensions
Width
The measurement or extent of something from side to side.
158 mm
Depth
The distance from the front to the back of something.
100,7 mm
Height
The measurement of the product from head to foot or from base to top.
25,4 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
520 g
Certificates
Certification
CE, FCC, RoHS
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
The number of basic switching RJ-45 Ethernet ports (sockets).
5
Basic switching RJ-45 Ethernet ports type
The type/category of basic switching RJ-45 Ethernet ports (sockets).
2.5G Ethernet (100/1000/2500)
SFP+ module slots quantity
1
Data transmission
Switching capacity
The data transfer capacity of the switch per second.
45 Gbit/s
Forwarding rate
33,48 Mpps
MAC address table
The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
16000 entries
Store-and-forward
Jumbo frames support
Jumbo frames
10
Packet buffer memory
0,64 MB
Security
DHCP features
DHCP client
IGMP snooping
Performance
Flash memory
64 MB
Firmware upgradeable
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
1223587 h
Power over Ethernet (PoE)
Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
-5 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
The heat generated by the power supply.
19,21 BTU/h
