TP-LINK Omada AX3000 3000 Mbit/s White Power over Ethernet (PoE) (EAP650GP-DESKTOP)
- Regular price
- 232.95$
- Sale price
- 232.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
TP-Link Omada AX3000 3000 Mbit/s White Power over Ethernet (PoE)
Brand:TP-Link
Product name:Omada AX3000
Product code:EAP650GP-DESKTOP
EAN/UPC:
0840460602518
0840460602518, 840460602518, 1210002605960
- Seamless 3.0 Gbps Wi-Fi 6 Speeds: 2402 Mbps on 5 GHz & 574 Mbps on 2.4 GHz†

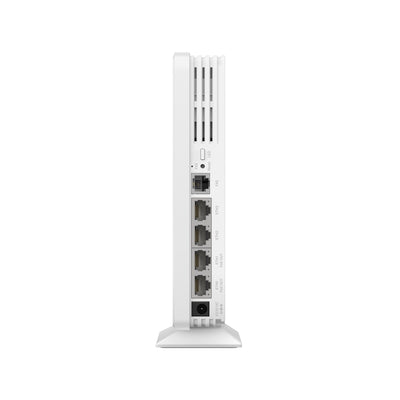

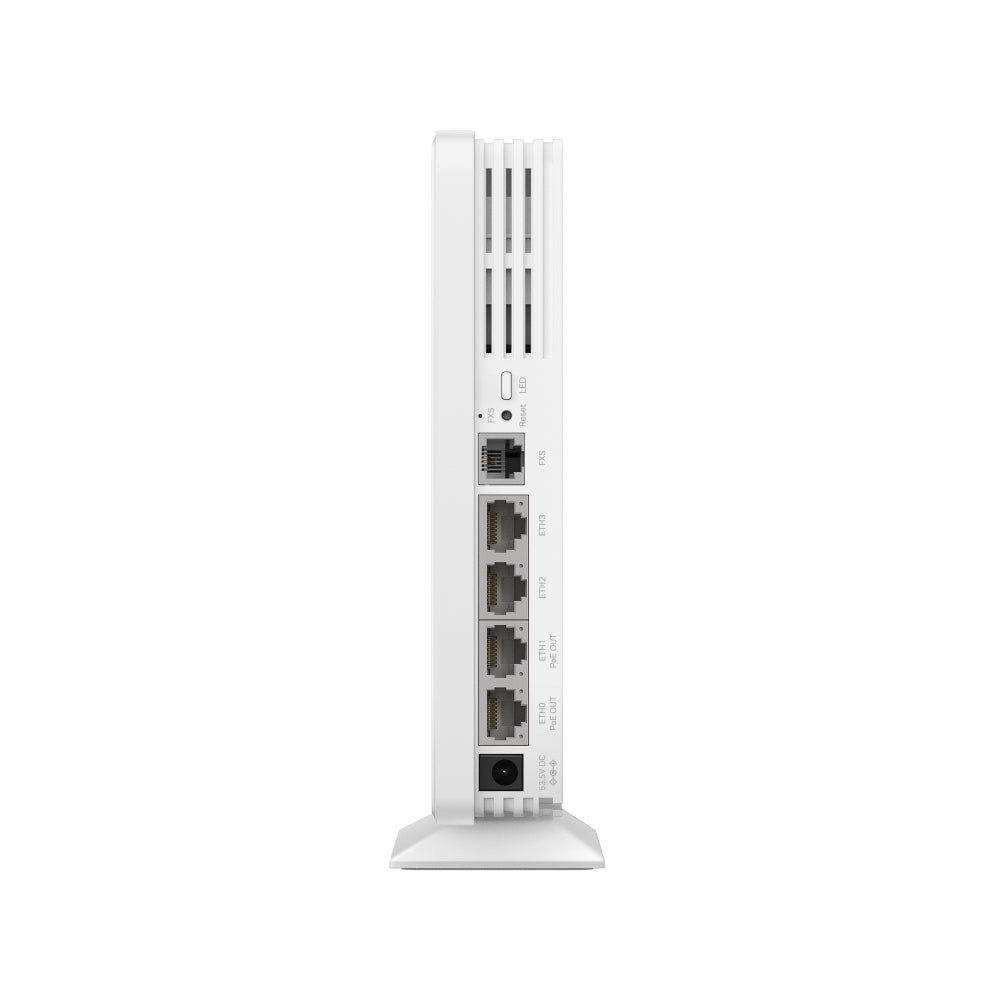

- Multiple Ports for More Devices: 1× GPON port & 4× GbE ports (two support PoE-out)
- One Fiber for Multiple Services: Wired, Wireless, Voice, VoIP, Data, and HD Video Services
- VoIP Calls: Support multiple VolP accounts and various call features, exceeding traditional landlines
- Easy Use: One-Click Pairing and Automatic Adoption

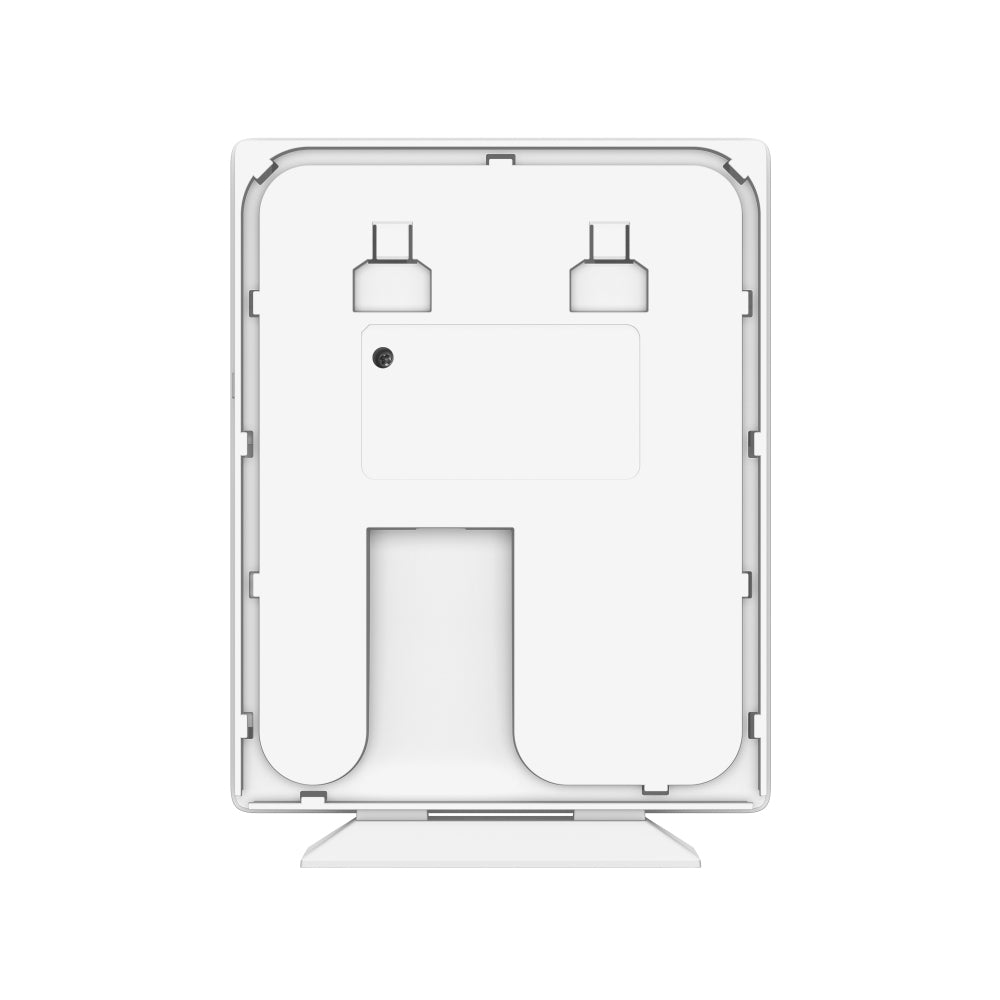

- High Flexibility: Support both desktop and wall-mounting setups
- Advanced Fueatures: Unified management for OLT^ and Omada devices, PPSK△, multiple portals, Omada mesh, and seamless roaming§
Description
Complete Omada Optical Networking Solution
The Omada Optical Networking Solution delivers enterprise-grade gigabit passive optical networking. It seamlessly integrates essential components such as Omada switches, gateways, OLTs (Optical Line Terminals), and ONUs (Optical Network Units)—perfect for P2MP (point-to-multipoint) environments like hotels and MDUs.
One Fiber, Multiple Services
Connect a fiber optic cable to the EAP650GP-Desktop to connect cameras, PCs, TVs, and an IP-Phone to carry data, voice, wired and wireless internet, HD video, and VoIP services.
△The two PoE ports support up to 22.4 W total PoE out. If the total PoE power exceeds the upper limit, the lower-priority ports will shut down automatically. A port also automatically powers off if its output exceeds 15.4 W. Powered-off ports will attempt to resume power supply after 10 seconds. By default, ETH0 has a higher port priority than ETH1.
Seamless WiFi 6 Mesh Networking
Leverage GPON WiFi 6 technology for a robust and seamless network experience, delivering speeds up to 3.0 Gbps.* Omada Mesh and 802.11k/v/r roaming ensure a consistently smooth and reliable connection.
The Omada Optical Networking Solution delivers enterprise-grade gigabit passive optical networking. It seamlessly integrates essential components such as Omada switches, gateways, OLTs (Optical Line Terminals), and ONUs (Optical Network Units)—perfect for P2MP (point-to-multipoint) environments like hotels and MDUs.
One Fiber, Multiple Services
Connect a fiber optic cable to the EAP650GP-Desktop to connect cameras, PCs, TVs, and an IP-Phone to carry data, voice, wired and wireless internet, HD video, and VoIP services.
△The two PoE ports support up to 22.4 W total PoE out. If the total PoE power exceeds the upper limit, the lower-priority ports will shut down automatically. A port also automatically powers off if its output exceeds 15.4 W. Powered-off ports will attempt to resume power supply after 10 seconds. By default, ETH0 has a higher port priority than ETH1.
Seamless WiFi 6 Mesh Networking
Leverage GPON WiFi 6 technology for a robust and seamless network experience, delivering speeds up to 3.0 Gbps.* Omada Mesh and 802.11k/v/r roaming ensure a consistently smooth and reliable connection.
Video
Specs
Features
2.4 GHz
5 GHz
6 GHz
Maximum data transfer rate
The maximum speed with which data can be transmitted from one device to another.
3000 Mbit/s
Maximum data transfer rate (2.4 GHz)
574 Mbit/s
Maximum data transfer rate (5 GHz)
2402 Mbit/s
Frequency band
A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones.
2.4 - 5 GHz
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax
Automatic channel selection
Automatic channel scanning
MIMO
MIMO type
Multi User MIMO
Virtual LAN features
SSID-based VLAN assignment
Rate limiting
Band steering
Airtime Fairness (ATF)
Transmitting power (CE)
<20 dBm(2.4 GHz, EIRP); <23 dBm(5 GHz band1/2, EIRP); <25 dBm (5 GHz band3)
Transmitting power (FCC)
<26 dBm (2.4 GHz); <27 dBm (5 GHz)
Operational conditions
Operating relative humidity (H-H)
0 - 40%
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
10 - 90 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Security
Security algorithms
Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.
HTTPS, SNMP, SNMPv2, SNMPv3, WPA, WPA2, WPA3
Number of SSID supported
16
Management features
Web-based management
Using a website/web application to manage something.
Ports & interfaces
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
4
DC-in jack
The socket/plug where the DC electricity supply connects to the device.
Power
Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Design
Placement
Where the product can be placed e.g. floor, wall.
Desk
Product color
The colour e.g. red, blue, green, black, white.
White
Reset button
LED indicators
Yes
Antenna
Antenna type
Type of antenna, also known an aerial, e.g. external, internal.
Internal
Performance
Compatible operating systems
List of desktop operating systems tested as compatible with this product.
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Certificates
Certification
CE, FCC, RoHS
Weight & dimensions
Width
The measurement or extent of something from side to side.
175 mm
Depth
The distance from the front to the back of something.
140 mm
Height
The measurement of the product from head to foot or from base to top.
33 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
511 g
Packaging content
Quantity per pack
5 pc(s)
Mounting kit
Quick start guide
Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
