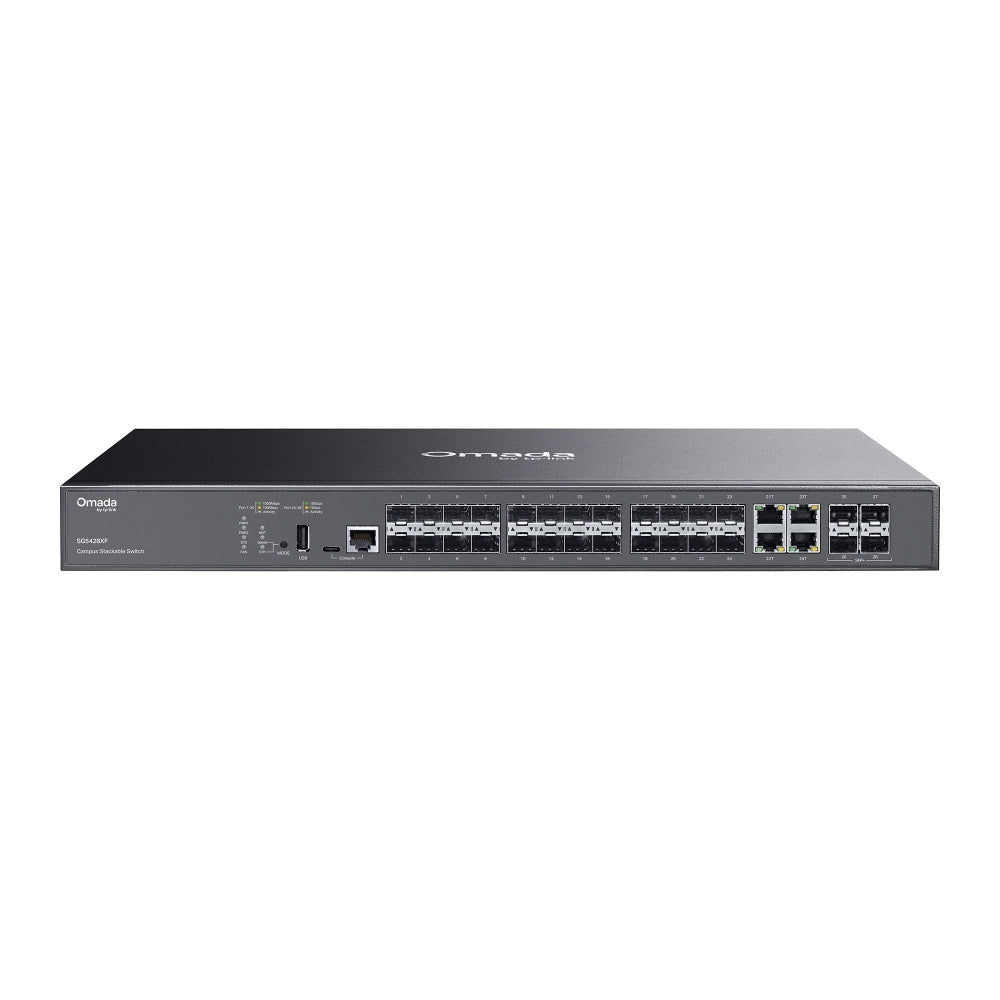

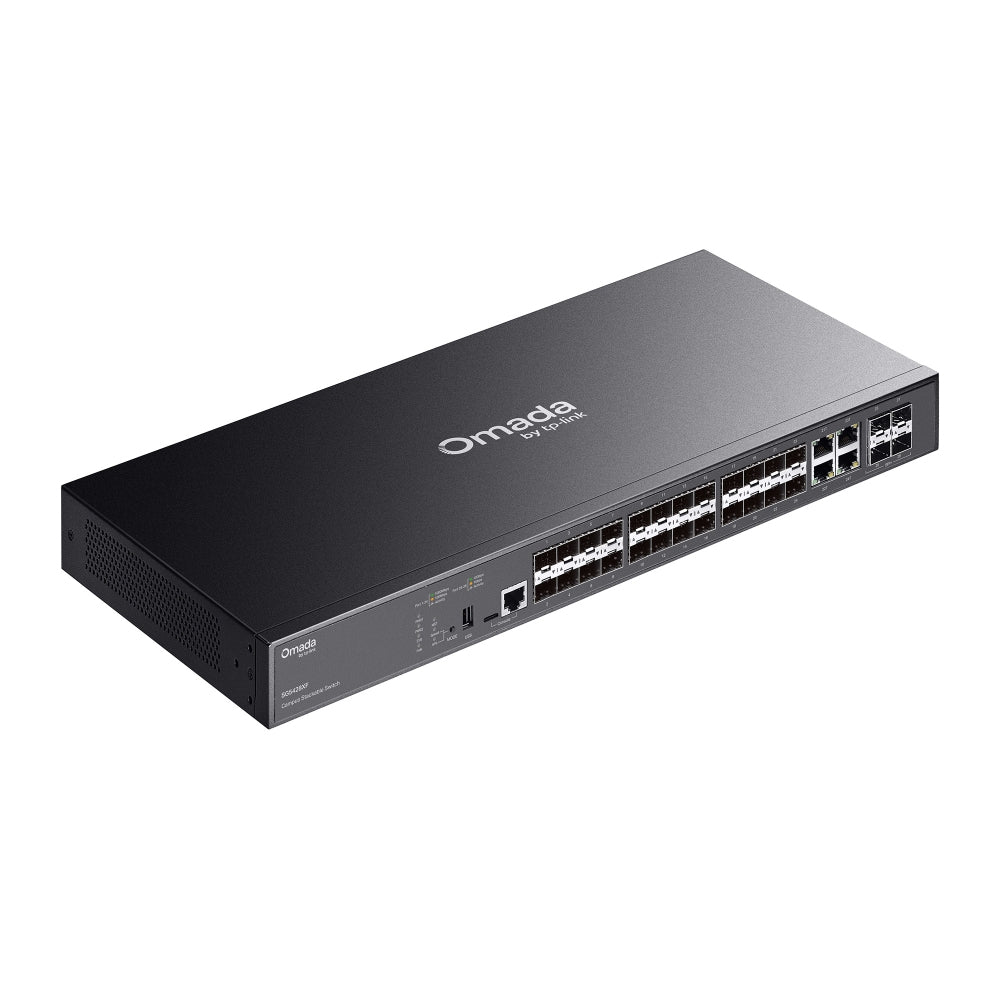

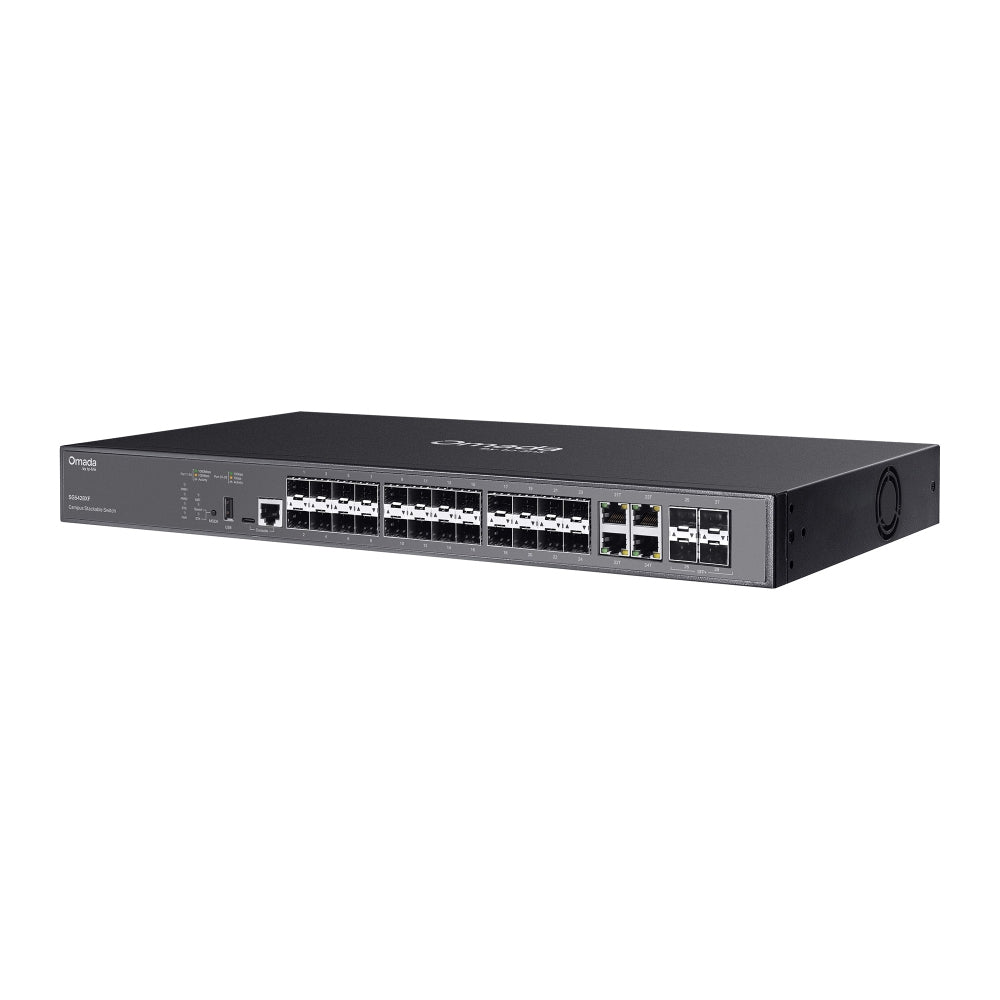

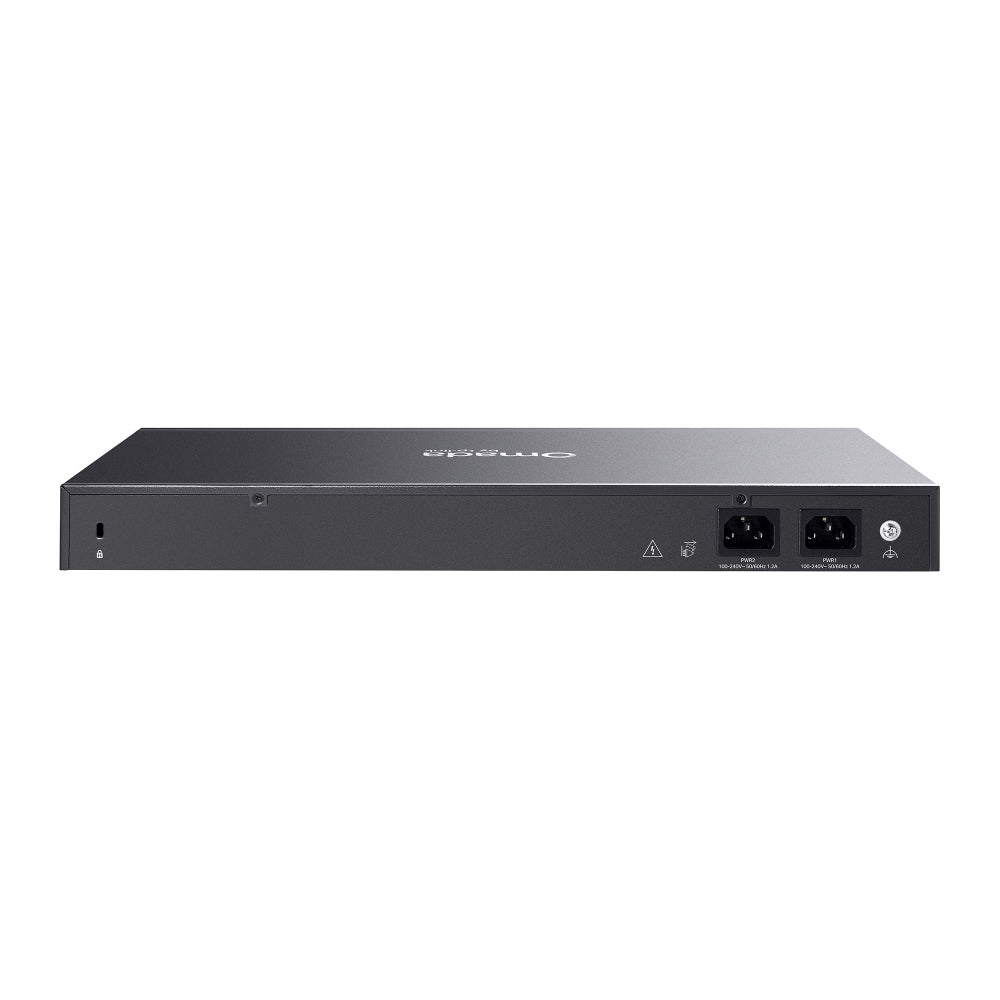

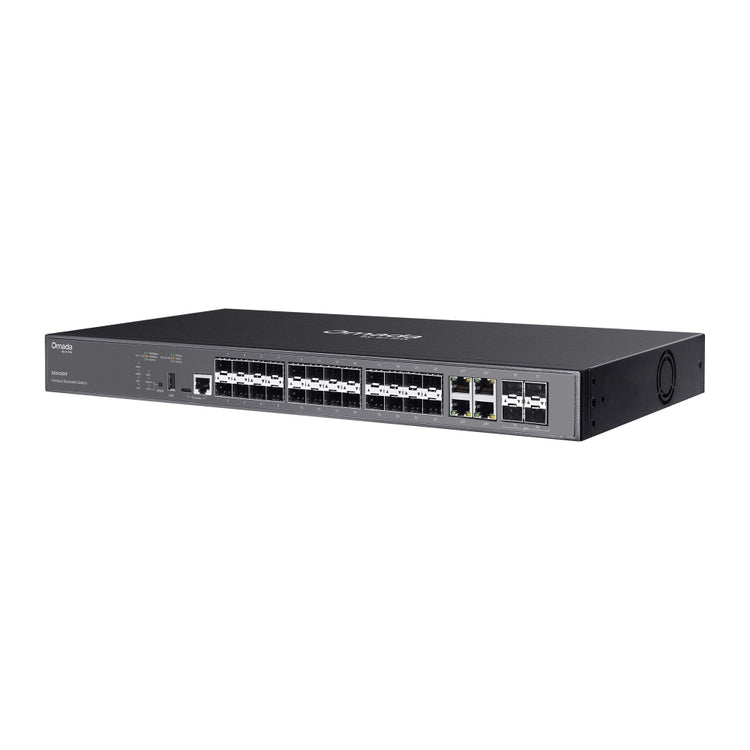

TP-LINK network switch Managed L3 Black (SG5428XF)
- Regular price
- 1,055.95$
- Sale price
- 1,055.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
TP-Link SG5428XF network switch Managed L3 Black
Brand:TP-Link
Product name:SG5428XF
Product code:SG5428XF
EAN/UPC:
0840460601085
0840460601085, 840460601085, 1210002602389, 1210002602396
Description
What This Product Does
Omada SG5428XF is a dependable entry-level L3 switch tailored for the aggregation layer, featuring L3 routing, fast 10 Gbps wired speeds, and stacking options. It includes 20× gigabit SFP slots, 4× gigabit RJ45/SFP combo ports, 4× 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG5428XF offers a reliable networking solution for SMEs and ISPs.
High-speed Connectivity and Powerful Stacking
20× gigabit SFP slots, 4× gigabit RJ45/SFP combo ports, and 4× 10 Gbps SFP+ slots provide up to 128 Gbps switching capacity per unit. Up to 4 units of physical stacking empower the networking structure with built-in redundancy and performance.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, DHCP Server, and DHCP Relay are supported.
Highly Available
ERPS (Ethernet Ring Protection Switching) ensures rapid protection and recovery in ring topologies, which is essential for maintaining network uptime in medium-sized business environments.
Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.
Omada SDN
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).† The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management—all controlled from a single interface. Apart from the ability to be centrally managed via the web or the Omada app, SG5428XF is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
Omada SG5428XF is a dependable entry-level L3 switch tailored for the aggregation layer, featuring L3 routing, fast 10 Gbps wired speeds, and stacking options. It includes 20× gigabit SFP slots, 4× gigabit RJ45/SFP combo ports, 4× 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG5428XF offers a reliable networking solution for SMEs and ISPs.
High-speed Connectivity and Powerful Stacking
20× gigabit SFP slots, 4× gigabit RJ45/SFP combo ports, and 4× 10 Gbps SFP+ slots provide up to 128 Gbps switching capacity per unit. Up to 4 units of physical stacking empower the networking structure with built-in redundancy and performance.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, DHCP Server, and DHCP Relay are supported.
Highly Available
ERPS (Ethernet Ring Protection Switching) ensures rapid protection and recovery in ring topologies, which is essential for maintaining network uptime in medium-sized business environments.
Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.
Omada SDN
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).† The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management—all controlled from a single interface. Apart from the ability to be centrally managed via the web or the Omada app, SG5428XF is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
Specs
Management features
Switch type
What switch device has, managed or unmanaged.
Managed
Switch layer
A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).
L3
Quality of Service (QoS) support
Web-based management
Using a website/web application to manage something.
ARP inspection
Network
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3x
Port mirroring
Flow control support
Link aggregation
Broadcast storm control
Rate limiting
Spanning tree protocol
VLAN support
A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.
Virtual LAN features
Management VLAN, Multicast VLAN, Private VLAN, Tagged VLAN, Voice VLAN
Multicast features
Multicast Listener Discovery (MLD) snooping
Yes
Protocols
GARP VLAN Registration Protocol (GVRP)
Routing protocols
OSPF, OSPFv2, OSPFv3, RIP
Design
Rack mounting
The type of mounting that can position devices in a shelving system (rack).
Stackable
Devices can be placed on top of each other.
Product color
The colour e.g. red, blue, green, black, white.
Black
Number of fans
The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
1 fan(s)
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
-5 - 45 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
The heat generated by the power supply.
98,822 BTU/h
Packaging content
Cables included
AC
Quick start guide
Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
Rack mount kit
Ports & interfaces
Combo SFP ports quantity
4
SFP module slots quantity
20
SFP+ module slots quantity
4
USB Type-A ports quantity
1
Fiber ports quantity
The number of sockets (ports) for fibers (cables).
4
Fiber optic connector
This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.
SFP
Console port
RJ-45/USB Type-C
Data transmission
Switching capacity
The data transfer capacity of the switch per second.
128 Gbit/s
MAC address table
The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
16000 entries
Number of queues
8
Jumbo frames support
Jumbo frames
9000
Packet buffer memory
12 MB
Security
DHCP features
DHCP relay, DHCP server, DHCP snooping, DHCPv6 snooping
IGMP snooping
Security algorithms
Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.
SNMP, SNMPv2, SNMPv3
IP-MAC-Port binding
Authentication
Guest VLAN
Authentication type
Authentification means proving identity to gain access to sometheng. There are various types of authentification exist e.g. access card, password, biometric data.
AAA, TACACS+
Power
Power source
What is providing power for the product e.g. mains electricity.
AC
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
28,3 W
Power consumption (max)
The maximum amount of power used by the device.
28,98 W
Weight & dimensions
Width
The measurement or extent of something from side to side.
440 mm
Depth
The distance from the front to the back of something.
220 mm
Height
The measurement of the product from head to foot or from base to top.
44 mm
