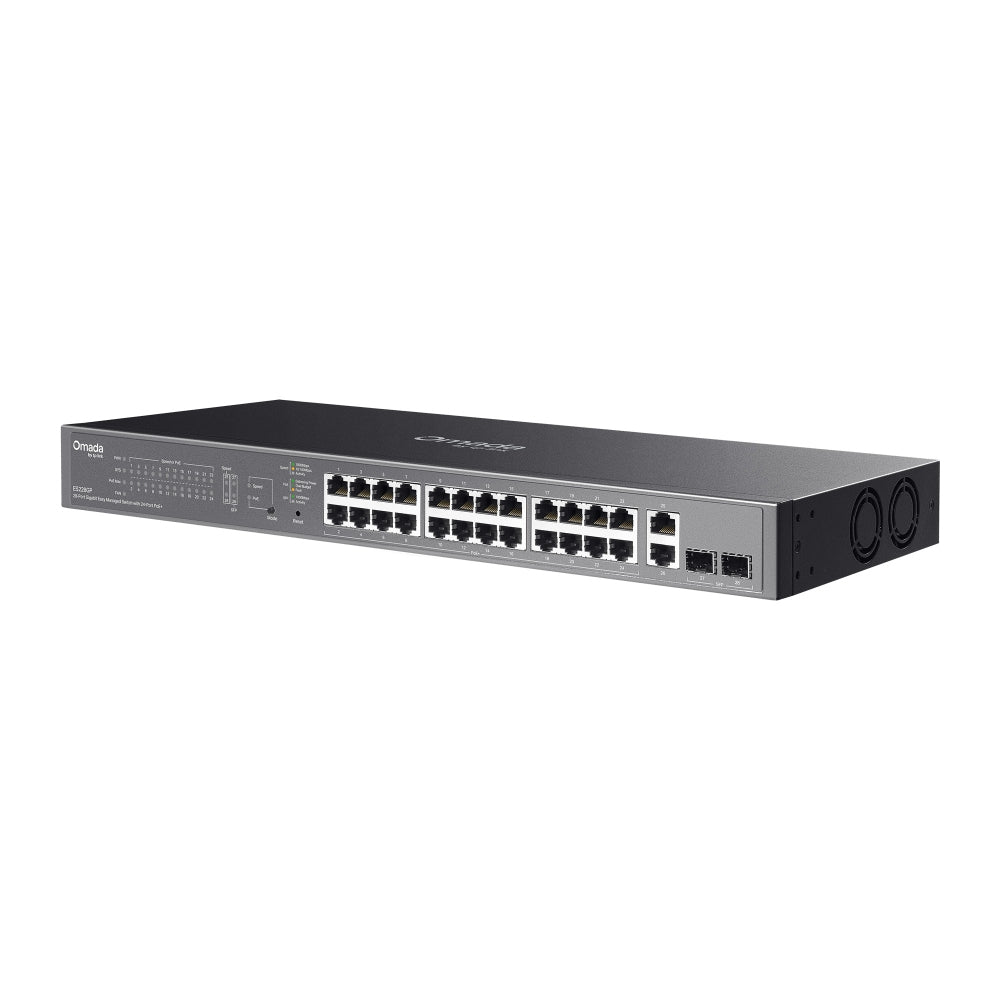

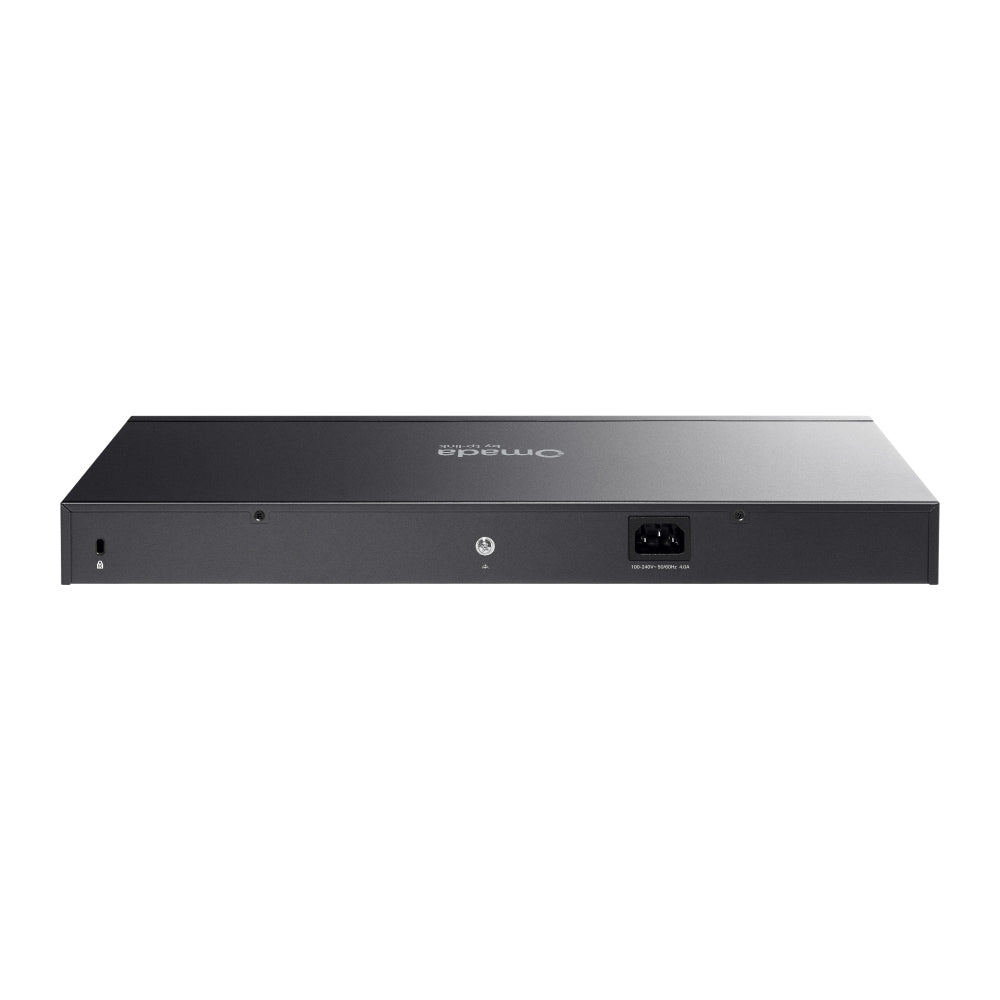

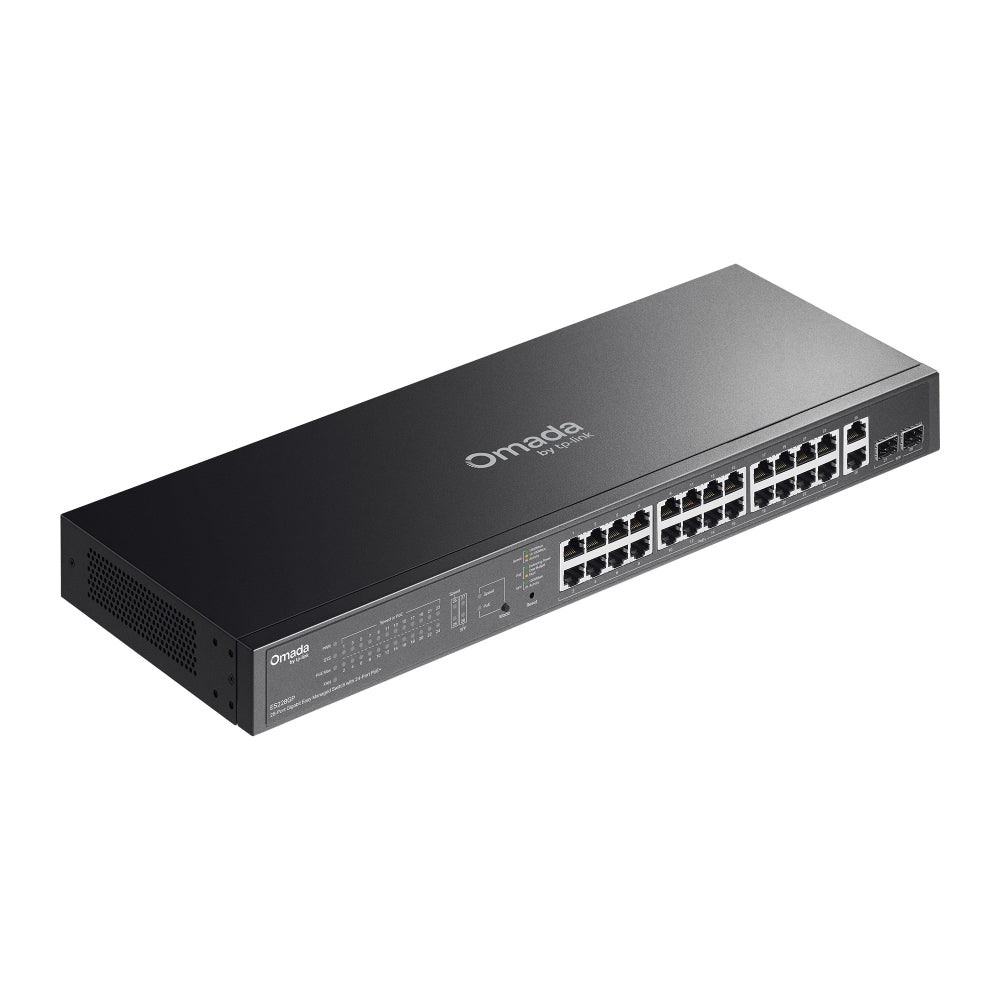

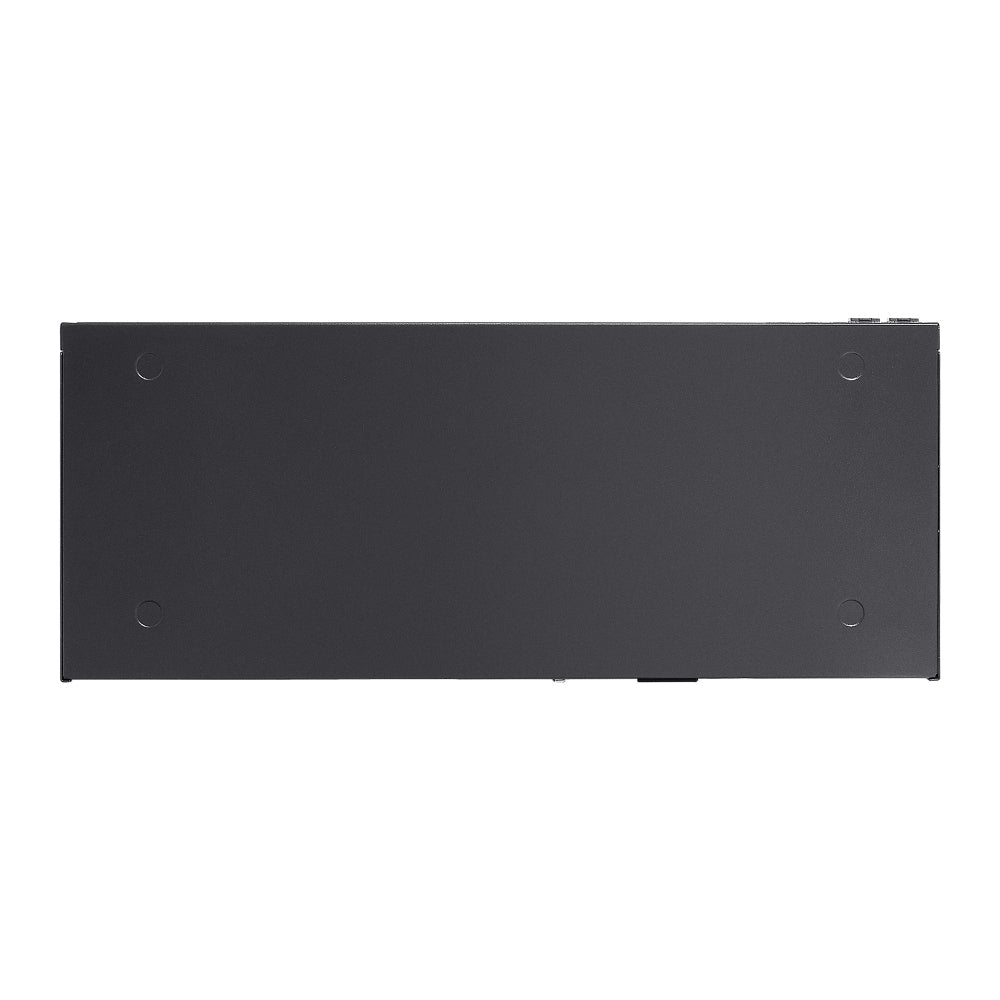

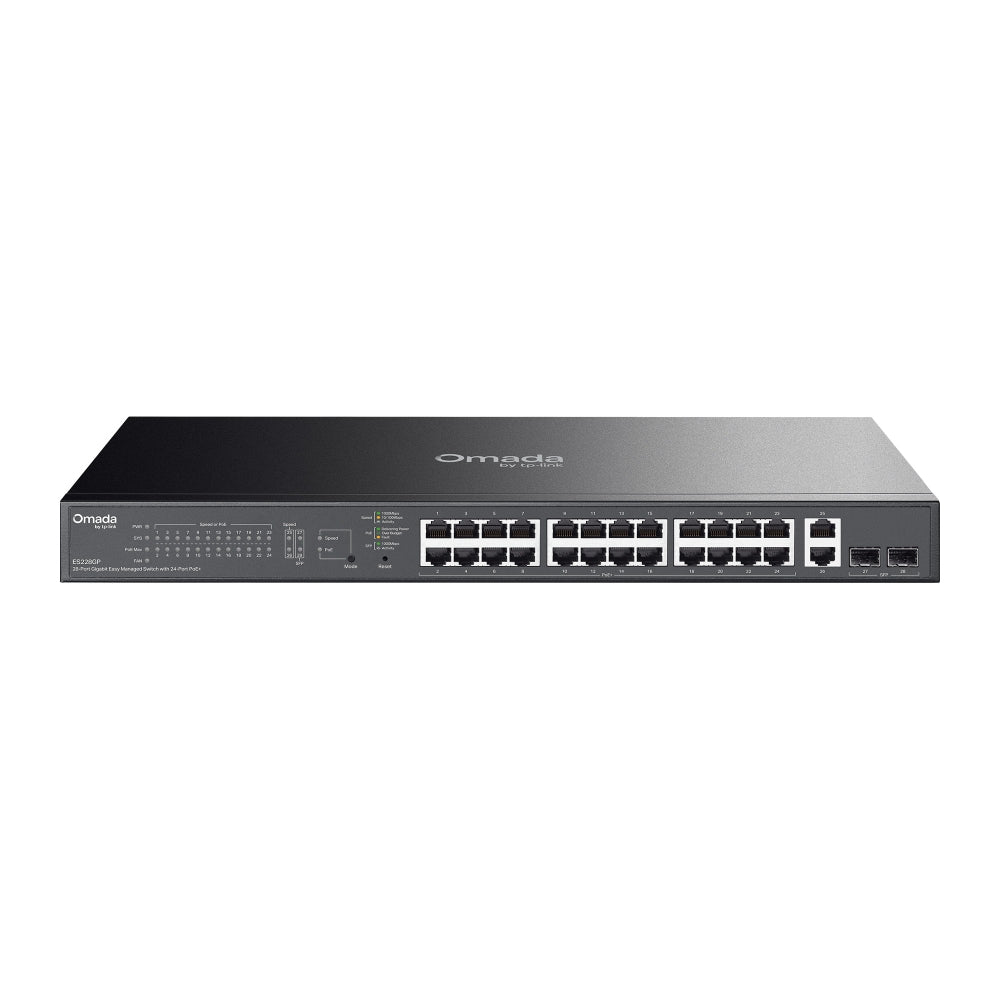

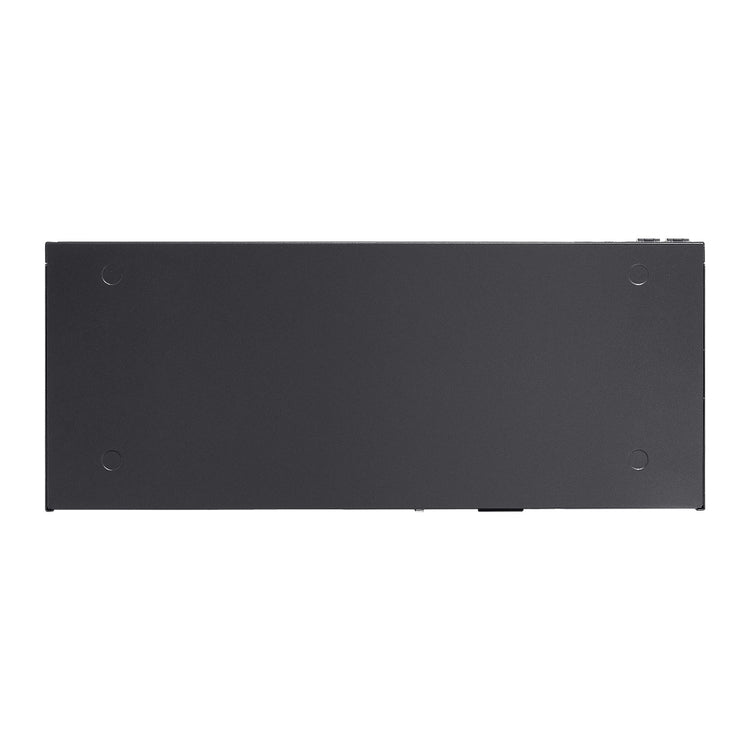

TP-LINK network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black (ES228GP)
- Regular price
- 367.95$
- Sale price
- 367.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
TP-Link ES228GP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Brand:TP-Link
Product name:ES228GP
Product code:ES228GP
EAN/UPC:
1210002609760
1210002609760, 1210002609777, 0840460603638, 840460603638
Description
Omada Central Essentials — A Free and Easy Cloud-Based Network Management
Omada Central Essentials is a free, easy-to-use version of the Omada Central.
It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Multiple Application Scenarios
Surveillance
Works with IP Cameras
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
Omada Central Essentials is a free, easy-to-use version of the Omada Central.
It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Multiple Application Scenarios
Surveillance
Works with IP Cameras
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
Specs
Management features
Switch type
What switch device has, managed or unmanaged.
Managed
Switch layer
A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).
L2
Quality of Service (QoS) support
Web-based management
Using a website/web application to manage something.
Data transmission
Switching capacity
The data transfer capacity of the switch per second.
56 Gbit/s
Forwarding rate
41,67 Mpps
MAC address table
The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
8000 entries
Store-and-forward
Number of queues
8
Jumbo frames support
Jumbo frames
15000
Packet buffer memory
4 MB
Design
Rack mounting
The type of mounting that can position devices in a shelving system (rack).
Product color
The colour e.g. red, blue, green, black, white.
Black
Number of fans
The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
2 fan(s)
Power over Ethernet (PoE)
Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Power over Ethernet (PoE) type supported
PoE+
Power over Ethernet (PoE) ports quantity
24
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
250 W
Weight & dimensions
Width
The measurement or extent of something from side to side.
440 mm
Depth
The distance from the front to the back of something.
180 mm
Height
The measurement of the product from head to foot or from base to top.
44 mm
Packaging content
Cables included
AC
Manual
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
The number of basic switching RJ-45 Ethernet ports (sockets).
26
Basic switching RJ-45 Ethernet ports type
The type/category of basic switching RJ-45 Ethernet ports (sockets).
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
2
Network
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Port mirroring
Flow control support
Link aggregation
Broadcast storm control
VLAN support
A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.
Virtual LAN features
MTU VLAN, Port-based VLAN, Tagged VLAN
Security
DHCP features
DHCP client
IGMP snooping
Loop protection
Queue scheduling algorithms
Weighted Round Robin (WRR)
Power
Power source
What is providing power for the product e.g. mains electricity.
AC
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
AC input frequency
50/60 Hz
Input current
4 A
Power protection features
Features that protect the device against power problems e.g. overload.
Surge protection
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
-5 - 45 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Certificates
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
CE, Federal Communications Commission (FCC), RoHS
