TP-LINK network switch Managed 2.5G Ethernet (100/1000/2500) Desktop/Wall-Mounting Black (ES210X-M2)
- Regular price
- 154.95$
- Sale price
- 154.95$
- Regular price
-
Free shipping
Couldn't load pickup availability

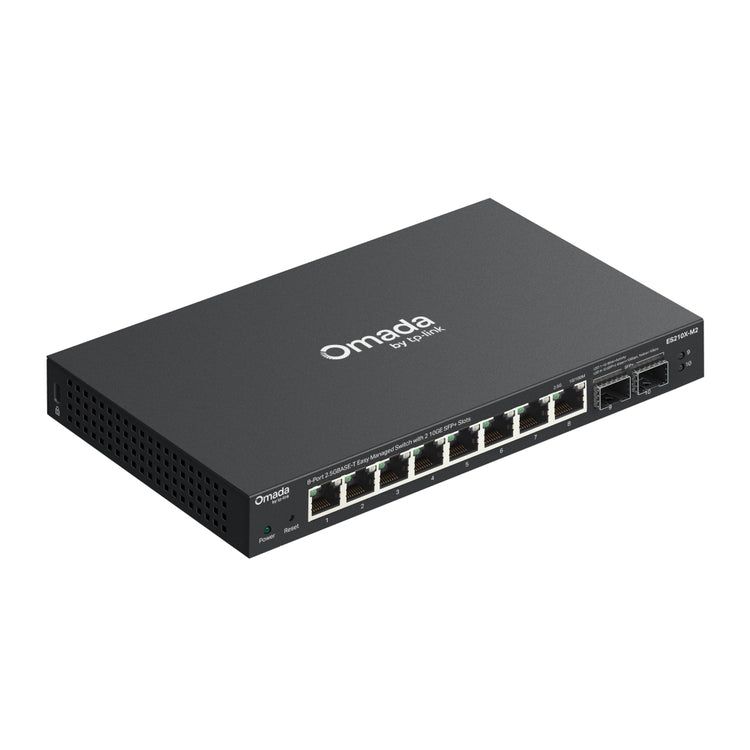

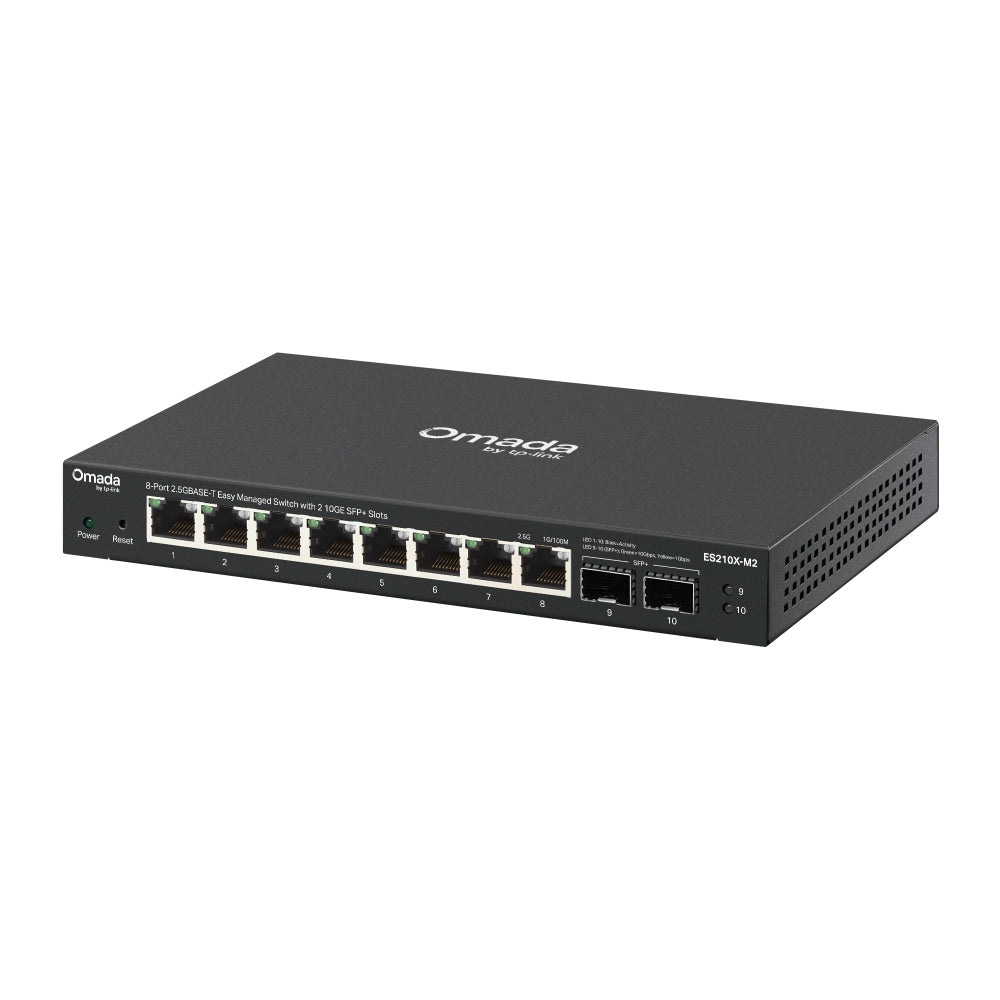

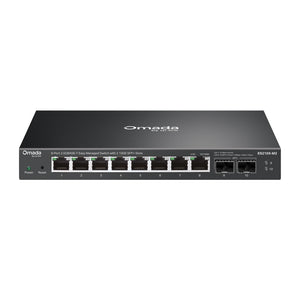

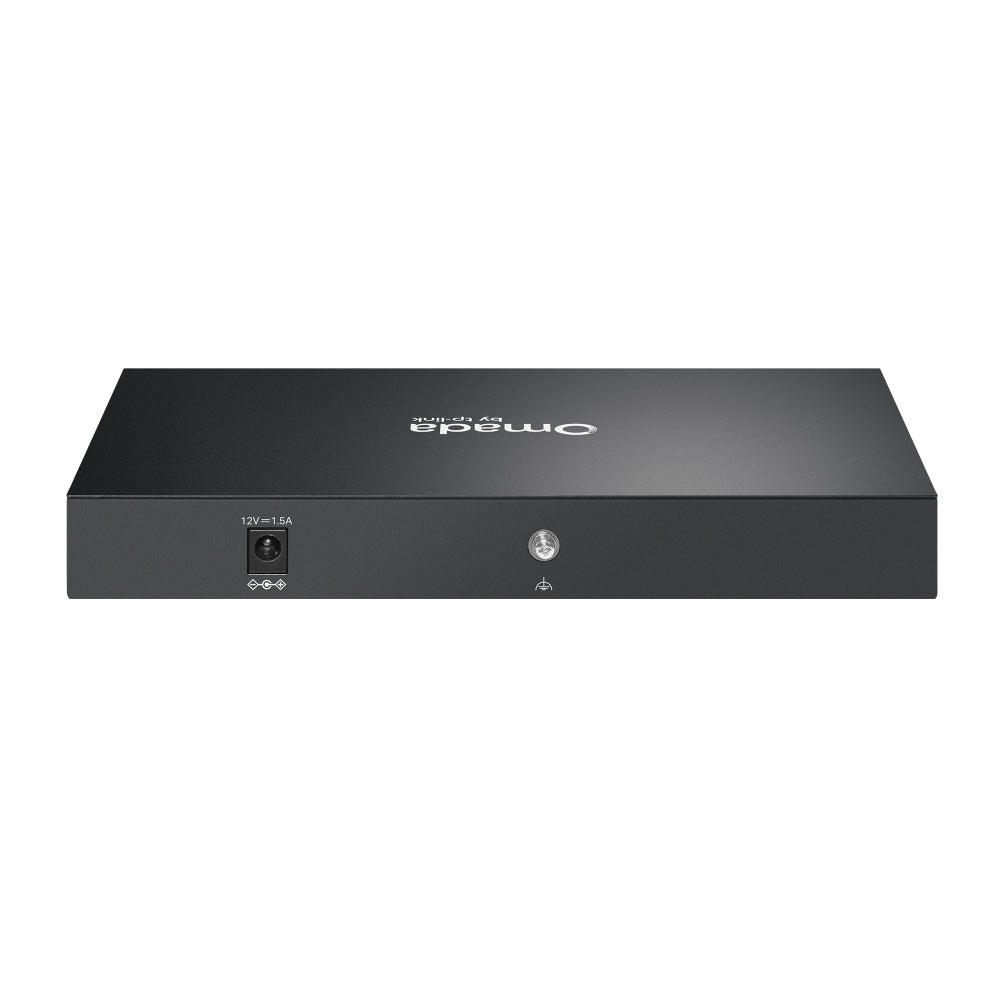

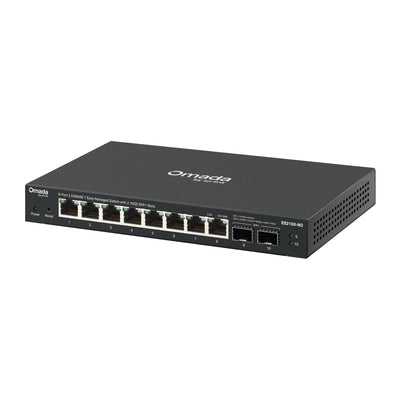

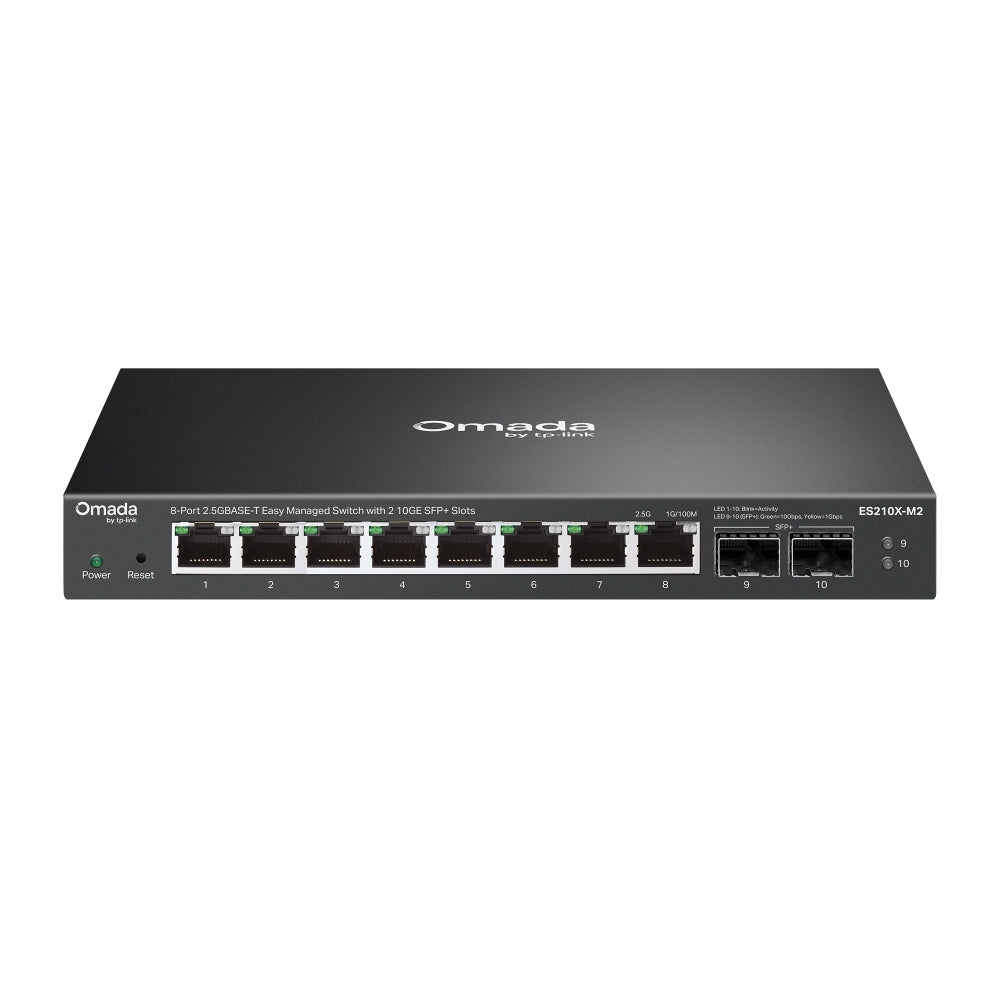

TP-Link ES210X-M2 network switch Managed 2.5G Ethernet (100/1000/2500) Desktop/Wall-Mounting Black
Brand:TP-Link
Product name:ES210X-M2
Product code:ES210X-M2
EAN/UPC:
1210002600743
1210002600743, 0840460600330, 840460600330, 1210002600750
- 8× 2.5 Gbps RJ45 Ports
- 2× 10 Gbps SFP+ Slots
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation

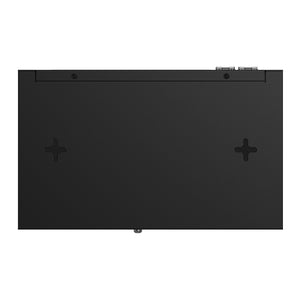

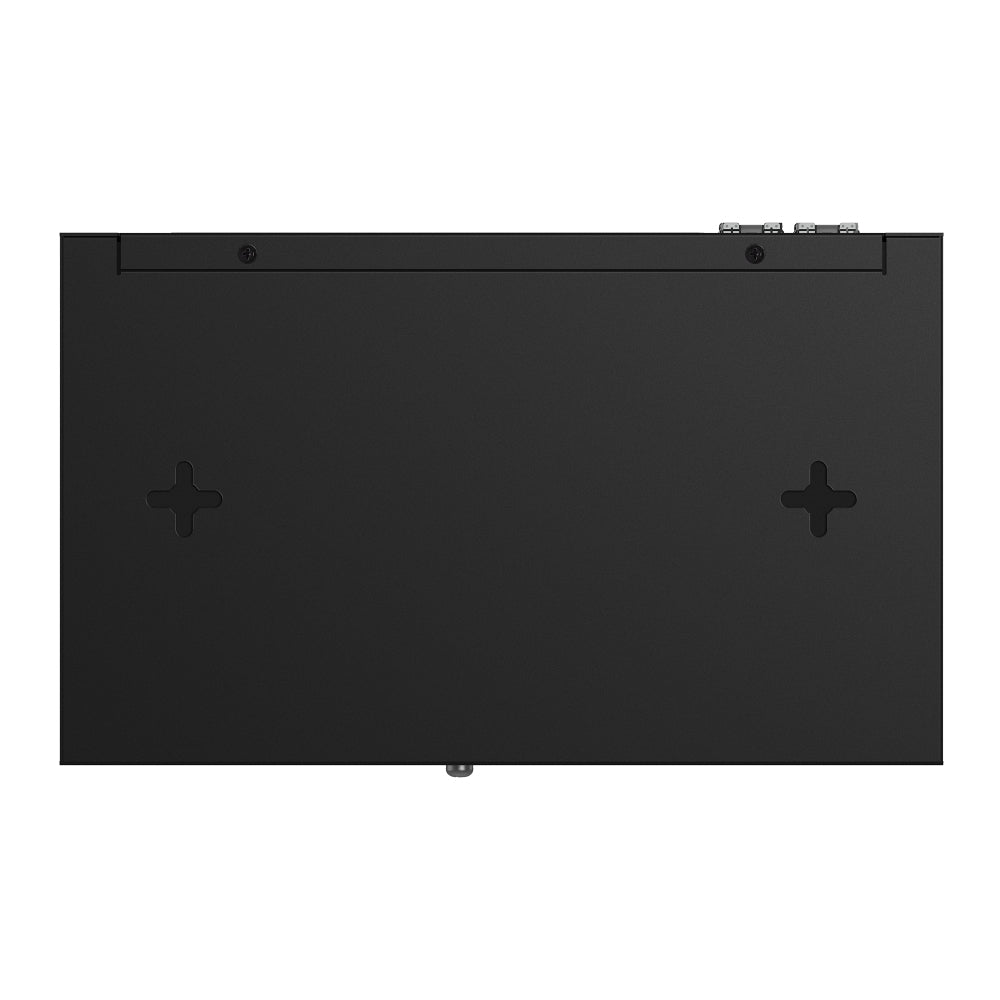

- Durable metal casing and desktop/wall mounting design
Specs
Management features
Switch type
What switch device has, managed or unmanaged.
Managed
Network
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.1p
10G support
The product can use Oracle 10G, which is a database management system introduced in 2003.
Port mirroring
Flow control support
Link aggregation
Broadcast storm control
Auto MDI/MDI-X
A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Security
DHCP features
DHCP client
IGMP snooping
Performance
Firmware upgradeable
Power
Power source
What is providing power for the product e.g. mains electricity.
DC
Power supply included
There is a power supply with this product.
Power over Ethernet (PoE)
Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Weight & dimensions
Width
The measurement or extent of something from side to side.
209 mm
Depth
The distance from the front to the back of something.
126 mm
Height
The measurement of the product from head to foot or from base to top.
26 mm
Packaging content
Quick start guide
Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
The number of basic switching RJ-45 Ethernet ports (sockets).
8
Basic switching RJ-45 Ethernet ports type
The type/category of basic switching RJ-45 Ethernet ports (sockets).
2.5G Ethernet (100/1000/2500)
SFP+ module slots quantity
2
Data transmission
Switching capacity
The data transfer capacity of the switch per second.
80 Gbit/s
Forwarding rate
59,52 Mpps
MAC address table
The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
16000 entries
Store-and-forward
Jumbo frames support
Packet buffer memory
0,64 MB
Design
Rack mounting
The type of mounting that can position devices in a shelving system (rack).
Form factor
The shape or design of the product.
Desktop/Wall-Mounting
Product color
The colour e.g. red, blue, green, black, white.
Black
LED indicators
Yes
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
-5 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
