TP-LINK Network bridge 867 Mbit/s White (BEAM BRIDGE 5 UR KIT)
- Regular price
- 314.95$
- Sale price
- 314.95$
- Regular price
-
Free shipping
Couldn't load pickup availability

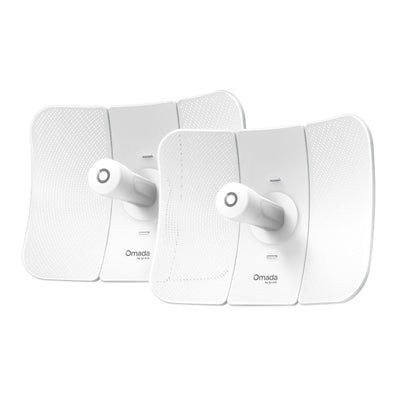

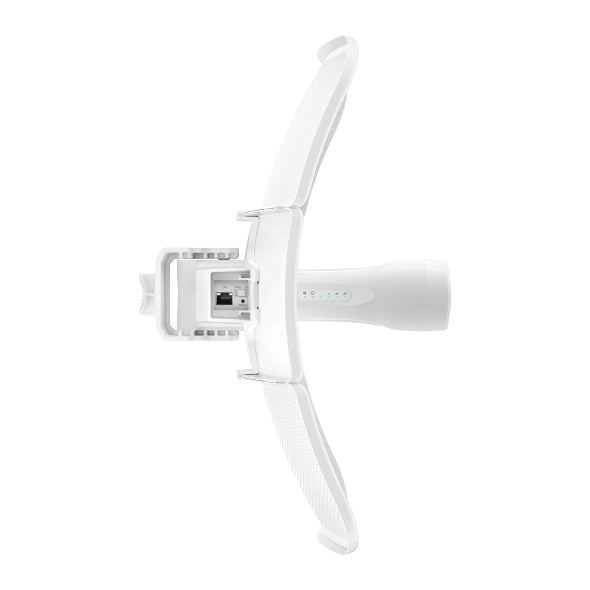

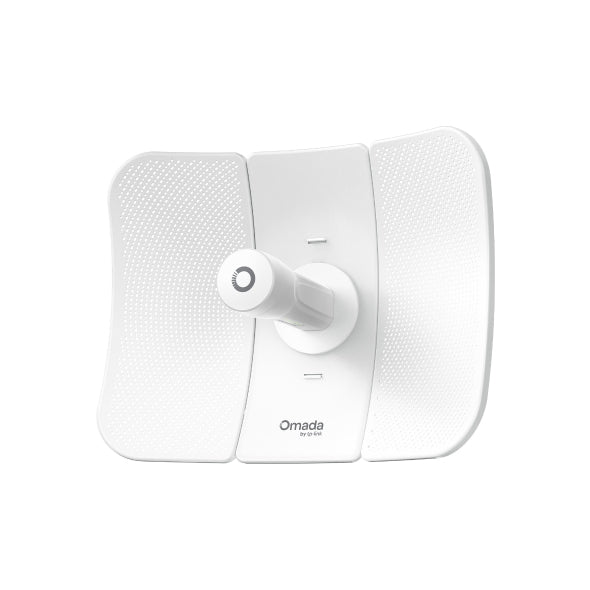

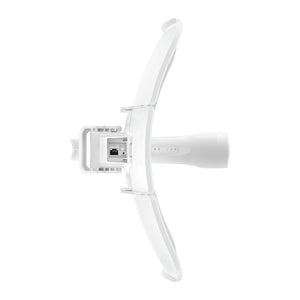

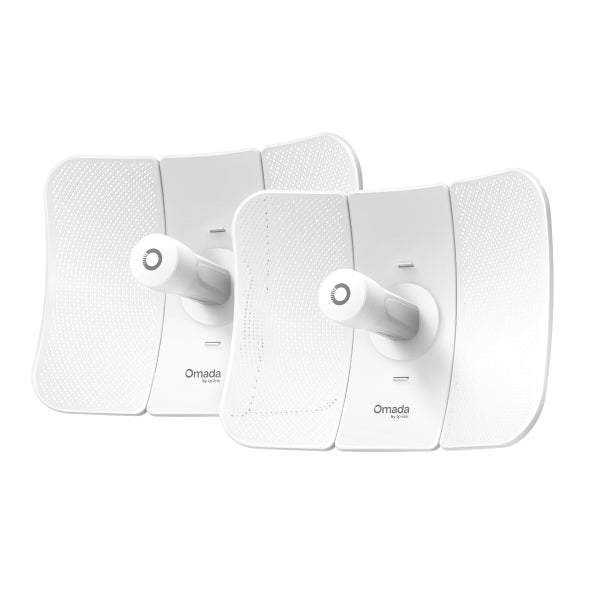

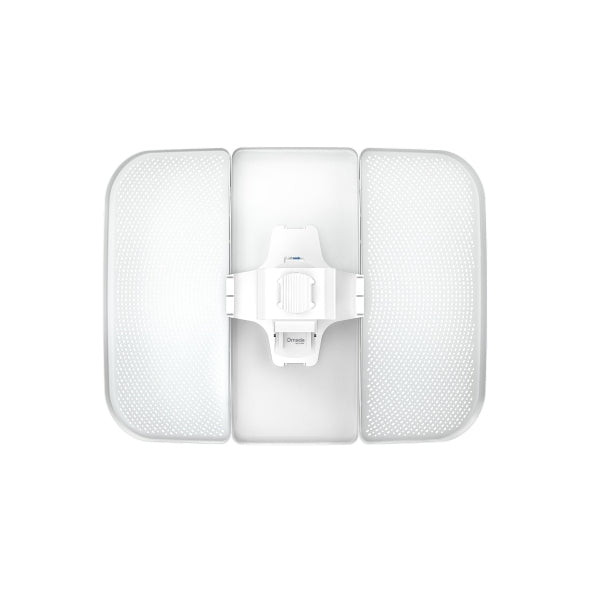

TP-Link Beam Bridge 5 UR KIT Network bridge 867 Mbit/s White
Brand:TP-Link
Product name:Beam Bridge 5 UR KIT
Product code:BEAM BRIDGE 5 UR KIT
EAN/UPC:
1210002603782
1210002603782, 1210002603799, 0840460601566, 840460601566
Description
Product Overview
Omada 5 GHz 867 Mbps Indoor/Outdoor Wireless Bridge Beam Bridge 5 UR KIT is an enterprise-grade Wi‑Fi bridge kit engineered for ultra-range transmission up to 9.3 miles (15 km). It delivers reliable pointto-point connectivity in remote outdoor environments—ideal for forests, mining sites, islands, and other hard-to-reach locations where extending network access is critical.
Business-Grade 15-km Ultra-Range Wi-Fi Connectivity
It delivers reliable Wi-Fi with low latency and strong signal integrity, equipped with 23 dBi high-gain directional antennas for ultra-range, uninterrupted wireless transmission, and it is ideal for connecting remote sites in rural and hard-to-wire environments.
Effortless Plug-and-Play Setup
Preconfigured for instant PtP auto-pairing, the bridges deliver instant connectivity right out of the box. Simply power on and go, ideal for quick and easy deployments.
App-Guided Alignment for Optimal Performance
Simply bridge alignment with real-time signal strength visualization on the Omada app. Perfect for installations where bridges are far apart, this feature ensures optimal alignment and connectivity. The Omada app also allows users to easily verify installations, test transmission speeds, and troubleshoot connections for optimal performance.
Simple Deployment with PoE Support
1× Gigabit PoE port delivers both power and data through a single cable, cutting deployment costs and outdoor wiring complexity. It supports both 802.3af PoE and Passive PoE power supply.
Outdoor-Ready Design for Extreme Conditions
Beam Bridge 5 UR KIT supports IP65 weatherproof and 6kV lightning protection safeguard your network in harsh outdoor environments. Additionally, an extended temperature tolerance of -40 °C to 70 °C makes it ideal for extremely hot and cold environments.
Remote Monitoring & Management
Use the Omada app for easy on-site setup-no internet required. For additional flexibility, switch to Omada SDN, enabling cloud management via the Omada app or web portal for seamless control, and monitor from anywhere.
Omada 5 GHz 867 Mbps Indoor/Outdoor Wireless Bridge Beam Bridge 5 UR KIT is an enterprise-grade Wi‑Fi bridge kit engineered for ultra-range transmission up to 9.3 miles (15 km). It delivers reliable pointto-point connectivity in remote outdoor environments—ideal for forests, mining sites, islands, and other hard-to-reach locations where extending network access is critical.
Business-Grade 15-km Ultra-Range Wi-Fi Connectivity
It delivers reliable Wi-Fi with low latency and strong signal integrity, equipped with 23 dBi high-gain directional antennas for ultra-range, uninterrupted wireless transmission, and it is ideal for connecting remote sites in rural and hard-to-wire environments.
Effortless Plug-and-Play Setup
Preconfigured for instant PtP auto-pairing, the bridges deliver instant connectivity right out of the box. Simply power on and go, ideal for quick and easy deployments.
App-Guided Alignment for Optimal Performance
Simply bridge alignment with real-time signal strength visualization on the Omada app. Perfect for installations where bridges are far apart, this feature ensures optimal alignment and connectivity. The Omada app also allows users to easily verify installations, test transmission speeds, and troubleshoot connections for optimal performance.
Simple Deployment with PoE Support
1× Gigabit PoE port delivers both power and data through a single cable, cutting deployment costs and outdoor wiring complexity. It supports both 802.3af PoE and Passive PoE power supply.
Outdoor-Ready Design for Extreme Conditions
Beam Bridge 5 UR KIT supports IP65 weatherproof and 6kV lightning protection safeguard your network in harsh outdoor environments. Additionally, an extended temperature tolerance of -40 °C to 70 °C makes it ideal for extremely hot and cold environments.
Remote Monitoring & Management
Use the Omada app for easy on-site setup-no internet required. For additional flexibility, switch to Omada SDN, enabling cloud management via the Omada app or web portal for seamless control, and monitor from anywhere.
Specs
Data transmission
Maximum data transfer rate
The maximum speed with which data can be transmitted from one device to another.
867 Mbit/s
Maximum transfer distance
The greatest distance over which the data/signal can be transferred.
15000 m
Wireless LAN features
Wi-Fi
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Wi-Fi band
The frequency bands the product features.
Single-band (5 GHz)
Top Wi-Fi standard
Connection of this device is done via Wi-Fi in a high standard.
Wi-Fi 5 (802.11ac)
Frequency band
A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones.
5.150 - 5.850 GHz
Signal strength
27 dBm
Modulation
Modulation is the process of varying one or more properties of a periodic waveform, called the carrier signal (High Frequency Signal), with a modulating signal which typically contains information to be transmitted. The aim of digital modulation is to transfer a digital bit stream over an analog bandpass channel, for example over the public switched telephone network (where a bandpass filter limits the frequency range to between 300 and 3400 Hz), or over a limited radio frequency band. The aim of analog modulation is to transfer an analog baseband (or lowpass) signal, for example an audio signal or TV signal, over an analog bandpass channel at a different frequency, for example over a limited radio frequency band or a cable TV network channel.
16-QAM, 64-QAM, 256-QAM, BPSK, OFDM, QPSK
Security
Security algorithms
Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.
EAP-AKA, EAP-FAST, EAP-GTC, EAP-MD5, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, SNMP, SNMPv2, SNMPv3, SSID, WPA2
Features
Product type
The sub-category of the product.
Network bridge
Mounting type
Type of mounting e.g. wall mounting.
Pole
Product color
The colour e.g. red, blue, green, black, white.
White
LED indicators
Yes
Reset button
International Protection (IP) code
The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
IP65
Surge protection
Network Time Protocol (NTP) client
Internal memory
The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.
128 MB
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
360000 h
Certificates
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
Federal Communications Commission (FCC)
Certification
ETSI EN 300 328, ETSI EN 301 893, EN 55032, EN 55035, EN 301489-1, EN 301489-17, EN 62368-1, IEC 62368-1
Packaging content
Packaging content
• Beam Bridge 5 UR KIT
• Installation Guide
• Mounting Kit
• Passive PoE Adapter
• Power Cord
Packaging data
Package width
The distance from one side of the packaging to the other.
390 mm
Package depth
The distance from the front to the back of the packaging.
296 mm
Package height
The distance from the top to the bottom of the packaging.
165 mm
Package weight
Weight of the packaged product in gram.
3,74 kg
Package type
The type of product package e.g. box.
Box
Antenna
Antenna design
External
Antenna type
Type of antenna, also known an aerial, e.g. external, internal.
2x2
Antenna gain level (max)
Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.
23 dBi
Network
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN interface type
The characteristics of the Ethernet LAN interface.
Gigabit Ethernet
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
10,100,1000 Mbit/s
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Ports & interfaces
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Management features
Web-based management
Using a website/web application to manage something.
DHCP client
Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network.
Power
Power source type
What the power source is.
PoE
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
15,8 W
Power consumption (max)
The maximum amount of power used by the device.
15,8 W
Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
-40 - 70 °C
Operating temperature (T-T)
-40 - 158 °F
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Weight & dimensions
Width
The measurement or extent of something from side to side.
366 mm
Depth
The distance from the front to the back of something.
280 mm
Height
The measurement of the product from head to foot or from base to top.
207 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
1,1 kg
