TP-LINK LiteWave network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black (LS108GP)
- Regular price
- 81.95$
- Sale price
- 81.95$
- Regular price
-
Free shipping on orders over $99
Couldn't load pickup availability
TP-Link LiteWave LS108GP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Brand:TP-Link
Product name:8-Port Gigabit Desktop Switch with 8-Port PoE+
Product code:LS108GP
EAN/UPC:
4895252505993
4895252505993, 4895252505986
- Full Gigabit Ports: Eight gigabit auto-negotiation ports provide up to 16 Gbps switching capacity
- 62 W PoE Budget: Eight gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port
- Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas
- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
- Plug and Play: Simply plug and play for instant connectivity with no configuration required
- Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses

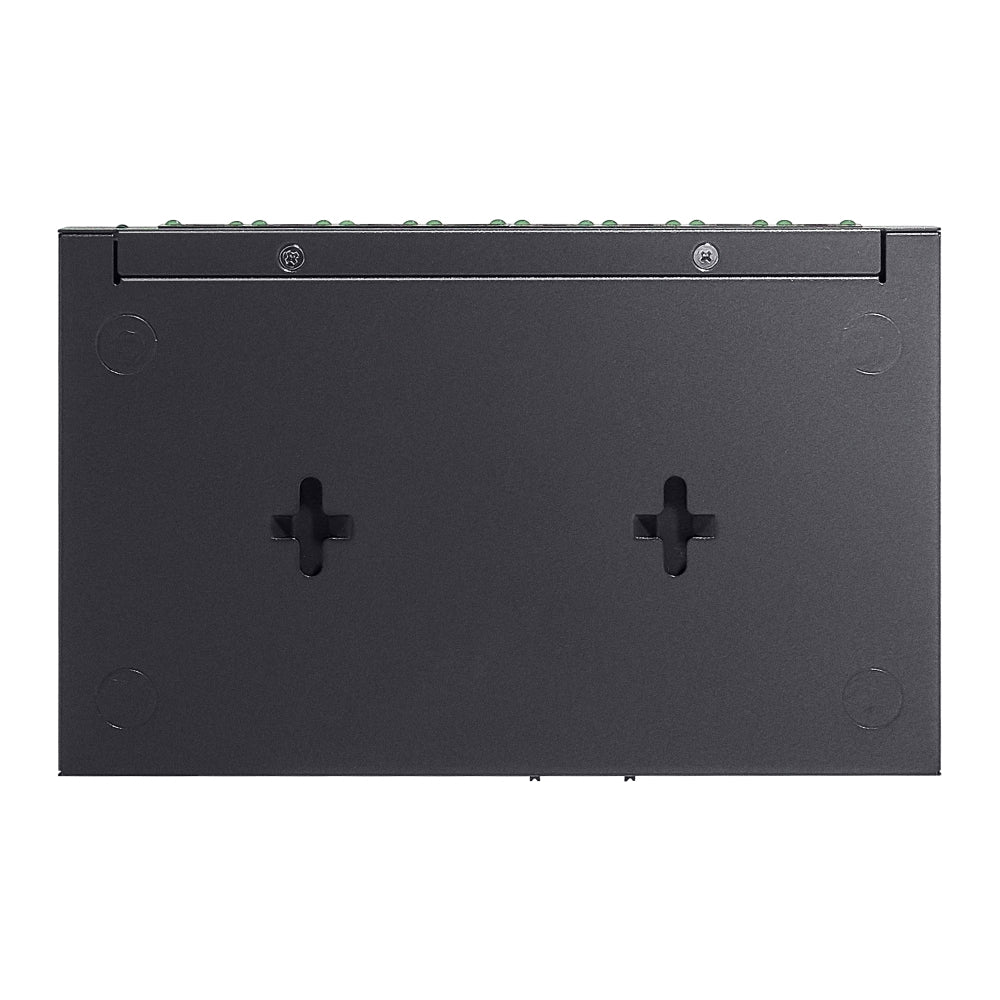

- Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments
Description
The TP-Link LiteWave Series PoE Switches require no configuration and provide PoE (Power over Ethernet) ports. They can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Specs
Management features
Switch type
What switch device has, managed or unmanaged.
Unmanaged
Quality of Service (QoS) support
Network
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
The product can use Oracle 10G, which is a database management system introduced in 2003.
Cable types supported
Cat3, Cat4, Cat5, Cat5e
Flow control support
Auto MDI/MDI-X
A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Auto-negotiation
Power
Power source
What is providing power for the product e.g. mains electricity.
DC/PoE
Power supply included
There is a power supply with this product.
AC input voltage
The voltage of the AC electricity that is inputted into the product.
220 V
AC input frequency
50 Hz
DC input voltage
53.5 V
Input current
1.31 A
Power consumption (max)
The maximum amount of power used by the device.
71,61 W
Weight & dimensions
Width
The measurement or extent of something from side to side.
158 mm
Depth
The distance from the front to the back of something.
99 mm
Height
The measurement of the product from head to foot or from base to top.
25 mm
Packaging content
User guide
Certificates
Certification
CE, FCC, RoHS
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
The number of basic switching RJ-45 Ethernet ports (sockets).
8
Basic switching RJ-45 Ethernet ports type
The type/category of basic switching RJ-45 Ethernet ports (sockets).
Gigabit Ethernet (10/100/1000)
Power connector
DC-in jack
Data transmission
Switching capacity
The data transfer capacity of the switch per second.
16 Gbit/s
Forwarding rate
11,9 Mpps
MAC address table
The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
4000 entries
Jumbo frames
16000
Design
Product color
The colour e.g. red, blue, green, black, white.
Black
LED indicators
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Power over Ethernet plus (PoE+) ports quantity
8
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
62 W
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
The heat generated by the power supply.
243,47 BTU/h
Packaging data
Package type
The type of product package e.g. box.
Box
