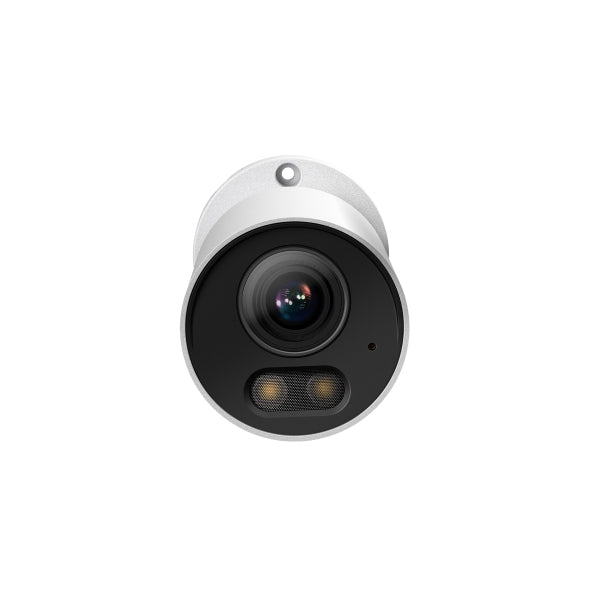

TP-LINK InSight S345S Bullet IP security camera Outdoor 2688 x 1520 pixels Ceiling/Wall/Pole (INSIGHT S345S-4MM)
- Regular price
- 315.95$
- Sale price
- 315.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
TP-Link InSight S345S Bullet IP security camera Outdoor 2688 x 1520 pixels Ceiling/Wall/Pole
Brand:TP-Link
Product name:InSight S345S
Product code:INSIGHT S345S(4MM)
EAN/UPC:
8885020625608
8885020625608, 1210002608299, 0810142822930, 810142822930
- AI-ISP Powered Ultra Low-Light Color Night Vision
- 4MP Super-High Definition
- People & Vehicle Analytics
- Human & Vehicle Classification
- Smart Detection
- Two-Way Audio
- Smart Video Enhancement Technology
- Flexible Alarm In/Out Devices Integration
- IP67 Weatherproof
- H.265+ Compression Technology
Description
See True Colors and Details in the Dark
Unveiling every detail in the dark, experiencing clarity and color as vivid as daylight — no extra fill lights needed.
Worry-Free Night Surveillance: Beyond IR & Full-Color
Eliminates general night vision issues like dark corners, glare, and color loss — enjoy worry-free nighttime monitoring.
See Vividly — Even No Extra Fill Lights Needed
Enables full-color imaging in low-light conditions without fill-in lighting, reducing both energy consumption and insect-triggered false alarms for a more eco-friendly solution.
People or Vehicle Triggered Intelligent IR-White Lights Reveal More in Total Darkness
In complete darkness with zero illumination, VIGI’s intelligent infrared-white lights will automatically activate white lights upon detecting people or vehicles, delivering vivid color imaging while deterring intruders.
VIGI AI Detection Technology
People & Vehicle Analytics: Search and filter to people or vehicle of interest based on many different attributes, like hair length, upper body color, vehicle type, making post-event search faster and easier.
Human & Vehicle Classification: Distinguish humans and vehicles from other objects, such as moving animals, falling leaves, changing lights, and receive more accurate event notifications.
Smart Video Enhancement Technology
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.
Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
Unveiling every detail in the dark, experiencing clarity and color as vivid as daylight — no extra fill lights needed.
Worry-Free Night Surveillance: Beyond IR & Full-Color
Eliminates general night vision issues like dark corners, glare, and color loss — enjoy worry-free nighttime monitoring.
See Vividly — Even No Extra Fill Lights Needed
Enables full-color imaging in low-light conditions without fill-in lighting, reducing both energy consumption and insect-triggered false alarms for a more eco-friendly solution.
People or Vehicle Triggered Intelligent IR-White Lights Reveal More in Total Darkness
In complete darkness with zero illumination, VIGI’s intelligent infrared-white lights will automatically activate white lights upon detecting people or vehicles, delivering vivid color imaging while deterring intruders.
VIGI AI Detection Technology
People & Vehicle Analytics: Search and filter to people or vehicle of interest based on many different attributes, like hair length, upper body color, vehicle type, making post-event search faster and easier.
Human & Vehicle Classification: Distinguish humans and vehicles from other objects, such as moving animals, falling leaves, changing lights, and receive more accurate event notifications.
Smart Video Enhancement Technology
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.
Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
Specs
Performance
Type
Characteristics of the device.
IP security camera
Placement supported
Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.
Outdoor
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
Wide Dynamic Range (WDR)
Infrared (IR) cut-off filter
Alarm input/output
Dynamic range
120 dB
Image sensor
Optical sensor size
Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes.
25,4 / 1,79 mm (1 / 1.79")
Progressive scan
Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television).
Sensor type
A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.
CMOS
Lens system
Number of lenses
The number of lenses installed in the device.
1
Detect distance
76 m
Observe distance
29 m
Recognize distance
14 m
Maximum aperture number
1
Identify distance
7 m
Fixed focal length
4 mm
Video
Maximum resolution
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
2688 x 1520 pixels
Total megapixels
A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels).
4 MP
Video compression formats
H.264, H.264+, H.265, H.265+
Supported graphics resolutions
The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.
320 x 240, 352 x 288, 640 x 360, 640 x 480 (VGA), 704 x 576, 848 x 480, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520
Video streaming
Noise reduction
Noise reduction technology
3D noise reduction
Bit rate control
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate
Main Stream: 256 Kbps - 6 Mbps; Sub-Stream: 64 Kbps - 1024 Kbps
Back Light Compensation (BLC)
Highlight Compensation (HLC)
Region of Interest (ROI) encoding
Smart IR
Ports & interfaces
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Security
Alarm input channels
1
Alarm output channels
1
Password protection
The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.
Video motion detection
Active tampering alarm
IP address filtering
HTTPS encryption
Intelligent Video Surveillance (IVS) system features
Abandoned object, Abnormal sound detection, Human detection, Intrusion, Line crossing detection, Region entrance detection, Region exiting detection, Scene change, Vehicle detection
Digest authentication
Sustainability
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
BSMI, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, VCCI
Packaging content
Number of cameras
The quantity of cameras that product can support.
1
Mounting kit
Manual
Design
Form factor
The shape or design of the product.
Bullet
Mounting type
Type of mounting e.g. wall mounting.
Ceiling/Wall/Pole
Product color
The colour e.g. red, blue, green, black, white.
White
Housing material
What the casing of the product is made of.
Metal
International Protection (IP) code
The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
IP67
Camera
Minimum illumination
Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality.
0,0005 lx
Angle of rotation
360°
Lens viewing angle, horizontal
95°
Lens viewing angle, vertical
51°
Lens viewing angle, diagonal
115°
Tilt angle range
0 - 75°
Pan range
0 - 360°
Camera shutter speed
Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure.
1/3 - 1/10000 s
Night vision
Night vision
Night vision is technology which allows you to see in low light conditions.
Night vision distance
30 m
LED type
IR/White
Number of illumination LEDs
2
Infra-red wavelength
850 nm
Audio
Built-in speaker(s)
The device contains speaker(s) to produce sound.
Audio system
System used to play music or speech.
2-way
Signal-to-Noise Ratio (SNR)
This is the ratio of signal intensity to noise intensity.
52 dB
Built-in microphone
Microphone that is found inside the product.
Network
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet interface type
Fast Ethernet
Supported network protocols
Network protocols tested as compatible with this product e.g. FTP,HTML, POP.
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP
Wi-Fi
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Bluetooth
Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Storage
Built-in HDD
The product has a hard drive built into it.
Card reader integrated
A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.
Compatible memory cards
Types of memory cards which can be used with this product.
MicroSD (TransFlash)
Maximum memory card size
The maximum size of memory card that can be used with this device.
512 GB
Management features
Web browser
Cloud-managed
Power
Power source type
What the power source is.
DC, PoE
DC output voltage
12
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
-30 - 60 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 60 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Weight & dimensions
Diameter
Distance from one side of a body (circle or sphere) to the other side, measured by a straight line passing through the centre of the body.
6,6 cm
Length
The measurement or extent of something from end to end.
191 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
600 g
