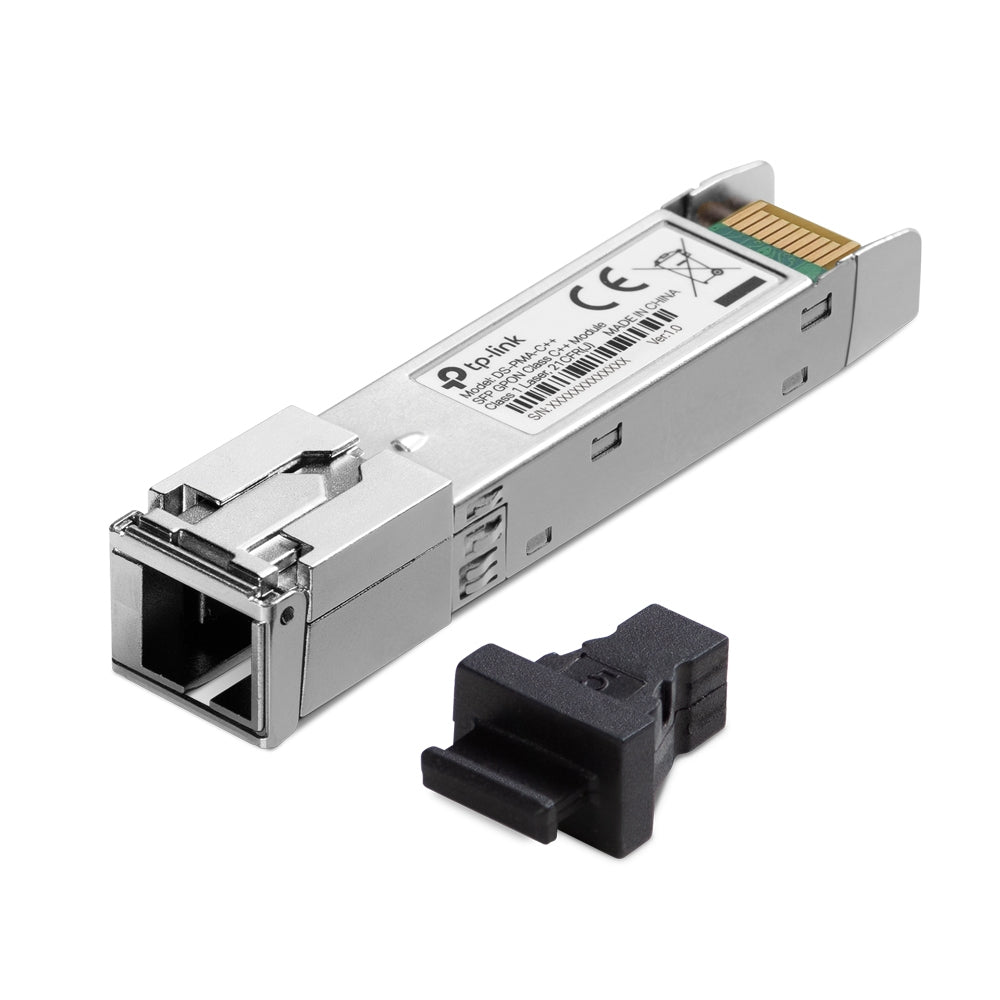

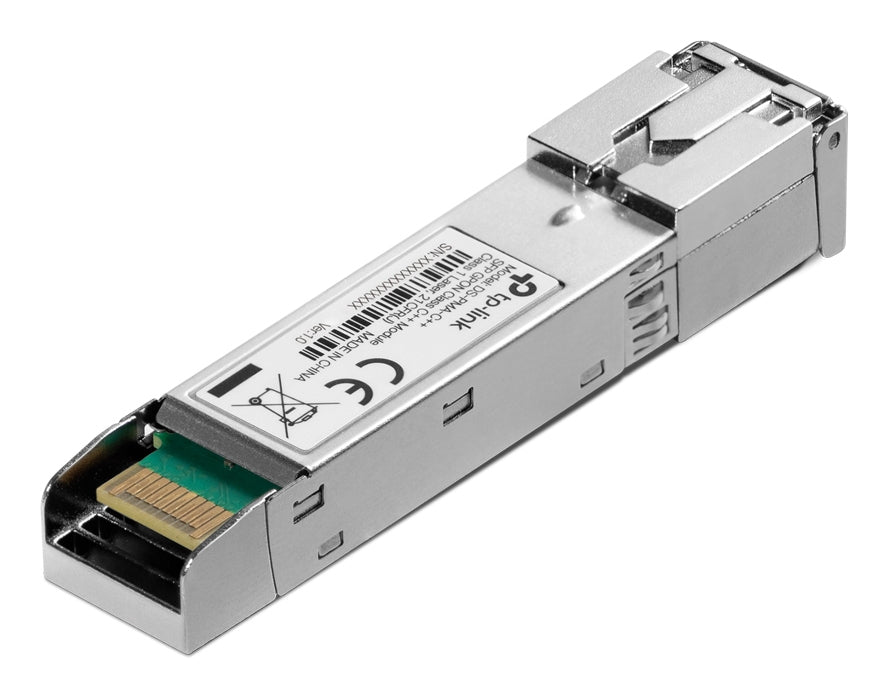

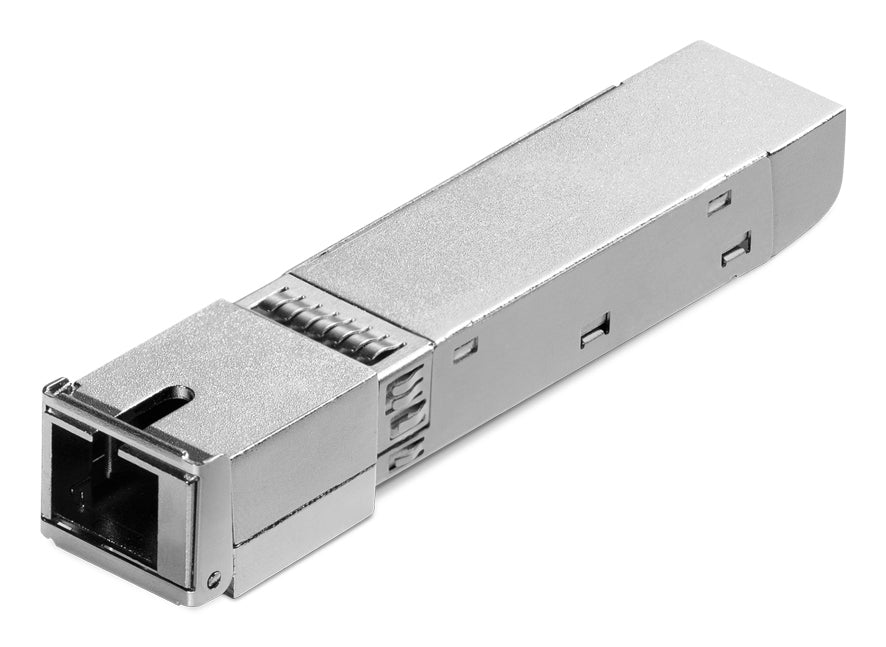

TP-LINK GPON SFP modul network transceiver module Fiber optic 2500 Mbit/s (DS-PMA-C++)
- Regular price
- 66.95$
- Sale price
- 66.95$
- Regular price
-
Free shipping on orders over $99
Couldn't load pickup availability
TP-Link DS-PMA-C++GPON SFP modul network transceiver module Fiber optic 2500 Mbit/s
Brand:TP-Link
Product name:DS-PMA-C++GPON SFP modul
Product code:DS-PMA-C++
EAN/UPC:
8885020626407
- Enables multi-gig fiber internet connections up to 2.488 Gbps downstream and 1.244 Gbps upstream.*
- Supports 2.5G and 1G Ethernet UNI modes for flexible internet access
- Hot swapping feature allows quick and easy installation and application
- Supports the OMCI protocol and DDM (Digital Diagnostics Monitoring) for centralized management and real-time monitoring
- Diagnostic Function
Description
Actual data throughput is not guaranteed and may vary as a result of network conditions, client limitations, the rate supported by the network cable, internet service provider factors, and other environmental factors.
- Data Interface: LVPECL
- Control Interface：LVTTL
- Data Interface: LVPECL
- Control Interface：LVTTL
Specs
Performance
SFP transceiver type
Fiber optic
Maximum data transfer rate
The maximum speed with which data can be transmitted from one device to another.
2500 Mbit/s
Interface type
SFP
Single-mode fiber (SMF) supported
Fiber optic connector
This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.
SC/UPC
Fiber cable diameters supported (core/cladding)
9/125 µm
Maximum transfer distance
The greatest distance over which the data/signal can be transferred.
20000 m
Tx wavelength (max)
1490 nm
Rx wavelength (max)
1310 nm
Rx power (max)
5 dBmW
Ethernet interface type
2.5 Gigabit Ethernet, Gigabit Ethernet
Fiber ethernet cabling technology
1000BASE
Digital Diagnostics Monitoring (DDM)
Features
Product color
The colour e.g. red, blue, green, black, white.
Metallic
Form factor
The shape or design of the product.
SFP
Plug and Play
Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.
Hot-swap
Easy to install
Power
Input voltage
The voltage (V) which is required to power the product.
3.3 V
Certificates
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
CE
Packaging content
Packaging content
2× 10 SFF
