StarTech.com ST124HDVW video switch HDMI
Brand:StarTech.com
Product name:2x2 HDMI Video Wall Controller - 4K 60Hz HDMI 2.0 Video Input to 4x 1080p Output - Video Wall Processor for Multi Screen Display - Video Wall Splitter - RS232/Ethernet Control - TAA
Product code:ST124HDVW
EAN/UPC:
0065030883603
0065030883603, 065030883603
- 2x2 HDMI VIDEO WALL CONTROLLER: Hardware-based video wall processor can split & scale a 4K 60Hz (4096x2160) HDMI video input into 4x HDMI 1080p output signals to create a large image across 4 displays for digital signage; 7.1ch audio, HDCP 2.2/1.4
- EASY SETUP: The 2x2 video wall setup is pre-configured by default; HDMI video wall splitter w/ EDID emulation allows source video to be detected and properly split w/ the correct video format; Bezel compensation ensures accurate image display
- SERIAL & IP CONTROL: Features RS232 & Ethernet ports for input/output control & configuration features w/the Windows-only app, command line, Telnet/UDP; Various layouts: 2x2/1x1/1x4/mirror-duplication

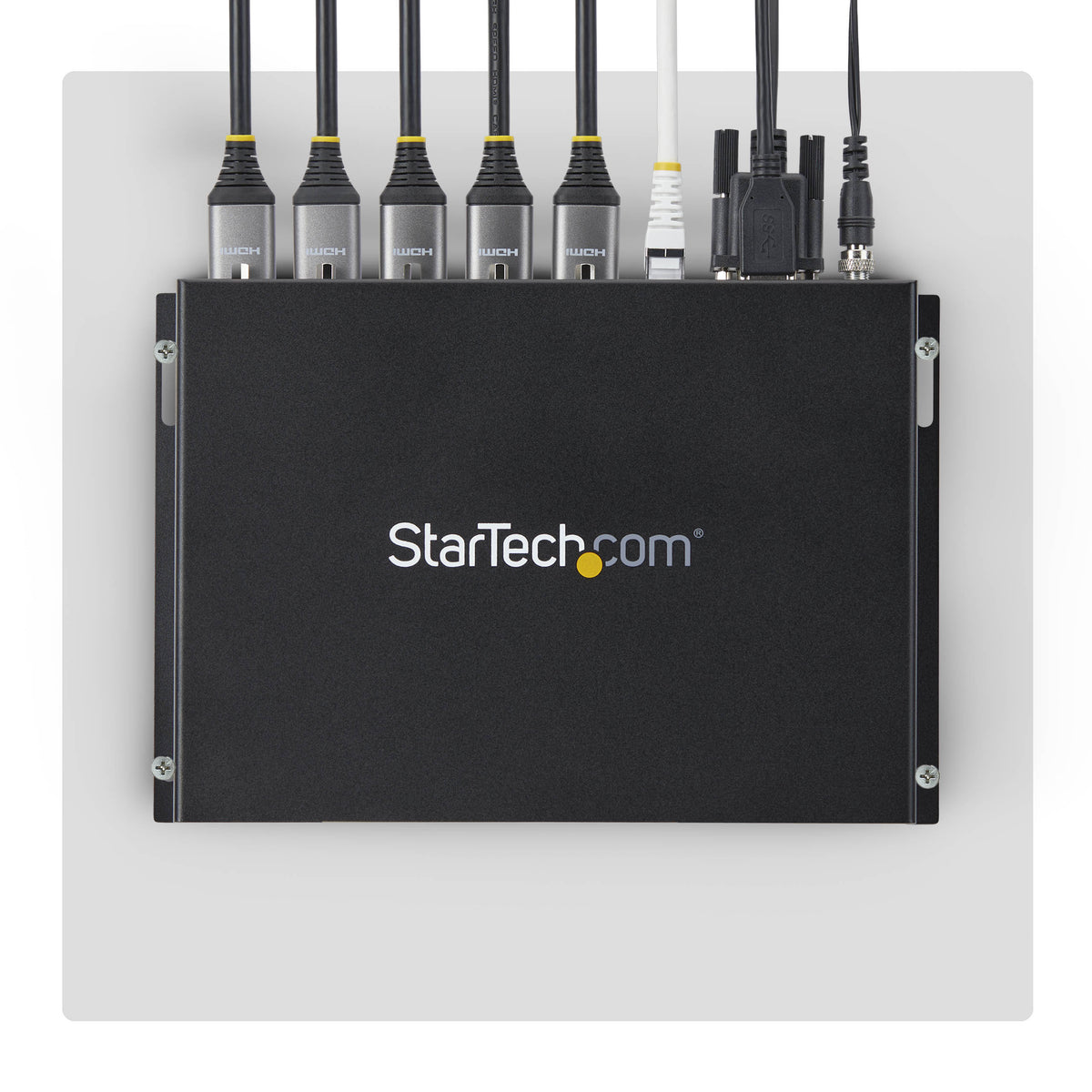

- MOUNT ANYWHERE: Flexible environment/system setup with durable & ventilated metal housing; Built-in mounting brackets for wall/surface mount; Supports screw locking cables (HDMI & power); ESD protection
- STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; 4-screen video wall controller backed for 2-years by StarTech.com incl. free 24/5 North America based multi-lingual tech support
Description
4K Video Wall Splitter | HDMI 2.0 | 1 Input 4 Outputs | 2-Year Warranty
This video wall controller lets you connect your HDMI video source to multiple HDMI displays, with support for Ultra HD resolutions and 7.1 surround sound audio. You can use the controller as a video splitter to distribute the same HDMI signal to four displays or you can combine your video source across four displays to create a 2x2 video wall.
Supports True 4K at 60Hz
Not all 2x2 video wall matrix controllers are created equal. While some HDMI 1.4 video wall controllers can achieve 4K resolutions, they'll only work at a 30Hz refresh rate. This 4K 60Hz HDMI video wall processor offers full support for HDMI 2.0, including true 4K resolution at 60Hz.
Widely Compatible
The HDMI video wall splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with lower resolution displays such as TVs around your site or in your digital signage application.
Easy Installation and Setup
For hassle-free setup, the 4K HDMI splitter offers easy plug-and-play installation. Simply connect your source and 4 displays and the 4k video wall splitter will automatically create a video wall at the appropriate resolution.
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
The ST124HDVW is backed by a 2-year StarTech.com warranty and free lifetime technical support.
This video wall controller lets you connect your HDMI video source to multiple HDMI displays, with support for Ultra HD resolutions and 7.1 surround sound audio. You can use the controller as a video splitter to distribute the same HDMI signal to four displays or you can combine your video source across four displays to create a 2x2 video wall.
Supports True 4K at 60Hz
Not all 2x2 video wall matrix controllers are created equal. While some HDMI 1.4 video wall controllers can achieve 4K resolutions, they'll only work at a 30Hz refresh rate. This 4K 60Hz HDMI video wall processor offers full support for HDMI 2.0, including true 4K resolution at 60Hz.
Widely Compatible
The HDMI video wall splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with lower resolution displays such as TVs around your site or in your digital signage application.
Easy Installation and Setup
For hassle-free setup, the 4K HDMI splitter offers easy plug-and-play installation. Simply connect your source and 4 displays and the 4k video wall splitter will automatically create a video wall at the appropriate resolution.
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
The ST124HDVW is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Specs
Ports & interfaces
Video port type
The type of socket in the device for connecting a video e.g. SCART.
HDMI
HDMI version
2.0
HDMI in
Port (socket) for HDMI input.
1
Number of HDMI outputs
Port (socket) for HDMI output.
4
USB port type
USB Type-A
RJ-45 input ports
1
RS-232 ports
The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports.
1
DC-in jack
The socket/plug where the DC electricity supply connects to the device.
Power
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
AC adapter input current
1 A
AC adapter output voltage
24 V
AC adapter output current
1,25 A
Packaging data
Package width
The distance from one side of the packaging to the other.
263 mm
Package depth
The distance from the front to the back of the packaging.
302 mm
Package height
The distance from the top to the bottom of the packaging.
70 mm
Package weight
Weight of the packaged product in gram.
1,6 kg
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 60 °C
Operating relative humidity (H-H)
20 - 90%
Features
Material
The material from which a thing is or can be made e.g. wood, plastic.
Metal
Product color
The colour e.g. red, blue, green, black, white.
Black
Extended display identification data (EDID)
HDCP
High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.
Maximum refresh rate
60 Hz
Supported graphics resolutions
The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.
4096 x 2160
LED indicators
Yes
Audio output channels
An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.
7.1 channels
HDCP version
2.2
Certificates
Certification
CE, FCC, REACH
Weight & dimensions
Width
The measurement or extent of something from side to side.
165 mm
Depth
The distance from the front to the back of something.
230 mm
Height
The measurement of the product from head to foot or from base to top.
45 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
1 kg

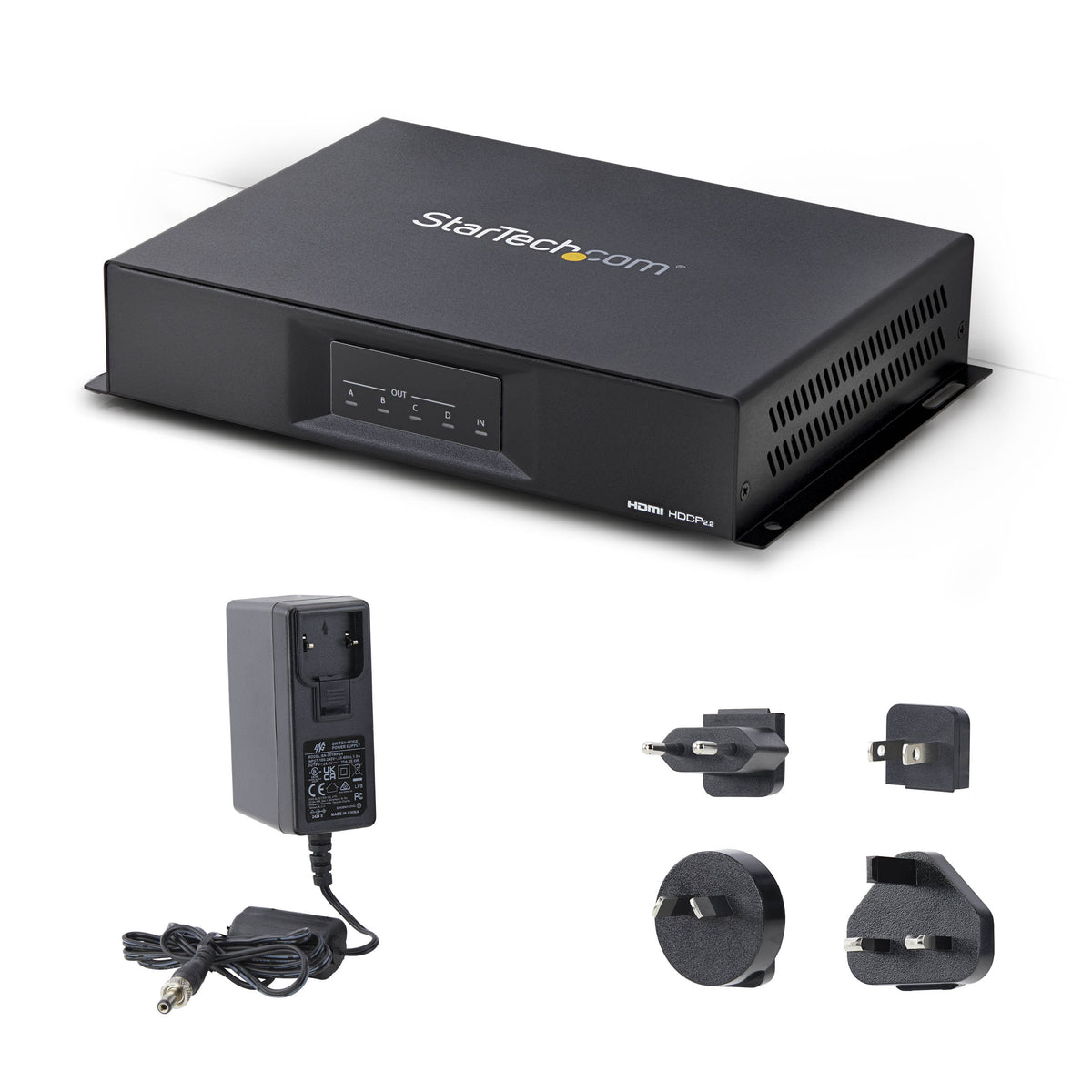

Packaging content
Manual
AC adapter included
Technical details
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Logistics data
Harmonized System (HS) code
85176990
Master (outer) case width
318 mm
Master (outer) case length
550 mm
Master (outer) case height
380 mm
Quantity per master (outer) case
10 pc(s)
