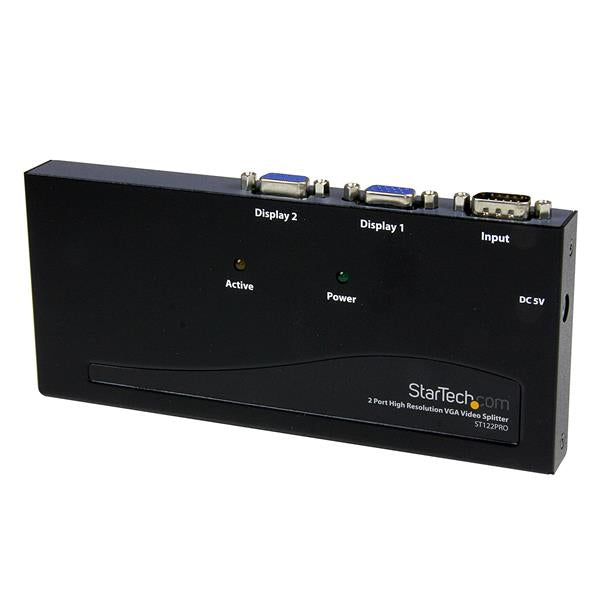

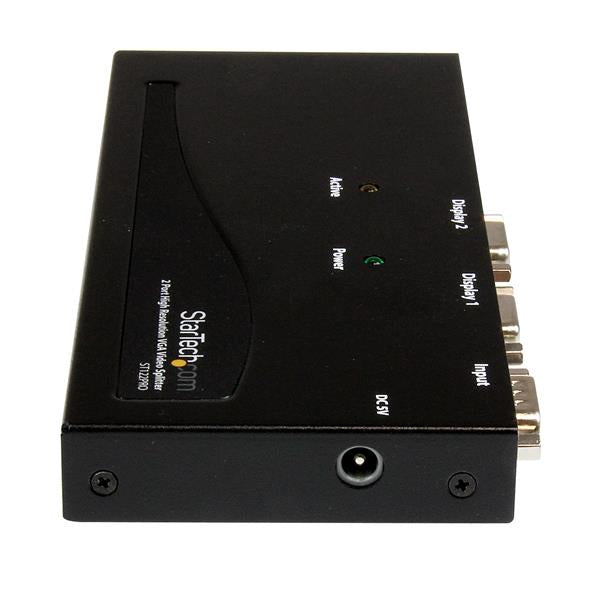

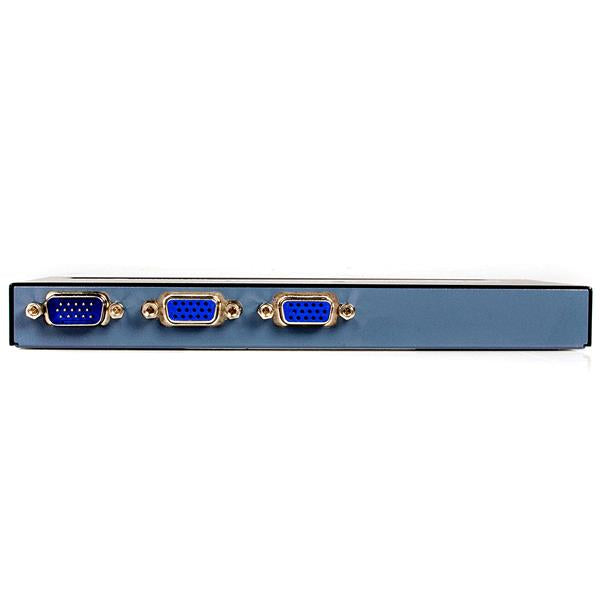

STARTECH video splitter VGA 2x VGA (ST122PRO)
- Regular price
- 65.95$
- Sale price
- 65.95$
- Regular price
-
Free shipping on orders over $99
Couldn't load pickup availability
StarTech.com ST122PRO video splitter VGA 2x VGA
Brand:StarTech.com
Product name:2 Port High Resolution VGA Video Splitter with Built-in Amplifier, 350 MHz, VGA Splitter 1 x 2, 2048x1536 80Hz - TAA Compliant
Product code:ST122PRO
EAN/UPC:
0065030785594
0065030785594, 065030785594
- Allows 1 VGA video source to simultaneously duplicate to 2 different monitors
- Supports resolutions up to 2048x1536 @ 80Hz; High video bandwidth (350 MHz)
- Daisy chainable to mirrored output for almost unlimited expansion
- Built-in video amplifier boosts the signal to allow a cable length of up to 210 ft or 65m
- Uses standard monitor extension cables; DDC compatible; Includes AC 120V power adapter
Description
Split a single high resolution VGA video signal to 2 monitors or projectors
The ST122PRO 2 Port High Resolution VGA Video Splitter - 350 MHz splits a VGA video source signal to 2 monitors or projectors simultaneously - a professional grade solution that is perfect for presentations, classrooms, tradeshows, or in-store displays, where the highest-quality identical video output on several monitors is needed. This High Resolution VGA Splitter supports monitors with up to 350MHz of video bandwidth and display resolutions up to 2048x1536 @80Hz. For added versatility, the VGA splitter features an integrated booster circuit that allows the video signal to be extended up to 210 feet (65 meters), enabling you to situate your displays in the most convenient location based on your application. This product is TAA compliant. Male to Female VGA extension cable required (MXT101HQ)
The ST122PRO 2 Port High Resolution VGA Video Splitter - 350 MHz splits a VGA video source signal to 2 monitors or projectors simultaneously - a professional grade solution that is perfect for presentations, classrooms, tradeshows, or in-store displays, where the highest-quality identical video output on several monitors is needed. This High Resolution VGA Splitter supports monitors with up to 350MHz of video bandwidth and display resolutions up to 2048x1536 @80Hz. For added versatility, the VGA splitter features an integrated booster circuit that allows the video signal to be extended up to 210 feet (65 meters), enabling you to situate your displays in the most convenient location based on your application. This product is TAA compliant. Male to Female VGA extension cable required (MXT101HQ)
Specs
Ports & interfaces
Video port type
The type of socket in the device for connecting a video e.g. SCART.
VGA
Video out
2x VGA
Video ports quantity
The number of ports (sockets) for video input or output.
2
Power
Input current
0.6 A
Output voltage
5 V
Output current
0,6 A
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
3 W
Packaging data
Package width
The distance from one side of the packaging to the other.
240 mm
Package depth
The distance from the front to the back of the packaging.
187 mm
Package height
The distance from the top to the bottom of the packaging.
97 mm
Package weight
Weight of the packaged product in gram.
670 g
Technical details
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Logistics data
Master (outer) case width
524 mm
Master (outer) case length
410 mm
Master (outer) case height
330 mm
Quantity per master (outer) case
12 pc(s)
Features
Product color
The colour e.g. red, blue, green, black, white.
Black
Maximum resolution
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
2048 x 1536 pixels
Maximum operating distance
The maximum distance from which you can operate the device.
65 m
Maximum refresh rate
80 Hz
Bandwidth
Bandwidth is the difference between the upper and lower frequencies in a continuous set of frequencies. It is typically measured in Hertz (Hz). A key characteristic of bandwidth is that any band of a given width can carry the same amount of information, regardless of where that band is located in the frequency spectrum. For example, a 3 kHz band can carry a telephone conversation whether that band is at baseband (as in a POTS telephone line) or modulated to some higher frequency.
350 MHz
Certification
CE, FCC, TAA, REACH
Weight & dimensions
Width
The measurement or extent of something from side to side.
80 mm
Depth
The distance from the front to the back of something.
180 mm
Height
The measurement of the product from head to foot or from base to top.
21 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
366 g
Packaging content
Manual
AC adapter included
