StarTech.com VGA and Audio over Cat5 Extender AV transmitter & receiver Black
Brand:StarTech.com
Product name:VGA Video Extender over Cat 5 with Audio - TAA
Product code:ST122UTPA
EAN/UPC:
0065030811408
0065030811408, 065030811408

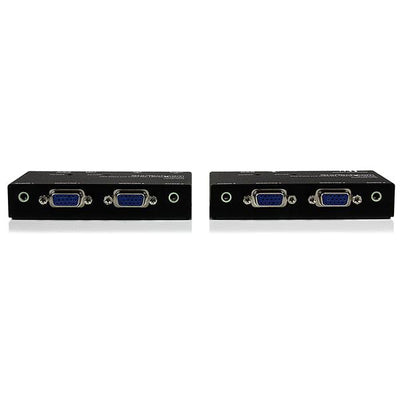

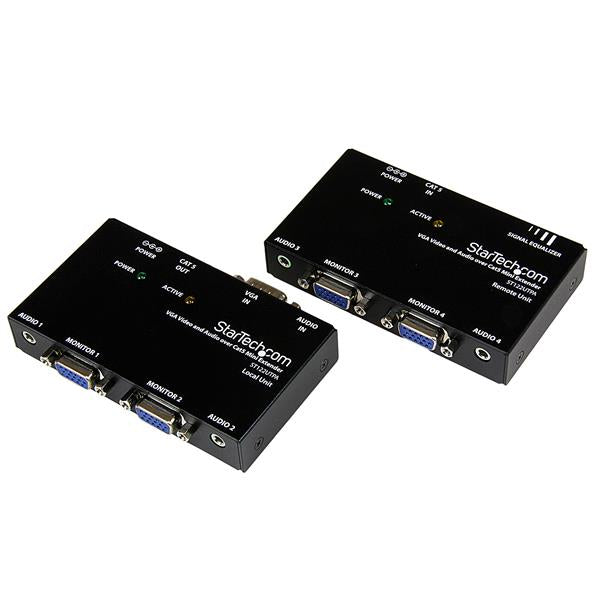

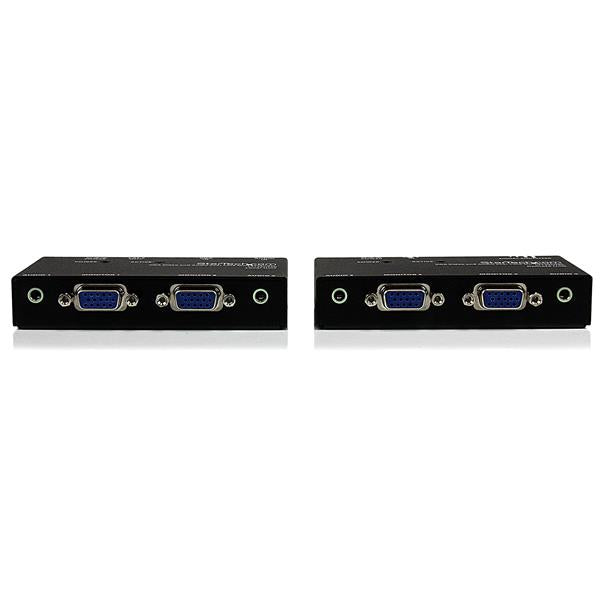

- Consists of 1 Base unit for the local display, and 1 Remote unit for the remote display (up to 2 monitors can be connected at each location)
- Extends VGA and analog audio up to 500ft / 150m
- Included mounting brackets
- Pure hardware design, no software or drivers required
- Uses standard Category 5 straight-wired, twisted-pair, network patch cable for economical and reliable data transmission
Description
Extend and distribute a VGA signal and the accompanying audio to a remote display over Cat5 cable

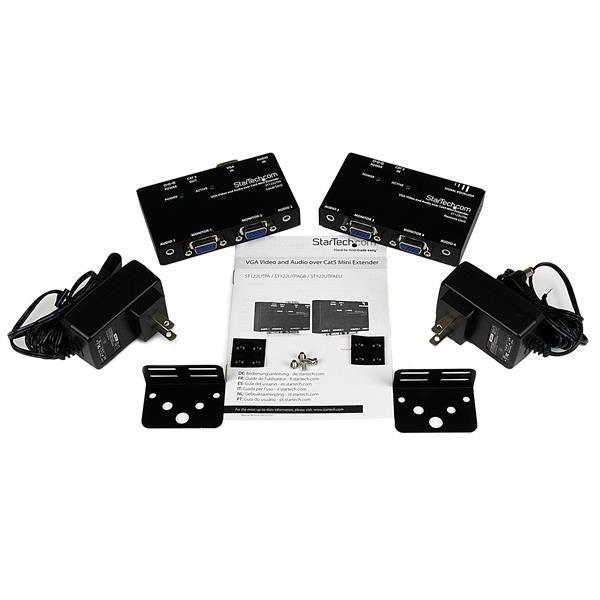

The ST122UTPA VGA Video Extender over Cat 5 with Audio allows up to 4 (2 local and 2 remote) monitors to be connected to a single PC. The video signal and corresponding audio are sent to the remote unit over standard 4 pair Category 5 or better (Cat 5e recommended) UTP cable, supporting extended video distances of up to 150m / 500ft. The VGA video and audio extender includes a local transmitter and a remote receiver, providing an out-of-the box solution that's perfect for point to point digital signage applications that require audio. To simplify installation, this kit also includes a mounting bracket for the ST122UTPA receiver to install onto walls, desks or cabinets for a tidy setup. This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
The ST122UTPA VGA Video Extender over Cat 5 with Audio allows up to 4 (2 local and 2 remote) monitors to be connected to a single PC. The video signal and corresponding audio are sent to the remote unit over standard 4 pair Category 5 or better (Cat 5e recommended) UTP cable, supporting extended video distances of up to 150m / 500ft. The VGA video and audio extender includes a local transmitter and a remote receiver, providing an out-of-the box solution that's perfect for point to point digital signage applications that require audio. To simplify installation, this kit also includes a mounting bracket for the ST122UTPA receiver to install onto walls, desks or cabinets for a tidy setup. This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
Specs
Features
Type
Characteristics of the device.
AV transmitter & receiver
Cable types supported
Cat5e, Cat6
Maximum transfer distance
The greatest distance over which the data/signal can be transferred.
150 m
Supported graphics resolutions
The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.
1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900
Material
The material from which a thing is or can be made e.g. wood, plastic.
Aluminium
Daisy chain
Product color
The colour e.g. red, blue, green, black, white.
Black
Certification
CE, FCC
Weight & dimensions
Receiver dimensions (WxDxH)
83 x 60 x 20 mm
Receiver weight
181 g
Transmitter dimensions (WxDxH)
83 x 60 x 20 mm
Transmitter weight
181 g
Packaging content
AC adapter included
Manual
Mounting brackets included
Technical details
Audio support
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS

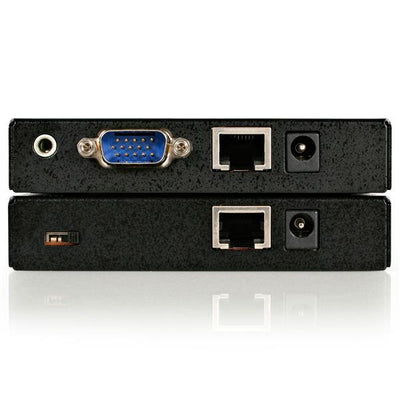

Ports & interfaces

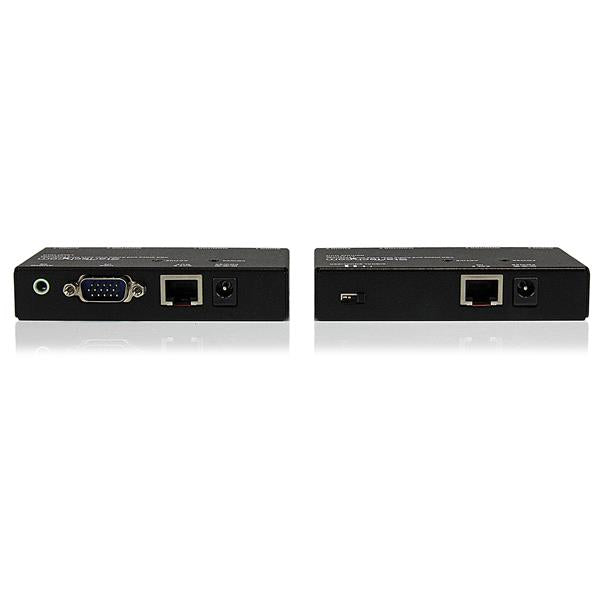

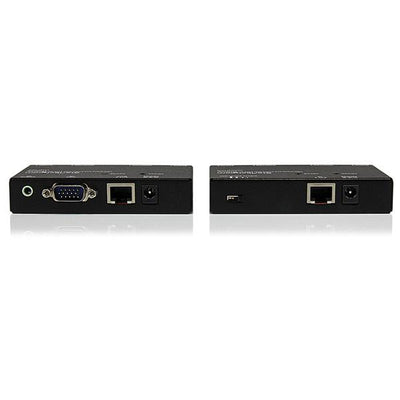

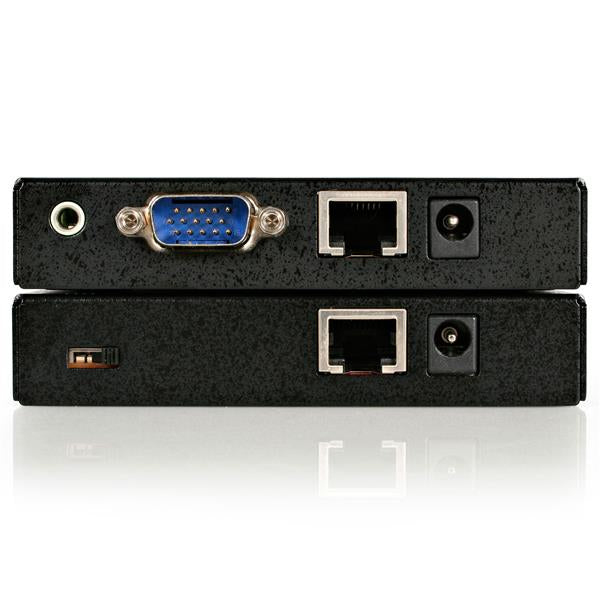

RJ-45 input ports
1
RJ-45 output ports
1

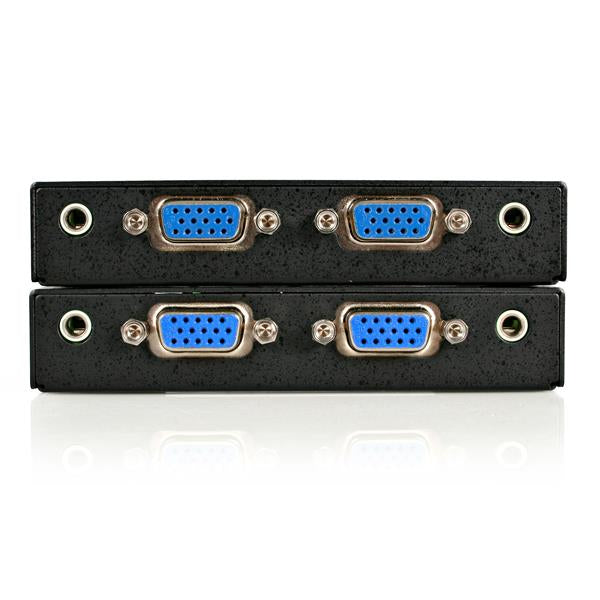

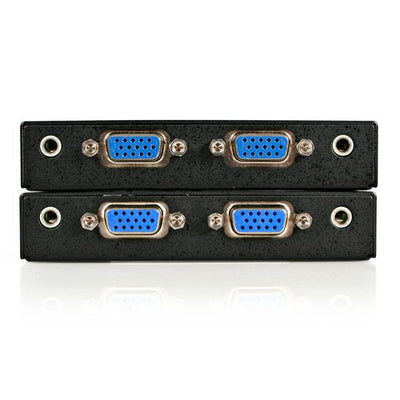

VGA (D-Sub) input ports
Sockets in the device for VGA (D-Sub) inputs, which are sockets with 15 holes. The 15-pin VGA connector is found on many video cards, computer monitors, and high definition television sets.
2
VGA (D-Sub) output ports
2
Audio input
The type of audio input that the device requires, and the connection needed.
2 x 3.5 mm
Audio output
The type of audio output that the device produces, and the connector(s).
2 x 3.5 mm
DC-in jack
The socket/plug where the DC electricity supply connects to the device.
Power
Operating voltage
Defines the range of operating voltages available
12 V
Output current
0,5 A
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
6 W
External power adapter
Packaging data
Package dimensions (WxDxH)
92 x 242 x 188 mm
Package width
The distance from one side of the packaging to the other.
186 mm
Package depth
The distance from the front to the back of the packaging.
242 mm
Package height
The distance from the top to the bottom of the packaging.
92 mm
Package weight
Weight of the packaged product in gram.
1,2 kg
Logistics data
Master (outer) case width
410 mm
Master (outer) case length
508 mm
Master (outer) case height
322 mm
Quantity per master (outer) case
12 pc(s)
