STARTECH storage drive enclosure SSD enclosure Black, Silver M.2 (SM21BMU31C3)
- Regular price
- 57.95$
- Sale price
- 57.95$
- Regular price
-
Free shipping on orders over $99
Couldn't load pickup availability

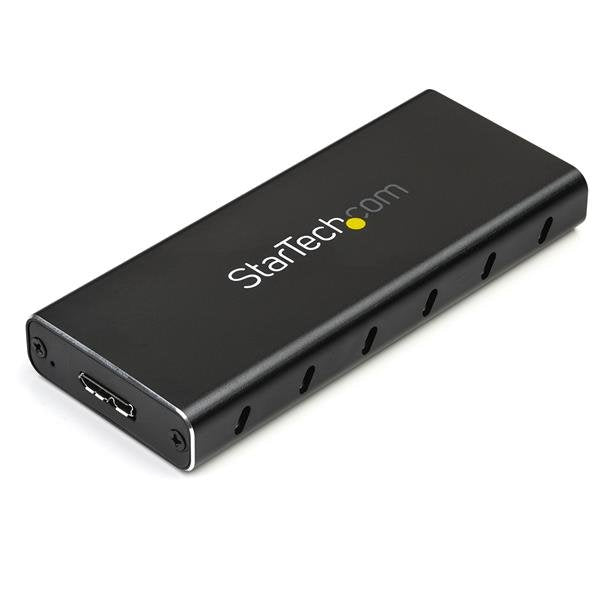

StarTech.com SM21BMU31C3 storage drive enclosure SSD enclosure Black, Silver M.2
Brand:StarTech.com
Product name:M.2 SSD Enclosure for M.2 SATA SSDs - USB 3.1 (10Gbps) with USB-C Cable - TAA
Product code:SM21BMU31C3
EAN/UPC:
0065030864435
0065030864435, 065030864435

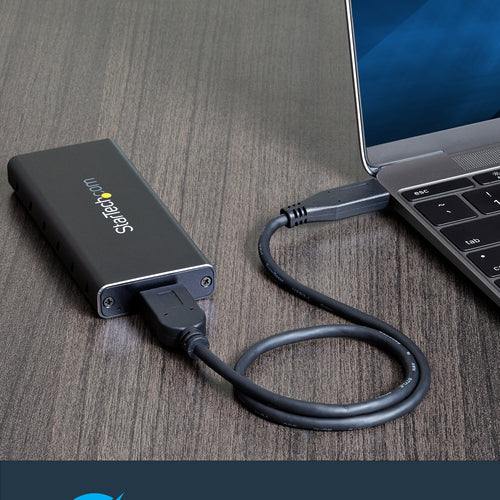

- Leverage your SATA M.2 SSD to add fast external storage to your USB-C enabled host (USB-C cable included)
- Supports USB 3.1 Gen 2 (10Gbps)
- Compatible with Thunderbolt 3 USB-C port

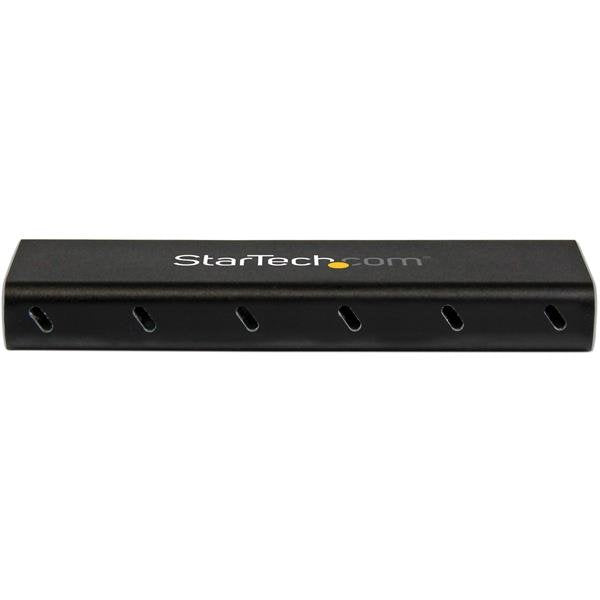

- Solid aluminum housing with ventilation for optimum heat dissipation
- Broad compatibility with support for the most common M.2 SATA SSDs (30mm, 42mm, 60mm, 80mm)

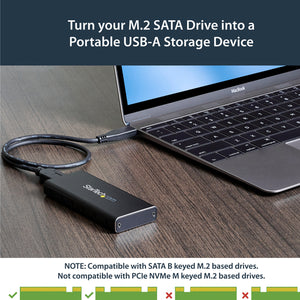

- Not compatible with M.2 NVMe or AHCI PCI-Express SSDs
- Supports SATA I/II/III (1.5, 3, 6Gbps)
Description

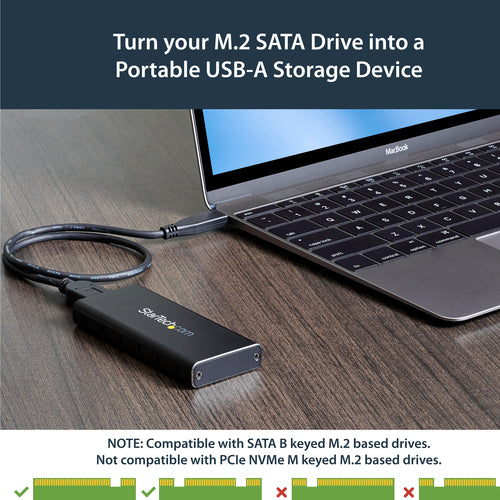

Turn your M.2 SATA drive into an ultra-fast, ultra-portable storage solution for USB-C enabled devices
This compact M.2 SATA SSD enclosure lets you add highly portable data storage to any laptop or computer with a USB-C™ port - such as MacBook, Chromebook Pixel™, Dell™ XPS laptops, and many others. It turns your SATA M.2 drive into a high-speed storage solution over a USB 3.1 Gen 2 connection, at up to 10Gbps throughput.
A truly portable solution

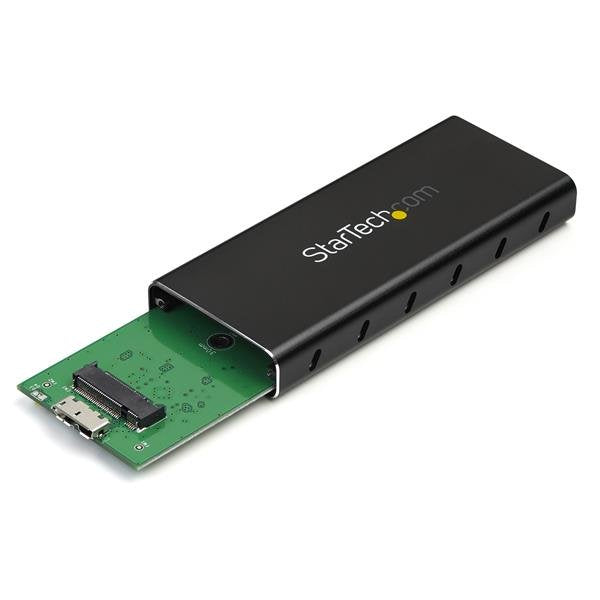

This slim, pocket-sized enclosure for M.2 NGFF SATA SSDs has been specially designed for mobility, with a small form factor design that fits easily into your laptop bag. Its lightweight yet durable aluminum housing helps to ensure your drive won’t be damaged while you’re on the move.
Ventilation holes help to dissipate heat and help ensure an optimum operating temperature.
Maximize the performance of your M.2 SATA SSD
Leverage the speed of your M.2 NGFF SATA drive with this external enclosure. It delivers USB 3.1 Gen 2 data transfer speeds up to 10Gbps as well as UASP support, so you can achieve higher transfer speeds when you connect it to a UASP-enabled host computer.
The enclosure works with tablets, laptops and desktop computers and is compatible with hosts equipped with Thunderbolt 3 USB-C ports.
Broad compatibility

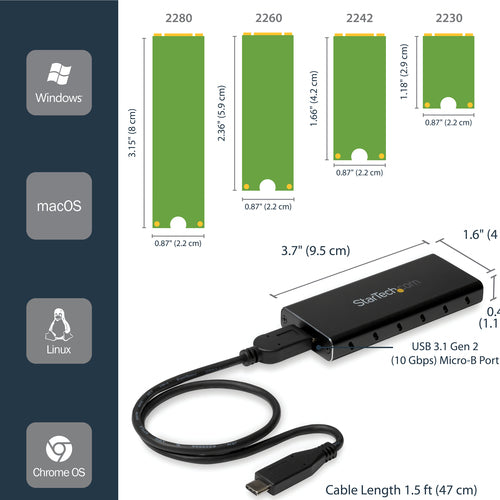

The enclosure is compatible with all of the common M.2 SATA SSDs, and enables you to mount multiple drive lengths, including: 30mm (2230), 42mm (2242), 60mm (2260), and 80mm (2280).
The SM21BMU31C3 is backed by a 2-year StarTech.com warranty and free lifetime technical support.
This compact M.2 SATA SSD enclosure lets you add highly portable data storage to any laptop or computer with a USB-C™ port - such as MacBook, Chromebook Pixel™, Dell™ XPS laptops, and many others. It turns your SATA M.2 drive into a high-speed storage solution over a USB 3.1 Gen 2 connection, at up to 10Gbps throughput.
A truly portable solution
This slim, pocket-sized enclosure for M.2 NGFF SATA SSDs has been specially designed for mobility, with a small form factor design that fits easily into your laptop bag. Its lightweight yet durable aluminum housing helps to ensure your drive won’t be damaged while you’re on the move.
Ventilation holes help to dissipate heat and help ensure an optimum operating temperature.
Maximize the performance of your M.2 SATA SSD
Leverage the speed of your M.2 NGFF SATA drive with this external enclosure. It delivers USB 3.1 Gen 2 data transfer speeds up to 10Gbps as well as UASP support, so you can achieve higher transfer speeds when you connect it to a UASP-enabled host computer.
The enclosure works with tablets, laptops and desktop computers and is compatible with hosts equipped with Thunderbolt 3 USB-C ports.
Broad compatibility
The enclosure is compatible with all of the common M.2 SATA SSDs, and enables you to mount multiple drive lengths, including: 30mm (2230), 42mm (2242), 60mm (2260), and 80mm (2280).
The SM21BMU31C3 is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Specs
Storage
Number of storage drives supported
How many storage drives can be fit into the product at once.
1
Storage drive size
The size of the storage drive, given in inches ('').
M.2
Supported storage drive interfaces
M.2
Supported storage drive lengths
80 mm
Design
Product type
The sub-category of the product.
SSD enclosure
Product color
The colour e.g. red, blue, green, black, white.
Black, Silver
Material
The material from which a thing is or can be made e.g. wood, plastic.
Aluminium
LED indicators
Activity, Power
Certification
CE, FCC, TAA, REACH
Power
Power source type
What the power source is.
USB
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-10 - 65 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 95%

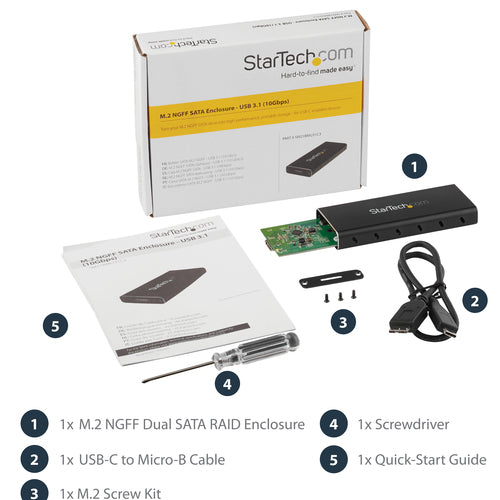

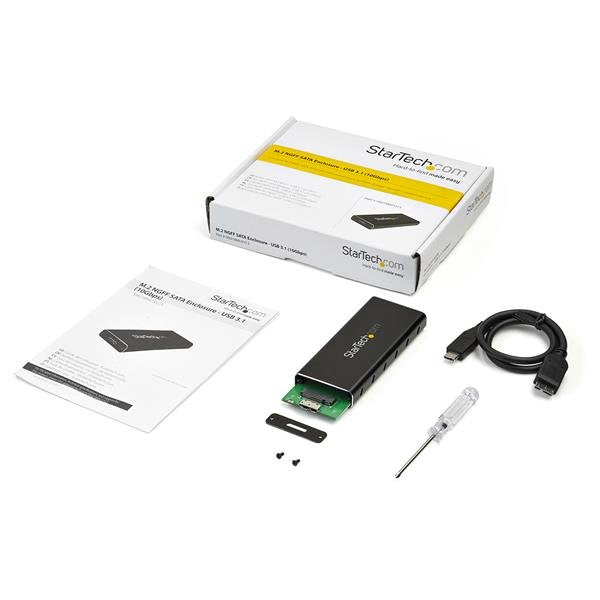

Packaging content
Cables included
USB
Screws included
Screwdriver included

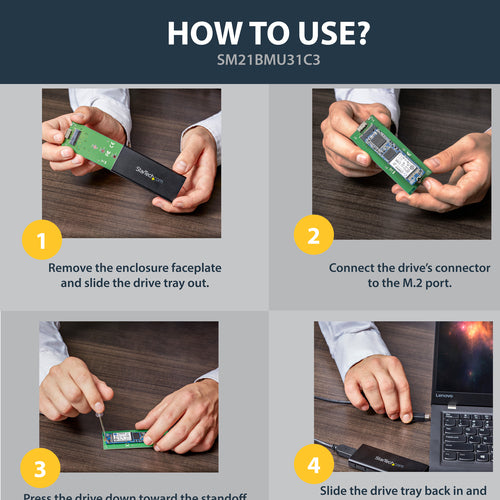

Quick installation guide
Technical details
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Logistics data
Harmonized System (HS) code
84733080
Master (outer) case width
478 mm
Master (outer) case length
548 mm
Master (outer) case height
330 mm
Quantity per master (outer) case
100 pc(s)
Ports & interfaces
USB connectivity
The product has USB connector.
USB version
Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.
3.2 Gen 2 (3.1 Gen 2)

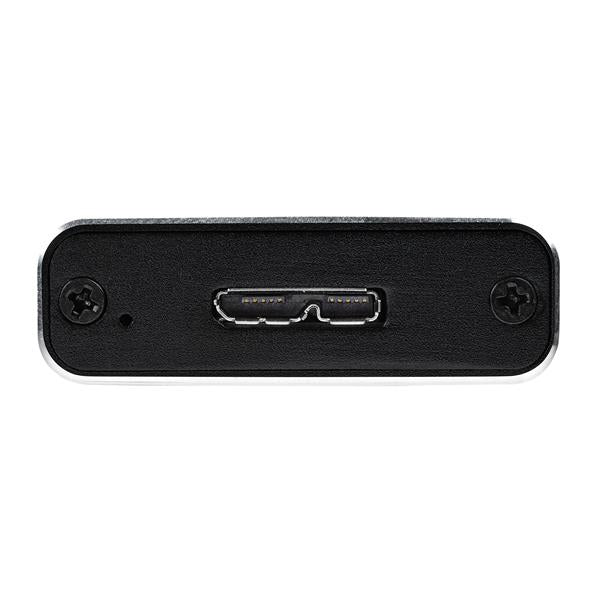

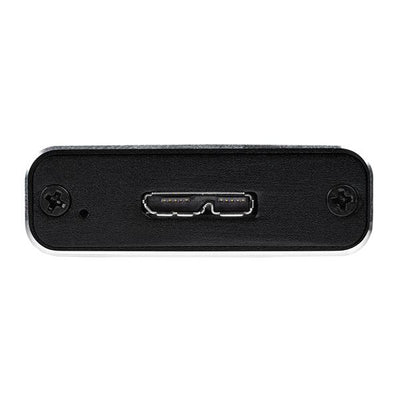

USB connector type
The type of USB connector/port that this product has.
Micro-USB B
USB connector gender
Female
USB ports quantity
1
Integrated USB cable
Performance
Data transfer rate
Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.
10 Gbit/s
Chipset
Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
ASMedia - ASM1351
UASP support
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
1000000 h
Plug and Play
Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.
Weight & dimensions
Width
The measurement or extent of something from side to side.
42 mm
Depth
The distance from the front to the back of something.
99 mm
Height
The measurement of the product from head to foot or from base to top.
13 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
61 g
Package width
The distance from one side of the packaging to the other.
161 mm
Package depth
The distance from the front to the back of the packaging.
128 mm
Package height
The distance from the top to the bottom of the packaging.
34 mm
Package weight
Weight of the packaged product in gram.
139 g
