STARTECH storage drive enclosure SSD enclosure Black M.2 (M2E1BRU31C)
- Regular price
- 124.95$
- Sale price
- 124.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
StarTech.com M2E1BRU31C storage drive enclosure SSD enclosure Black M.2
Brand:StarTech.com
Product name:USB-C 10Gbps M.2 NVMe PCIe SSD Enclosure - Rugged Aluminum External M.2 PCIe M-Key Case IP67 Rated - 1GB/s Read/Write - Supports 2230/2242/2260/2280 - TB3 Compatible - Mac/PC - TAA
Product code:M2E1BRU31C
EAN/UPC:
0065030889476
0065030889476, 065030889476
- HIGH PERFORMANCE M.2 NVMe STORAGE: External USB-C housing for your PCIe M.2 SSD (Solid State Drive); features USB 3.1 Gen 2 (10Gbps), UASP & PCIe 3.0 for read/write data transfer speeds up to 1GB/s
- PORTABLE & RUGGED: Solid aluminum housing w/ internal thermal pad for heat dissipation transfers heat away from drive; IP67 rated 100% dustproof/water resistant & MIL-STD-810G drop test certified
- BROAD DRIVE COMPATIBILITY: Compatible with M.2 NGFF M-Key PCI Express drives sized 2230/2242/2260/2280 including Samsung 950/960/970, Kingston, Seagate, Western Digital (WD), HP, and Intel SSD drives
- BROAD HOST COMPATIBILITY: 50cm USB-C cable incl. for compatibility w/ any USB Type-C (USB 3.1 Gen 2 & USB 3.0) or Thunderbolt 3 (TB3) device; OS Support includes Windows, Mac, Chrome, Linux, Ubuntu & iOS (iPhone 15 [Plus/Pro/Max] and up)
- EASY INSTALL: USB 3.2 Gen 2x1 M.2 NVMe PCIe SSD Enclosure adapter w/ rubber feet offers firm grip, protects surfaces from scratches & raises the case for air flow; mounting hardware & screwdriver incl
Description
Rugged SSD Enclosure | Thunderbolt 3 Compatible | USB-C Cable Included
This rugged M.2 NVMe PCIe SSD enclosure is a highly portable, high-performance data storage solution for your USB-C or Thunderbolt 3 enabled devices.
Unparalleled Performance
Leverage the high speeds of your M.2 NVMe drive, with this external SSD enclosure. It delivers USB 3.1 Gen 2 read/write speeds up to 10Gbps, nearly twice the capability of traditional M.2 SATA and hard drive enclosures.

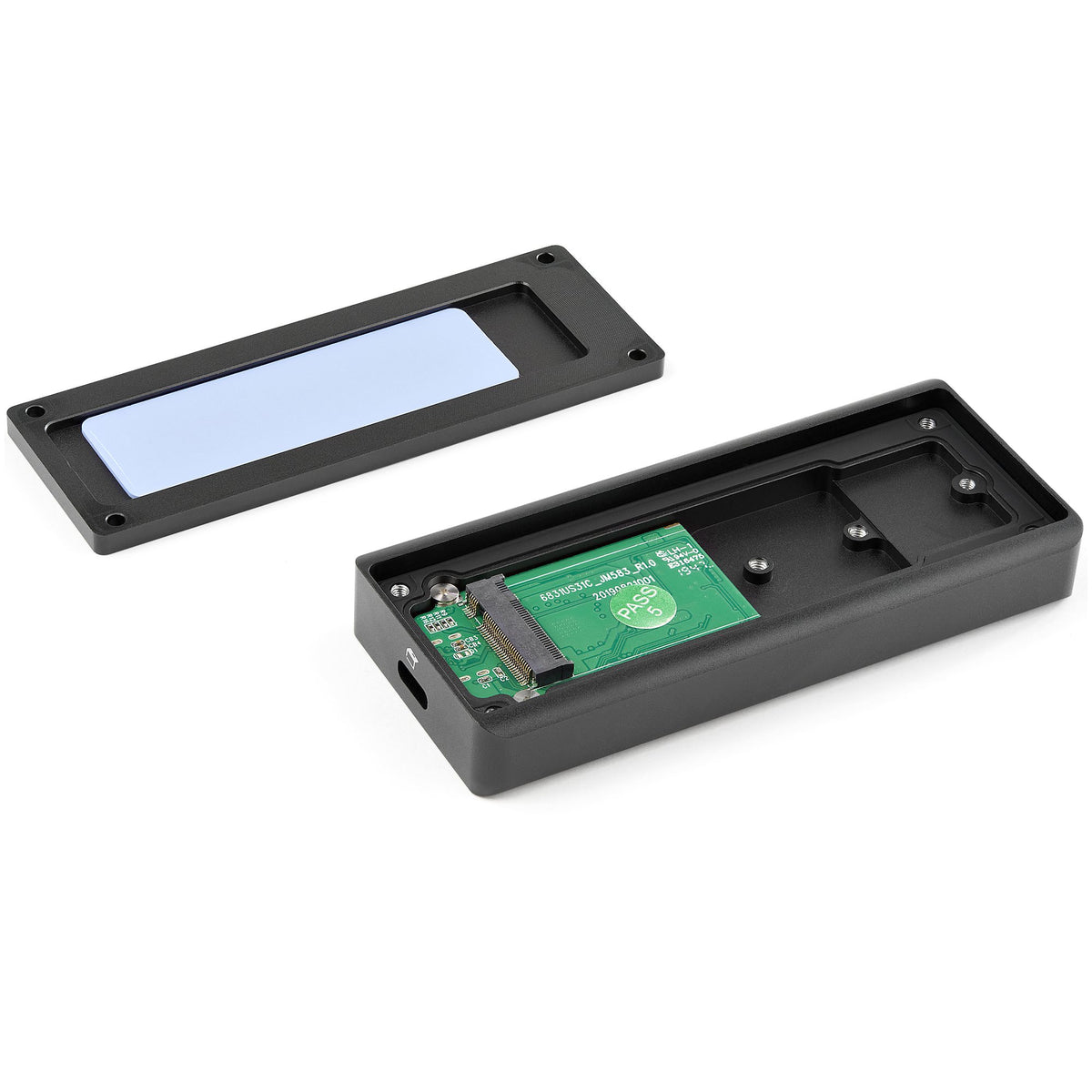

This fan-less solid aluminum enclosure features an internal thermal pad that transfers heat away from the drive for maximum heat dissipation, ensuring your drive operates noiselessly at an optimal temperature to preserve performance.
Dustproof and Water Resistant
Be prepared for the unexpected. The enclosure for PCI Express based NVMe SSDs comes with an IP67 rating, which means that it's both dustproof and water resistant.
It's the perfect solution for people who work outside. Or, for people who work in environments with a lot of dust, like: construction sites, factories, or manufacturing facilities.
Broad Compatibility
The USB 3.1 Gen 2 NVMe enclosure works with tablets, laptops, desktop computers and hosts that are equipped with USB Type-C and Thunderbolt 3 ports. It's also backward compatible with USB 3.1 Gen 1, making it a convenient solution for the office or other environments.
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
M2E1BRU31C is backed by a StarTech.com 2-year warranty and free lifetime technical support.
This rugged M.2 NVMe PCIe SSD enclosure is a highly portable, high-performance data storage solution for your USB-C or Thunderbolt 3 enabled devices.
Unparalleled Performance
Leverage the high speeds of your M.2 NVMe drive, with this external SSD enclosure. It delivers USB 3.1 Gen 2 read/write speeds up to 10Gbps, nearly twice the capability of traditional M.2 SATA and hard drive enclosures.
This fan-less solid aluminum enclosure features an internal thermal pad that transfers heat away from the drive for maximum heat dissipation, ensuring your drive operates noiselessly at an optimal temperature to preserve performance.
Dustproof and Water Resistant
Be prepared for the unexpected. The enclosure for PCI Express based NVMe SSDs comes with an IP67 rating, which means that it's both dustproof and water resistant.
It's the perfect solution for people who work outside. Or, for people who work in environments with a lot of dust, like: construction sites, factories, or manufacturing facilities.
Broad Compatibility
The USB 3.1 Gen 2 NVMe enclosure works with tablets, laptops, desktop computers and hosts that are equipped with USB Type-C and Thunderbolt 3 ports. It's also backward compatible with USB 3.1 Gen 1, making it a convenient solution for the office or other environments.
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
M2E1BRU31C is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specs
Storage
Number of storage drives supported
How many storage drives can be fit into the product at once.
1
Storage drive size
The size of the storage drive, given in inches ('').
M.2
Supported storage drive interfaces
PCI Express 3.0
Performance
Data transfer rate
Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.
10 Gbit/s
Chipset
Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
JMicron - JMS583
UASP support
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
50000 h
Power
Power source type
What the power source is.
USB
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
5 - 35 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 50 °C
Operating relative humidity (H-H)
20 - 80%

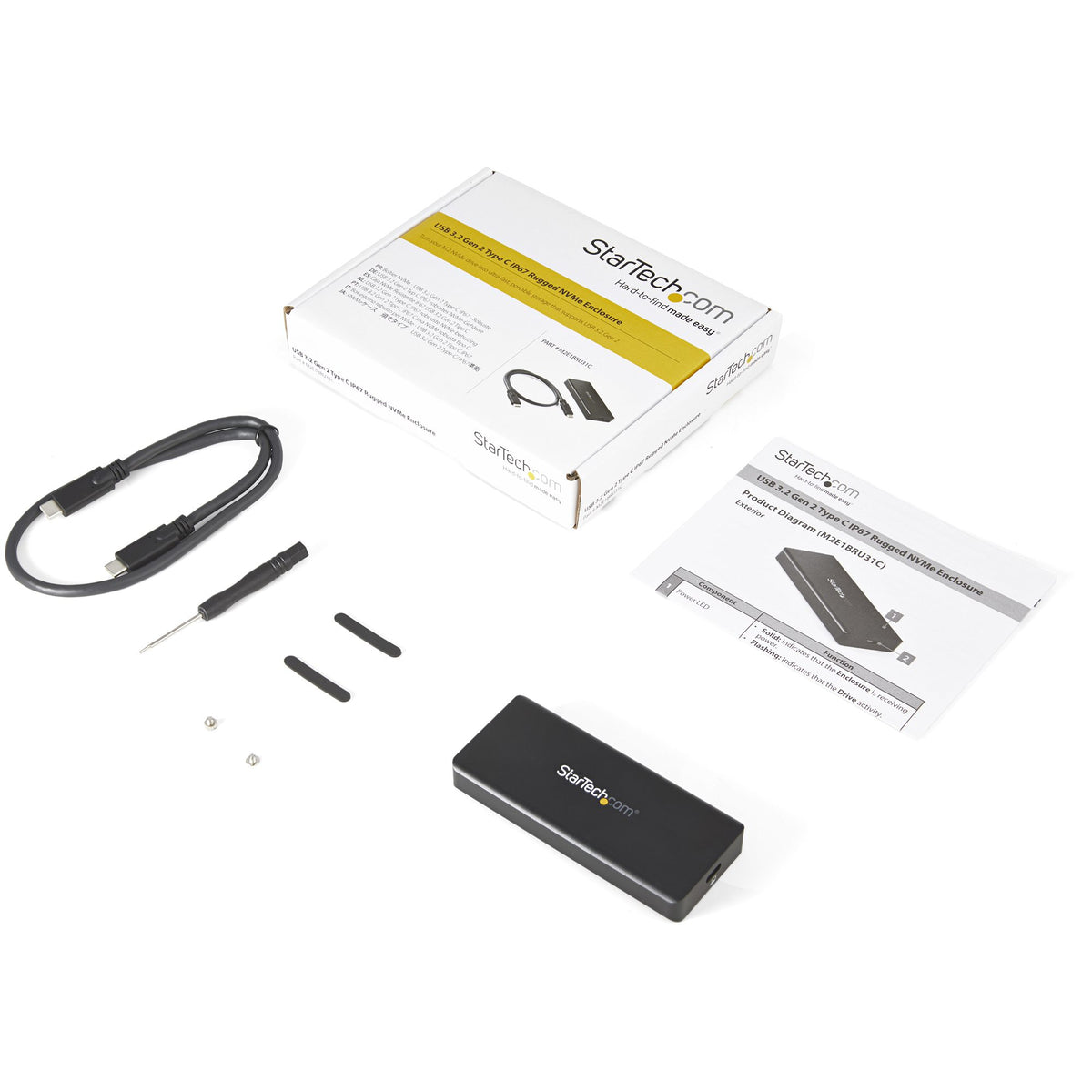

Packaging content
Cables included
USB Type-C
Screwdriver included
Quick installation guide
Technical details
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
CE, RoHS
Logistics data
Harmonized System (HS) code
84733080
Master (outer) case width
424 mm
Master (outer) case length
363 mm
Master (outer) case height
401 mm
Quantity per master (outer) case
40 pc(s)
Ports & interfaces
USB connectivity
The product has USB connector.
USB version
Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.
3.2 Gen 2 (3.1 Gen 2)
Design
Product type
The sub-category of the product.
SSD enclosure
Product color
The colour e.g. red, blue, green, black, white.
Black
Material
The material from which a thing is or can be made e.g. wood, plastic.
Aluminium
LED indicators
Activity
International Protection (IP) code
The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
IP67
Certification
CE, FCC, REACH
Weight & dimensions
Width
The measurement or extent of something from side to side.
105 mm
Depth
The distance from the front to the back of something.
45 mm
Height
The measurement of the product from head to foot or from base to top.
14 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
164 g
Cable length
How long the cable is.
0,05 m
Package width
The distance from one side of the packaging to the other.
144 mm
Package depth
The distance from the front to the back of the packaging.
175 mm
Package height
The distance from the top to the bottom of the packaging.
32 mm
Package weight
Weight of the packaged product in gram.
256 g
