STARTECH rack console 43,2 cm (17") 1280 x 1024 pixels Steel 1U (RKCONS1701)
- Regular price
- 1,213.95$
- Sale price
- 1,213.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
StarTech.com RKCONS1701 rack console 43,2 cm (17") 1280 x 1024 pixels Steel 1U
Brand:StarTech.com
Product name:Rackmount KVM Console - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured Universal 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF
Product code:RKCONS1701
EAN/UPC:
0065030872522
0065030872522, 065030872522
- FLEXIBLE DESIGN: This rackmount KVM console drawer works with all KVM switch brands and models that supports VGA and USB interfaces and conveniently slides into the server rack when not in use
- VERSATILE INTERFACES: Rack mount monitor w/ 17" Active Matrix TFT 1280 x 1024 LCD/ 1U height / 99 key full keyboard with numeric keypad + Trackpad / Supports VGA and USB / Integrated Power Supply
- MAX DURABILITY: Features durable steel housing design and rails that withstand frequent use, rated to work in environments from 0 to 40 deg. C and a 50,000 hour MTBF
- TESTED AND PROVEN: Our KVM consoles are backed by a 2 year warranty with 24/5 by multi-lingual tech support based in North America with free technical support for the life of the product
- KVM Collection: Can be purchased with integrated 8-port (RKCONS1708K) or 16-port (RKCONS1716K) KVM or use with StarTech.com enterprise KVM switches: SV831DUSB, SV831DUSBUK, SV1631DUSBU, SV1631DUSBUK.
Description
KVM Console | 1U | VGA | 1280x1024 | Cable & Mounting Hardware Included

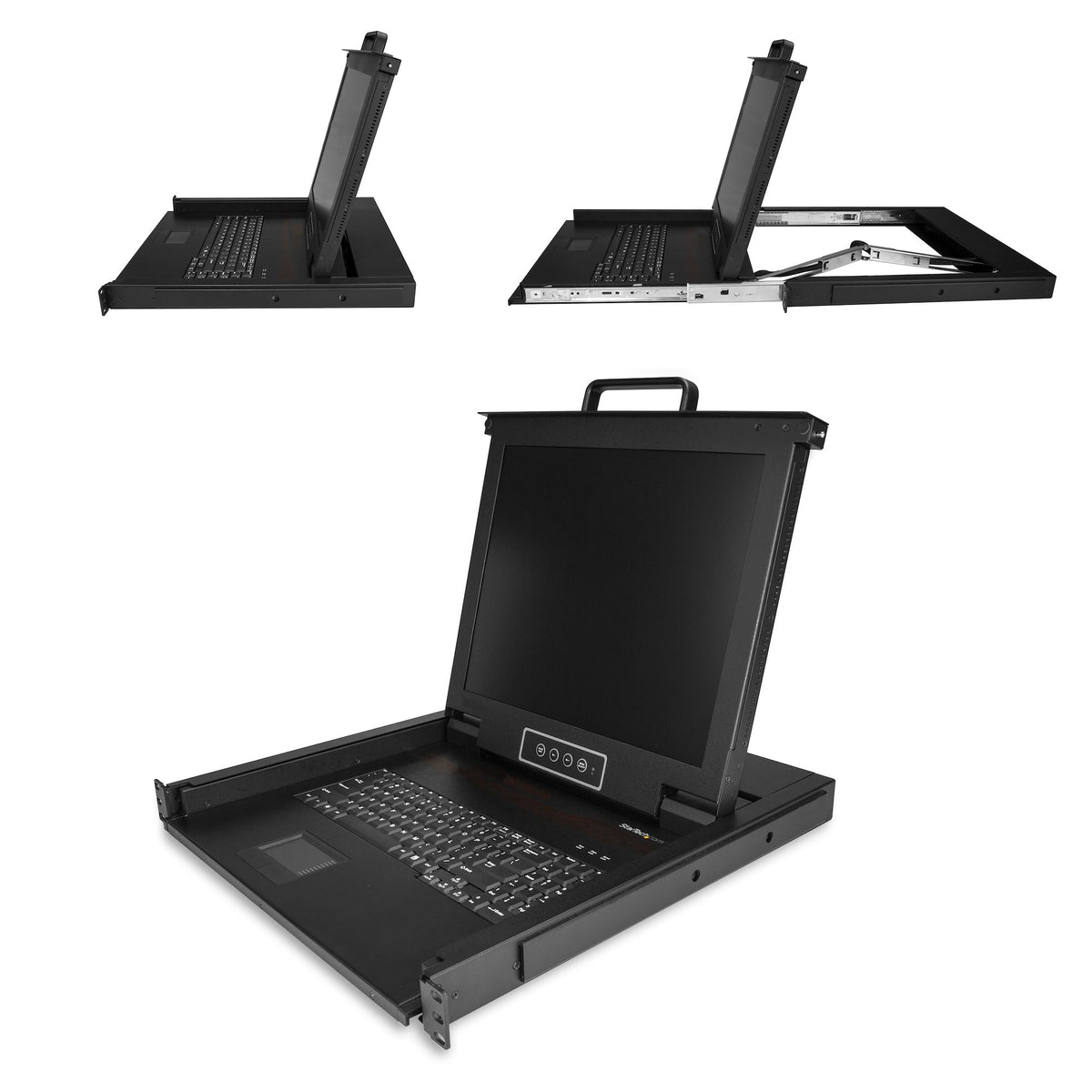

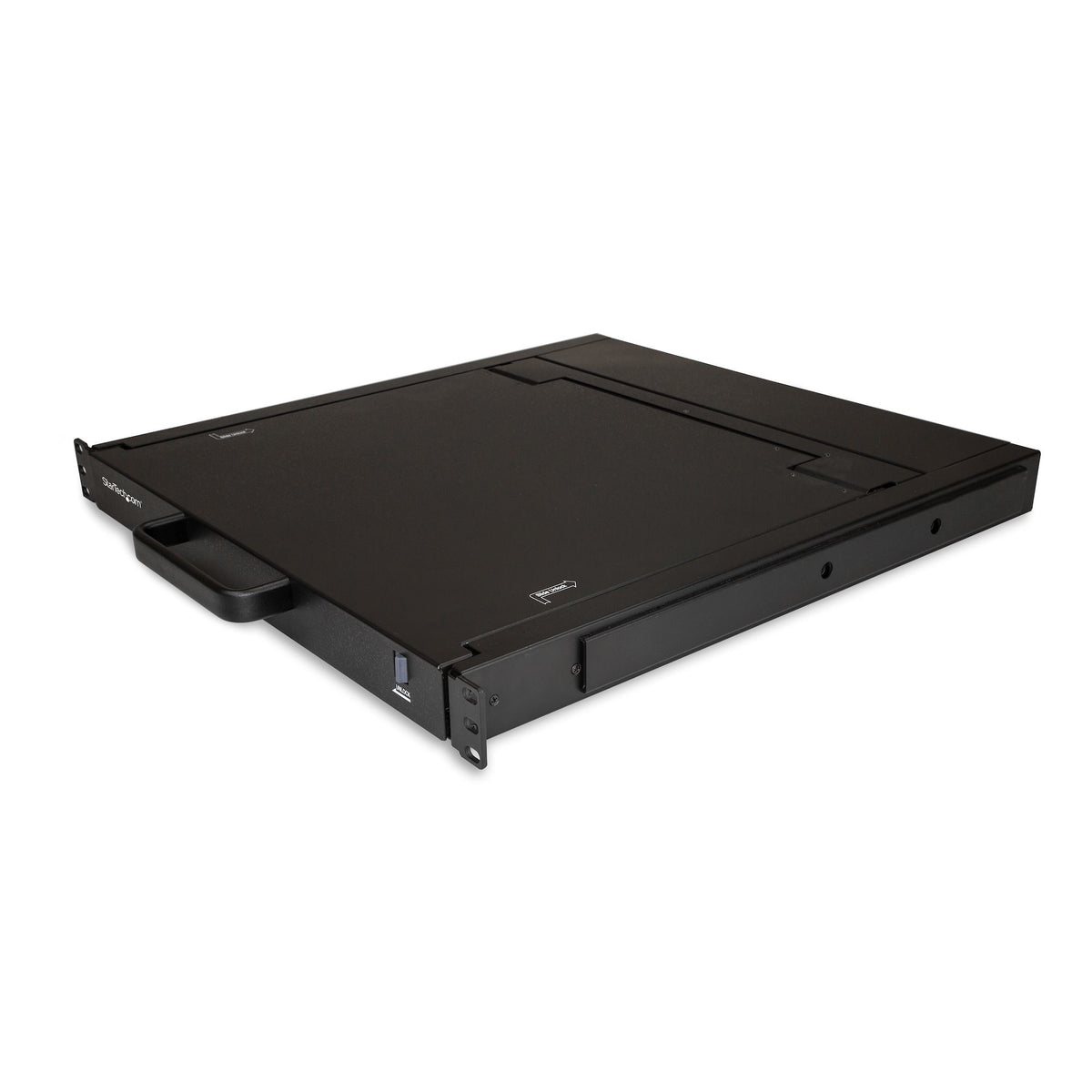

Providing centralized control of your PC, server, or KVM switch, this single-port rackmount KVM console gives you easy access to your connected system. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.
An All-Inclusive Solution

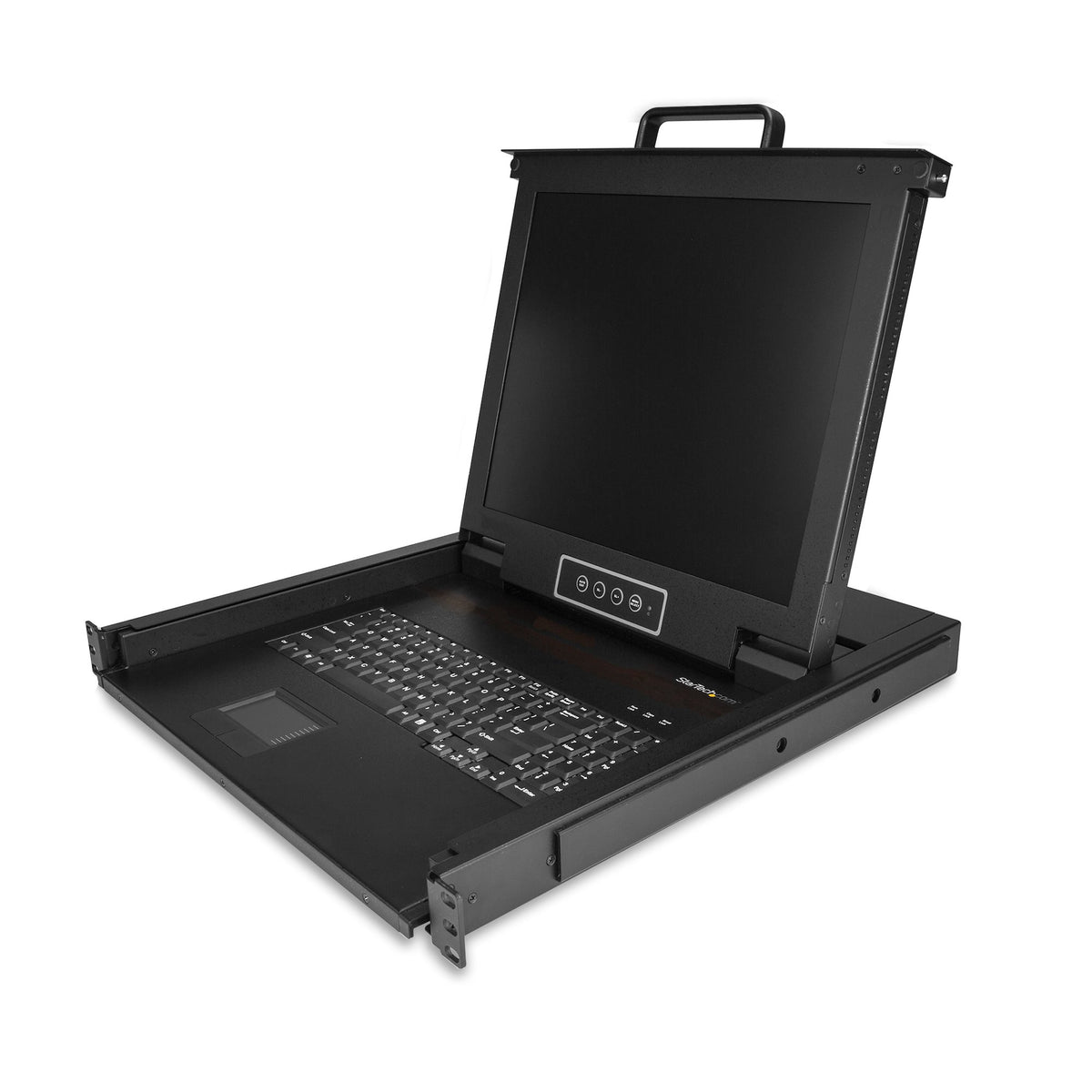

The 1U rackmount console features a built-in keyboard (QWERTY), a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.

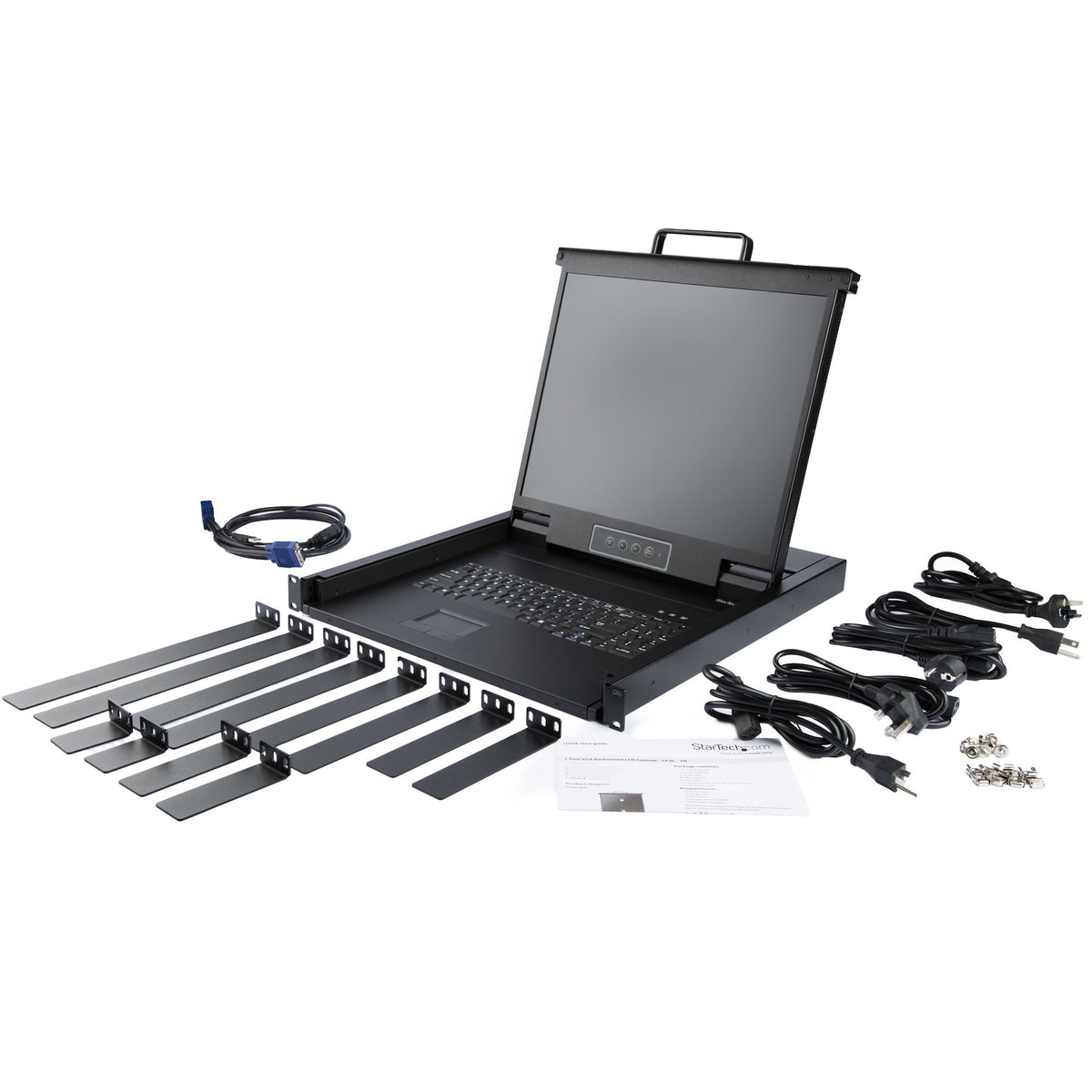

This single-port KVM console includes everything you need to set up right out of the box:
• 1 VGA KVM Cable
• Mounting Rails
• M5 Cage Nuts and Screws
Simple System Integration
The rack console features a single-port KVM module, which can be connected directly to a server or PC, or to a KVM switch for access to multiple systems. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.
StarTech.com Rack Consoles
Rack consoles provide convenient, rack-mounted control options for single servers or entire server rooms. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. RKCONS1701 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Providing centralized control of your PC, server, or KVM switch, this single-port rackmount KVM console gives you easy access to your connected system. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.
An All-Inclusive Solution
The 1U rackmount console features a built-in keyboard (QWERTY), a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.
This single-port KVM console includes everything you need to set up right out of the box:
• 1 VGA KVM Cable
• Mounting Rails
• M5 Cage Nuts and Screws
Simple System Integration
The rack console features a single-port KVM module, which can be connected directly to a server or PC, or to a KVM switch for access to multiple systems. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.
StarTech.com Rack Consoles
Rack consoles provide convenient, rack-mounted control options for single servers or entire server rooms. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. RKCONS1701 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specs
Display
Display diagonal
Size of the display for this product, measured diagonally, usually in inches.
43,2 cm (17")
Display resolution
The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.
1280 x 1024 pixels
Display brightness
Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'.
250 cd/m²
Contrast ratio (typical)
The difference in light intensity between the brightest white and the darkest black.
1000:1
Viewing angle, horizontal
Maximum horizontal angle at which a display can be viewed with acceptable visual performance.
170°
Viewing angle, vertical
Maximum vertical angle at which a display can be viewed with acceptable visual performance.
160°
Pixel pitch
This is the parameter of a picture tube, which specifies the shortest distance between two dots of the same colour. The principle is: the smaller the dot pitch, the better sharpness of image.
0,264 x 0,264 mm
Aspect ratio
The aspect ratio is the ratio of the width of a shape to its height. For example, 4:3 is common for standard displays and 16:9 is the ratio for Widescreen TV.
5:4
Display type
Type of display (screen) e.g. LCD.
LCD
Response time
The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.)
5 ms
Display number of colors
16.78 million colours
Color depth
8 bit
Certificates
Certification
CE, FCC, PSE, UL
Power
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
13 W
AC adapter input voltage
100 - 240 V
Input current
1.5 A
Weight & dimensions
Width
The measurement or extent of something from side to side.
448 mm
Height
The measurement of the product from head to foot or from base to top.
471 mm
Depth
The distance from the front to the back of something.
42,5 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
11,6 kg
Mounting depth (min)
45 cm
Mounting depth (max)
79 cm
Logistics data
Master (outer) case width
781 mm
Master (outer) case length
624 mm
Master (outer) case height
196 mm
Quantity per master (outer) case
1 pc(s)
Technical details
Material
The material from which a thing is or can be made e.g. wood, plastic.
Steel
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
50000 h
Operating relative humidity (H-H)
10 - 80%
Rack mounting
The type of mounting that can position devices in a shelving system (rack).
Daisy chain
Key lock
IP control
LED indicators
Power, Status
Cable length
How long the cable is.
1,82 m
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Rack capacity
The spase that device fill in rack.
1U
Ports & interfaces
Keyboard port type
The type of socket in the device for connecting a keyboard e.g. USB.
USB
Mouse port type
USB
Video port type
The type of socket in the device for connecting a video e.g. SCART.
VGA
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 60 °C
Packaging data
Package weight
Weight of the packaged product in gram.
17,1 kg
Package width
The distance from one side of the packaging to the other.
781 mm
Package depth
The distance from the front to the back of the packaging.
624 mm
Package height
The distance from the top to the bottom of the packaging.
196 mm
Packaging content
Cables included
KVM
Screws included
Number of screws
8
Mounting brackets included
Cage nuts included
Number of cage nuts
8
Included power plug types
ANZ, EU, JP, NA, UK
Quick installation guide
Rack mount kit
