STARTECH rack cabinet 8U Wall mounted rack Black (WALLMOUNT8)
- Regular price
- 183.95$
- Sale price
- 183.95$
- Regular price
-
Free shipping
Couldn't load pickup availability

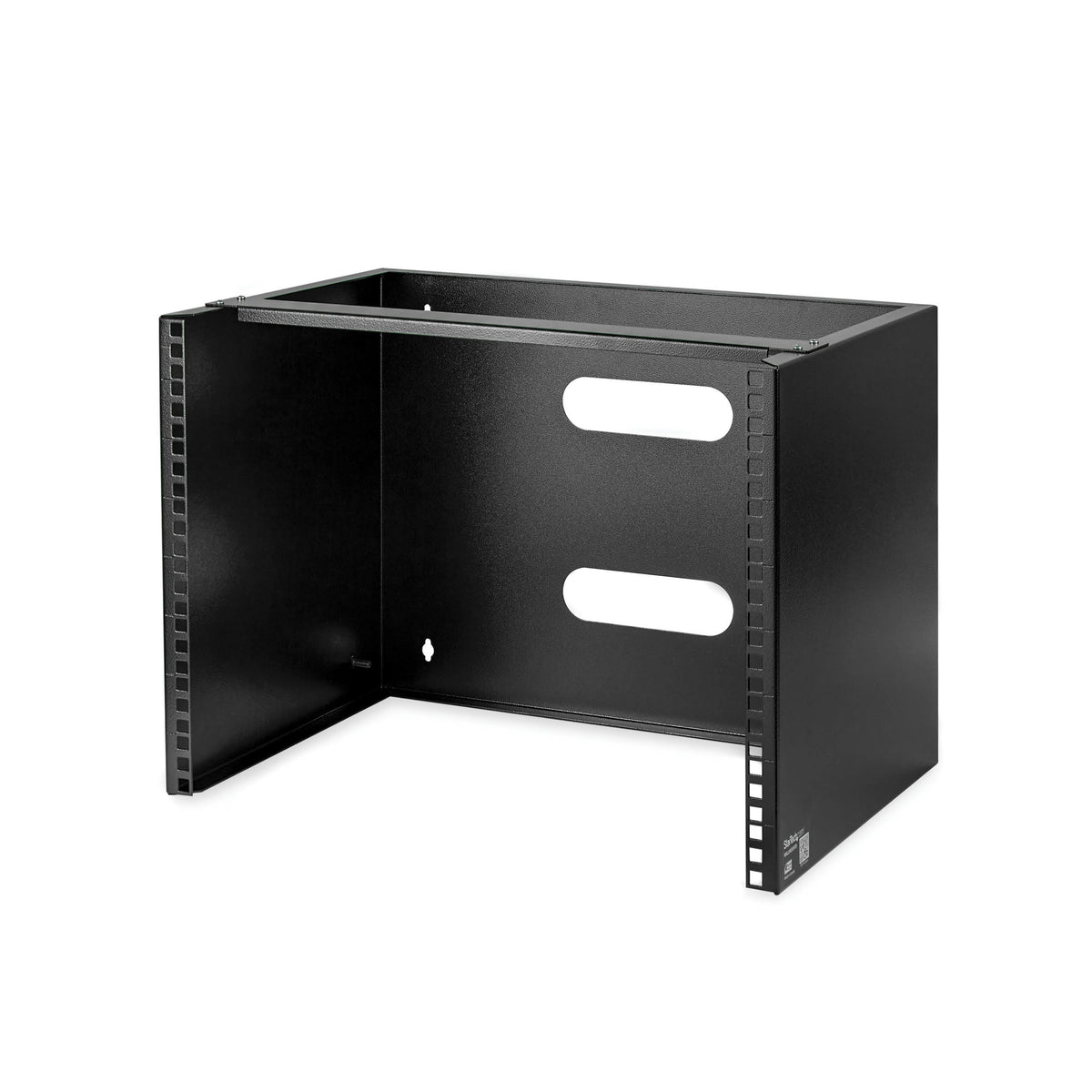

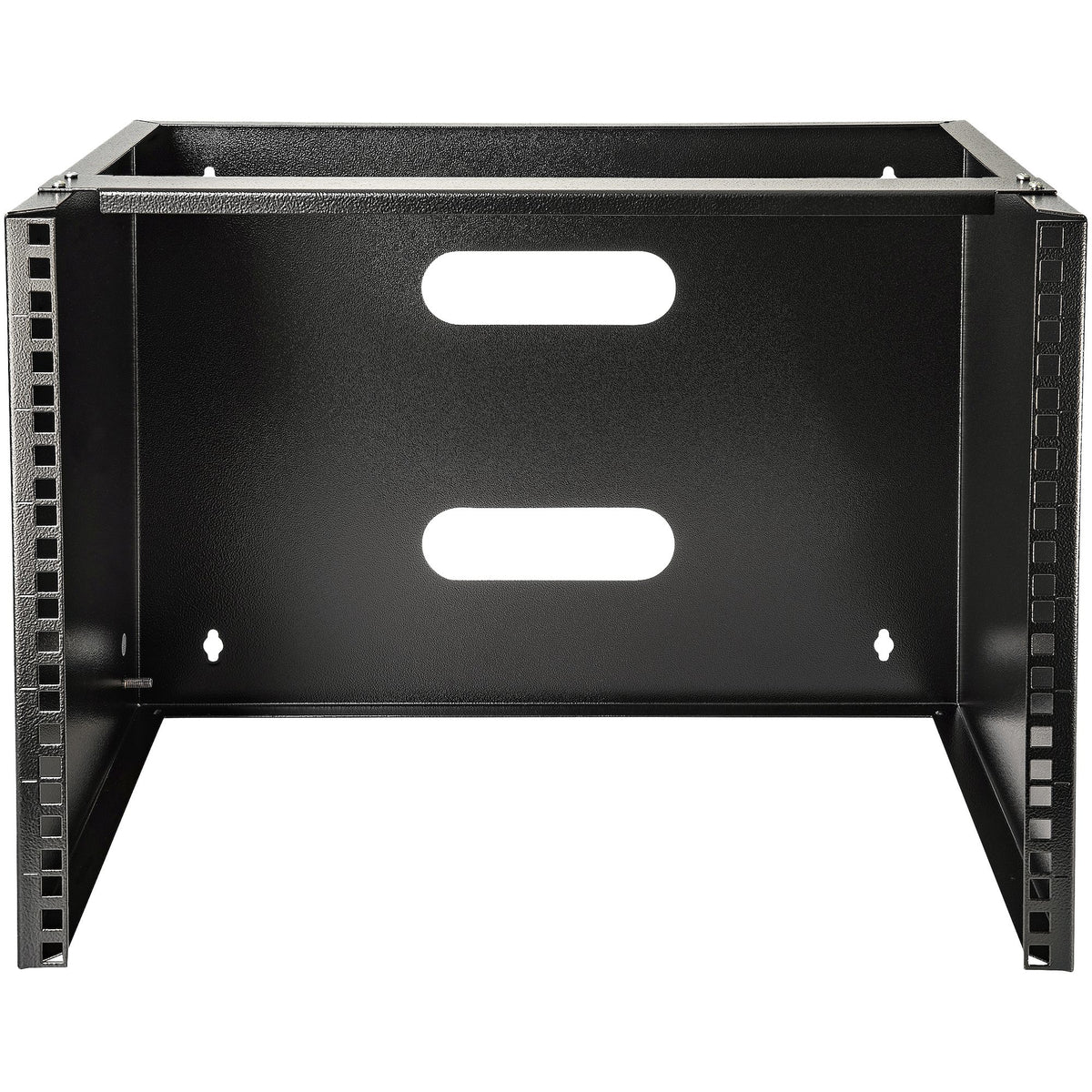

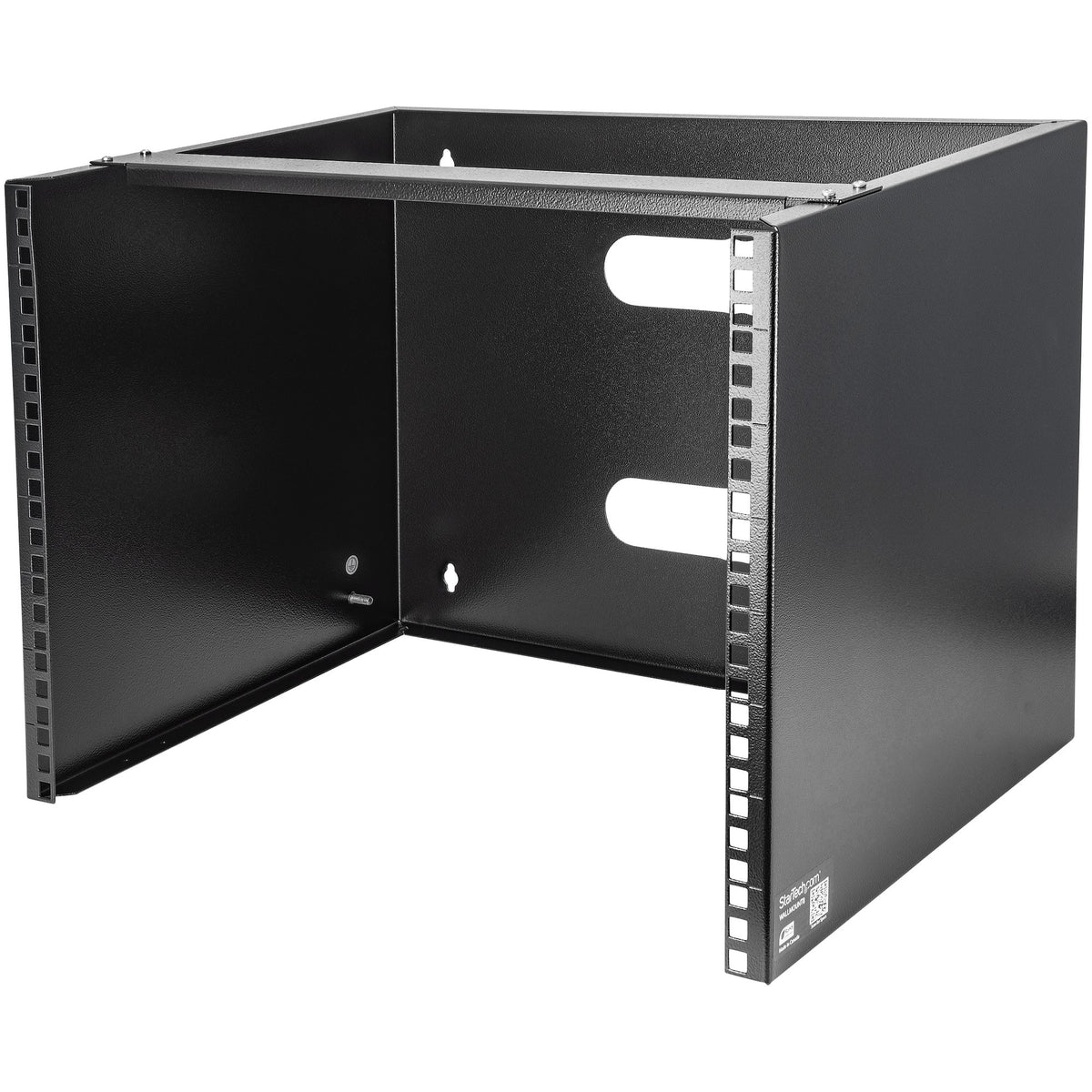

StarTech.com WALLMOUNT8 rack cabinet 8U Wall mounted rack Black
Brand:StarTech.com
Product name:8U Wall Mount Network Rack - 14 Inch Deep (Low Profile) - 19" Patch Panel Bracket for Shallow Server and IT Equipment, Network Switches - 80lbs/36kg Weight Capacity, Black - TAA
Product code:WALLMOUNT8
EAN/UPC:
0065030866750
0065030866750, 065030866750

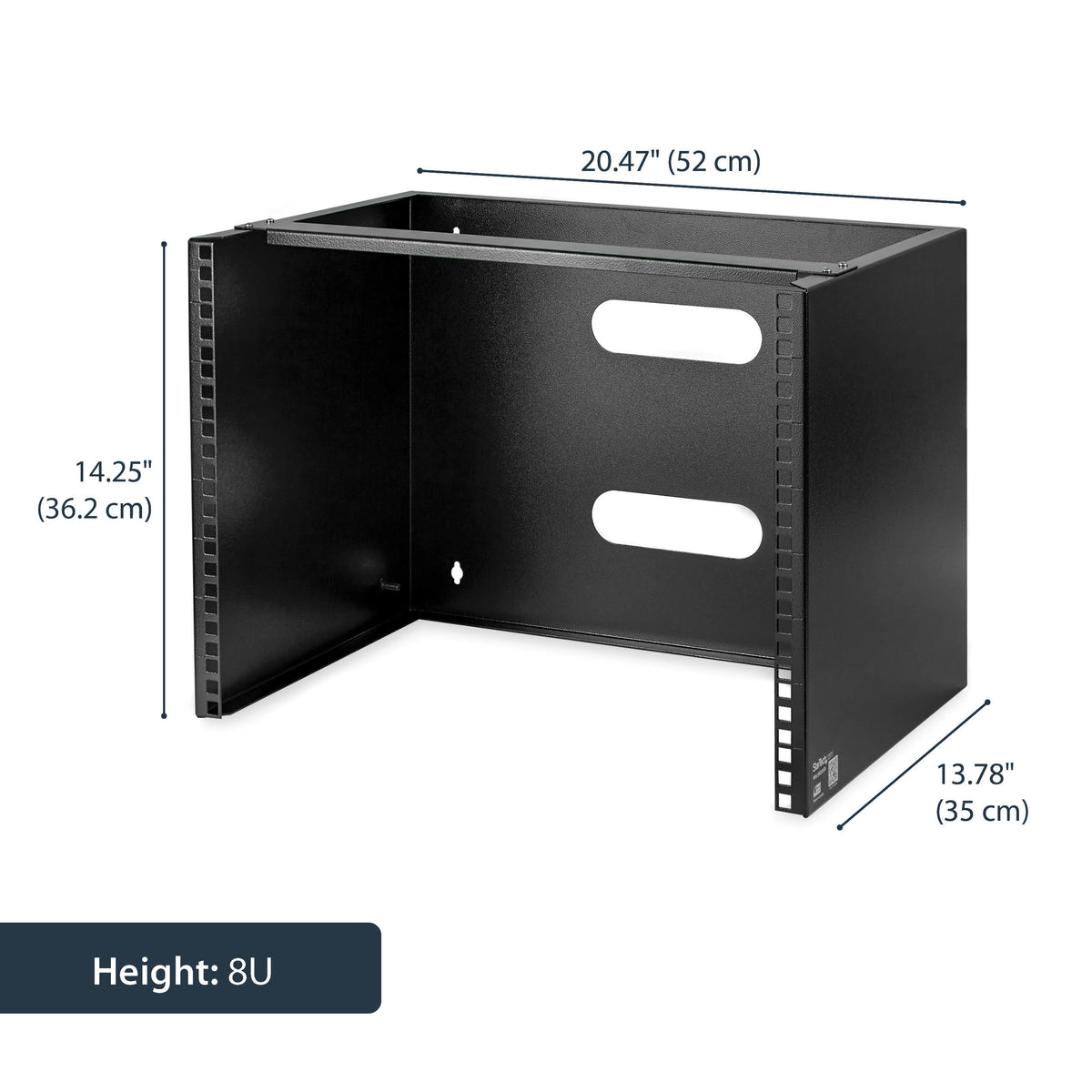

- 8U WALL MOUNT RACK: This 19 inch wide low profile wall mounted rack has a maximum mounting depth of 14 in [35 cm], recommended for networking equipment up to 12in deep, leaving 2in for cable routing; maximum weight capacity of 80 lbs [36kg]
- COLD-ROLLED STEEL CONSTRUCTION: The wall mounting data rack features a solid steel design for ultimate durability and to ensure a safe and sturdy mounting solution & includes wall mounting hardware; Installs onto 16" studs with mounting holes
- STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; this 8U wallmount rack backed for life by StarTech.com, including free 24/5 North America based multi-lingual tech support

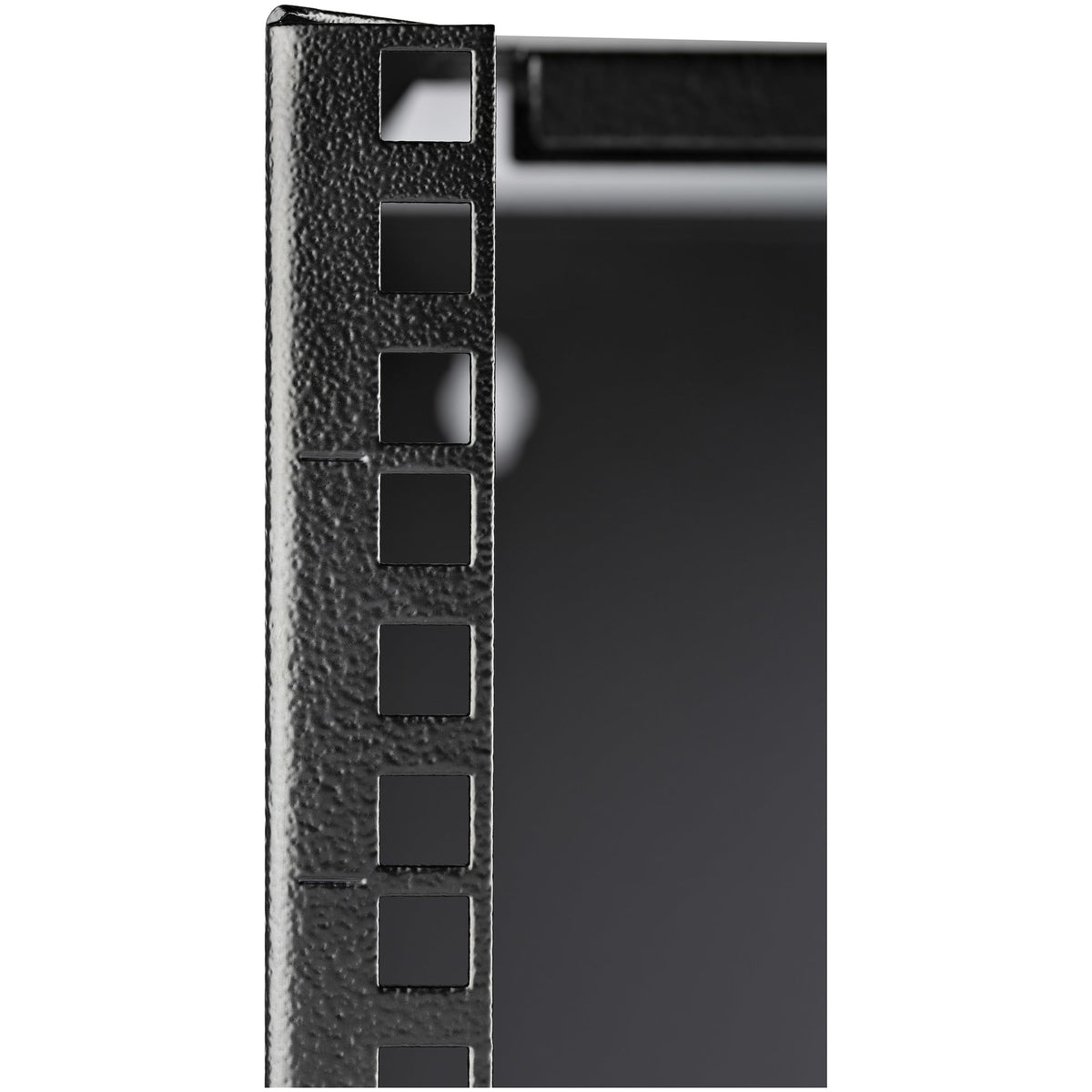

- EASY TO INSTALL: The 8U wall mounting patch panel bracket ships fully assembled and comes complete with M6 Screws and M6 Cage Nuts for easier equipment installation, to save you the hassle of sourcing separate mounting hardware
- EASY CABLE MANAGEMENT: Built with efficiency in mind, the small wall mount patch panel bracket has rear cable routing access for easy cable organization in your network closet, server room, wiring closet, classroom
Description
Mount equipment that is up to 14 inches deep, such as patch panels or network switches, to your wall
This wall-mount bracket provides 8U of space for mounting shallow rack-mount equipment that's 13.75 in. (34.93 cm) deep or less to the wall, such as patch panels or network switches.
Improve efficiency and accessibility in your workspace
The 8U rack optimizes your working space by efficiently mounting your shallow equipment on your wall instead of taking up desk space or other usable surface areas. It's the perfect solution for your space-limited SoHo (small office, home office) environment or server room because it doesn't take up any floor space.
Ensure a secure and hassle-free installation

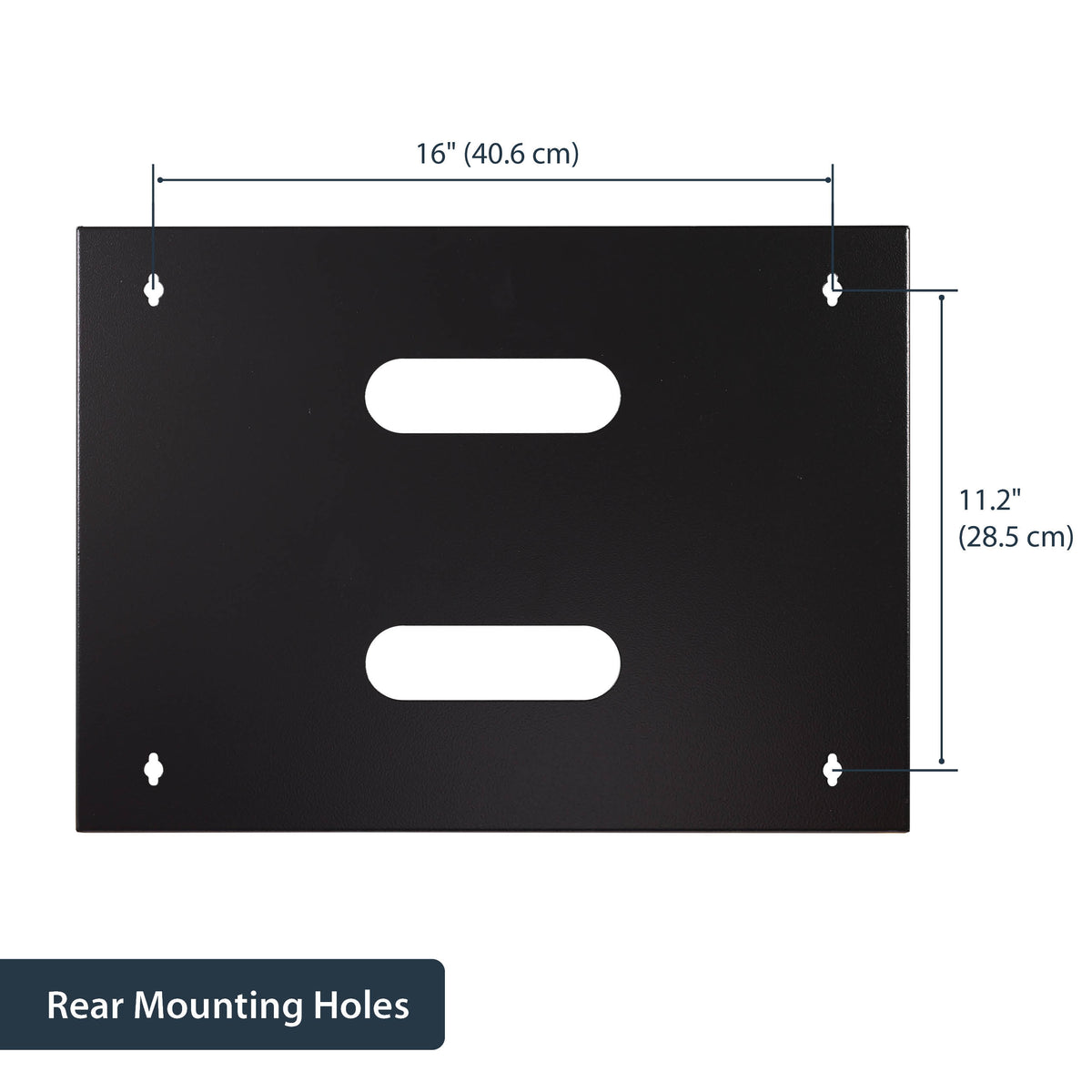

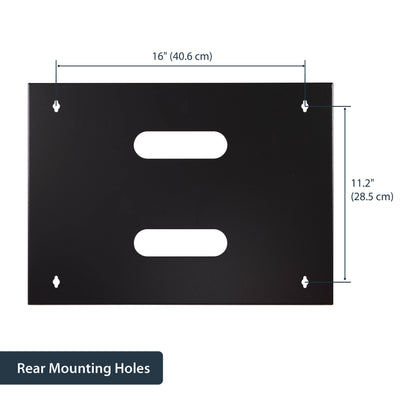

The wall rack is constructed of solid steel to ensure a sturdy and safe mounting solution for your mission-critical equipment. Also, because the wall rack's mounting holes are positioned 16 in. apart, it exactly matches standard drywall construction framework to ensure simple and secure wall-stud anchoring.

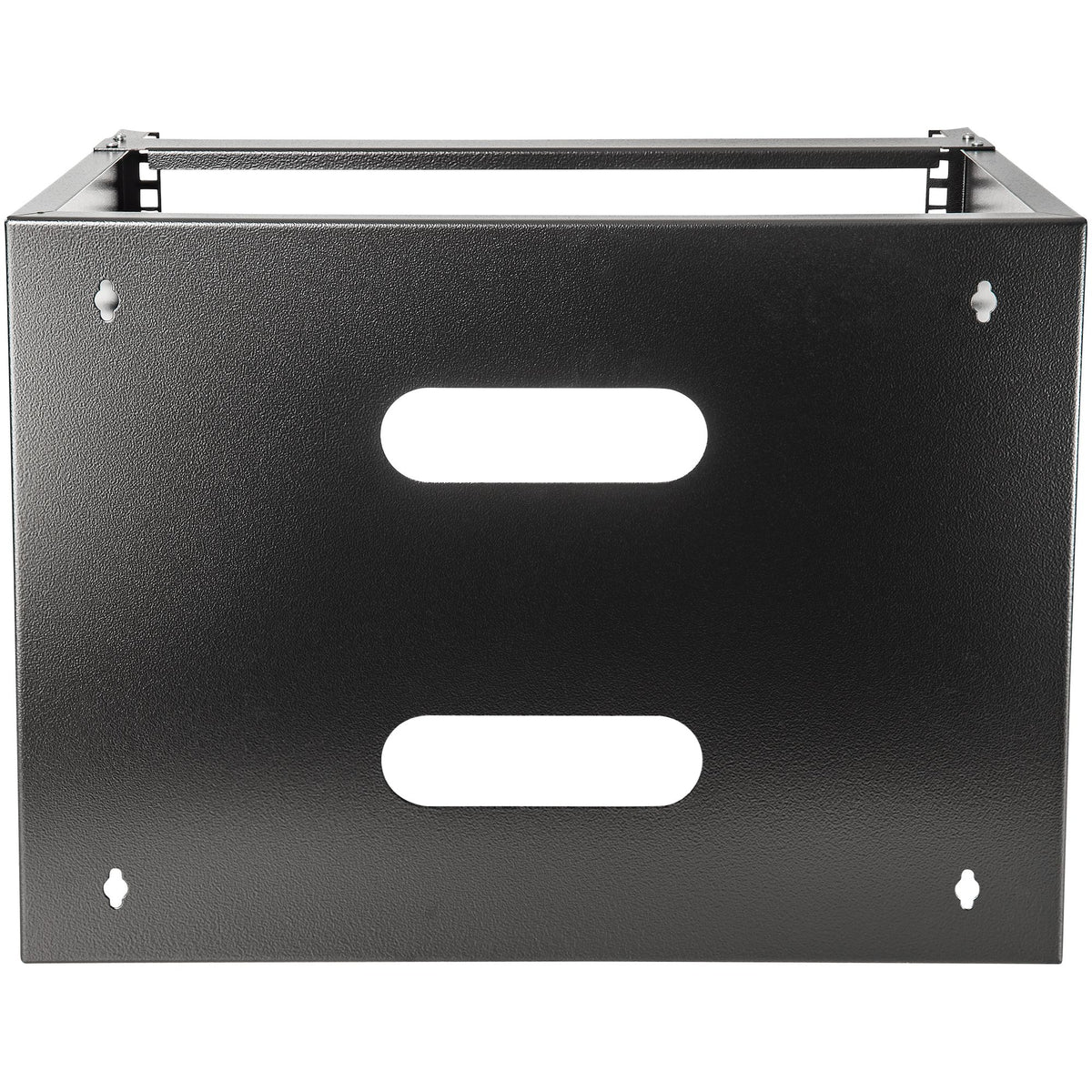

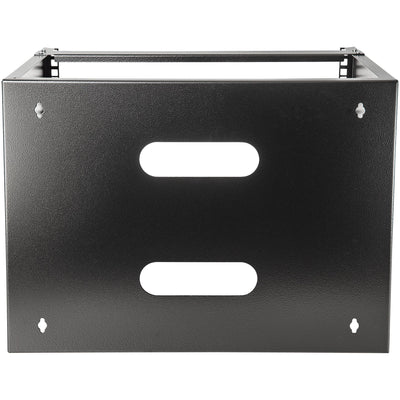

The rack also features a rear access panel that can be used to easily run cabling into the rack.

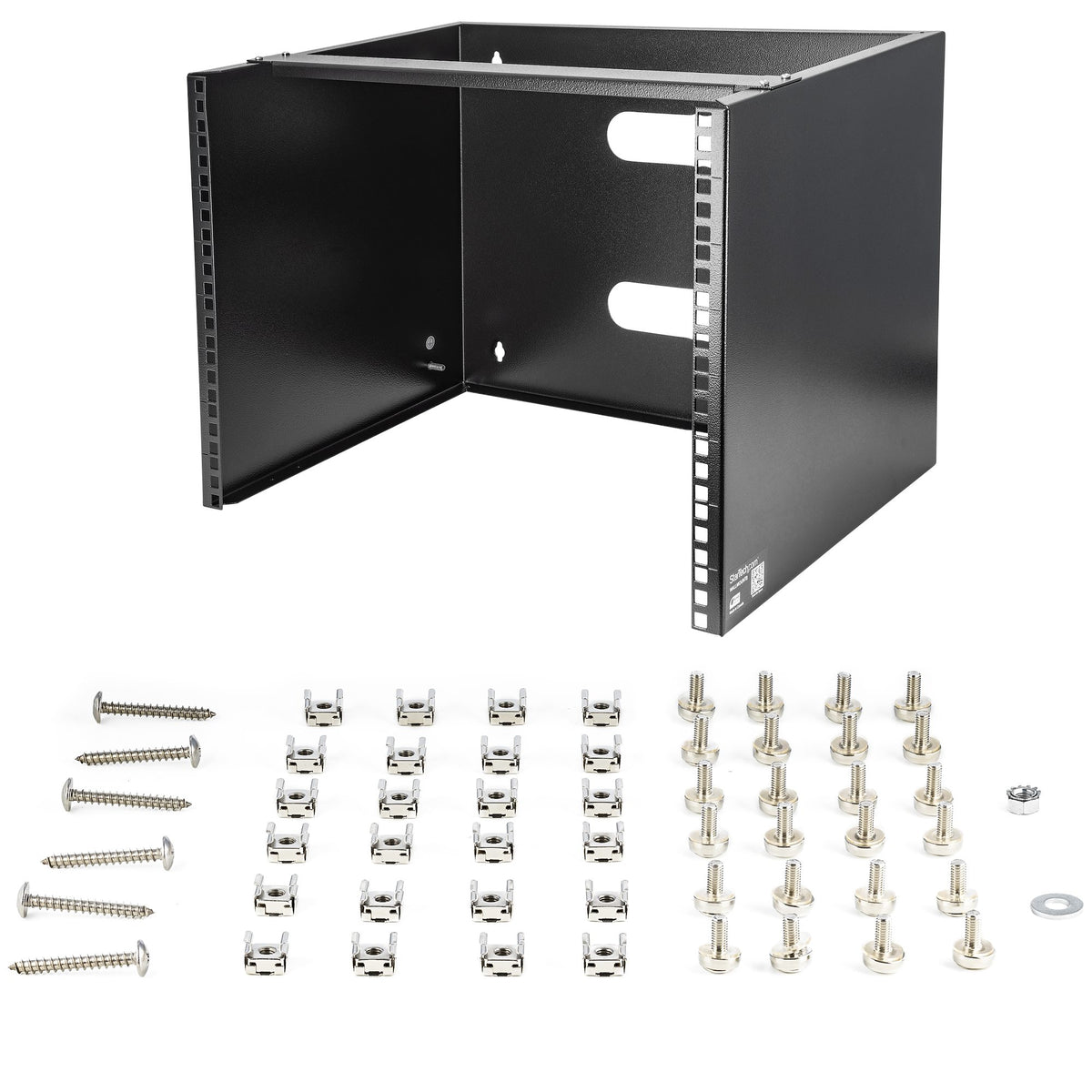

Cage nuts and screws are included with the wall-mount bracket, to save you the hassle of sourcing separate mounting hardware.
If you're looking for a shallow mounting solution with fewer or more rack units, StarTech.com also offers a 6U wall-mount bracket, and a 12U wall-mount bracket.
This wall-mount bracket provides 8U of space for mounting shallow rack-mount equipment that's 13.75 in. (34.93 cm) deep or less to the wall, such as patch panels or network switches.
Improve efficiency and accessibility in your workspace
The 8U rack optimizes your working space by efficiently mounting your shallow equipment on your wall instead of taking up desk space or other usable surface areas. It's the perfect solution for your space-limited SoHo (small office, home office) environment or server room because it doesn't take up any floor space.
Ensure a secure and hassle-free installation
The wall rack is constructed of solid steel to ensure a sturdy and safe mounting solution for your mission-critical equipment. Also, because the wall rack's mounting holes are positioned 16 in. apart, it exactly matches standard drywall construction framework to ensure simple and secure wall-stud anchoring.
The rack also features a rear access panel that can be used to easily run cabling into the rack.
Cage nuts and screws are included with the wall-mount bracket, to save you the hassle of sourcing separate mounting hardware.
If you're looking for a shallow mounting solution with fewer or more rack units, StarTech.com also offers a 6U wall-mount bracket, and a 12U wall-mount bracket.
Specs
Features
Rack capacity
The spase that device fill in rack.
8U
Type
Characteristics of the device.
Wall mounted rack
Maximum weight capacity
The maximum weight that the product is designed to hold/store.
36,3 kg
Product color
The colour e.g. red, blue, green, black, white.
Black
Material
The material from which a thing is or can be made e.g. wood, plastic.
Steel
Frame type
Open
Product design
The creation of a plan or convention for the construction of an object or a system.
2-post
Number of fans
The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
0 fan(s)
Technical details
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
CE, RoHS
Logistics data
Harmonized System (HS) code
85381000
Master (outer) case width
382 mm
Master (outer) case length
522 mm
Master (outer) case height
392 mm
Quantity per master (outer) case
1 pc(s)
Other features
Compliance industry standards
List of characteristics that describe methods of compliance to industry-defined standards for the product
EIA/ECA-310-E
Weight & dimensions
Width
The measurement or extent of something from side to side.
500 mm
Depth
The distance from the front to the back of something.
349 mm
Height
The measurement of the product from head to foot or from base to top.
362 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
5,7 kg
Mounting depth (max)
30,5 cm
Packaging data
Nuts included
Number of nuts
25
Screws included
Number of screws
30
Manual
Package width
The distance from one side of the packaging to the other.
550 mm
Package depth
The distance from the front to the back of the packaging.
390 mm
Package height
The distance from the top to the bottom of the packaging.
416 mm
Package weight
Weight of the packaged product in gram.
7,6 kg
