StarTech.com RKLCDBK rack accessory Mounting bracket
Brand:StarTech.com
Product name:4U Universal VESA LCD Monitor Mounting Bracket for 19-inch Rack or Cabinet - TAA Compliant - Cold-Pressed Steel Bracket
Product code:RKLCDBK
EAN/UPC:
0065030834896
0065030834896, 065030834896, 5051964728542, 0887520904939, 887520904939
- STURDY DESIGN: The LCD mounting bracket made of solid cold pressed steel (SPCC), is designed to support 100mm & 75mm VESA mounted LCD panels, and meets ANSI/EIA RS-310-D standards rack mounting
- ADJUSTABLE DEPTH: A unique adjustable design enables an LCD panel to be mounted into the AV rack cabinet at various depths, allowing the rack/cabinet door to be closed
- ADDED FUNCTIONALITY: The rackmount monitor bracket supports wall-mounted LCD installations by inverting or adding this bracket to a wall mount bracket or rack, such as the 6U Wall mount Bracket
- TAA COMPLIANT: This TAA compliant Universal VESA LCD Monitor Mounting Bracket adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this LCD mounting bracket is backed for life, including free lifetime 24/5 multi-lingual technical assistance
Description

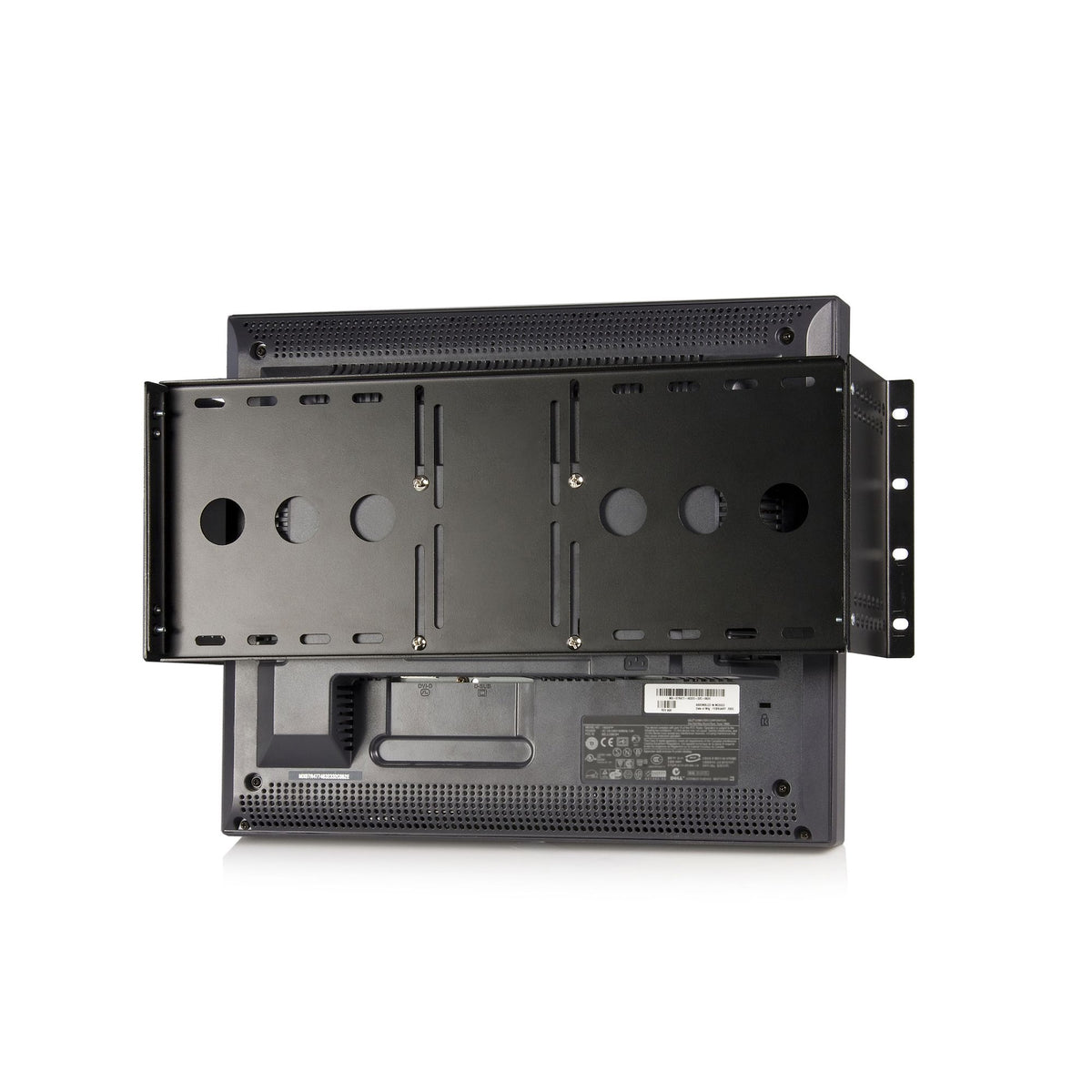

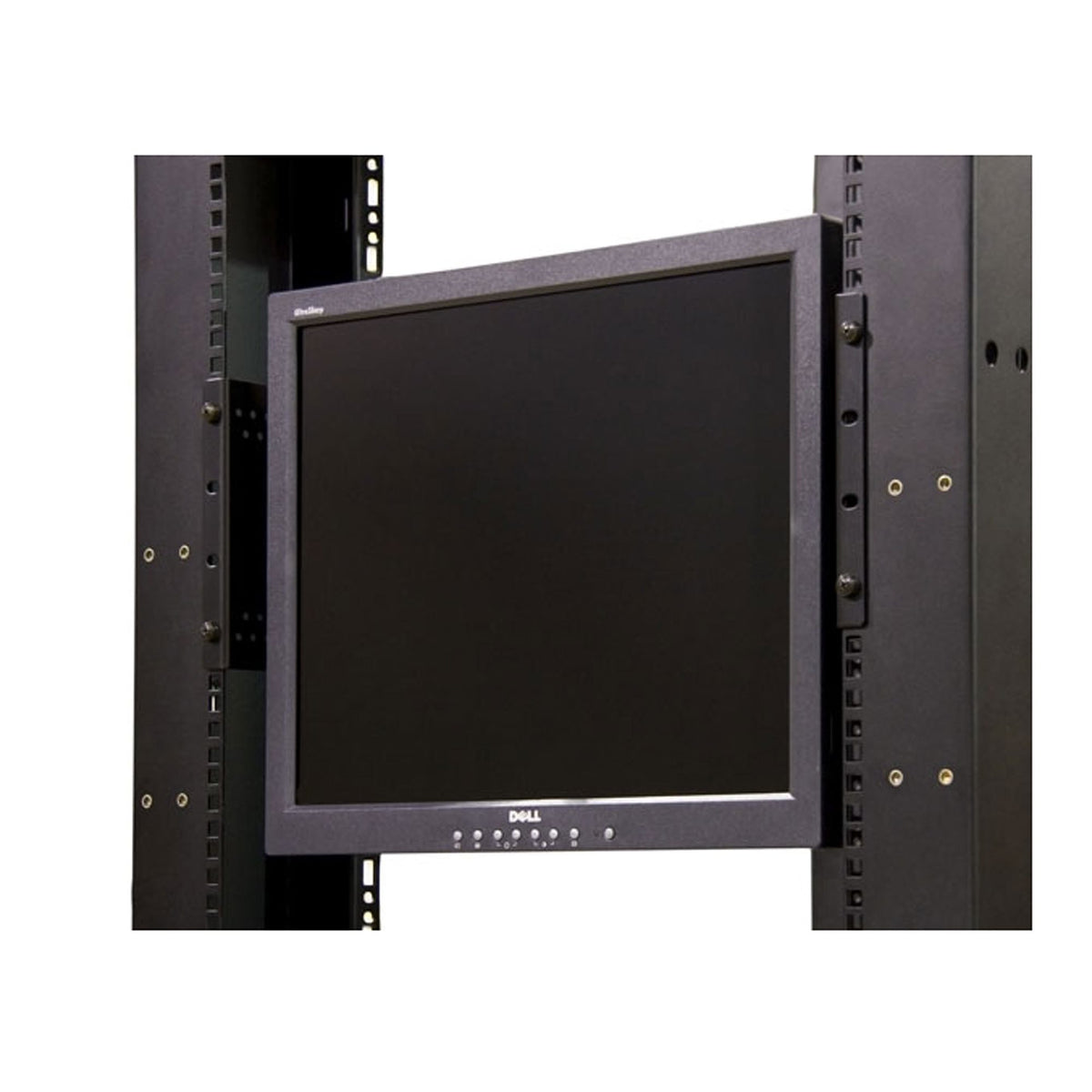

Mount a 17-19 inch LCD panel into a standard 19 inch rack/cabinet
The RKLCDBK Universal VESA LCD Monitor Mounting Bracket for 19in Rack or Cabinet lets you mount almost any retail LCD or Touch screen panel into a server/storage rack/cabinet. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.

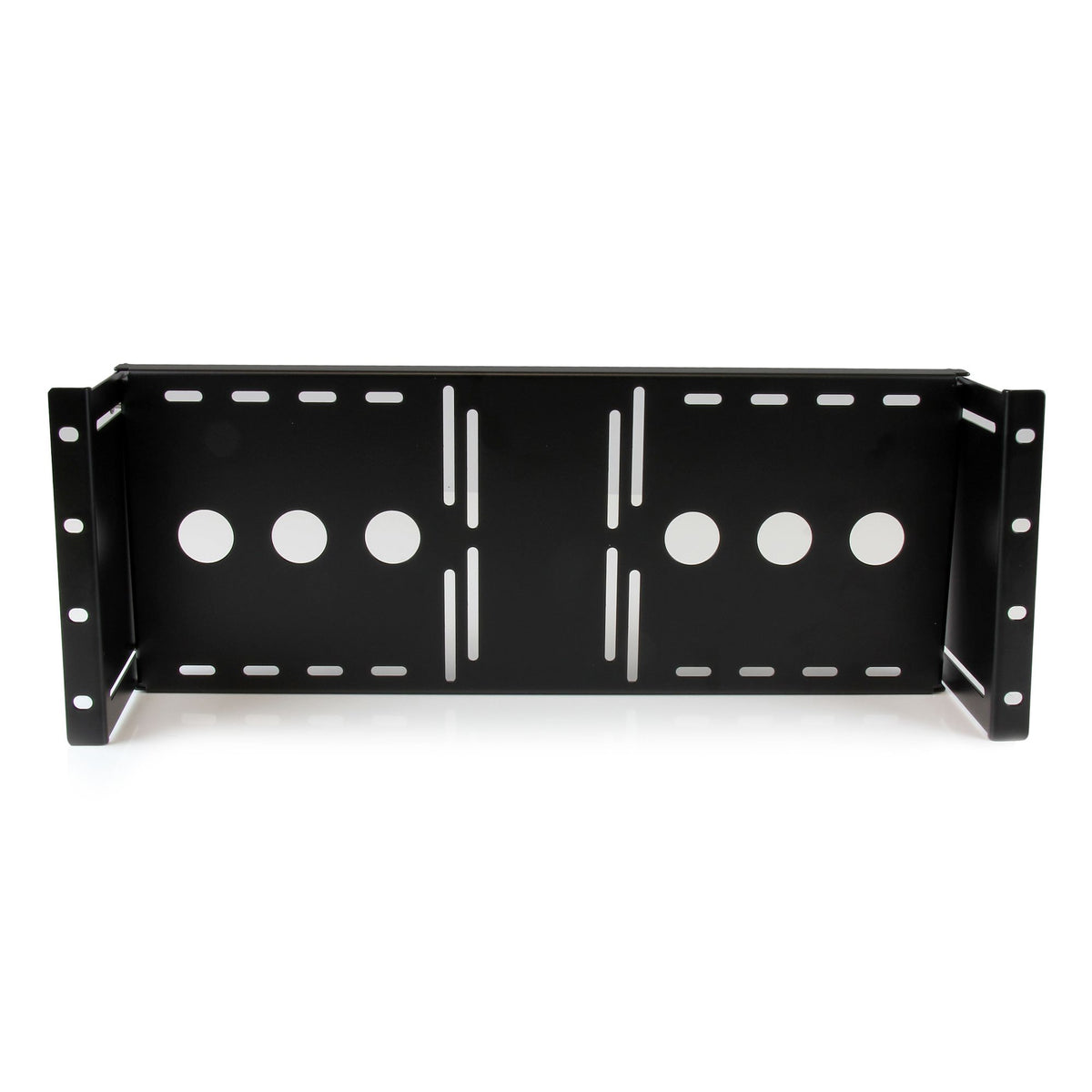

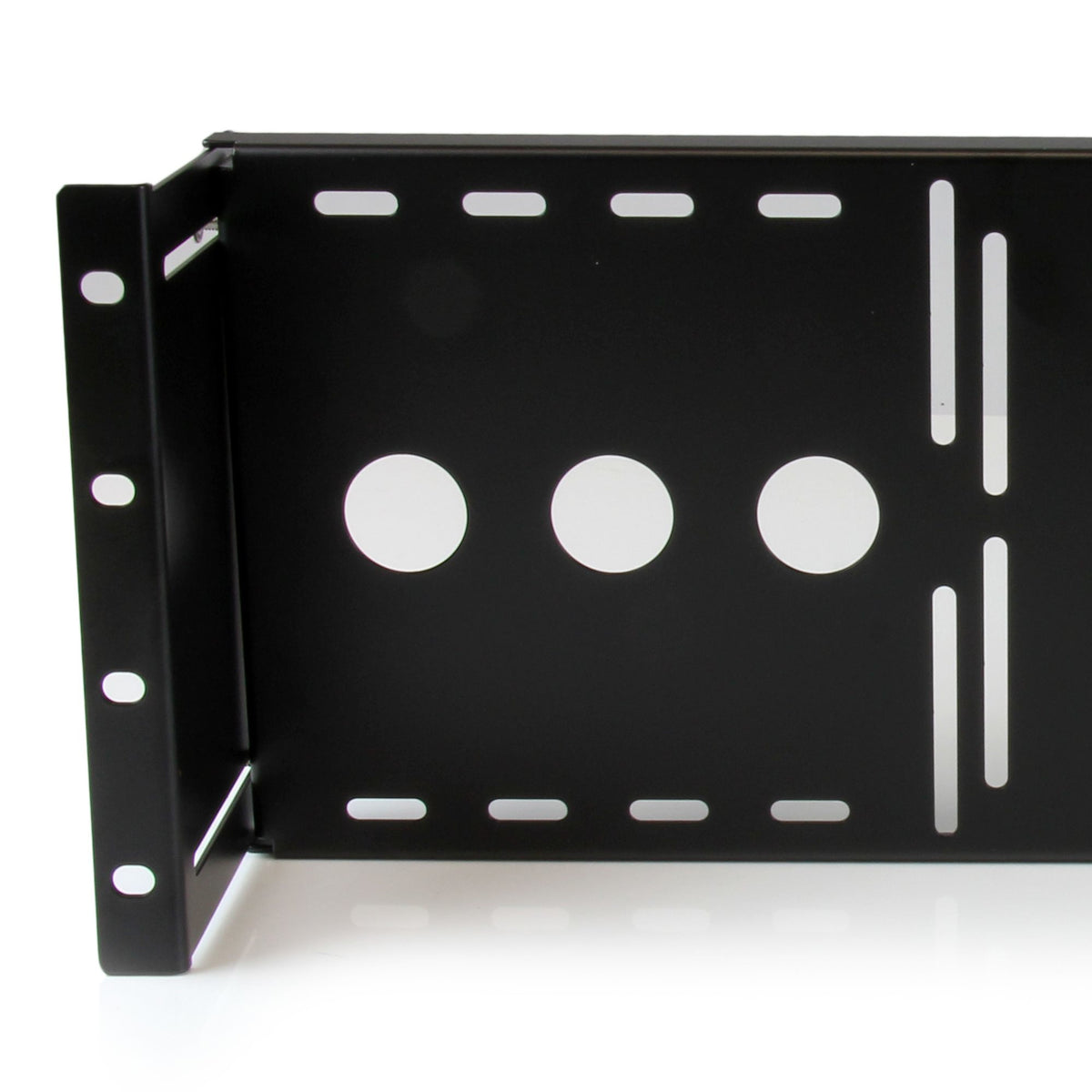

The LCD mounting bracket is made of solid cold pressed steel (SPCC), is designed to support 100mm and 75mm VESA mounted LCD panels, and meets ANSI/EIA RS-310-D standards rack mounting. A unique adjustable design enables an LCD panel to be mounted into the cabinet at various depths - allowing the rack/cabinet door to be closed.

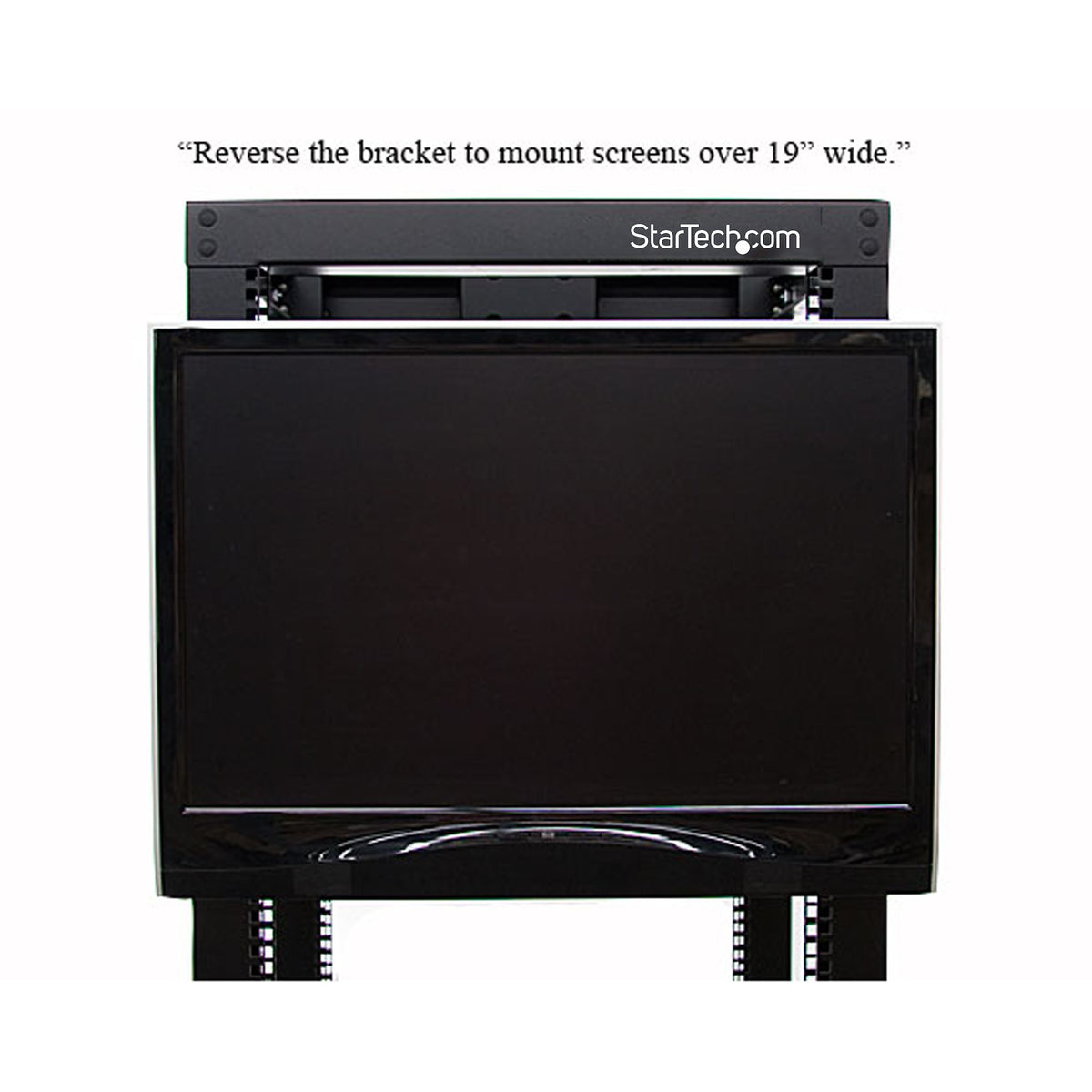

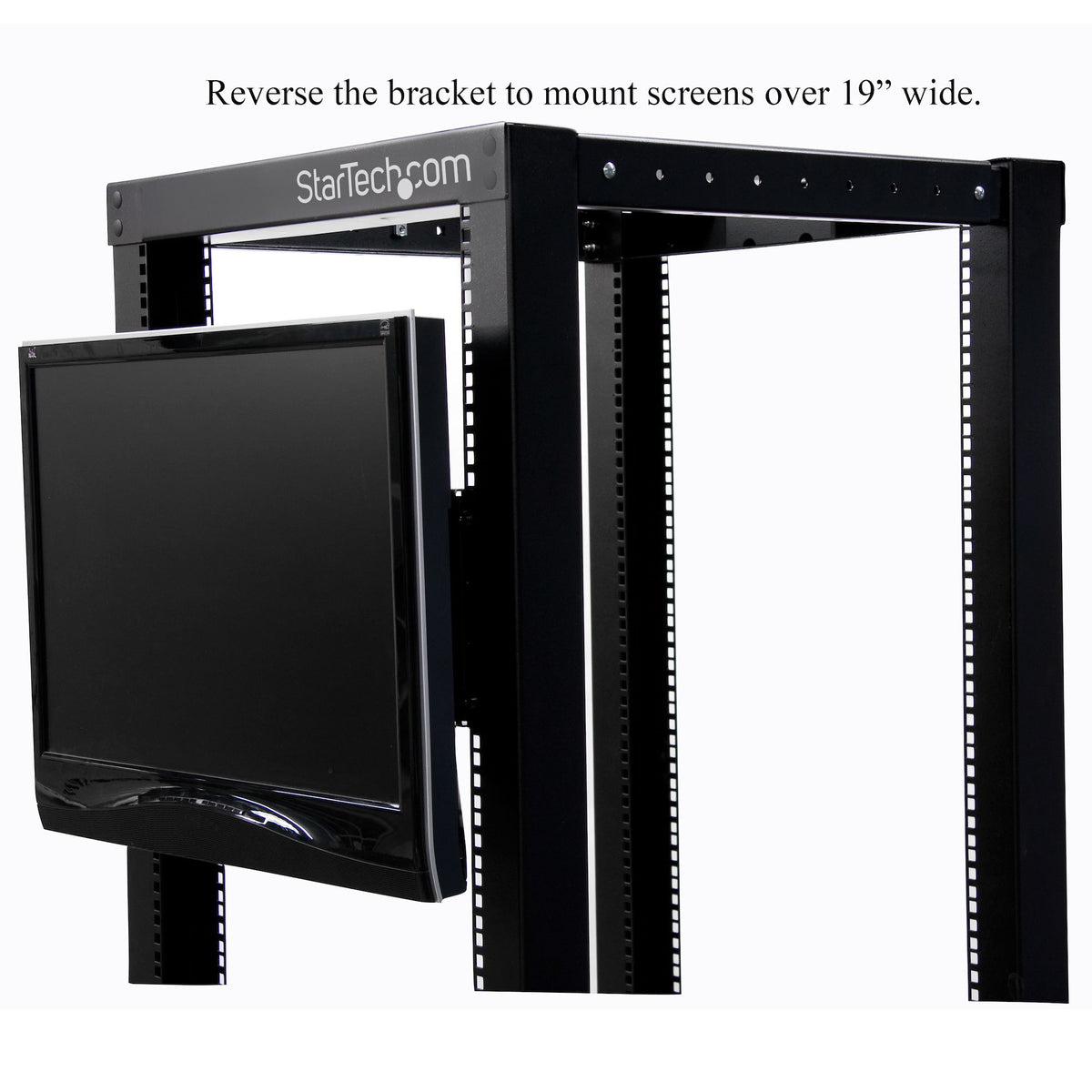

The LCD mounting bracket also supports wall-mounted LCD installation, by inverting the adjustable bracket or by adding this bracket to a wall mount bracket or rack, such as the 6U (10 inch) Wallmount Bracket for 19" Rack Equipment (WALLMOUNT6) or 8U Open Frame Wall Mount Equipment Rack (RK812WALLO).
Backed by a StarTech.com Lifetime warranty.
The RKLCDBK Universal VESA LCD Monitor Mounting Bracket for 19in Rack or Cabinet lets you mount almost any retail LCD or Touch screen panel into a server/storage rack/cabinet. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.
The LCD mounting bracket is made of solid cold pressed steel (SPCC), is designed to support 100mm and 75mm VESA mounted LCD panels, and meets ANSI/EIA RS-310-D standards rack mounting. A unique adjustable design enables an LCD panel to be mounted into the cabinet at various depths - allowing the rack/cabinet door to be closed.
The LCD mounting bracket also supports wall-mounted LCD installation, by inverting the adjustable bracket or by adding this bracket to a wall mount bracket or rack, such as the 6U (10 inch) Wallmount Bracket for 19" Rack Equipment (WALLMOUNT6) or 8U Open Frame Wall Mount Equipment Rack (RK812WALLO).
Backed by a StarTech.com Lifetime warranty.
Specs
Features
Type
Characteristics of the device.
Mounting bracket
Product color
The colour e.g. red, blue, green, black, white.
Black
Housing material
What the casing of the product is made of.
Steel
Rack capacity
The spase that device fill in rack.
4U
Compliance industry standards
List of characteristics that describe methods of compliance to industry-defined standards for the product
EIA RS310-D
Certification
CE, REACH, TAA
Packaging data
Package width
The distance from one side of the packaging to the other.
469 mm
Package depth
The distance from the front to the back of the packaging.
201 mm
Package height
The distance from the top to the bottom of the packaging.
53 mm
Package weight
Weight of the packaged product in gram.
2 kg
Technical details
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Logistics data
Master (outer) case width
524 mm
Master (outer) case length
187 mm
Master (outer) case height
590 mm
Quantity per master (outer) case
156 pc(s)
Harmonized System (HS) code
85389099
Weight & dimensions
Width
The measurement or extent of something from side to side.
842 mm
Depth
The distance from the front to the back of something.
107,5 mm
Height
The measurement of the product from head to foot or from base to top.
177 mm
Mounting depth (min)
0 mm
Mounting depth (max)
8,89 cm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
1,7 kg

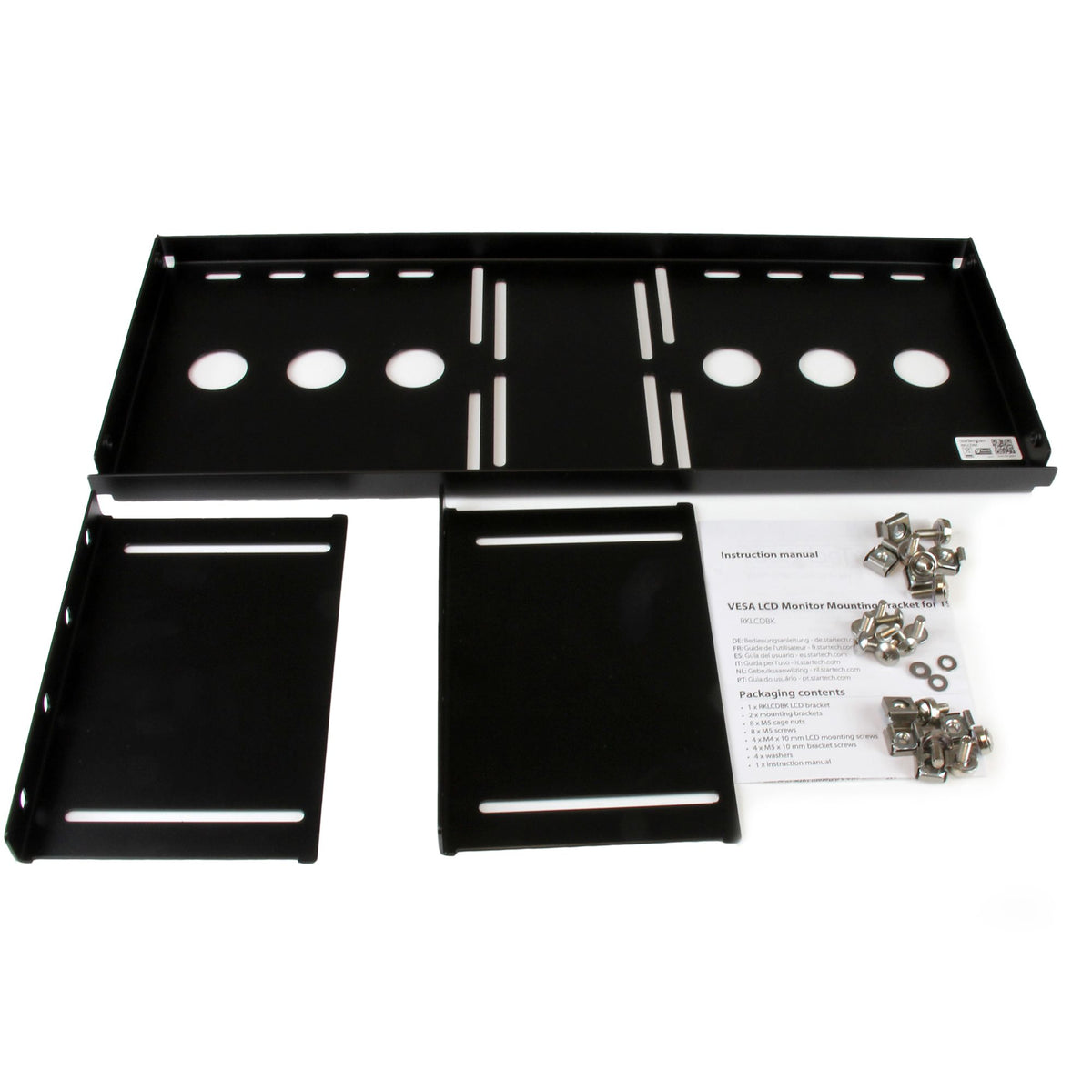

Packaging content
Mounting kit
Quick installation guide
Screws included
Screw type
M5, M4
Number of screws
16
Nuts included
Number of nuts
8
Washers included
Number of washers included
4
