StarTech.com 1415B8H-RACK-PDU-SP power distribution unit (PDU) 14 AC outlet(s) 1U Black
Brand:StarTech.com
Product name:14-Outlet Rackmount PDU, 1U Server Power Strip with 6x Front and 8x Rear Ports, Mounted Power Distribution Unit for 19-Inch Racks and Cabinets
Product code:1415B8H-RACK-PDU-SP
EAN/UPC:
0065030920964
0065030920964, 065030920964
- <b>Centralized Rack Power</b>: This rack mounted power distribution unit delivers reliable 120V power for up to 14 devices, ideal for small to mid-sized IT environments, offices, and businesses needing an organized and efficient distribution system
- <b>Support Flexible Access</b>: Built-in NEMA 5-15 outlets feature 6 front-facing port for quick connections and 8 rear-facing ports for clean cable routing in various rack configurations; 8ft (2.4m) power cord easily reaches distant AC outlets
- <b> Mount Where You Need It</b>: TAA-compliant 1U PDU installs horizontally or vertically on EIA-310 19" racks or cabinets over 4in (10.1cm) deep with the included 4-way brackets; Rugged SPCC steel housing with powder-coated finish ensures long-term durability
- <b>Protect Equipment with High-Capacity Surge Protection</b>: 3,000 joules of surge protection shields devices from power spikes; User-resettable 15A breaker helps prevent overload damage and the illuminated power switch with cover prevents accidental shutdowns
- <b>The IT Pro's Choice</b>: Our rack-mount PDUs are lab-tested to ensure enterprise-grade reliability for continuous uptime and optimal performance in edge, on-prem, AV racks, and data center deployments; Backed by free lifetime 24/5 technical assistance
Description

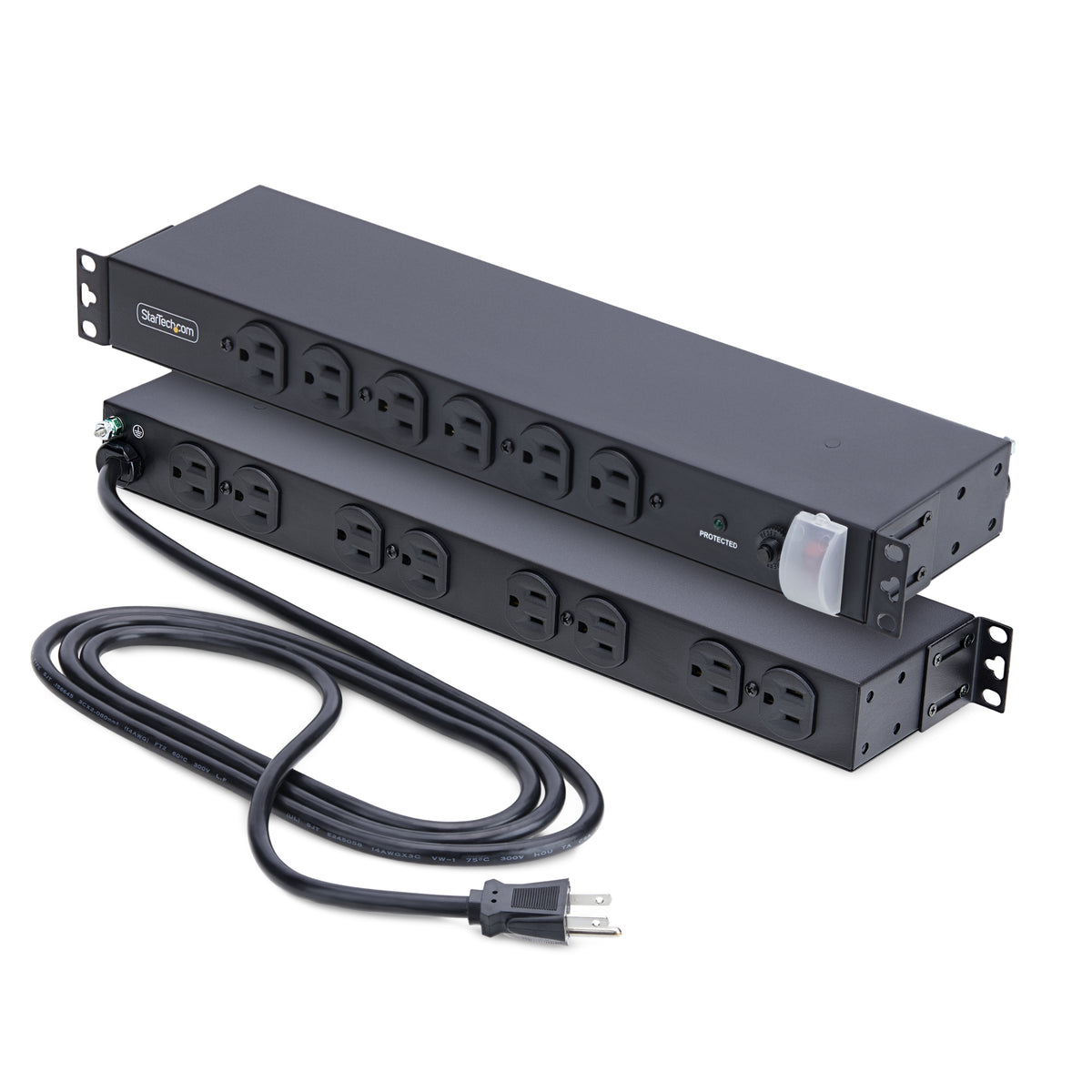

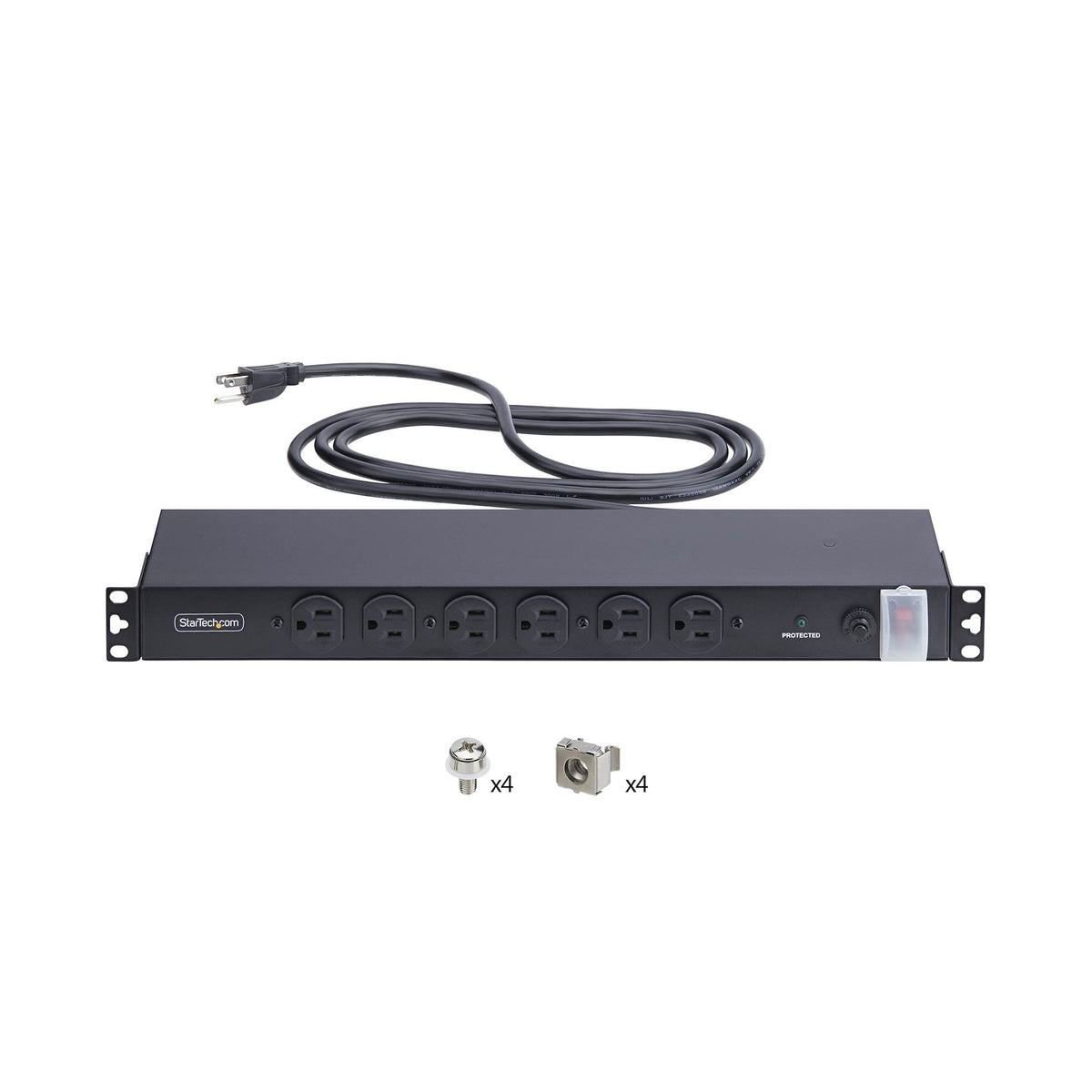

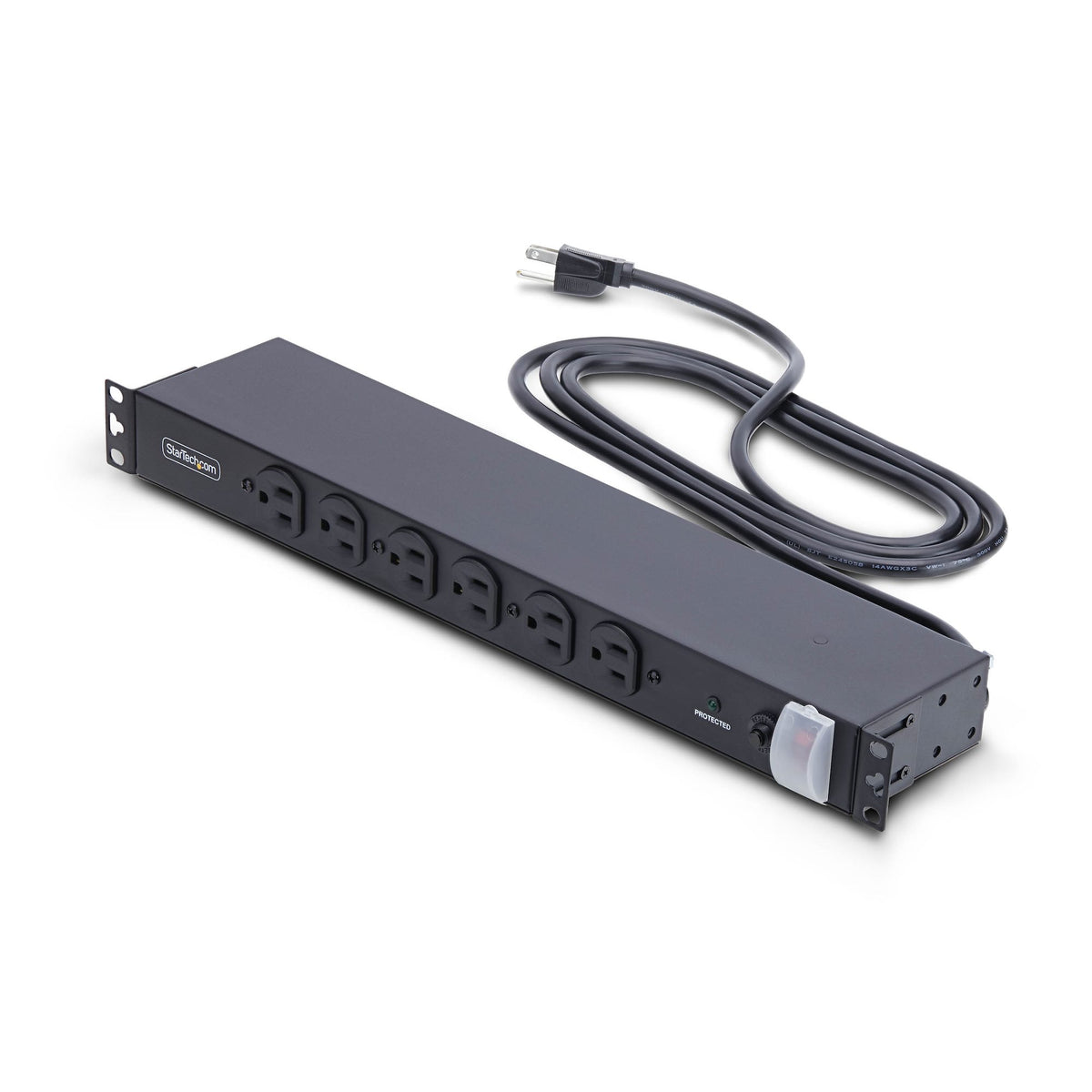

Add fourteen power outlets to a 19in server rack or cabinet
Deliver consistent power to critical equipment in server rooms, AV racks, and test benches. This 1U rackmount PDU features 14 NEMA 5-15 electrical, a built-in circuit breaker, surge protection, and versatile mounting options, making it a dependable power backbone for critical deployments.
Maximize Connectivity in High-Density Racks

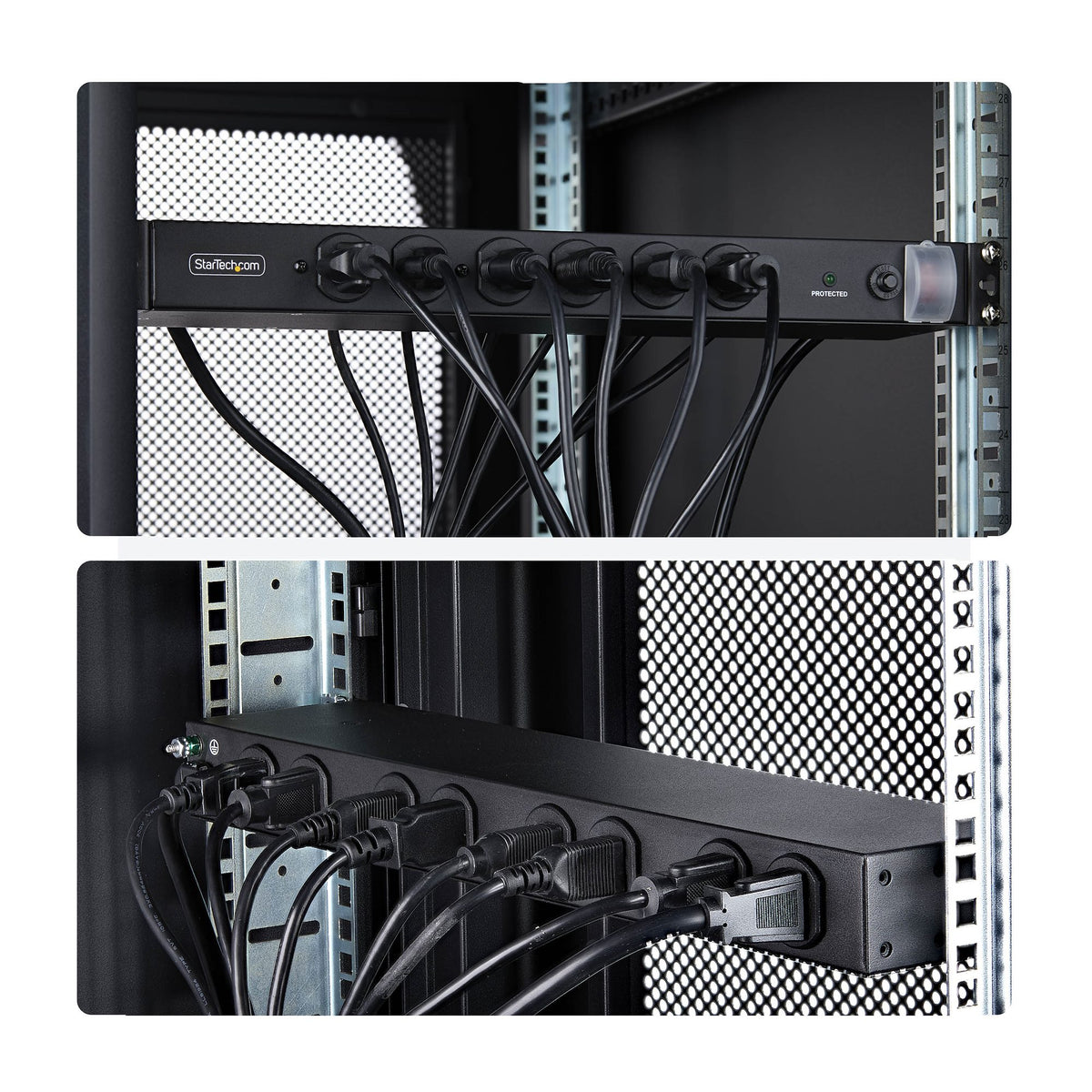

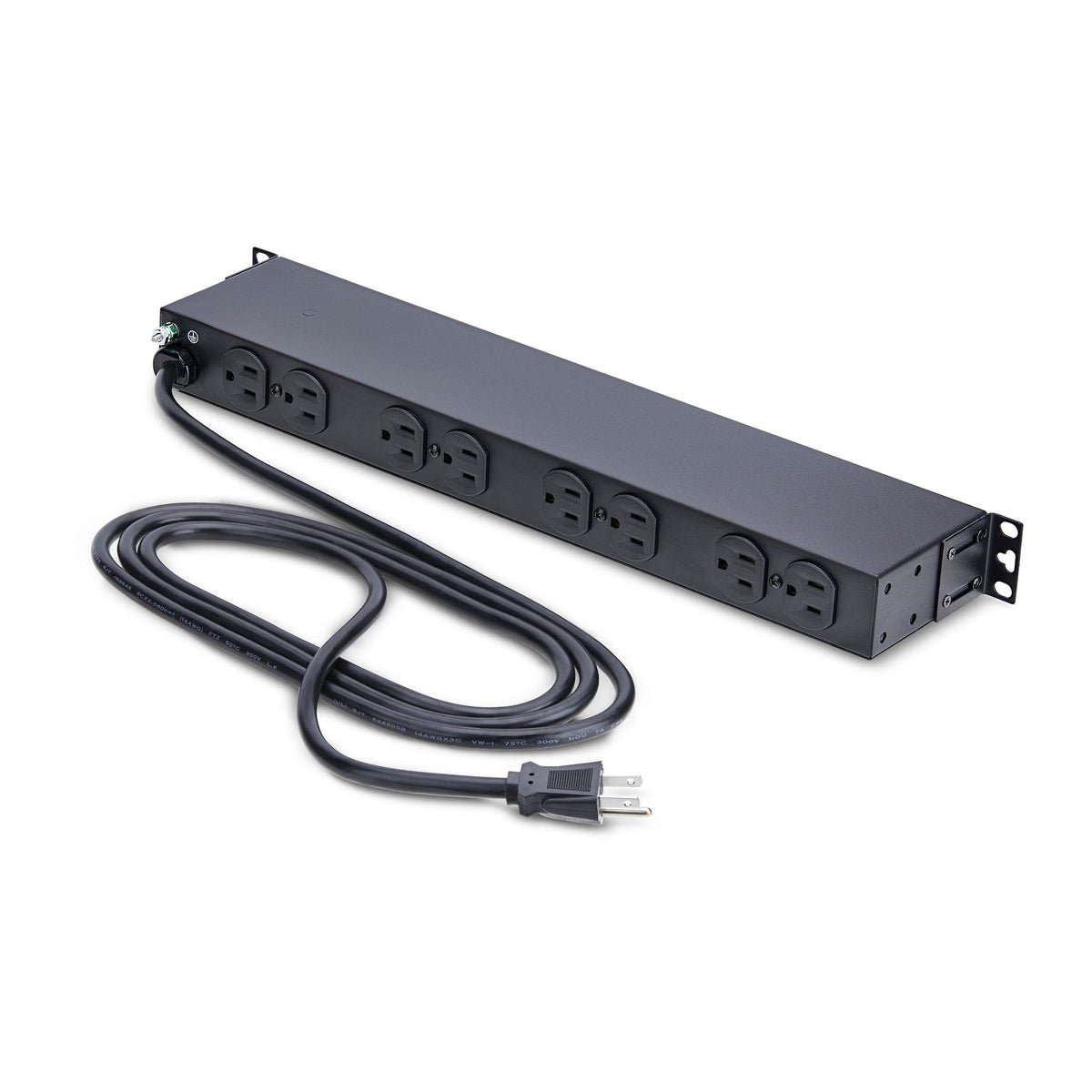

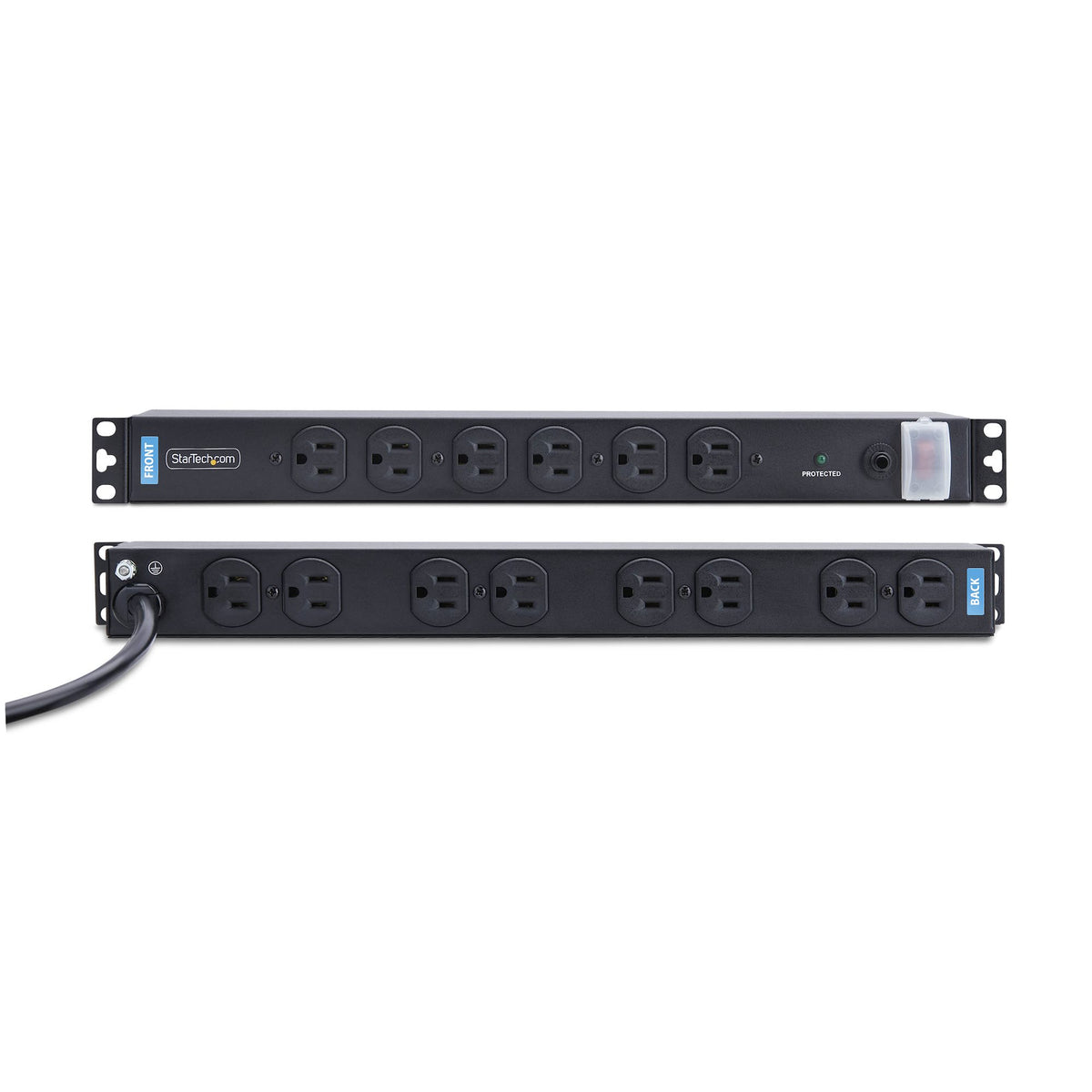

Designed for dense IT and AV environments this unit powers up to 14 devices through 6x front and 8x rear-facing NEMA 5-15 outlets. The built-in 8ft (2.4m) power cord provides the flexibility and reach needed to accommodate various configurations.
Built-in Protection for Critical Hardware

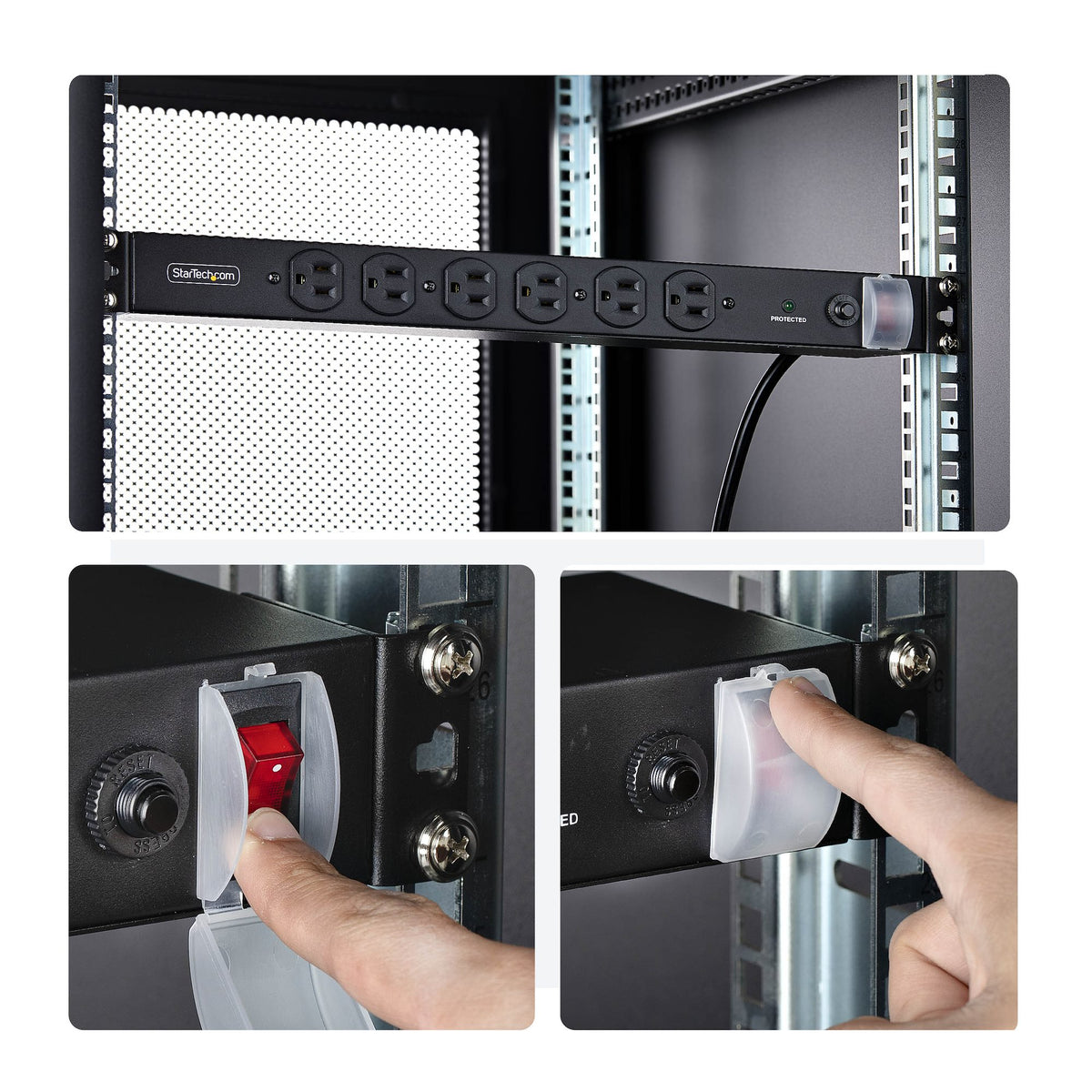

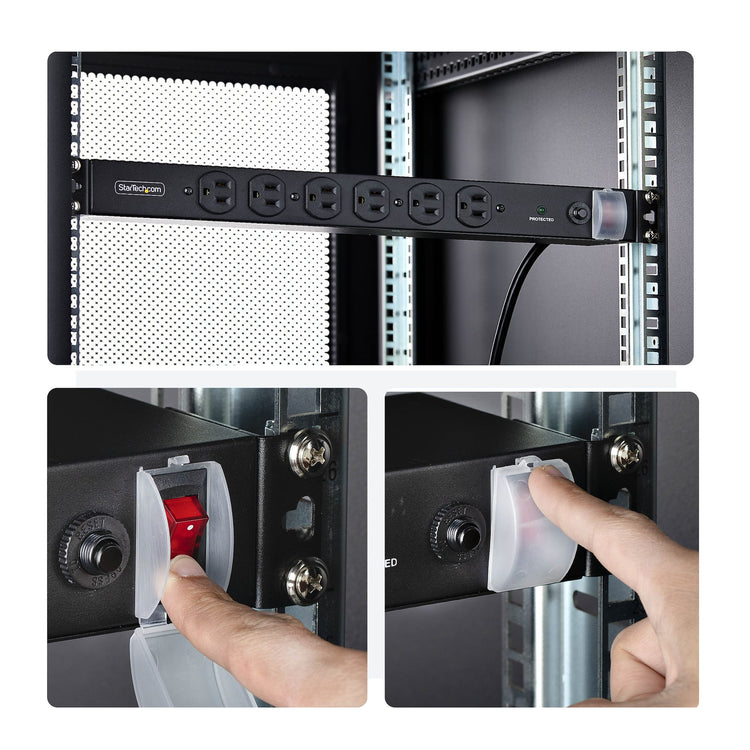

The integrated 15A circuit breaker helps protect connected equipment by automatically cutting power if the total current draw exceeds safe operating limits. The PDU features surge protection rated up to 3,000 joules, helping to safeguard devices from sudden power spikes and electrical surges. The illuminated power switch makes it easy to verify power status at-a-glance, even in dimly lit environments, and has a protective cover to help prevent accidental shutdowns during day-to-day tasks around the connected equipment.
Flexible Mounting

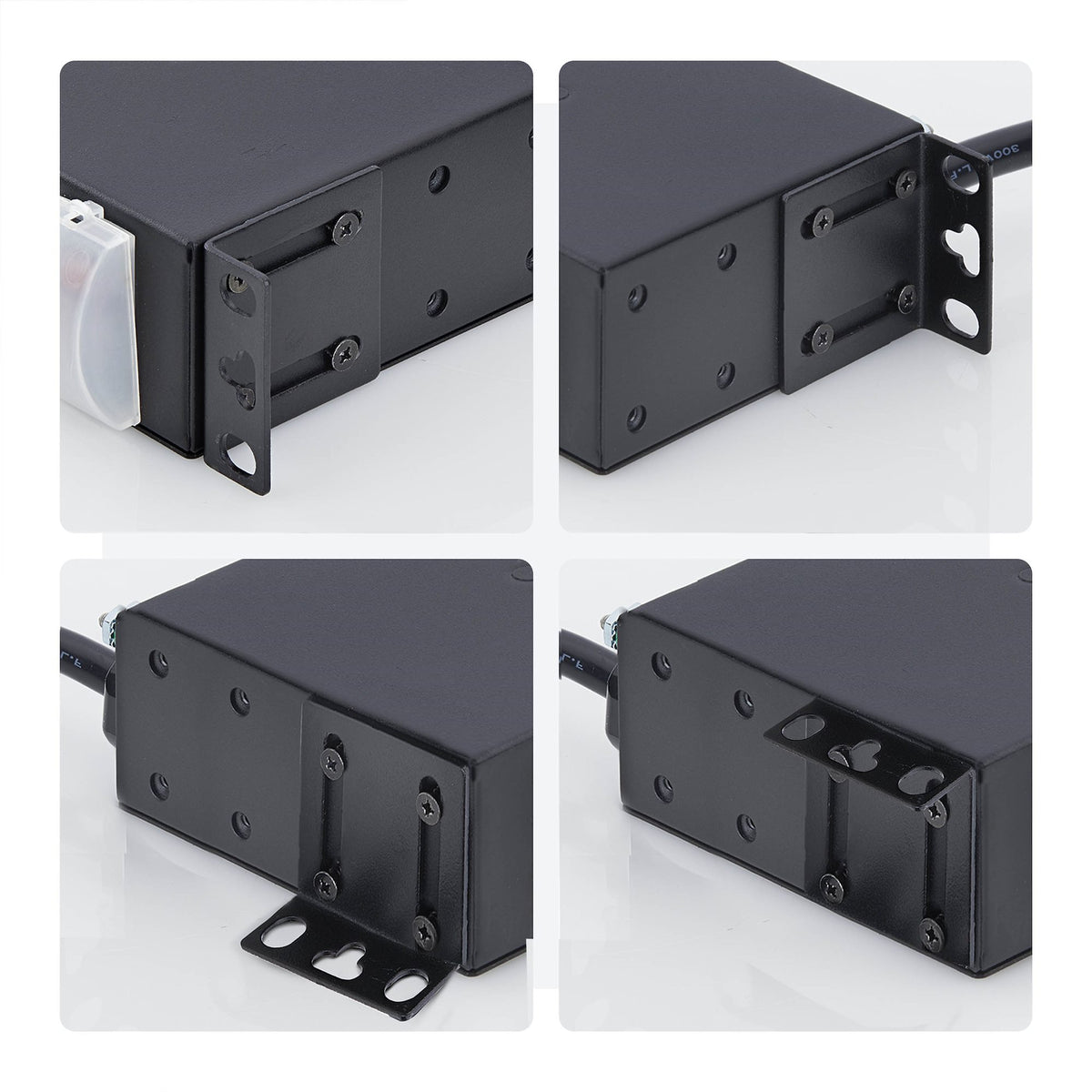

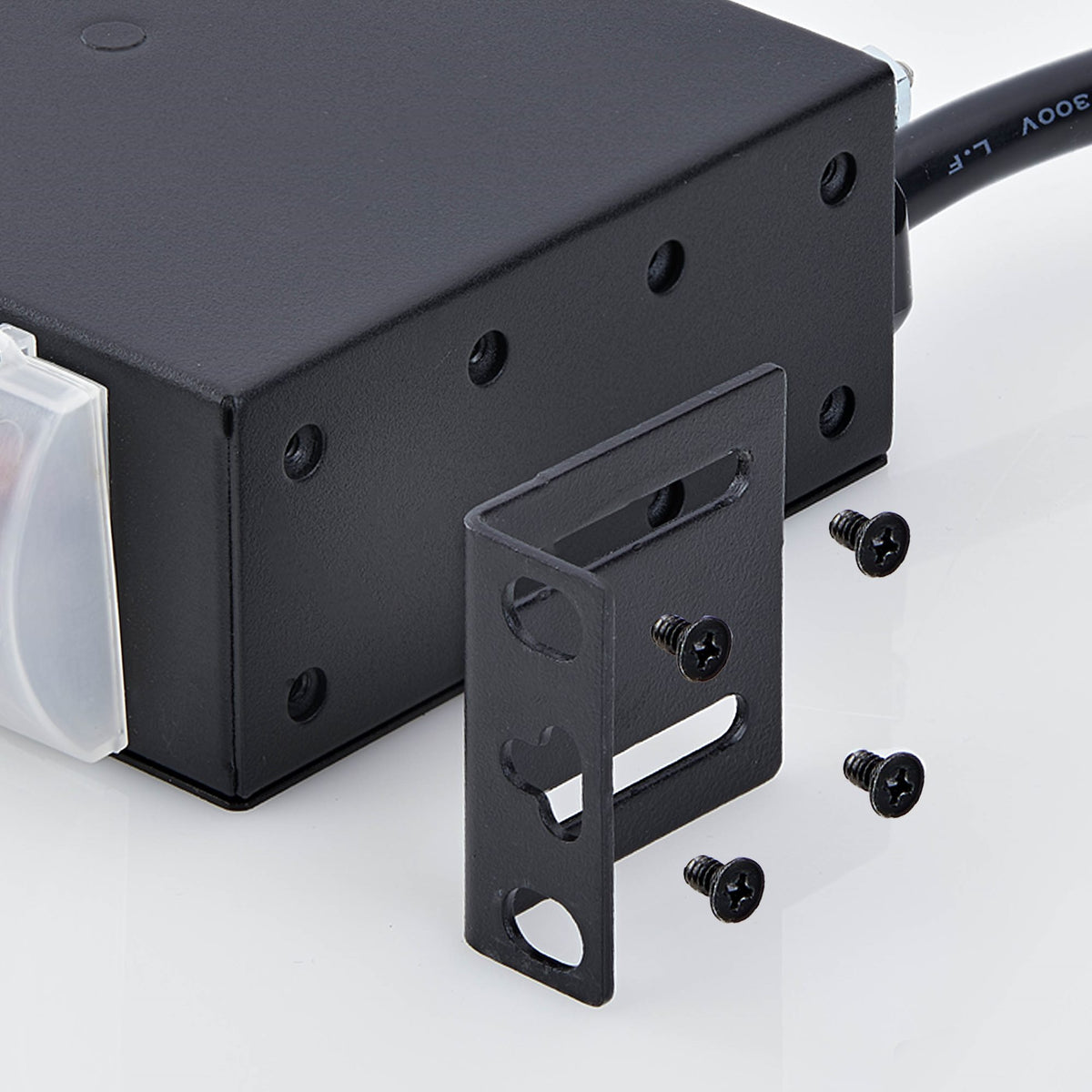

Power delivery unit is TAA-compliant and includes 4-way mounting brackets that provide flexibility for horizontal or vertical mounting. The PDU is compatible with standard 19" EIA-310 racks that are at least 4in (10.1cm) deep and is constructed from durable, powder-coated SPCC steel for long-term reliability. Additionally, the built-in 8ft (2.4m) power cord provides the flexibility and reach needed to accommodate various configurations.
Deliver consistent power to critical equipment in server rooms, AV racks, and test benches. This 1U rackmount PDU features 14 NEMA 5-15 electrical, a built-in circuit breaker, surge protection, and versatile mounting options, making it a dependable power backbone for critical deployments.
Maximize Connectivity in High-Density Racks
Designed for dense IT and AV environments this unit powers up to 14 devices through 6x front and 8x rear-facing NEMA 5-15 outlets. The built-in 8ft (2.4m) power cord provides the flexibility and reach needed to accommodate various configurations.
Built-in Protection for Critical Hardware
The integrated 15A circuit breaker helps protect connected equipment by automatically cutting power if the total current draw exceeds safe operating limits. The PDU features surge protection rated up to 3,000 joules, helping to safeguard devices from sudden power spikes and electrical surges. The illuminated power switch makes it easy to verify power status at-a-glance, even in dimly lit environments, and has a protective cover to help prevent accidental shutdowns during day-to-day tasks around the connected equipment.
Flexible Mounting
Power delivery unit is TAA-compliant and includes 4-way mounting brackets that provide flexibility for horizontal or vertical mounting. The PDU is compatible with standard 19" EIA-310 racks that are at least 4in (10.1cm) deep and is constructed from durable, powder-coated SPCC steel for long-term reliability. Additionally, the built-in 8ft (2.4m) power cord provides the flexibility and reach needed to accommodate various configurations.
Specs
Design
PDU types
A power distribution unit (PDU) is a device fitted with multiple outputs designed to distribute electric power, especially to racks of computers and networking equipment located within the data center. PDUs vary from simple and inexpensive rack-mounted "power strips" to larger floor-mounted PDUs with multiple functions including power filtering to improve power quality, intelligent load balancing, and remote monitoring and control by LAN or SNMP.
Basic
Rack capacity
The spase that device fill in rack.
1U
Housing material
What the casing of the product is made of.
Steel
Product color
The colour e.g. red, blue, green, black, white.
Black
On/off switch
The button which is pressed to switch the device on or off.
Certificates
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS, Trade Agreements Act (TAA)
Weight & dimensions
Width
The measurement or extent of something from side to side.
95,2 mm
Depth
The distance from the front to the back of something.
462,5 mm
Height
The measurement of the product from head to foot or from base to top.
43,3 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
1,62 kg
Packaging content
Manual
Screws included
Number of screws
4
Screw nuts included
Number of screw nuts
4
Rack mount kit
Ports & interfaces
AC outlets quantity
The number of sockets in the device where AC electrical power can be connected.
14 AC outlet(s)
Power plug
A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection.
NEMA 5-15P
AC outlet types
The type of outlet for AC electricity.
NEMA 5-15R
Features
Cable length
How long the cable is.
2,4 m
Power
Nominal input voltage
The voltage which the manufacturer recommends that the device needs to operate normally.
120 V
Maximum current
The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge.
15 A
Nominal output voltage
The voltage which the manufacturer states that the device can produce.
120 V
Output voltage
125 V
Load capacity
1500 VA
Maximum total current draw per phase
15 A
Circuit breaker
Packaging data
Package weight
Weight of the packaged product in gram.
2,6 kg
Package width
The distance from one side of the packaging to the other.
185 mm
Package depth
The distance from the front to the back of the packaging.
552 mm
Package height
The distance from the top to the bottom of the packaging.
80 mm
Logistics data
Master (outer) case width
570 mm
Master (outer) case length
206 mm
Master (outer) case height
352 mm
Quantity per master (outer) case
4 pc(s)
