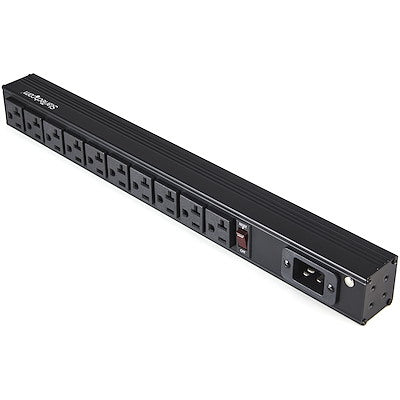

STARTECH power distribution unit (PDU) 10 AC outlet(s) 1U Black (RKPW101920)
- Regular price
- 134.95$
- Sale price
- 134.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
StarTech.com RKPW101920 power distribution unit (PDU) 10 AC outlet(s) 1U Black
Brand:StarTech.com
Product name:10 Outlet Rack Mount Power Strip 125V/16 Amp - 1U Horizontal 19" Rackmount PDU - NEMA 5-20P Input - 10x NEMA 5-15/20R Outlets - Rack Mount PDU - UL Listed - 8ft Power Cord
Product code:RKPW101920
EAN/UPC:
0065030886963
0065030886963, 065030886963
- 10 OUTLET RACK MOUNT POWER STRIP: 10x 5-15/20R Outlets; 16 Amps; Max Input & Output: 125V; 8ft. NEMA 5-20P Power Cord; UL Listed PDU; For 19" Racks/Cabinets; Front-Facing Power Switch; Horizontal Mount

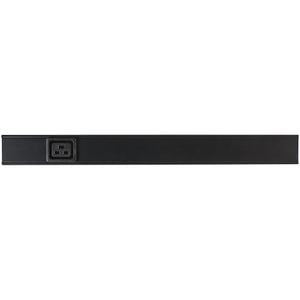

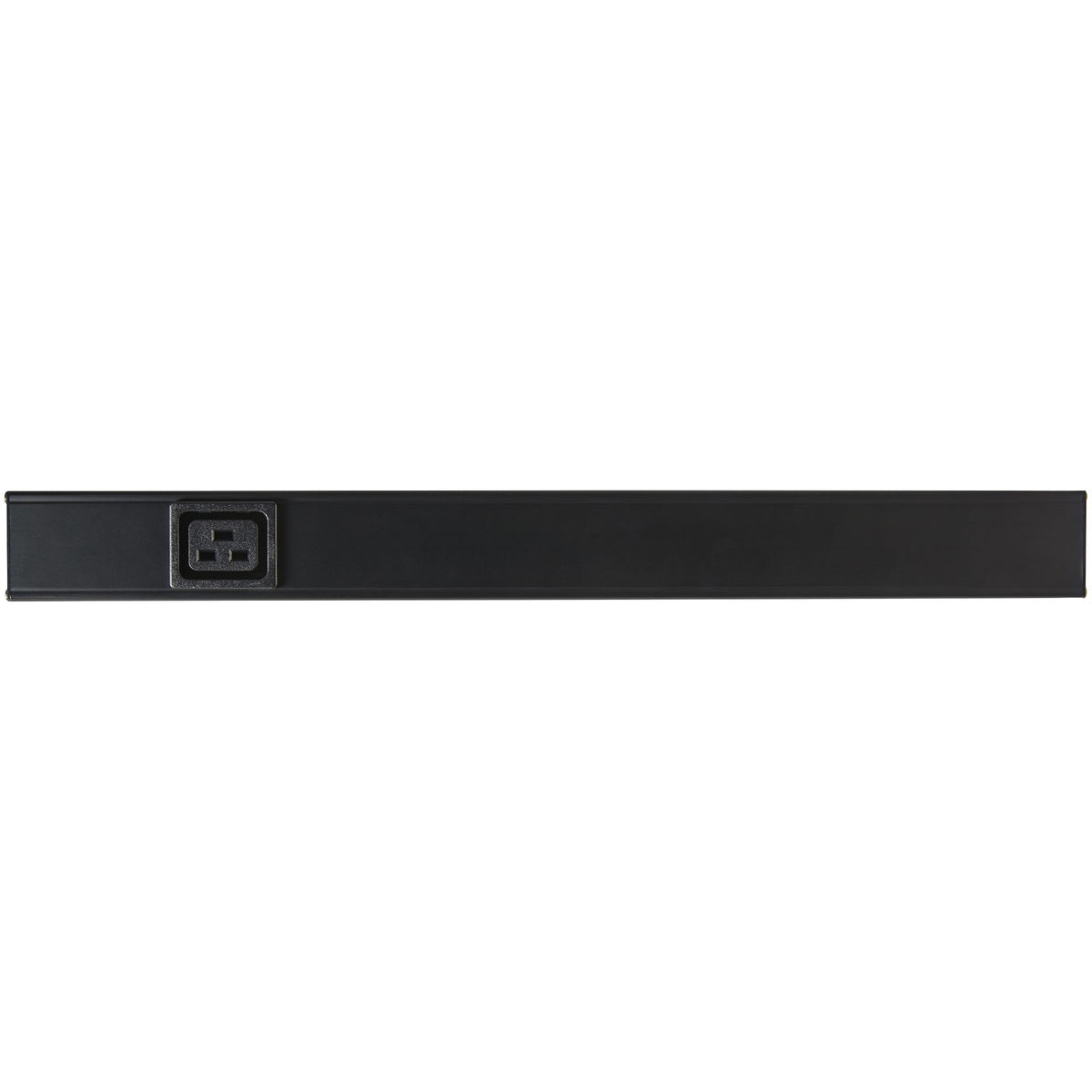

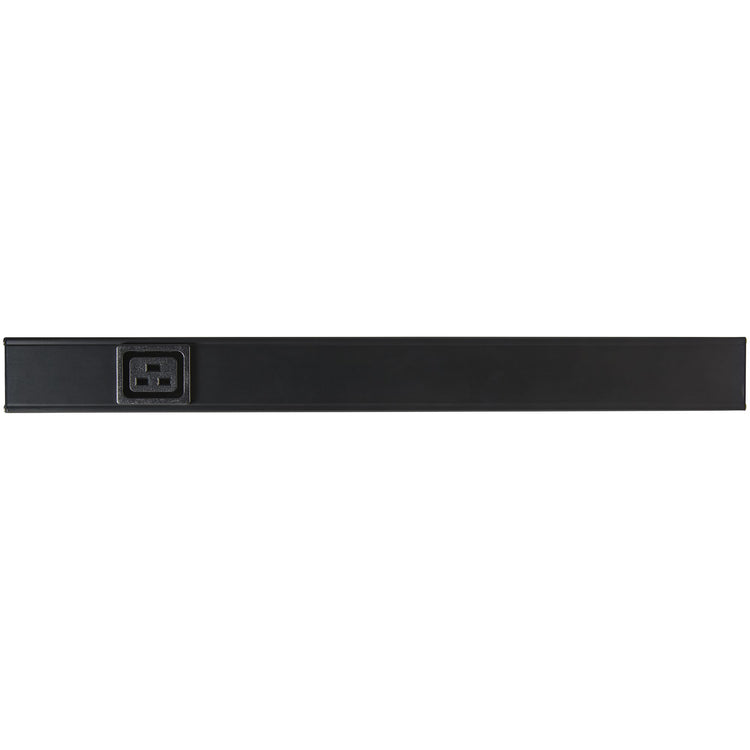

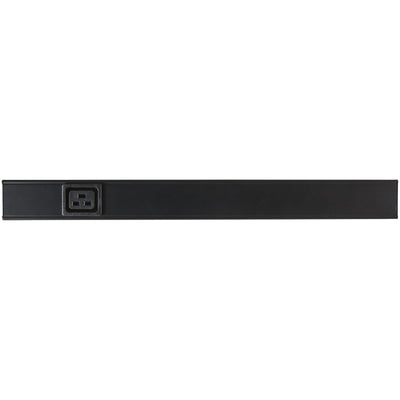

- 20 AMP CIRCUIT BREAKER: This 10 outlet rackmount power strip features a built-in 20A circuit breaker, with included 8 ft long NEMA 5-20P to IEC 60320 C19 power cord
- EASY INSTALLATION: The rack-mount PDU with metal housing supports 19 inch rack 1U horizontal installation, and meets ANSI/EIA RS-310-D standards
- BROAD COMPATIBILITY: 1U horizontal rack-mounted power distribution unit fits many network / data 2-post and 4-post racks; Compatible with 19" server racks with minium 4" (10.2cm) depth
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this rack mountable power bar is backed for 2-Years, including free lifetime 24/5 multi-lingual technical assistance
Description
Rackmount PDU | 16 Amps | 10 Outlets | UL Listed | For 2-Post or 4-Post Racks

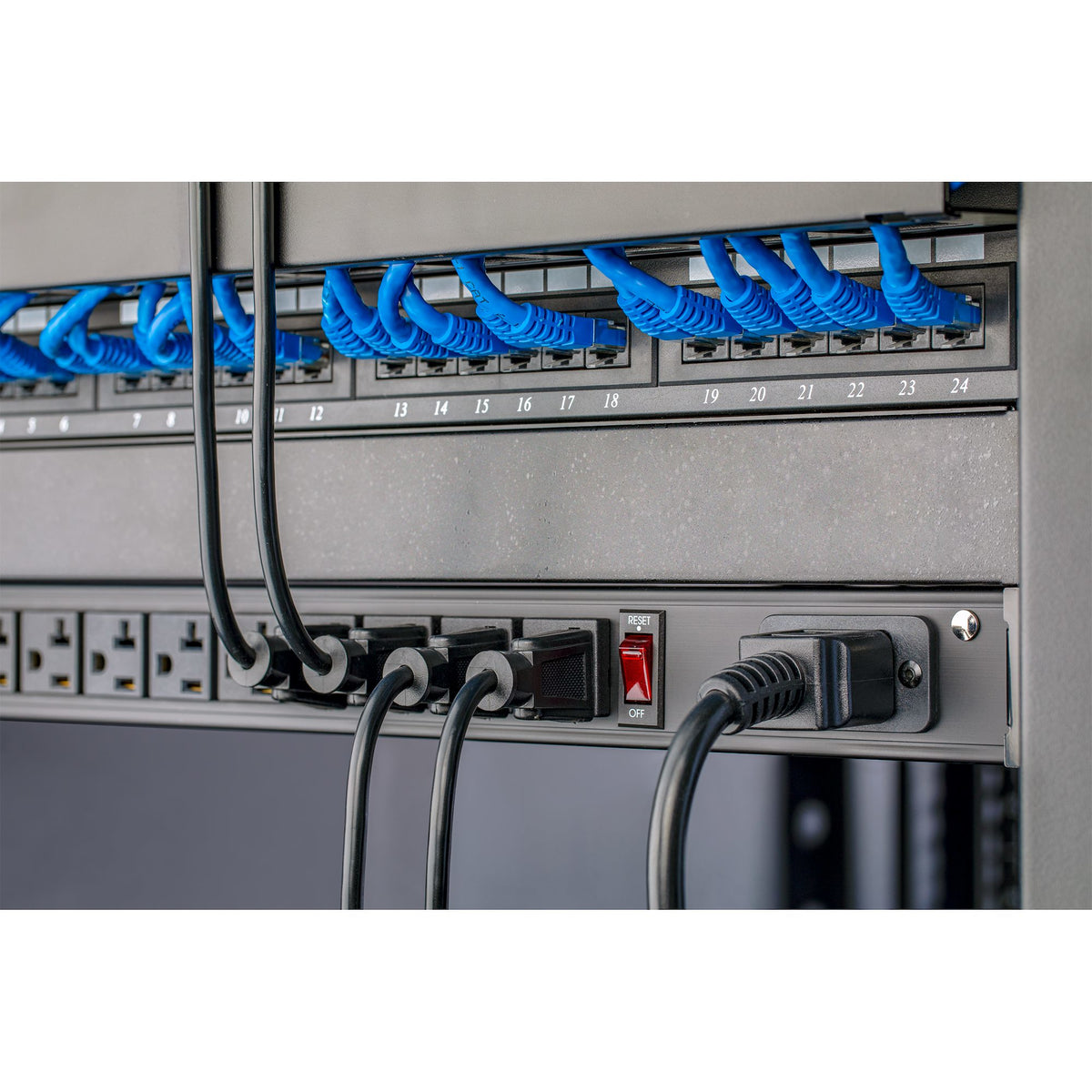

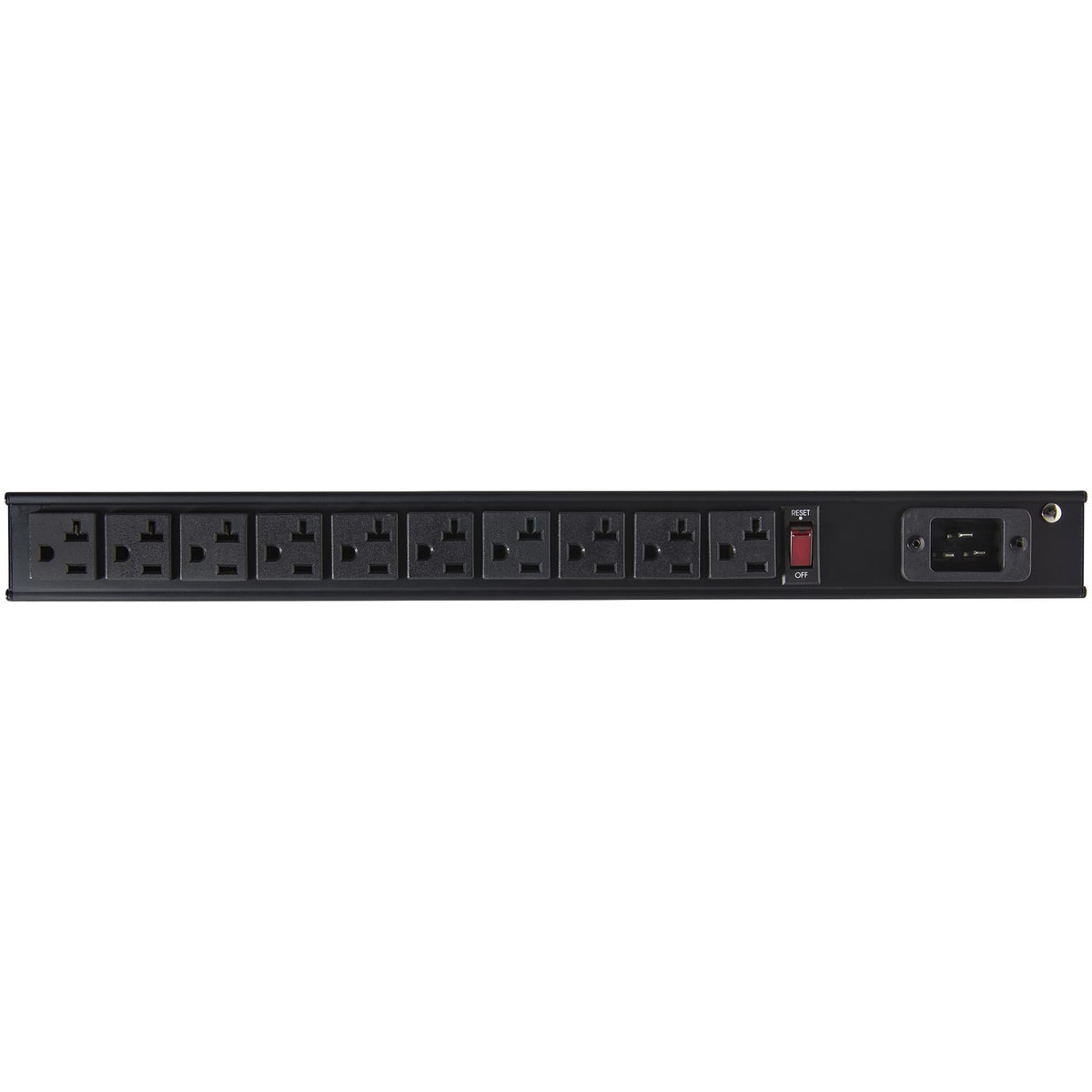

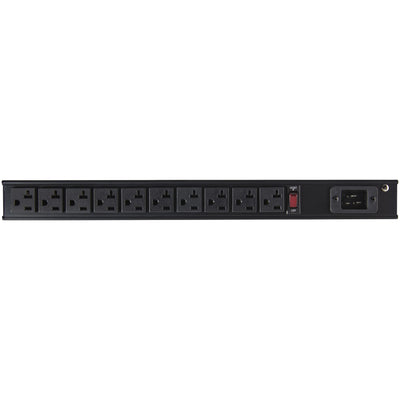

This 10-outlet (125V 16A) Rack PDU delivers a power distribution solution for your server rack/cabinet. The business-grade 1U power distribution unit can be mounted horizontally in any 19 inch server rack 4" in depth or greater, to provide ten 125V (16A) power outlets. You can access ten plugs on the front of the horizontal-mount network rack PDU.
Consolidate Power Sources
This power distribution system consolidates your power source and enables you to control all powered devices from one switch. The front of the rackmount power strip features two LEDs that indicate proper ground and surge detection, while enabling you to control the power state with an illuminated power/reset switch. This PDU includes an 8 ft long power cord.
Built to Last

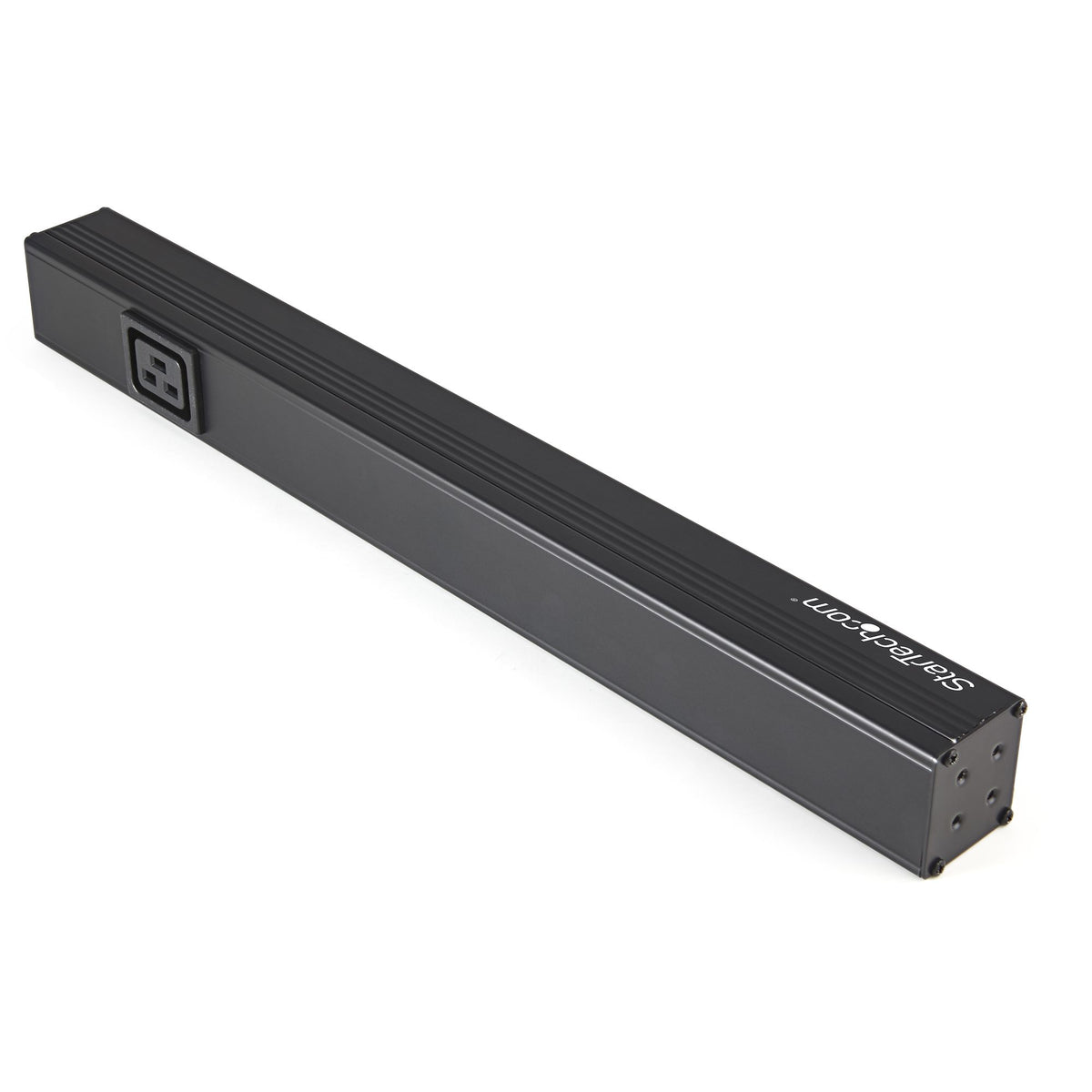

To prevent costly breakdowns of connected devices, the rackmount PDU features a built-in 20 Amp (20A) circuit breaker and reset switch, ensuring dependable performance of vital equipment. To ensure maximum durability, the power distribution unit itself features a rugged steel casing.
This RKPW101920 rack mount power strip is backed by a 2-year StarTech.com warranty with free technical support.
This 10-outlet (125V 16A) Rack PDU delivers a power distribution solution for your server rack/cabinet. The business-grade 1U power distribution unit can be mounted horizontally in any 19 inch server rack 4" in depth or greater, to provide ten 125V (16A) power outlets. You can access ten plugs on the front of the horizontal-mount network rack PDU.
Consolidate Power Sources
This power distribution system consolidates your power source and enables you to control all powered devices from one switch. The front of the rackmount power strip features two LEDs that indicate proper ground and surge detection, while enabling you to control the power state with an illuminated power/reset switch. This PDU includes an 8 ft long power cord.
Built to Last
To prevent costly breakdowns of connected devices, the rackmount PDU features a built-in 20 Amp (20A) circuit breaker and reset switch, ensuring dependable performance of vital equipment. To ensure maximum durability, the power distribution unit itself features a rugged steel casing.
This RKPW101920 rack mount power strip is backed by a 2-year StarTech.com warranty with free technical support.
Video
Specs
Design
Rack mounting
The type of mounting that can position devices in a shelving system (rack).
Rack capacity
The spase that device fill in rack.
1U
Mounting
What size the mounting head of the product is, to couple it with a camera.
Horizontal
Product color
The colour e.g. red, blue, green, black, white.
Black
On/off switch
The button which is pressed to switch the device on or off.
Certificates
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Sustainability
Sustainability certificates
UL ECOLOGO
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-10 - 60 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
The measurement or extent of something from side to side.
445 mm
Depth
The distance from the front to the back of something.
130 mm
Height
The measurement of the product from head to foot or from base to top.
50 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
1,2 kg
Logistics data
Master (outer) case width
580 mm
Master (outer) case length
527 mm
Master (outer) case height
356 mm
Quantity per master (outer) case
10 pc(s)
Ports & interfaces
AC outlets quantity
The number of sockets in the device where AC electrical power can be connected.
10 AC outlet(s)
Power plug
A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection.
C20 coupler
AC outlet types
The type of outlet for AC electricity.
C19 coupler, NEMA 5–20R
Features
Cable length
How long the cable is.
2,4 m
Power
Nominal input voltage
The voltage which the manufacturer recommends that the device needs to operate normally.
125 V
Maximum current
The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge.
20 A
Nominal output voltage
The voltage which the manufacturer states that the device can produce.
125 V
Output voltage
125 V
Load capacity
2500 VA
Maximum input current per phase
20 A
Packaging content
Cables included
AC
Manual
Packaging content

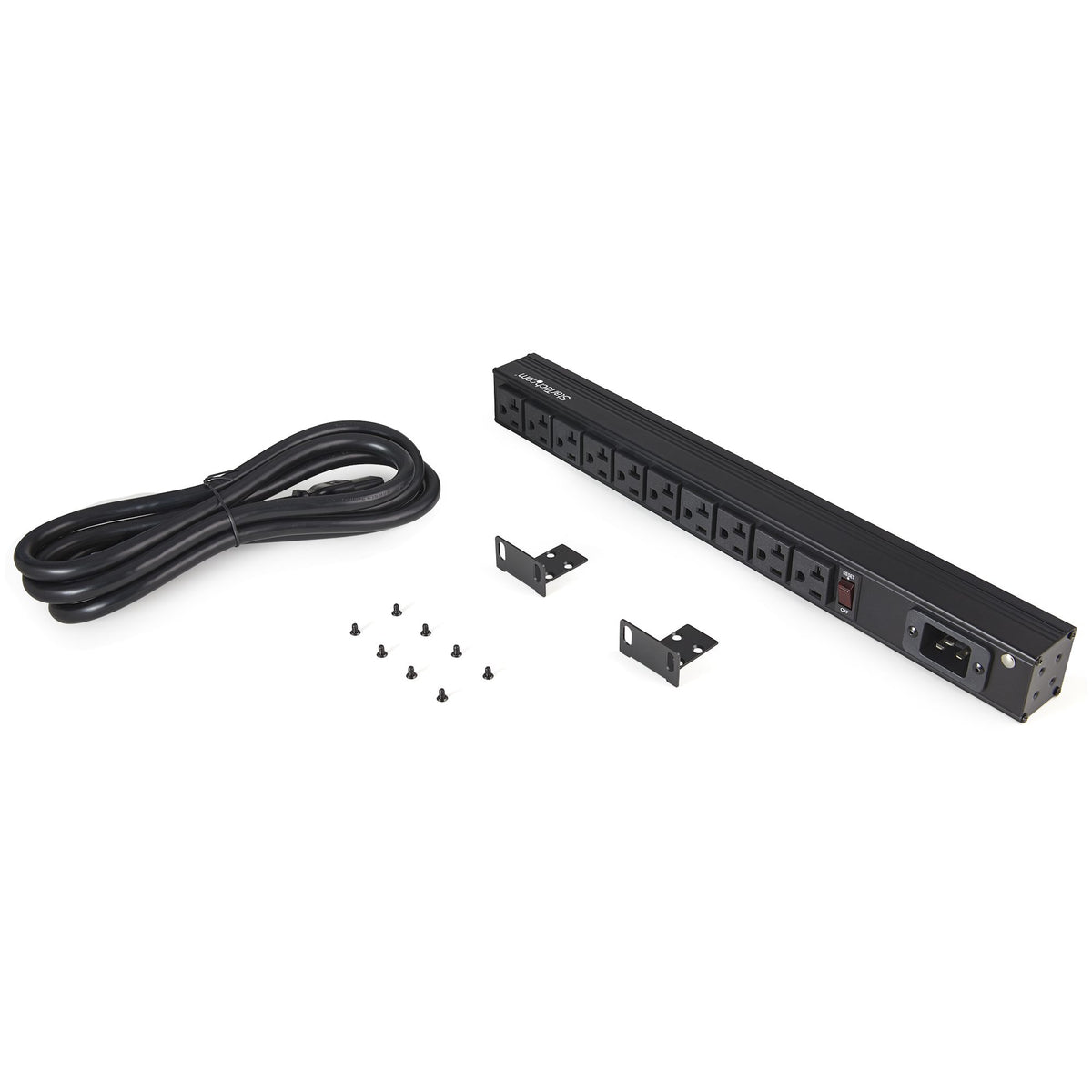

8 ft NEMA 5-20P to IEC 60320 C19 Power Cord
Packaging data
Package weight
Weight of the packaged product in gram.
1,2 kg
Package width
The distance from one side of the packaging to the other.
559 mm
Package depth
The distance from the front to the back of the packaging.
159 mm
Package height
The distance from the top to the bottom of the packaging.
101 mm
