STARTECH PoE adapter Fast Ethernet, Gigabit Ethernet (POEINJ30W)
- Regular price
- 70.95$
- Sale price
- 70.95$
- Regular price
-
Free shipping on orders over $99
Couldn't load pickup availability
StarTech.com POEINJ30W PoE adapter Fast Ethernet, Gigabit Ethernet
Brand:StarTech.com
Product name:Industrial Gigabit Ethernet PoE Injector - 30W 802.3at PoE+ Midspan 48V-56VDC DIN Rail Power Over Ethernet Injector Adapter - -40C to +75C Cameras/Sensors/WiFi Access - TAA
Product code:POEINJ30W
EAN/UPC:
0065030891363
0065030891363, 065030891363
- 30 WATT GIGABIT ETHERNET PoE INJECTOR: Provides up to 30W of power (midspan) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like cameras, sensors, and wi-fi access points
- TECH SPECS: 1 Gbps / 48V-56VDC input / IEEE 802.3af / IEEE 802.3at (30W) / 10/100/1000 Mbps auto negotiation / Link fault passthrough (LFP) / 16K Jumbo frames / IP-30 housing / DIN rail/wall mountable
- DUAL POWER INPUTS: Includes a barrel plug adapter for terminal block power, allowing the product to be hardwired or power powered using a standard AC/DC wall adapter
- ROBUST DESIGN: Industrial Power over Ethernet Injector w/MTBF of 600,000+ hrs @ 50C / Vibration, shock & free fall rated / Rugged IP-30 aluminum housing / Hardened operating temp of -40C to 75C
- STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years / This PoE Injector is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
Description
Rugged PoE Injector | 30 Watts | IP-30 Aluminum Housing | 48V-56V DC | DIN Rails
This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.
30 Watt Power Budget
Provides up to 30W of power (midspan) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like:
• Cameras
• Sensors
• Wi-fi access points
Uses Cat 5e (or higher rated) Ethernet cabling.
Designed for Harsh Environments
Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
• Vibration: EN 60068-2-6
• Shock: EN 60068-2-27
• Free-fall: EN 60068-2-32
600,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.

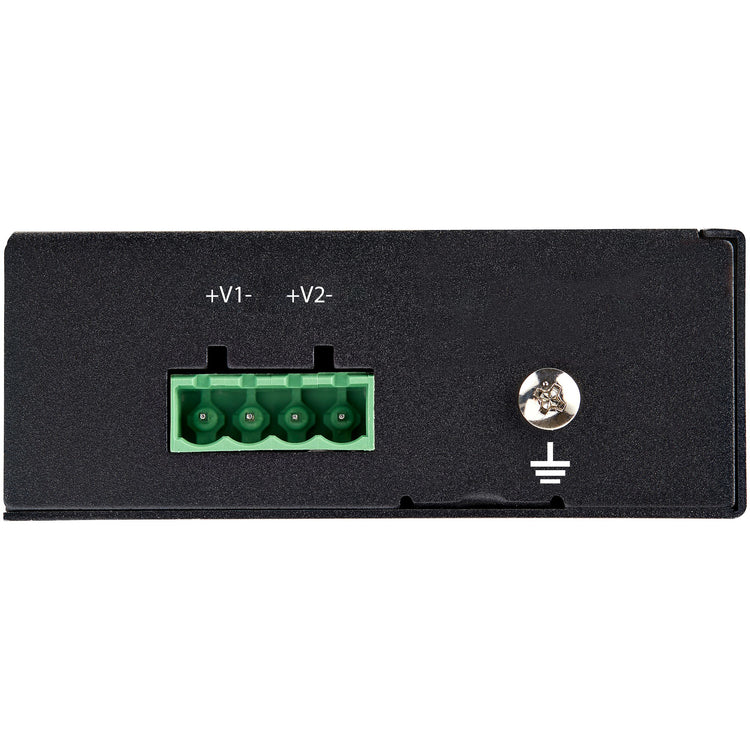

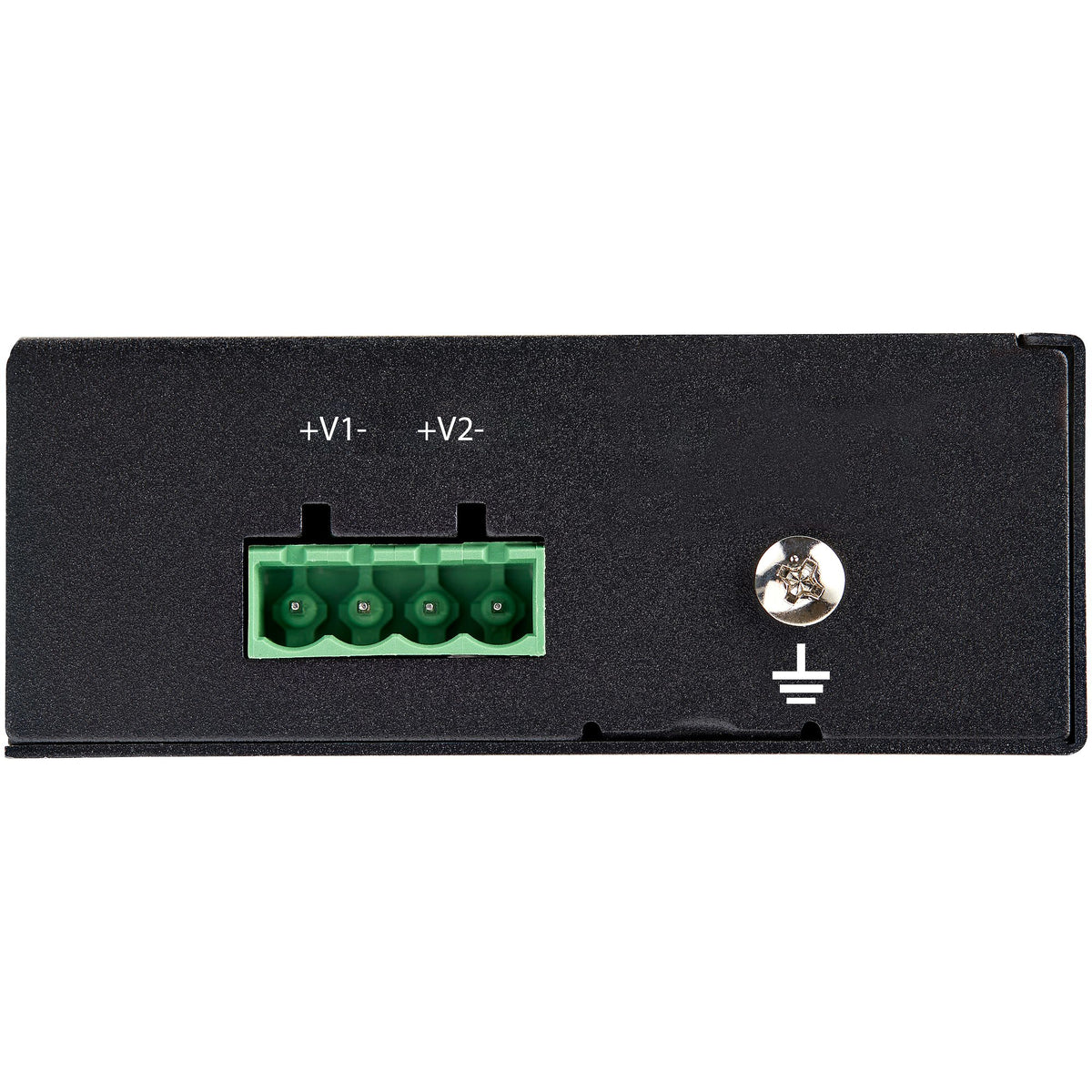

Dual Power Inputs
Dual power inputs provide redundancy. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.
The POEINJ30W is backed by a StarTech.com 2-year warranty and free lifetime technical support.
This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.
30 Watt Power Budget
Provides up to 30W of power (midspan) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like:
• Cameras
• Sensors
• Wi-fi access points
Uses Cat 5e (or higher rated) Ethernet cabling.
Designed for Harsh Environments
Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
• Vibration: EN 60068-2-6
• Shock: EN 60068-2-27
• Free-fall: EN 60068-2-32
600,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.
Dual Power Inputs
Dual power inputs provide redundancy. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.
The POEINJ30W is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specs
Network
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
10,100,1000 Mbit/s
Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Auto MDI/MDI-X
A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Duplex system
A duplex communication system is a point-to-point system composed of two connected parties or devices that can communicate with one another in both directions, simultaneously.
Full
Supported network protocols
Network protocols tested as compatible with this product e.g. FTP,HTML, POP.
CSMA/CD
Power
Input voltage
The voltage (V) which is required to power the product.
48 - 56 V
Power consumption (max)
The maximum amount of power used by the device.
37 W
Power over Ethernet (PoE) power per port
30 W
Power plug type
Type N
Weight & dimensions
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
143 g
Packaging content
Quick installation guide
Packaging data
Package length
21,1 cm
Package width
The distance from one side of the packaging to the other.
166 mm
Package depth
The distance from the front to the back of the packaging.
214 mm
Package height
The distance from the top to the bottom of the packaging.
69 mm
Package weight
Weight of the packaged product in gram.
381 g
Features
Product color
The colour e.g. red, blue, green, black, white.
Black
Surge protection
Maximum operating distance
The maximum distance from which you can operate the device.
100 m
LED indicators
Yes
Safety
List of regulatory safety standards for all countries in which this product has been certified.
MET (UL) 60950-1, EN60950-1
Power protection features
Features that protect the device against power problems e.g. overload.
Overload, Reverse polarity
Ports & interfaces
RJ-45 input ports
1
RJ-45 output ports
1
Certificates
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Certification
CE, FCC, UL
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
-40 - 75 °C
Operating relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 85 °C
Logistics data
Harmonized System (HS) code
85044095
Master (outer) case width
364 mm
Master (outer) case length
370 mm
Master (outer) case height
250 mm
Quantity per master (outer) case
10 pc(s)
