STARTECH PoE adapter 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet (AF41XC-POE-INJECTOR)
- Regular price
- 173.95$
- Sale price
- 173.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
StarTech.com AF41XC-POE-INJECTOR PoE adapter 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Brand:StarTech.com
Product name:1-Port 10Gbps PoE++ Injector, 90W, 2.5/5/10G Ethernet/10/100/1000M, PoE++ (802.3af/at/bt), Wall Mountable, Unmanaged Inline Power Over Ethernet, TAA
Product code:AF41XC-POE-INJECTOR
EAN/UPC:
0065030902212
0065030902212, 065030902212
- 10G POE++ INJECTOR: Single-port TAA-compliant PoE midspan injector supports up to 10Gbps and 90W of power (PoE/PoE+/PoE++); Features OVP, OCP, and SCP protection for enhanced reliability and durability, and a fan-less design to ensure silent operation
- MULTIGIGABIT 90W DATA & POWER: Auto-negotiation between 10/100/1000Mbps/2.5G/5G/10G; Delivers 10Gbps data & up to 90W of power to a single powered device up to 262ft (80m) away, up to 5Gbps and 90W of power up to 328ft (100m)
- HASSLE-FREE INSTALLATION: Internal power supply and integrated wall-mounting ears with front-facing screw holes offer convenient, versatile installation, especially in hard-to-reach areas; Cables can be routed from one side for better cable management
- APPLICATIONS: Provides more power and bandwidth over a single RJ45 connection to demanding PoE devices such as high resolution IP cameras and enterprise grade Wi-Fi 6/6E or 7 access points (APs); Ideal for remote IP devices without available power outlets
- TECH SPECS: RJ45 Shielded Socket (data/data+power); 90W max output; 54V 1.7A output; Compliant with IEEE 802.3af/at & IEEE 802.3bt; 10/100/1000 Mbps & 1/2.5/5Gbps; Dimensions 4x2.3x1.3-inch (100x58.4x33.4mm)
Description
Supply power and data to a PoE device over standard Ethernet cabling
This 1-port multi-speed PoE++ Injector serves as a Power Sourcing Equipment (PSE) device and enables Ethernet speeds of 10/100 Mbps/1000Mbps and 1/2.5/5/10Gbps. This TAA-compliant mid-span inline injector can transmit network data and power up to 328ft (100m) for single Powered Devices (PD).
Versatile PoE Injector
Single port PoE+ injector supports the IEEE 802.3af/at & 802.3bt PSE standards, and delivers up to 90W output (56V, 1.7A). Connect a remote PoE device to a network at a location where there is no power source, but an Ethernet cable already exists. This includes access points, IP cameras, VoIP phone systems, IPTV and access controls. The flexible design of the PoE injector allows for either desktop or surface-mount use.
Streamlined Cable Management
With integrated wall-mounting ears, this Gigabit PoE++ injector offers convenient and versatile installation options. All Ethernet cables can be routed from one side of the unit for efficient and organized cable management. The compact design (4x2.3x1.3-inch / 100x58.4x33.4mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation.
This 1-port multi-speed PoE++ Injector serves as a Power Sourcing Equipment (PSE) device and enables Ethernet speeds of 10/100 Mbps/1000Mbps and 1/2.5/5/10Gbps. This TAA-compliant mid-span inline injector can transmit network data and power up to 328ft (100m) for single Powered Devices (PD).
Versatile PoE Injector
Single port PoE+ injector supports the IEEE 802.3af/at & 802.3bt PSE standards, and delivers up to 90W output (56V, 1.7A). Connect a remote PoE device to a network at a location where there is no power source, but an Ethernet cable already exists. This includes access points, IP cameras, VoIP phone systems, IPTV and access controls. The flexible design of the PoE injector allows for either desktop or surface-mount use.
Streamlined Cable Management
With integrated wall-mounting ears, this Gigabit PoE++ injector offers convenient and versatile installation options. All Ethernet cables can be routed from one side of the unit for efficient and organized cable management. The compact design (4x2.3x1.3-inch / 100x58.4x33.4mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation.
Video
Specs
Network
Ethernet interface type
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
10000 Mbit/s
Cabling technology
Type of cable technology performance.
1000/10000
Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u
Auto MDI/MDI-X
A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Web-based management
Using a website/web application to manage something.
Chipset
Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
SkyWorks - Si3471A-A01
Ports & interfaces
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
2
RJ-45 input ports
1
RJ-45 output ports
1
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Operating relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-30 - 80 °C
Weight & dimensions
Width
The measurement or extent of something from side to side.
64 mm
Depth
The distance from the front to the back of something.
170 mm
Height
The measurement of the product from head to foot or from base to top.
34 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
350 g
Logistics data
Master (outer) case width
286 mm
Master (outer) case length
522 mm
Master (outer) case height
455 mm
Quantity per master (outer) case
40 pc(s)
Features
Product color
The colour e.g. red, blue, green, black, white.
Black
Housing material
What the casing of the product is made of.
Plastic
Wall mountable
The product can be mounted on (attached to ) a wall.
Maximum operating distance
The maximum distance from which you can operate the device.
100 m
LED indicators
Yes
Jumbo frames support
Jumbo frames
9000
Power protection features
Features that protect the device against power problems e.g. overload.
Over current, Over voltage, Short circuit
Auto-negotiation
Power
AC adapter input voltage
100 - 240 V
Input current
1.5 A
AC adapter output voltage
56 V
Output current
1,7 A
Total Power over Ethernet (PoE) budget
90 W
Suitable for use in country/location
United States
Packaging content

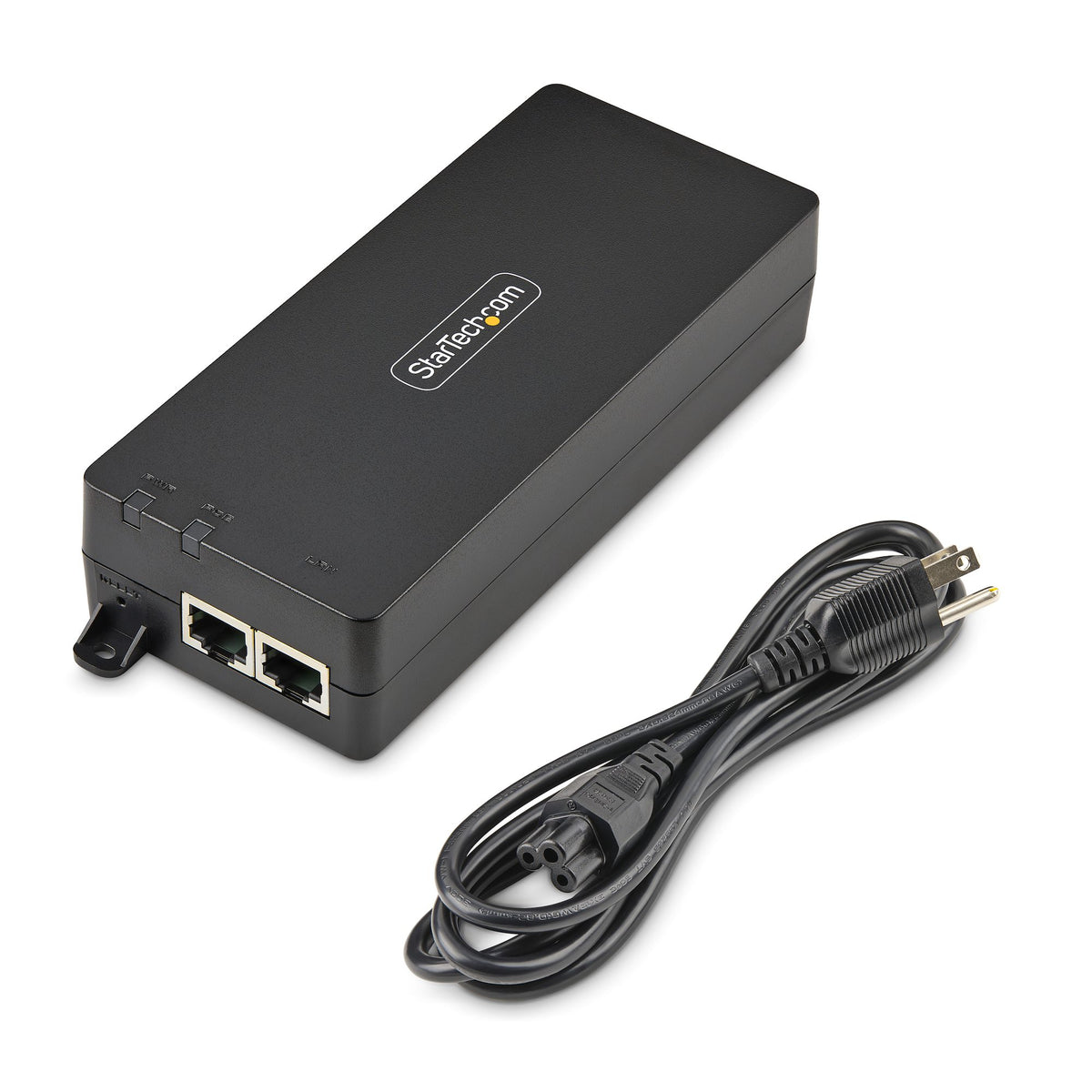

Power cord included
Quick installation guide
Packaging data
Package width
The distance from one side of the packaging to the other.
212 mm
Package depth
The distance from the front to the back of the packaging.
125 mm
Package height
The distance from the top to the bottom of the packaging.
52 mm
Package weight
Weight of the packaged product in gram.
600 g
