STARTECH network media converter 1000 Mbit/s Multi-mode, Single-mode Black (IMC1GSFP)
- Regular price
- 309.95$
- Sale price
- 309.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
StarTech.com IMC1GSFP network media converter 1000 Mbit/s Multi-mode, Single-mode Black
Brand:StarTech.com
Product name:Industrial Fiber to Ethernet Media Converter - 10/100/1000 Mbps SFP to RJ45/Cat6 - Singlemode/Multimode Optical Fiber to Copper Gigabit Network - 12-56V DC - IP-30/ -40 to +75C - TAA
Product code:IMC1GSFP
EAN/UPC:
0065030889612
0065030889612, 065030889612
- INDUSTRIAL FIBER TO ETHERNET MEDIA CONVERTER: Extends & converts 1Gbps fiber to RJ45 copper w/ hardened operating temp -40C to 75C; powered by 12V-56V DC for compatibility with solar, auto & rail
- STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years; this media converter is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
- OPEN SFP SLOT: Compatible with any standard SFP and can be used for multimode or single mode fiber connections; easy deployment across applications, fiber distances or fiber cable types
- ROBUST DESIGN: Industrial Gigabit Network Media Converter w/MTBF of 500,000+ hrs @ 50C / Vibration, shock & free fall rated / Rugged IP-30 aluminum housing
- TECH SPECS: 10/100/1000 Mbps / 12V-56VDC / Single Mode SMF & Multi-Mode MMF Fiber / 16K Jumbo Frames / LFP / IP-30 Housing / DIN or Wall Mountable / Terminal Block and/or Barrel Adapter for power redundancy
Description
Gigabit Media Converter | SFP to RJ45 (Cat6) | MTBF: 500,000+hrs @ 50°C | 12V-56VDC | Works with 100 Mbps SFPs
An industrial media converter that converts fiber to copper at a network endpoint.
A Flexible Solution Covering Different Requirements

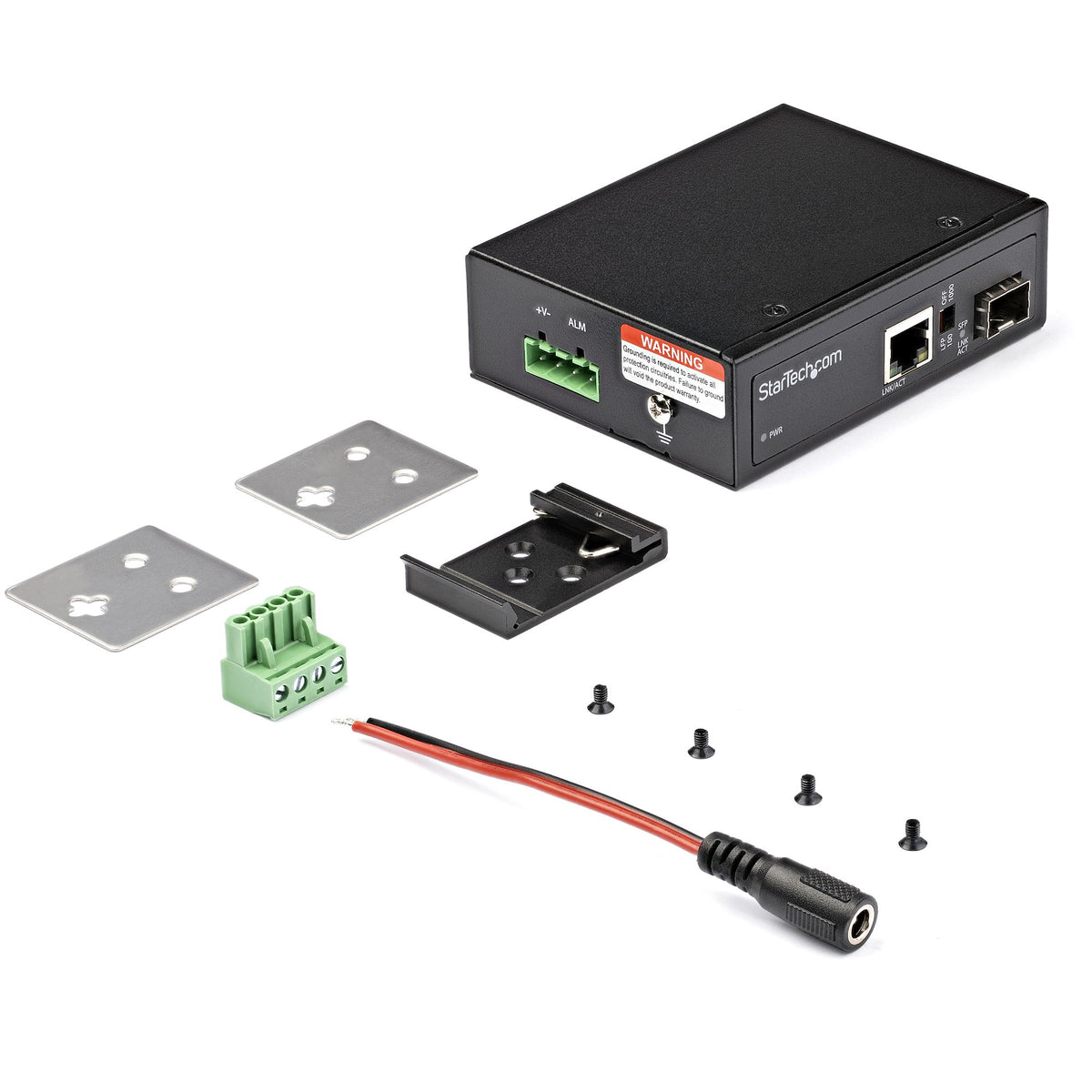

This media converter features an open SFP slot for any standard gigabit SFP to be used for the incoming fiber connection and is easily deployed across applications or fiber cable types. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. It can be powered using 12V-56V DC for solar, automotive, rail, and other applications and requires a minimum 12V power input. Includes hardware for DIN rail or wall mounting.
For Mission-Critical Applications
Designed with IP-30 housing and has an MBTF of >500;000 hrs (Telcordia/Bellcore) at 50°C and an operating temperature range of include -40 C to 75 C for durability; it's rated to various vibration, shock, and free-fall standards:
• Vibration: EN 60068-2-6
• Shock: EN 60068-2-27
• Free-Fall: EN 60068-2-32
The IMC1GSFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
An industrial media converter that converts fiber to copper at a network endpoint.
A Flexible Solution Covering Different Requirements
This media converter features an open SFP slot for any standard gigabit SFP to be used for the incoming fiber connection and is easily deployed across applications or fiber cable types. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. It can be powered using 12V-56V DC for solar, automotive, rail, and other applications and requires a minimum 12V power input. Includes hardware for DIN rail or wall mounting.
For Mission-Critical Applications
Designed with IP-30 housing and has an MBTF of >500;000 hrs (Telcordia/Bellcore) at 50°C and an operating temperature range of include -40 C to 75 C for durability; it's rated to various vibration, shock, and free-fall standards:
• Vibration: EN 60068-2-6
• Shock: EN 60068-2-27
• Free-Fall: EN 60068-2-32
The IMC1GSFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specs
Network
Maximum data transfer rate
The maximum speed with which data can be transmitted from one device to another.
1000 Mbit/s
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3, IEEE 802.3x
Jumbo frames support
Jumbo frames
9000
Auto MDI/MDI-X
A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Duplex system
A duplex communication system is a point-to-point system composed of two connected parties or devices that can communicate with one another in both directions, simultaneously.
Full
Cable types supported
Cat6
Ports & interfaces
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Fiber ports quantity
The number of sockets (ports) for fibers (cables).
1
Fiber optic connector
This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.
SFP
Weight & dimensions
Width
The measurement or extent of something from side to side.
81,5 mm
Depth
The distance from the front to the back of something.
104 mm
Height
The measurement of the product from head to foot or from base to top.
32 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
144 g
Packaging data
Package width
The distance from one side of the packaging to the other.
168 mm
Package depth
The distance from the front to the back of the packaging.
215 mm
Package height
The distance from the top to the bottom of the packaging.
67 mm
Package weight
Weight of the packaged product in gram.
386 g
Performance
Fiber mode structure
Multi-mode, Single-mode
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
569265 h
Features
Internal
The product is built in.
LED indicators
Yes
Product color
The colour e.g. red, blue, green, black, white.
Black
Housing material
What the casing of the product is made of.
Aluminium
International Protection (IP) code
The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
IP30
DIN rail mounting
Power
Input voltage
The voltage (V) which is required to power the product.
12 - 56 V
Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Power plug type
Type N
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
-40 - 75 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Packaging content
User guide
Certificates
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
CE, RoHS
Logistics data
Harmonized System (HS) code
85176990
Master (outer) case width
366 mm
Master (outer) case length
368 mm
Master (outer) case height
255 mm
Quantity per master (outer) case
10 pc(s)
