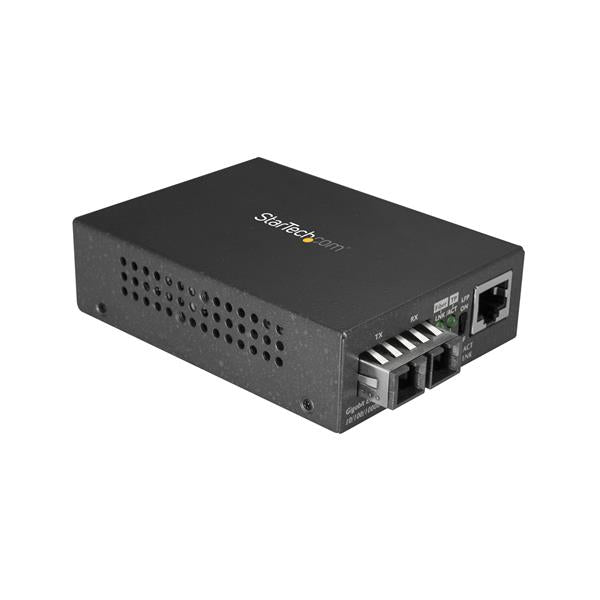

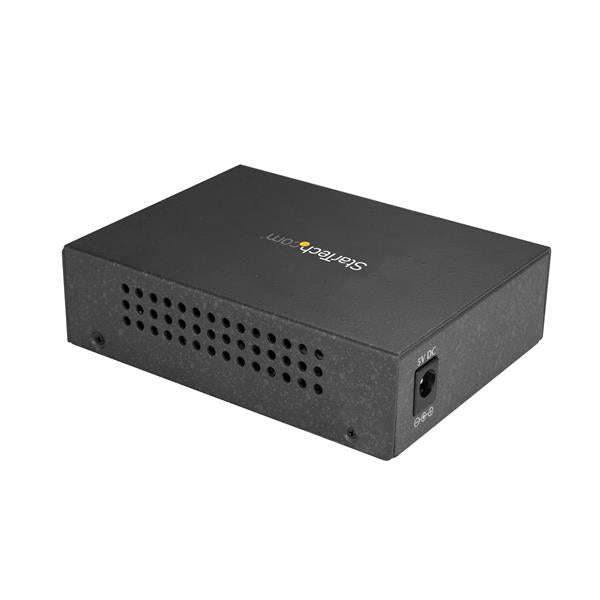

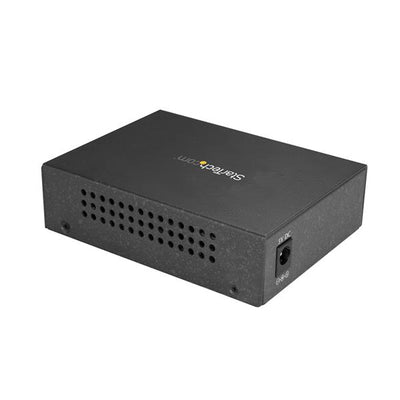

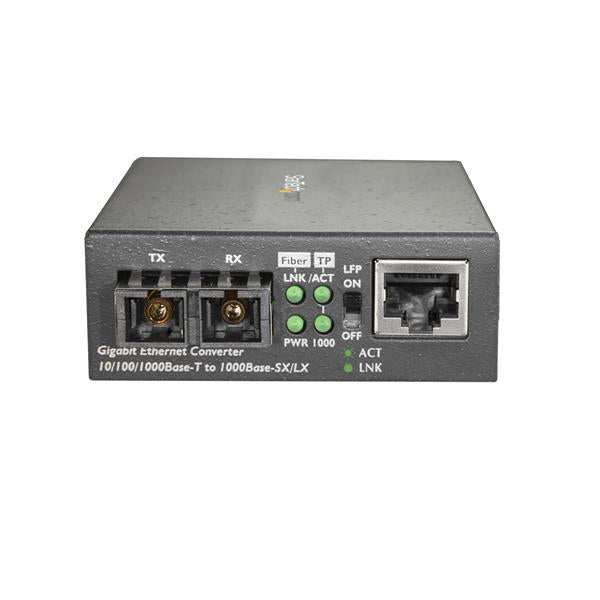

STARTECH network media converter 1000 Mbit/s 1310 nm Single-mode Black (MCMGBSCSM10)
- Regular price
- 132.95$
- Sale price
- 132.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
StarTech.com MCMGBSCSM10 network media converter 1000 Mbit/s 1310 nm Single-mode Black
Brand:StarTech.com
Product name:Single-Mode (SM) SC Fiber Media Converter for 10/100/1000 Networks, Standalone Gigabit Ethernet to SC Fiber Converter, 1310nm, 10km - TAA
Product code:MCMGBSCSM10
EAN/UPC:
0065030878241
0065030878241, 065030878241
- <b>Extend Ethernet Over Distances</b>: Convert and extend a 10/100/1000 Mbps Ethernet signal to Gigabit single-mode SC fiber, up to 10km (6.2 mi); For specialized edge, industrial / remote deployments requiring long-range, secure wired connectivity
- <b>Compact and Durable</b>: Media converter installs almost anywhere with little to no configuration; Also mounts in the MCM7-MEDIA-CHASSIS or MCM15-MEDIA-CHASSIS for clean, professional integration into structured data centers, or server rooms; TAA compliant
- <b>Reliable Performance Across Mixed Speeds</b>: Supports IEEE 802.3 standards, Jumbo Frames (up to 9K), full-duplex flow control, auto-negotiation, and auto MDI/MDI-X; Delivers plug-and-play setup and reduced packet loss across legacy and high-speed links
- <b>Deploy Efficiently in Compact, Power-Sensitive Spaces</b>: Consumes only 3.75W (typical) via 5V DC input from included power adapter or chassis power supply and rated for 0°C to 50°C operating environments; Does not support PoE
- <b>The IT Pro's Choice</b>: Designed for reliability in edge and on-prem deployments, our media converters are lab-tested and field-proven for seamless integration and maximum uptime; Backed by free lifetime 24/5 multi-lingual technical assistance
Description
Convert and extend a Gigabit Ethernet connection up to 10 km over single-mode SC fiber
This fiber media converter converts and extends a Gigabit Ethernet (1000 Mbps) network up to 10 km over single-mode fiber on 1000BASE-LX networks.
Extend your GbE network cost-effectively
The fiber media converter provides a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.
Reliable and scalable network connectivity
Supporting a maximum single-mode fiber cable distance of up to 10 km (6.2 mi.), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also delivers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.
This fiber media converter converts and extends a Gigabit Ethernet (1000 Mbps) network up to 10 km over single-mode fiber on 1000BASE-LX networks.
Extend your GbE network cost-effectively
The fiber media converter provides a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.
Reliable and scalable network connectivity
Supporting a maximum single-mode fiber cable distance of up to 10 km (6.2 mi.), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also delivers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.
Video
Specs
Network
Maximum data transfer rate
The maximum speed with which data can be transmitted from one device to another.
1000 Mbit/s
Converter input interface
A convertor changes one form of signal into another e.g. A/D Converter changes a signal from analog to digital. A convertor input interface is the place where a convertor connects to the product in order to input the converted signal.
10Base-T, 100Base-TX, 1000Base-T
Converter output interface
100Base-LX
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
10,100,1000 Mbit/s
Jumbo frames support
Jumbo frames
9000
Auto MDI/MDI-X
A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Store-and-forward
Duplex system
A duplex communication system is a point-to-point system composed of two connected parties or devices that can communicate with one another in both directions, simultaneously.
Full
Power
Input voltage
The voltage (V) which is required to power the product.
100 - 240 V
Input current
0.5 A
Output voltage
5 V
Output current
2,6 A
External power adapter
Power plug type
Type N

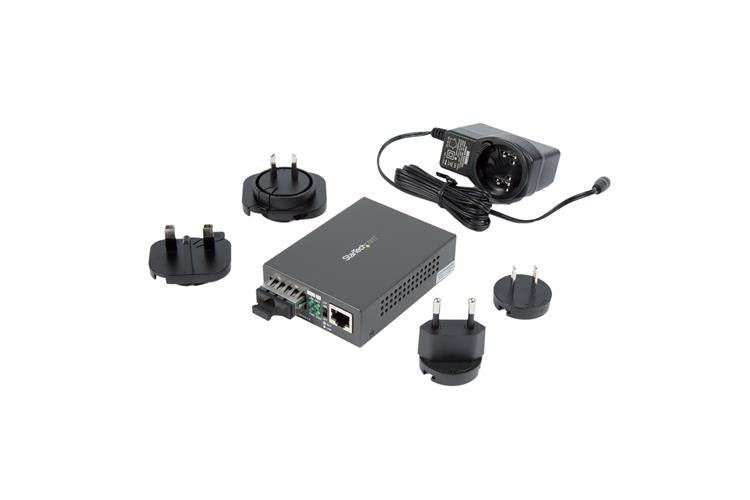

Packaging content
AC adapter included
Quick installation guide
Packaging data
Package width
The distance from one side of the packaging to the other.
120 mm
Package depth
The distance from the front to the back of the packaging.
226 mm
Package height
The distance from the top to the bottom of the packaging.
70 mm
Package weight
Weight of the packaged product in gram.
560 g
Performance
Maximum transfer distance
The greatest distance over which the data/signal can be transferred.
10000 m
Wavelength
The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light.
1310 nm
Wavelength-division multiplexing (WDM)
Fiber mode structure
Single-mode
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
50000 h
Features
Internal
The product is built in.
LED indicators
Activity, Link, Power
Product color
The colour e.g. red, blue, green, black, white.
Black
Ports & interfaces
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Fiber ports quantity
The number of sockets (ports) for fibers (cables).
1
Fiber optic connector
This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.
SC
Weight & dimensions
Width
The measurement or extent of something from side to side.
105 mm
Depth
The distance from the front to the back of something.
70 mm
Height
The measurement of the product from head to foot or from base to top.
26 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
196 g
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 50 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-10 - 70 °C
Operating relative humidity (H-H)
5 - 90%
Certificates
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Certification
CE, FCC
Logistics data
Harmonized System (HS) code
85176990
Master (outer) case width
368 mm
Master (outer) case length
582 mm
Master (outer) case height
306 mm
Quantity per master (outer) case
20 pc(s)
