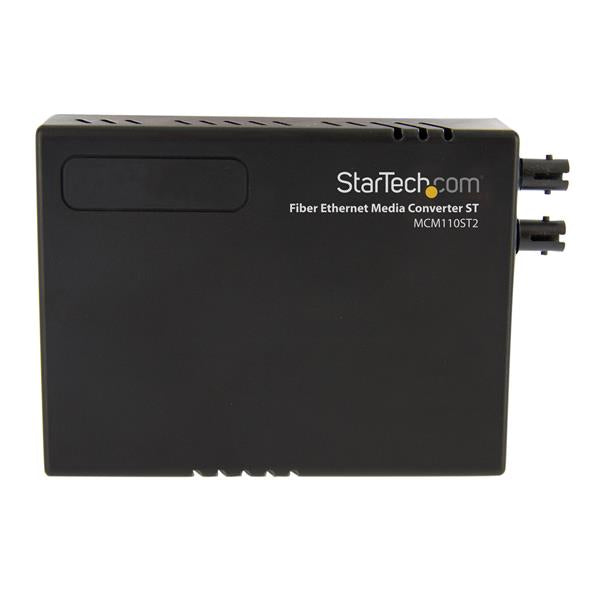

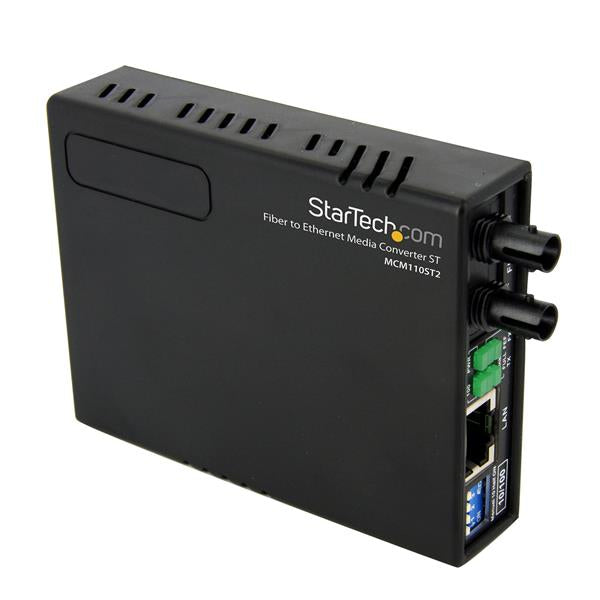

STARTECH network media converter 100 Mbit/s 1310 nm (MCM110ST2)
- Regular price
- 111.95$
- Sale price
- 111.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
StarTech.com MCM110ST2 network media converter 100 Mbit/s 1310 nm
Brand:StarTech.com
Product name:Multi-Mode (MM) ST Fiber Media Converter for 10/100Mbps Networks, Standalone Ethernet to ST MM Fiber Media Converter, 1310nm, 2km - TAA
Product code:MCM110ST2
EAN/UPC:
0065030835633
0065030835633, 065030835633
- <b>Enable Long-Range Network Connectivity</b>: Convert 10/100 Mbps Ethernet to multi-mode ST fiber and extend up to 1.2mi (2km), delivering secure, interference-resistant links for edge, industrial, and remote sites where copper falls short
- <b>Deploy Anywhere with Minimal Setup</b>: Compact media converter installs in tight spaces, enabling fast integration into data centers or server rooms; TAA compliant for procurement standards; Does not work with MCM7-MEDIA-CHASSIS or MCM15-MEDIA-CHASSIS

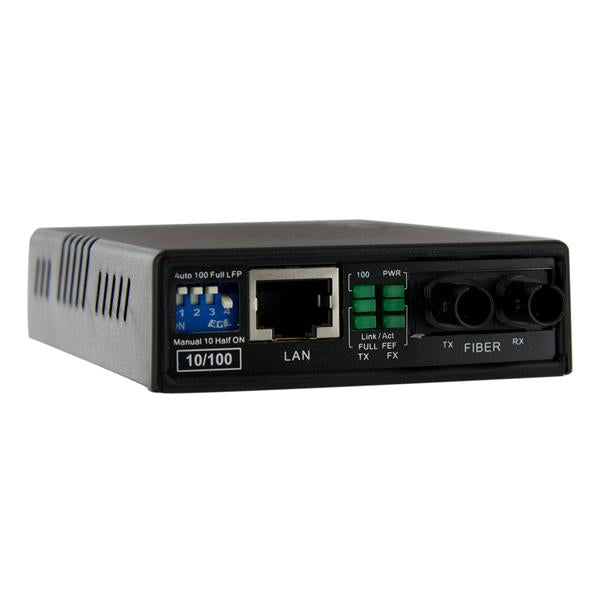

- <b>Configurable DIP Switches</b>: Plug-and-play media converter auto-negotiates across networks or uses DIP switches to force speed, duplex, and link-fault passthrough settings, reducing mismatches, isolating faults, and accelerating deployments

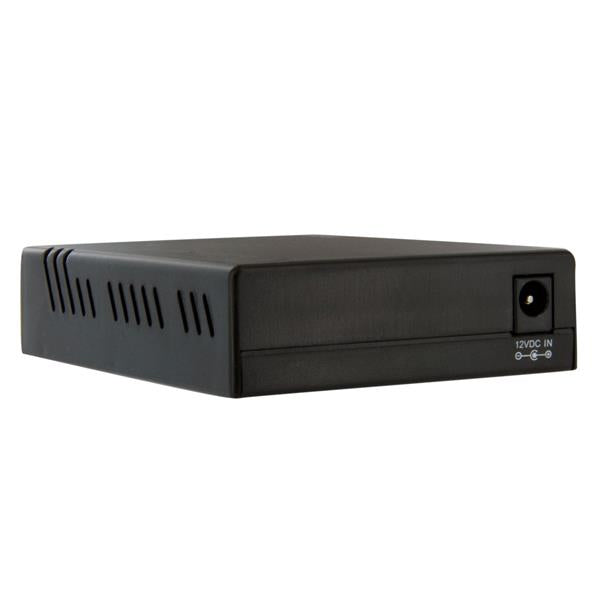

- <b>Deploy Efficiently in Compact, Power-Sensitive Spaces</b>: Operates at just 2.4W with 12V DC input via included power adapter or an optional chassis power supply, supporting 32°F to 122°F (0°C to 50°C) environments; Does not support PoE
- <b>The IT Pro's Choice</b>: Designed for reliability in edge and on-prem deployments, our media converters are lab-tested and field-proven for seamless integration and maximum uptime; Backed by free lifetime 24/5 multi-lingual technical assistance
Description
Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode ST fiber
The MCM110ST2 10/100 Multi Mode ST Fiber Ethernet Media Converter (2 km) creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone.
The ST media converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability.
Easy to setup and install, this compact, value-conscious fast Ethernet media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off.
The MCM110ST2 10/100 Multi Mode ST Fiber Ethernet Media Converter (2 km) creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone.
The ST media converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability.
Easy to setup and install, this compact, value-conscious fast Ethernet media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off.
Specs
Network
Maximum data transfer rate
The maximum speed with which data can be transmitted from one device to another.
100 Mbit/s
Converter input interface
A convertor changes one form of signal into another e.g. A/D Converter changes a signal from analog to digital. A convertor input interface is the place where a convertor connects to the product in order to input the converted signal.
10Base-T, 100BASE-FX, 100Base-TX
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
10,100 Mbit/s
Data transfer rate
Rate at which data can be transferred, usually measured in units per second. May vary with network configurations.
100 Mbit/s
Duplex system
A duplex communication system is a point-to-point system composed of two connected parties or devices that can communicate with one another in both directions, simultaneously.
Full, Half
Features
Internal
The product is built in.
LED indicators
Yes
Housing material
What the casing of the product is made of.
Plastic
Power
Input voltage
The voltage (V) which is required to power the product.
100 - 240 V
Output voltage
12 V
Output current
0,2 A
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
2,4 W
Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Power plug type
Type M

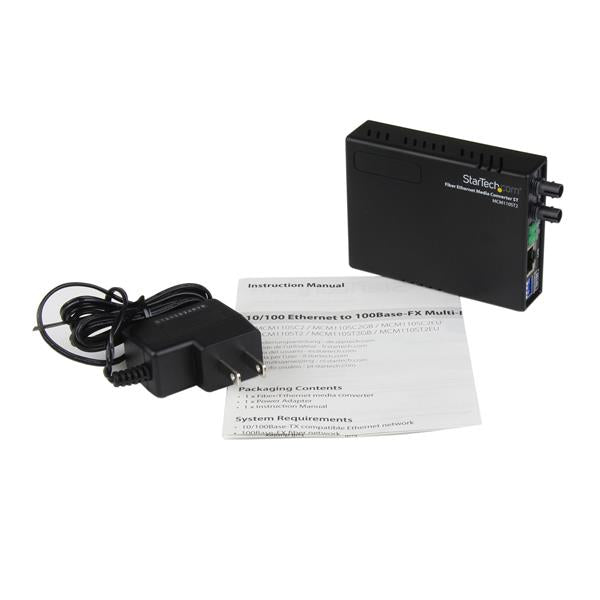

Packaging content
AC adapter included
Manual
Certificates
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Certification
CE, FCC, TAA, REACH
Performance
Maximum transfer distance
The greatest distance over which the data/signal can be transferred.
2000 m
Wavelength
The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light.
1310 nm
Wavelength-division multiplexing (WDM)
Sensitivity
A measure of the device's response to slight changes or signals.
-31 dBmW
Link budget
11 dB
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
65000 h
Ports & interfaces
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Fiber optic connector
This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.
ST
Weight & dimensions
Width
The measurement or extent of something from side to side.
75 mm
Depth
The distance from the front to the back of something.
95 mm
Height
The measurement of the product from head to foot or from base to top.
20 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
82 g
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 50 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-10 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Packaging data
Package width
The distance from one side of the packaging to the other.
145 mm
Package depth
The distance from the front to the back of the packaging.
175 mm
Package height
The distance from the top to the bottom of the packaging.
61 mm
Package weight
Weight of the packaged product in gram.
273 g
