STARTECH network extender Network receiver Silver (RS232EXTC1)
- Regular price
- 173.95$
- Sale price
- 173.95$
- Regular price
-
Free shipping
Couldn't load pickup availability

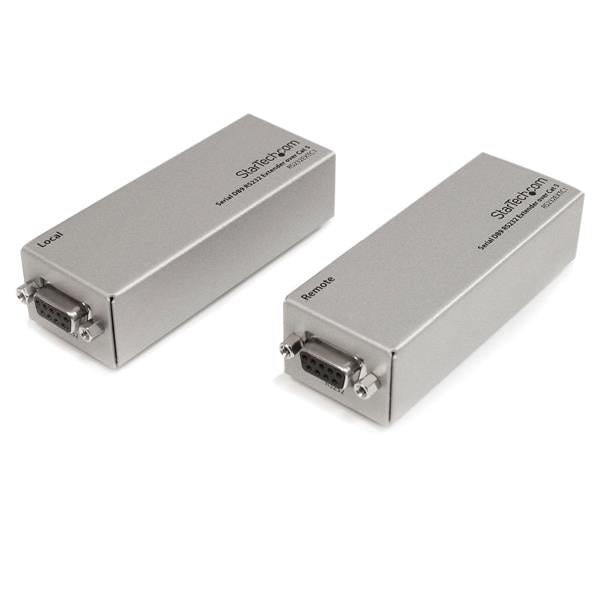

StarTech.com RS232EXTC1 network extender Network receiver Silver
Brand:StarTech.com
Product name:RS232 Serial over Cat5 Extender, 1 km (3300 ft) Range, Plug & Play, No Software, DB9 Serial Extension - TAA
Product code:RS232EXTC1
EAN/UPC:
0065030841863
0065030841863, 065030841863
- Extend RS232 over Cat 5: Connect serial equipment far beyond standard cable limits using Cat5 or better; Ideal for secure, remote setups in IT-managed environments
- No Drivers or Software Required: Enjoy a true plug-and-play experience with a pure hardware design that needs no drivers or setup software; For fast installs and low-maintenance deployments
- Support critical applications: Maintain consistent, standards-based data transmission in environments like CNC control, medical monitoring, POS systems, and industrial automation
- Reliable Full-duplex Communication: Supports full-duplex RS232 data transmission with engineering-grade reliability and compatibility across both legacy systems and modern infrastructure
- The IT Pro's Choice: Designed for reliability in edge and on-prem deployments, our solutions are lab-tested and field-proven for seamless integration and maximum uptime; Backed by free lifetime 24/5 multi-lingual technical assistance
Description
Extend an RS232 serial connection up to 1000 meters (3300 feet) using Cat 5 cabling
The RS232EXTC1 Serial over Cat 5 Extender allows you to increase the distance of your RS232 Serial connection by up to 1000 meters (3300 feet), giving you the ability to connect serial peripheral devices up to a kilometer away from your system - an incredible 65x greater than normal RS232 serial cable length restrictions would permit. The Extender is a cost-effective serial extension solution and completely hardware-based, eliminating the need to install additional software, allowing for a completely plug and play installation. The hardware can be setup in minutes, using existing or new Cat 5 or better Ethernet cabling. Perfect for use in industrial monitoring and control, POS, security, medical, and traffic flow applications, the RS232 Serial over Cat 5 extender maintains the RS232 standard with support for data transfer rates of up to 230 Kbps. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The RS232EXTC1 Serial over Cat 5 Extender allows you to increase the distance of your RS232 Serial connection by up to 1000 meters (3300 feet), giving you the ability to connect serial peripheral devices up to a kilometer away from your system - an incredible 65x greater than normal RS232 serial cable length restrictions would permit. The Extender is a cost-effective serial extension solution and completely hardware-based, eliminating the need to install additional software, allowing for a completely plug and play installation. The hardware can be setup in minutes, using existing or new Cat 5 or better Ethernet cabling. Perfect for use in industrial monitoring and control, POS, security, medical, and traffic flow applications, the RS232 Serial over Cat 5 extender maintains the RS232 standard with support for data transfer rates of up to 230 Kbps. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specs
Performance
Type
Characteristics of the device.
Network receiver
Maximum transfer distance
The greatest distance over which the data/signal can be transferred.
1000 m
Cable types supported
Cat5
Power
Input current
0.055 A
Output voltage
9 V
Weight & dimensions
Width
The measurement or extent of something from side to side.
34 mm
Depth
The distance from the front to the back of something.
92 mm
Height
The measurement of the product from head to foot or from base to top.
22 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
65 g
Certificates
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Network
Cabling technology
Type of cable technology performance.
10/100Base-T(X)
Ports & interfaces
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
2
Design
Product color
The colour e.g. red, blue, green, black, white.
Silver
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 70 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
0 - 85 °C
Operating relative humidity (H-H)
0 - 95%
Packaging data
Package width
The distance from one side of the packaging to the other.
144 mm
Package depth
The distance from the front to the back of the packaging.
316 mm
Package height
The distance from the top to the bottom of the packaging.
58 mm
Logistics data
Master (outer) case width
330 mm
Master (outer) case length
334 mm
Master (outer) case height
318 mm
Quantity per master (outer) case
10 pc(s)
