STARTECH network equipment chassis Black (MCM15-MEDIA-CHASSIS)
- Regular price
- 819.95$
- Sale price
- 819.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
StarTech.com MCM15-MEDIA-CHASSIS network equipment chassis Black
Brand:StarTech.com
Product name:15-Slot Unmanaged Media Converter Chassis for MCM Media Converter Series, Full Power Isolation, Active Cooling, 19in Rackmount, TAA Compliant
Product code:MCM15-MEDIA-CHASSIS
EAN/UPC:
0065030917056
0065030917056, 065030917056
- <b>High-Density, Scalable Design</b>: Integrate up to 15 media converters in one compact 19in rack-mount chassis for simplifying network organization and expanding connectivity in enterprise and data center environments; For use with MCM Media Converter Series
- <b>Continuous, Reliable Operation</b>: Media Chassis comes with one pre-installed, hot-swappable power supply; Ensure uninterrupted performance when you add the optional redundant power support (MCM-CHASSIS-PSU) to the second PSU slot
- <b>Independently Powered for No-Downtime Swaps</b>: Independently powered converter bays allow easy module replacement without downtime, supported by electrical isolation, over-voltage protection, and full FCC, CE, and UL compliance for reliability
- <b>Durable, Smart-Cooled Design</b>: A rugged all-metal chassis with dual cooling fans, front-panel LED monitoring, and wide operating temperature tolerance provides stable, long-term performance in demanding environments
- <b>The IT Pro's Choice</b>: Engineered for edge, on-prem, and aerospace/defense applications requiring compliant connectivity; TAA certified and lab-tested for mission-critical reliability and backed by free lifetime 24/5 multilingual technical support
Description
Centralize edge conversions with a 15-slot rack that simplifies management and adds optional power redundancy for uptime.
The 15-Slot Media Converter Chassis delivers high-density, centralized management for up to fifteen media converters in a compact 19-inch rack-mount form. Designed for enterprise, telecom, and data center networks, it streamlines power distribution, reduces clutter, and supports nonstop operation with an optional hot-swappable Redundant Power System (RPS). the chassis is designed for the MCM Media Converter Series.
Centralized, Scalable Integration
Accommodates Fast, Gigabit, and 10-Gigabit Ethernet, VDSL2, and Serial-over-Ethernet converters in one chassis. Each slot is hot-swappable and independently powered, allowing upgrades or replacements without downtime.
Reliable Power and Protection
Includes one AC power supply with an optional AC or -48V DC backup for continuous service. Electrical isolation and protection against over-voltage, over-current, and short-circuit events ensure stable performance.
Durable, Intelligent Design
This rugged 2.4U metal chassis with dual cooling fans and LED indicators provides efficient heat management and easy status monitoring. FCC, CE, and UL certified, the chassis offers long-term reliability in mission-critical environments.
The 15-Slot Media Converter Chassis delivers high-density, centralized management for up to fifteen media converters in a compact 19-inch rack-mount form. Designed for enterprise, telecom, and data center networks, it streamlines power distribution, reduces clutter, and supports nonstop operation with an optional hot-swappable Redundant Power System (RPS). the chassis is designed for the MCM Media Converter Series.
Centralized, Scalable Integration
Accommodates Fast, Gigabit, and 10-Gigabit Ethernet, VDSL2, and Serial-over-Ethernet converters in one chassis. Each slot is hot-swappable and independently powered, allowing upgrades or replacements without downtime.
Reliable Power and Protection
Includes one AC power supply with an optional AC or -48V DC backup for continuous service. Electrical isolation and protection against over-voltage, over-current, and short-circuit events ensure stable performance.
Durable, Intelligent Design
This rugged 2.4U metal chassis with dual cooling fans and LED indicators provides efficient heat management and easy status monitoring. FCC, CE, and UL certified, the chassis offers long-term reliability in mission-critical environments.
Video
Specs
Technical details
Rack mounting
The type of mounting that can position devices in a shelving system (rack).
LED indicators
Fan, Power
Material
The material from which a thing is or can be made e.g. wood, plastic.
Metal
Number of slots
15
Product color
The colour e.g. red, blue, green, black, white.
Black
Number of fans
The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
2 fan(s)
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
50000 h
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)
Compatible products
Other products that can be used with this product.
MCM Series
Packaging data

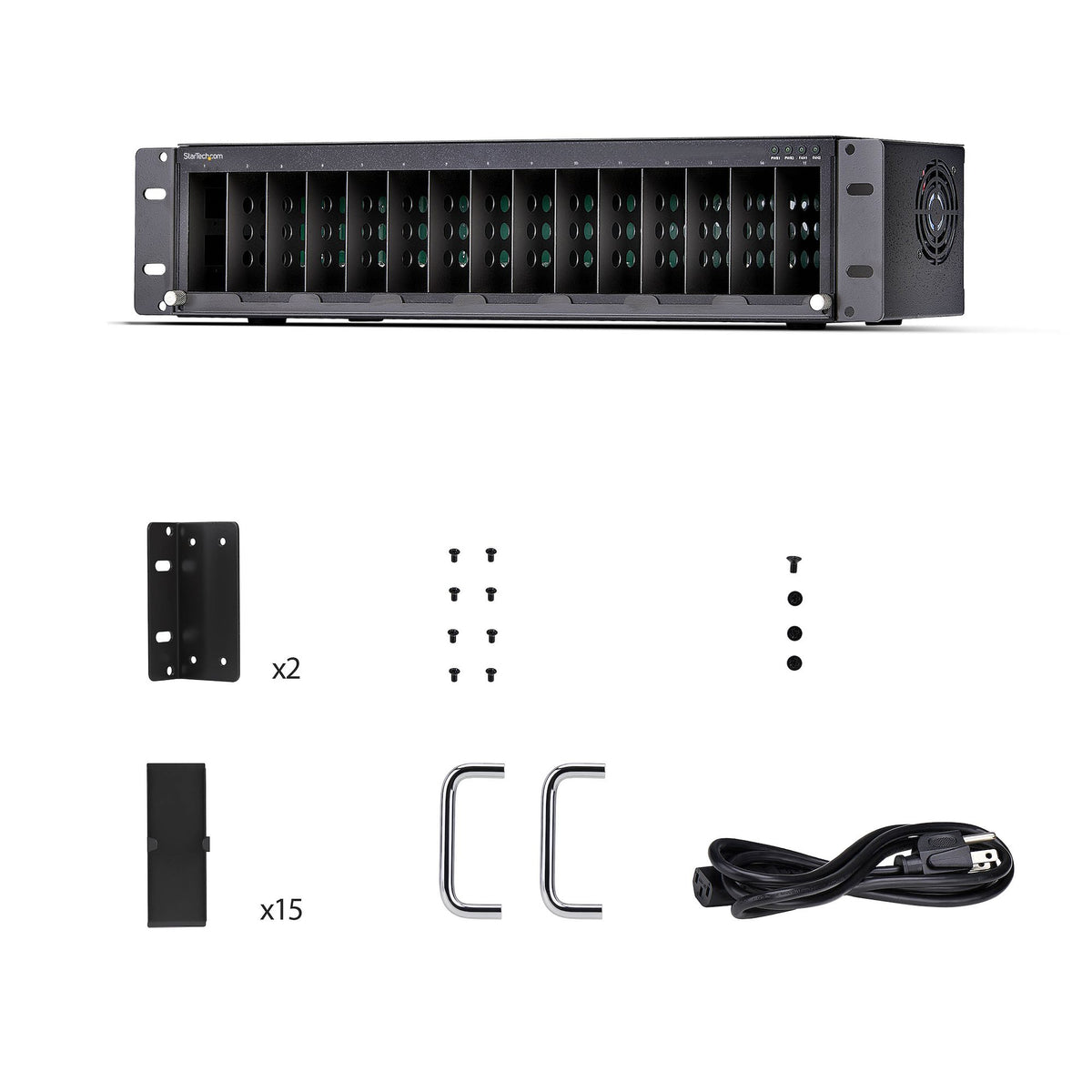

Cables included
AC
Manual
Package width
The distance from one side of the packaging to the other.
274 mm
Package depth
The distance from the front to the back of the packaging.
508 mm
Package height
The distance from the top to the bottom of the packaging.
170 mm
Package weight
Weight of the packaged product in gram.
5,7 kg
Power
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
Output voltage
48 V
Output current
4,2 A
Included power plug types
EU, NA, UK
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 50 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 70 °C
Operating relative humidity (H-H)
5 - 90%
Weight & dimensions
Width
The measurement or extent of something from side to side.
438 mm
Depth
The distance from the front to the back of something.
200 mm
Height
The measurement of the product from head to foot or from base to top.
103 mm
Logistics data
Master (outer) case width
300 mm
Master (outer) case length
540 mm
Master (outer) case height
383 mm
Quantity per master (outer) case
2 pc(s)
