STARTECH network card Ethernet 5000 Mbit/s (US1GC30W)
- Regular price
- 52.95$
- Sale price
- 52.95$
- Regular price
-
Free shipping on orders over $99
Couldn't load pickup availability

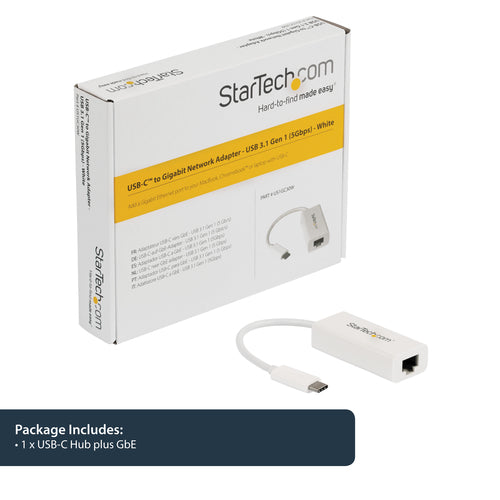

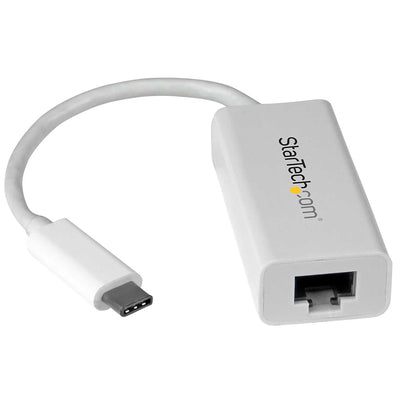

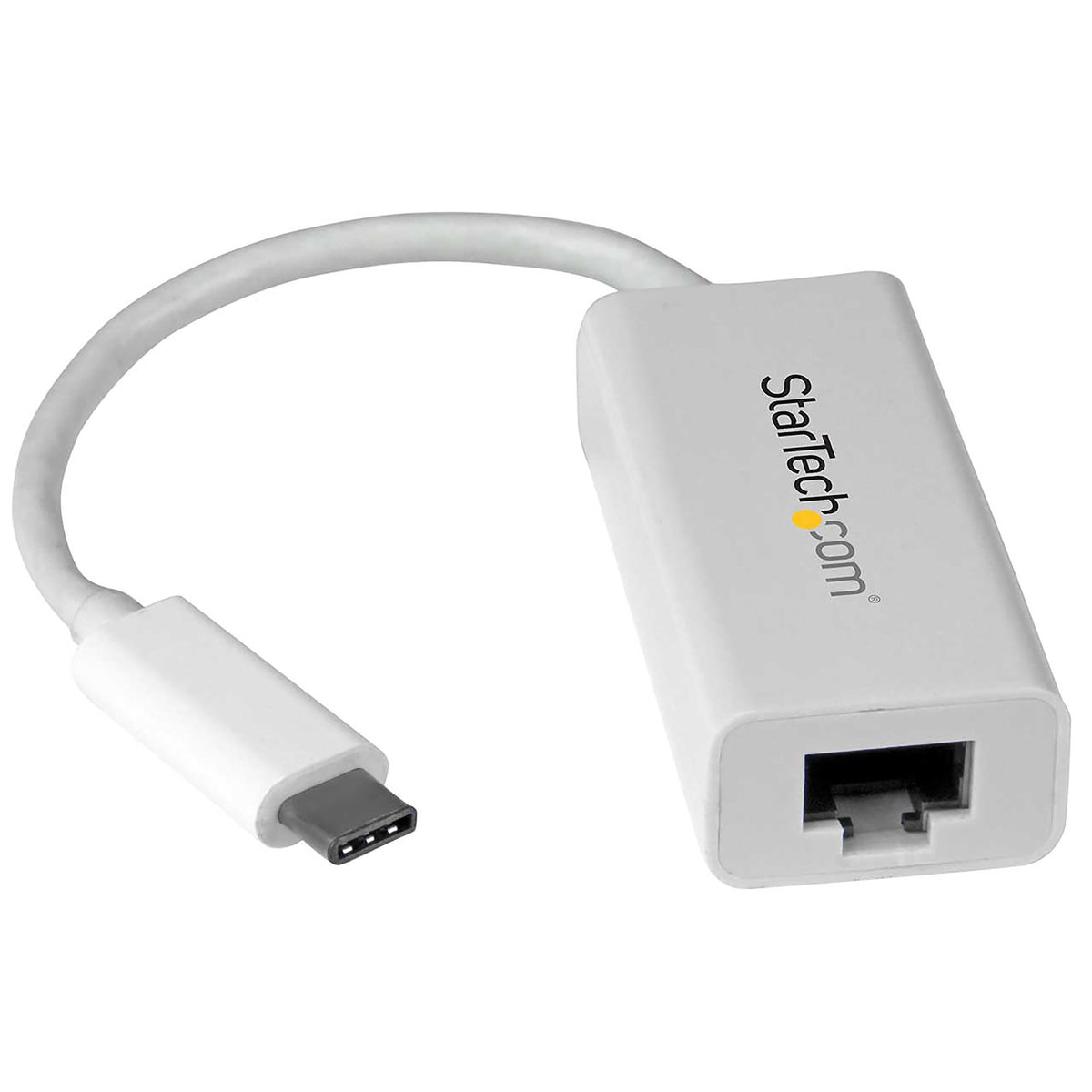

StarTech.com US1GC30W network card Ethernet 5000 Mbit/s
Brand:StarTech.com
Product name:USB-C to Gigabit Ethernet Adapter, White, Thunderbolt 3 Compatible, Windows & Mac, RJ45 LAN Network Converter
Product code:US1GC30W
EAN/UPC:
0065030862974
0065030862974, 065030862974, 3523210098386

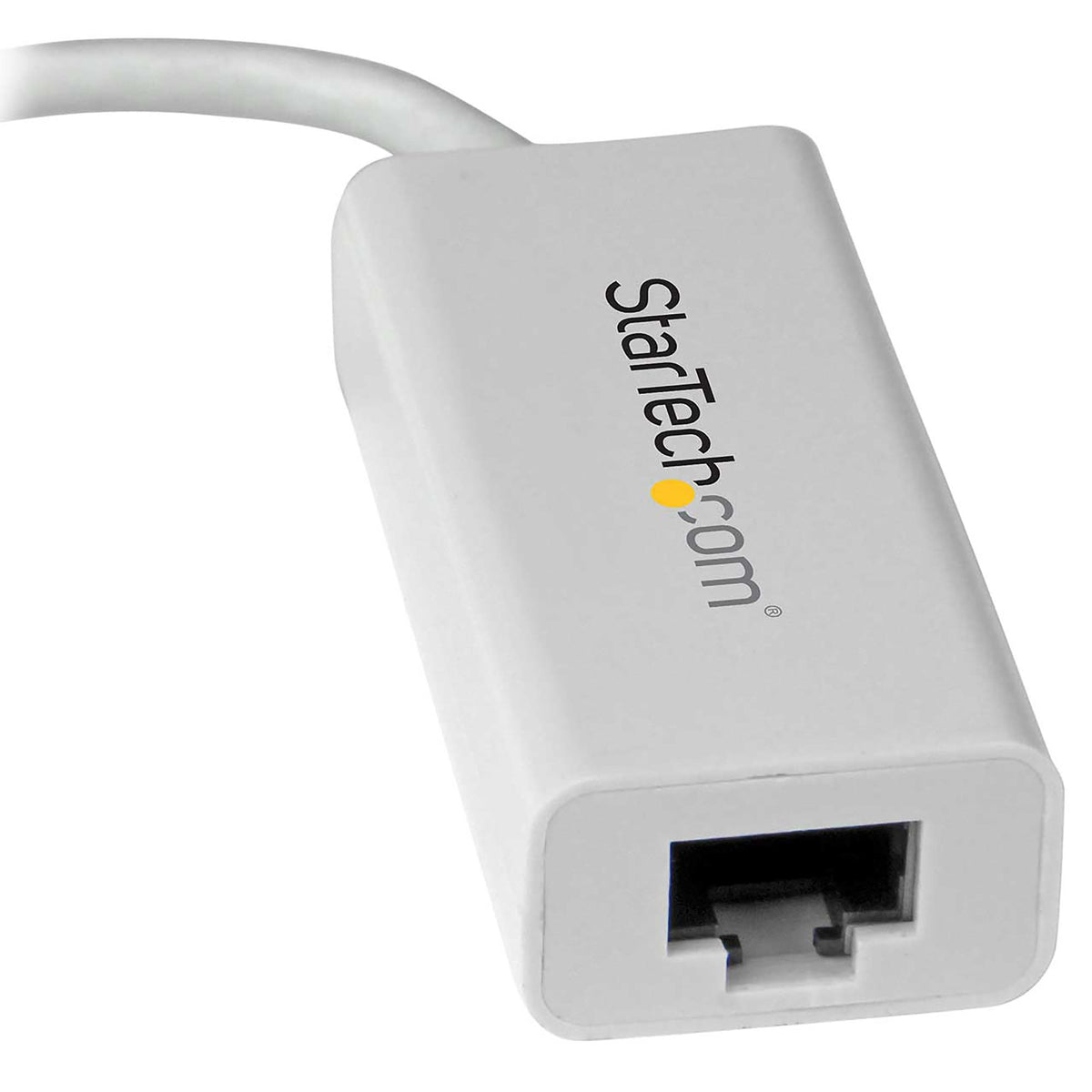

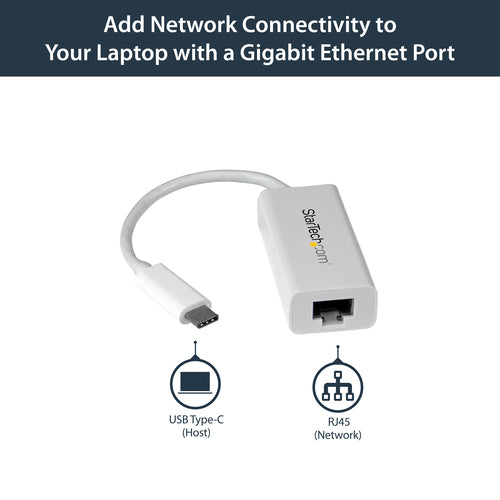

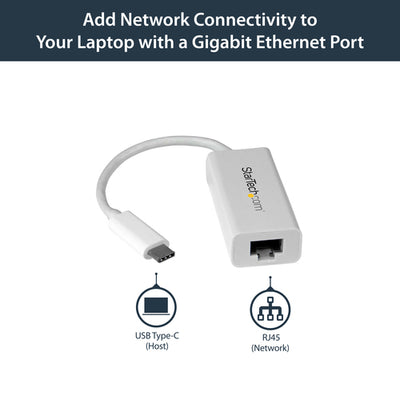

- USB-C NETWORK ADAPTER: USB-C to RJ45 adapter adds an Ethernet port to your computer supporting up to Gigabit speeds on 10/100/1000 Mbps Networks; Ideal for reliable wired gigabit network connections, or as an alternative to WiFi

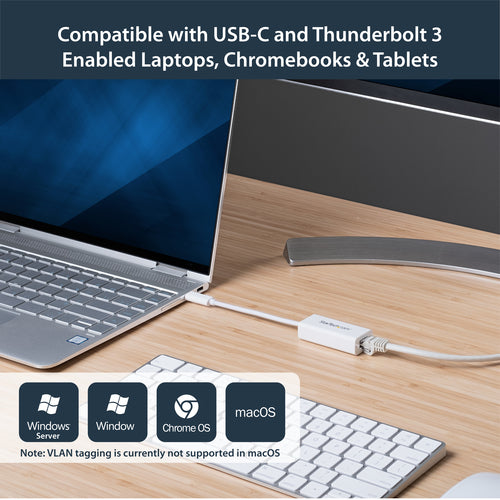

- FULL FEATURED: USB-C to Ethernet dongle; Uses Realtek RTL8153 Chipset for native compatibility with laptop, desktops, and 2-in-1 computers; Compatible with USB C, Thunderbolt 3 and Thunderbolt 4
- OS COMPATIBILITY: USB NIC adapter for laptop offers plug and play connectivity (no driver install required); Works with Windows versions 7 and up, Windows Server, macOS 10.14 and up, Linux distributions with kernel 4.11 and up (LTS only), and Chrome OS
- VERSATILE DESIGN: With its compact and lightweight design for maximum portability, this USB Type-C NIC/Gigabit network adapter enables you to securely connect your laptop to a Gigabit Ethernet network wherever you go; USB bus-powered
- TECHNICAL SPECS: USB 3.2 Gen 1 Type-C (5 Gbps); Compatible with USB 3.0/2.0; 1x RJ45 Port; Attached Cable; 10/100/1000 Mbps; Realtek RTL8153 Chipset ; 9K Jumbo Frames; VLAN Tagging; Wake-on-LAN; Color: White
Description
Add a Gigabit Ethernet port to your MacBook, Chromebook or laptop with USB Type-C
Now you can easily connect to a Gigabit network through the USB-C™ or Thunderbolt™ 3 port on your laptop or desktop computer. This Gigabit Ethernet (GbE) network adapter provides a reliable network connection without even having to install drivers. It’s ready to go, with native driver support to ensure a quick setup.
Powerful Gigabit network connections
The USB Type-C™ network adapter supports full Gigabit bandwidth by harnessing the performance of USB 3.2 Gen 1 (5 Gbps). You can access very large files over the network at Gigabit speeds.
Native driver support makes installation easy
Get up and running quickly. Simply plug the adapter into the USB-C port on your laptop and connect to your network. The network adapter chipset provides native driver support, so you don't have to worry about installing additional software.
Trouble-free connections through USB-C

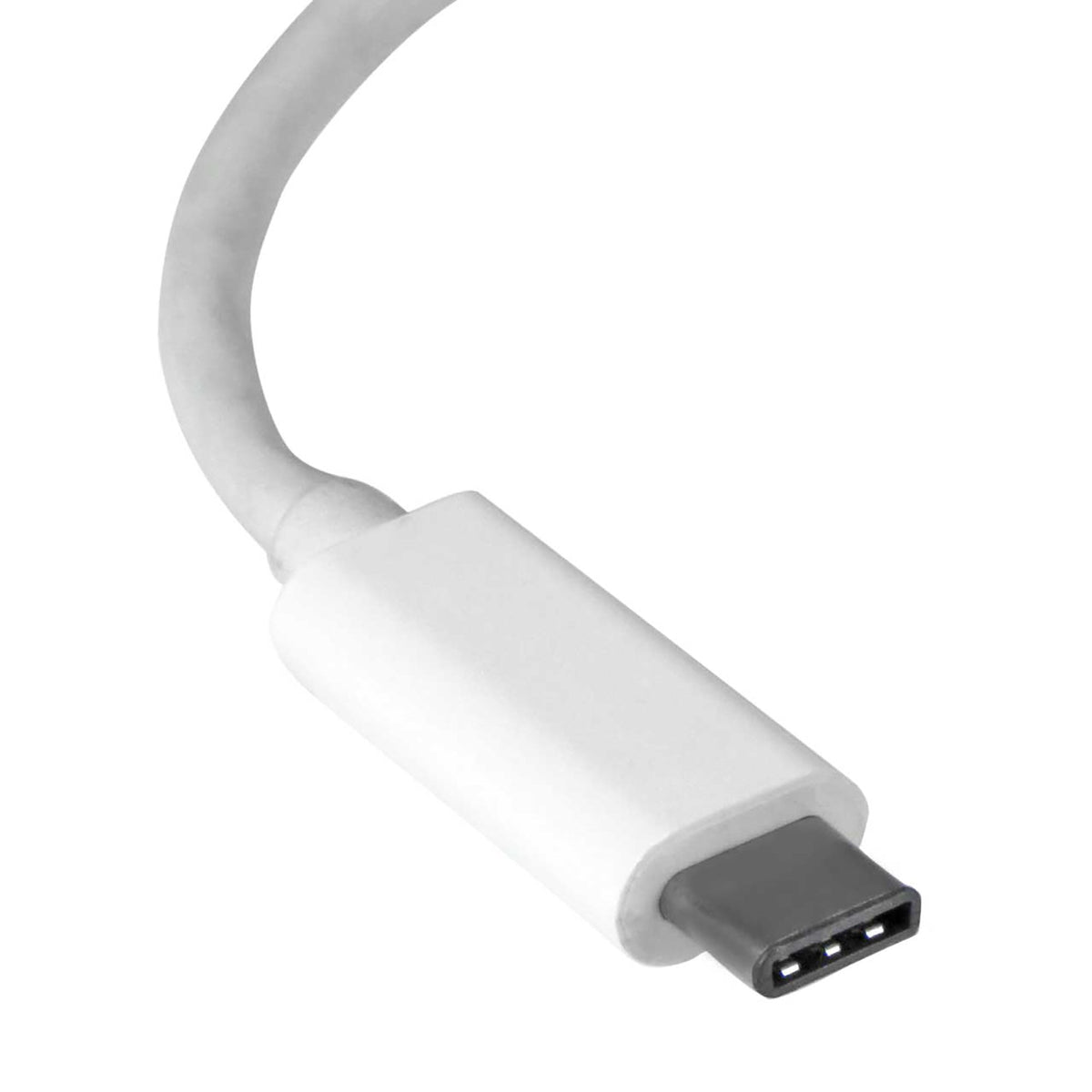

The USB Type-C connector is smaller and easier to use than previous USB connectors. It’s a reversible plug so you can connect to your devices with either side facing up. You can insert the cable the right way every time - without frustration or the risk of port damage.
Compact and lightweight for perfect portability
Compact and portable, this USB Gigabit network adapter is the ideal desktop network adapter or laptop accessory. It’s powered directly from the USB port making it easy to connect when you’re on the go. Plus, its lightweight design makes the adapter the perfect travel accessory for your Chromebook Pixel™ or MacBook.
Enhance Productivity and Device Management with the StarTech Connectivity Tools Application
Developed to improve performance and security, StarTech Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
• MAC Address Pass-Through Utility : To improve network security.
• Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
Visit www.StarTech.com/Connectivity-Tools for more information and to download the StarTech Connectivity Tools.
Now you can easily connect to a Gigabit network through the USB-C™ or Thunderbolt™ 3 port on your laptop or desktop computer. This Gigabit Ethernet (GbE) network adapter provides a reliable network connection without even having to install drivers. It’s ready to go, with native driver support to ensure a quick setup.
Powerful Gigabit network connections
The USB Type-C™ network adapter supports full Gigabit bandwidth by harnessing the performance of USB 3.2 Gen 1 (5 Gbps). You can access very large files over the network at Gigabit speeds.
Native driver support makes installation easy
Get up and running quickly. Simply plug the adapter into the USB-C port on your laptop and connect to your network. The network adapter chipset provides native driver support, so you don't have to worry about installing additional software.
Trouble-free connections through USB-C
The USB Type-C connector is smaller and easier to use than previous USB connectors. It’s a reversible plug so you can connect to your devices with either side facing up. You can insert the cable the right way every time - without frustration or the risk of port damage.
Compact and lightweight for perfect portability
Compact and portable, this USB Gigabit network adapter is the ideal desktop network adapter or laptop accessory. It’s powered directly from the USB port making it easy to connect when you’re on the go. Plus, its lightweight design makes the adapter the perfect travel accessory for your Chromebook Pixel™ or MacBook.
Enhance Productivity and Device Management with the StarTech Connectivity Tools Application
Developed to improve performance and security, StarTech Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
• MAC Address Pass-Through Utility : To improve network security.
• Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
Visit www.StarTech.com/Connectivity-Tools for more information and to download the StarTech Connectivity Tools.
Specs
Ports & interfaces
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
Host interface
Interface that enables a host controller to communicate with a driver.
USB Type-C
Interface
Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.
Ethernet
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
USB version
Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.
3.2 Gen 1 (3.1 Gen 1)
Design
Product color
The colour e.g. red, blue, green, black, white.
White
Internal
The product is built in.
Chipset
Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
Realtek - RTL8153
Power
USB powered
The device can be powered via a USB connection.
System requirements
Windows operating systems supported
Windows vesions wich can be used with the device.
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported
Mac operating systems e.g. OS X can be used with the device.
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supported
8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Yes
Server operating systems supported
Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019
Sustainability
Sustainability compliance

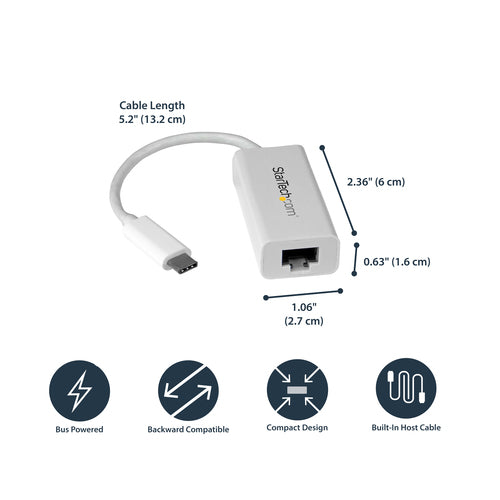

Weight & dimensions
Width
The measurement or extent of something from side to side.
25 mm
Depth
The distance from the front to the back of something.
210 mm
Height
The measurement of the product from head to foot or from base to top.
15 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
24 g
Technical details
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
CE, RoHS
Logistics data
Harmonized System (HS) code
85176990
Master (outer) case width
520 mm
Master (outer) case length
341 mm
Master (outer) case height
223 mm
Quantity per master (outer) case
250 pc(s)
Network
Maximum data transfer rate
The maximum speed with which data can be transmitted from one device to another.
5000 Mbit/s
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
10,100,1000 Mbit/s
Cabling technology
Type of cable technology performance.
10/100/1000BaseT(X)
Wake-on-LAN ready
Auto MDIX IEEE
Full duplex
A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Jumbo frames support
Jumbo frames
9000
VLAN tagging
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 70 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-10 - 80 °C
Operating relative humidity (H-H)
5 - 90%
Packaging data
Package width
The distance from one side of the packaging to the other.
208 mm
Package depth
The distance from the front to the back of the packaging.
122 mm
Package height
The distance from the top to the bottom of the packaging.
20 mm
Package weight
Weight of the packaged product in gram.
82 g
Other features
Housing material
What the casing of the product is made of.
Plastic
Cable length
How long the cable is.
0,145 m
