STARTECH monitor mount / stand 101,6 cm (40") Black (ARMPIVOT2)
- Regular price
- 163.95$
- Sale price
- 163.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
StarTech.com ARMPIVOT2 monitor mount / stand 101,6 cm (40") Black
Brand:StarTech.com
Product name:Desk Mount Monitor Arm, Up to 40-inch Screen/17.6lb (8kg), Mechanical Spring-Assisted Arm, C-Clamp/Grommet, Top-Down Installation, Toolless Adjustment
Product code:ARMPIVOT2
EAN/UPC:
0065030921695
0065030921695, 065030921695
- DESK MOUNT MONITOR ARM: Single monitor mount supports up to a 40-inch display and 17.6lb (8kg); VESA plate supports 75x75/100x100mm patterns; Articulating and height adjustable steel arm; C-clamp/grommet mounting
- EASY INSTALLATION: Unique top-screw desk clamp for hassle-free installation without the need to go under the desk; Interchangeable C-clamp/grommet mount for desks up to 2" (5cm) thick; Includes tools for arm tension adjustment; Quick-release VESA plate
- MECHANICAL SPRING ONE-TOUCH ADJUSTMENT: Full-motion arm features a high-quality mechanical spring for smooth and effortless one-touch motion; Mechanical springs are more robust and resistant to wear over time compared to gas springs; Backed for 5 years
- RANGE OF MOTION: Toolless adjustments of +/-180° swivel, +/-90° tilt, and +/-90° screen rotation for portrait/landscape orientations; Max height 24.4" (62cm); Max arm extension 23.1" (59.4cm) from the pole; Adjustable height along the 11.1" (28.3cm) pole
- ORGANIZED WORKSPACE: Cable clips and a cable management channel under the arm keeps cables out of sight and help maintain a tidy setup; Keep the hex keys within arm's reach using the tool storage clip located at the back of the base
Description
Monitor desk mount with support for up to 40" monitor with height adjustable spring arm
This monitor desk mount creates an ergonomic workspace for productivity and supports up to a 40-inch monitor and a maximum weight of 17.6lb (8kg). The robust mechanical spring ensures long-term durability and allows for smooth arm adjustment to suit different ergonomic needs.

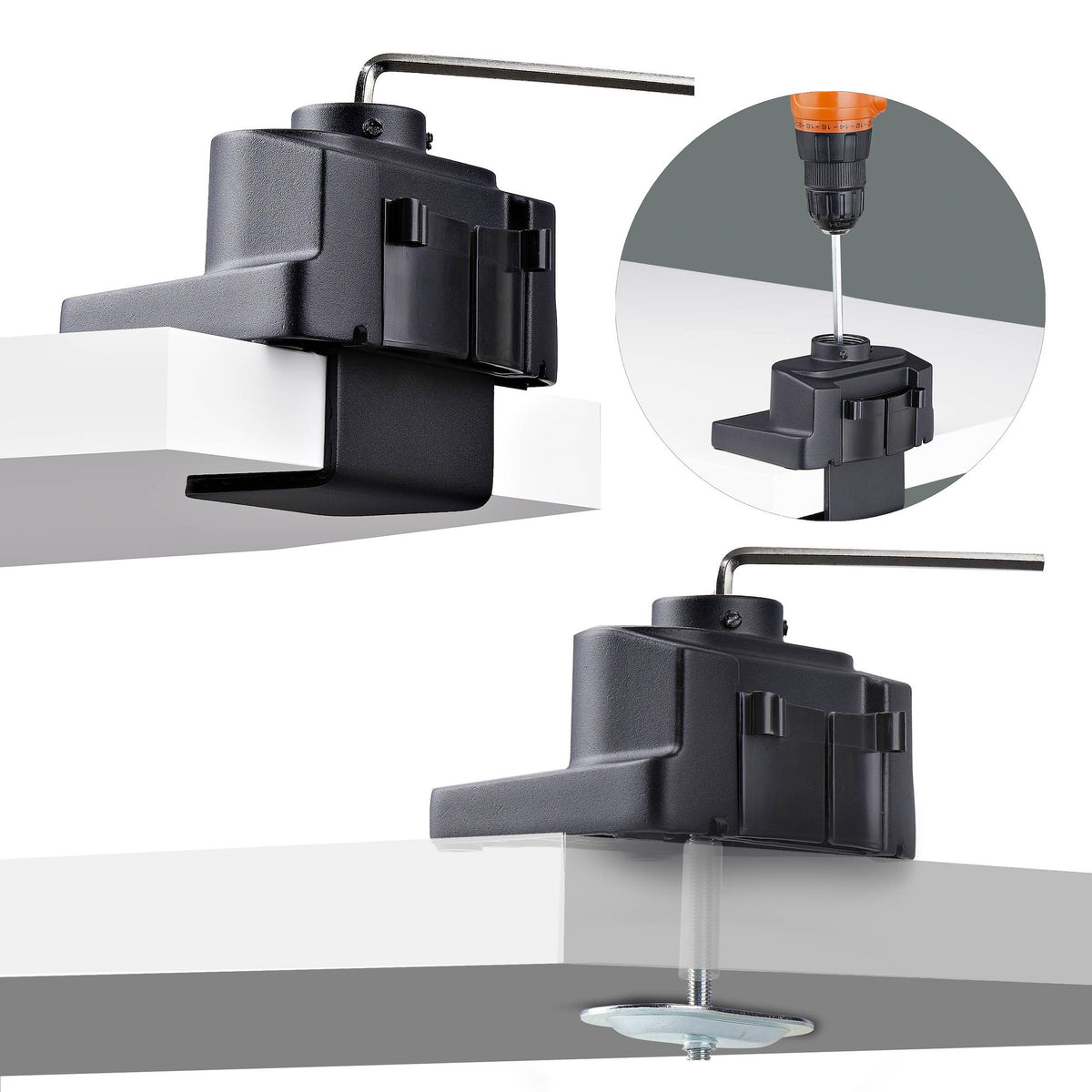

Top-Down Installation
The uniquely design desk clamp simplifies installation by enabling users to tighten the clamp from above using a hex key or a hand drill, eliminating the need to go under the desk. In addition, the desk clamp is designed with a C-clamp and grommet mount to accommodate desks up to 2 inches (50mm) thick, providing flexibility for different desk configurations.
Height Adjustment with One Smooth Motion
Mechanical spring-assisted arm enables a height adjustment range of up to 17.3in (44cm) to a maximum height of 24.4in (62cm) with effortless one-touch motion. The monitor arm can extend up to 23.3in (59.4cm) from the base of the desktop mount.

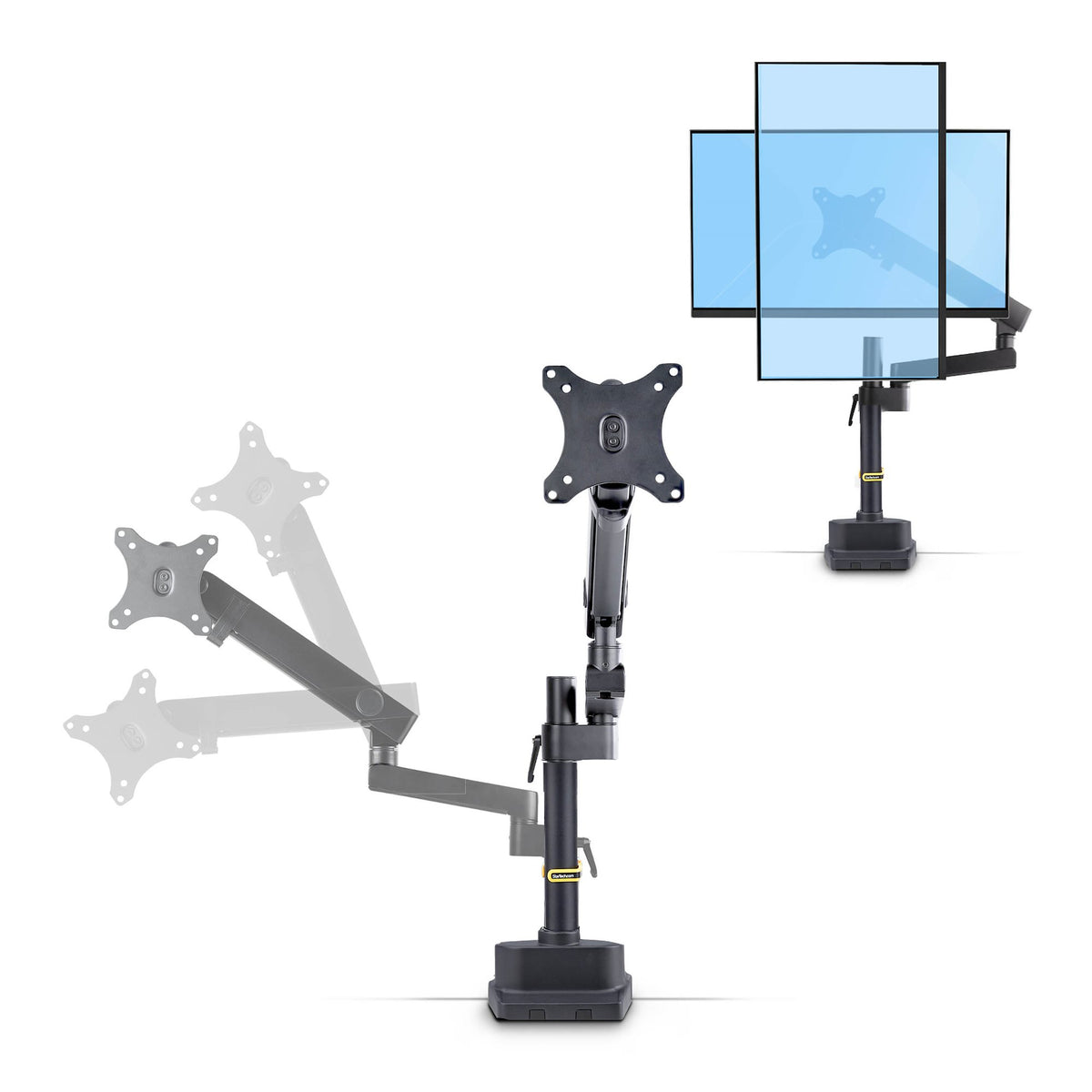

Range of Motion
Articulating arm enables 180° pan, and the quick-release VESA plate features tool-less adjustments of +/-90° horizontal swivel, +/-90° tilt, and 360° screen rotation for portrait or landscape orientations. This flexibility enables users to customize the screen placement for maximum productivity and comfort.
Cable Management
Features a cable management channel along the underside of the swivel arm to keep cables out of sight. Additionally, multiple cable clips help reduce clutter and contribute to a tidy setup.
This monitor desk mount creates an ergonomic workspace for productivity and supports up to a 40-inch monitor and a maximum weight of 17.6lb (8kg). The robust mechanical spring ensures long-term durability and allows for smooth arm adjustment to suit different ergonomic needs.
Top-Down Installation
The uniquely design desk clamp simplifies installation by enabling users to tighten the clamp from above using a hex key or a hand drill, eliminating the need to go under the desk. In addition, the desk clamp is designed with a C-clamp and grommet mount to accommodate desks up to 2 inches (50mm) thick, providing flexibility for different desk configurations.
Height Adjustment with One Smooth Motion
Mechanical spring-assisted arm enables a height adjustment range of up to 17.3in (44cm) to a maximum height of 24.4in (62cm) with effortless one-touch motion. The monitor arm can extend up to 23.3in (59.4cm) from the base of the desktop mount.
Range of Motion
Articulating arm enables 180° pan, and the quick-release VESA plate features tool-less adjustments of +/-90° horizontal swivel, +/-90° tilt, and 360° screen rotation for portrait or landscape orientations. This flexibility enables users to customize the screen placement for maximum productivity and comfort.
Cable Management
Features a cable management channel along the underside of the swivel arm to keep cables out of sight. Additionally, multiple cable clips help reduce clutter and contribute to a tidy setup.
Specs
Mounting
Maximum weight capacity
The maximum weight that the product is designed to hold/store.
8 kg
Minimum screen size
The minimum screen size which can be used with this product.
43,2 cm (17")
Number of displays supported
The number of displays that can be used with this product.
1
Maximum weight capacity (per display)
8 kg
Maximum screen size
The maximum screen size which can be used with this product.
101,6 cm (40")
Minimum VESA mount
75 x 75 mm
Maximum VESA mount
100 x 100 mm
Desk thickness (min)
1 cm
Desk thickness (max)
5 cm
Design
Housing material
What the casing of the product is made of.
Plastic, Steel
Product color
The colour e.g. red, blue, green, black, white.
Black
Anti-theft function
Packaging data
Package width
The distance from one side of the packaging to the other.
435 mm
Package depth
The distance from the front to the back of the packaging.
240 mm
Package height
The distance from the top to the bottom of the packaging.
117 mm
Package weight
Weight of the packaged product in gram.
3,7 kg
Logistics data
Master (outer) case width
420 mm
Master (outer) case length
370 mm
Master (outer) case height
335 mm
Quantity per master (outer) case
4 pc(s)
Ergonomics
Height adjustment
The part of the device that can be adjusted to change the height.
Height adjustment range
180 - 620 mm
Depth adjustment range
419 - 594 mm
Tilt adjustment
The tilt, which means the angle at which the device is pointing (up or down), can be changed.
Tilt angle range
-90 - 90°
Swiveling
Swivel angle range
-180 - 180°
Rotating
Capability to rotate device.
Angle of rotation
360°
Cable management
Description of improved cable management
Weight & dimensions
Width
The measurement or extent of something from side to side.
115 mm
Depth
The distance from the front to the back of something.
703 mm
Height
The measurement of the product from head to foot or from base to top.
607 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
3,6 kg

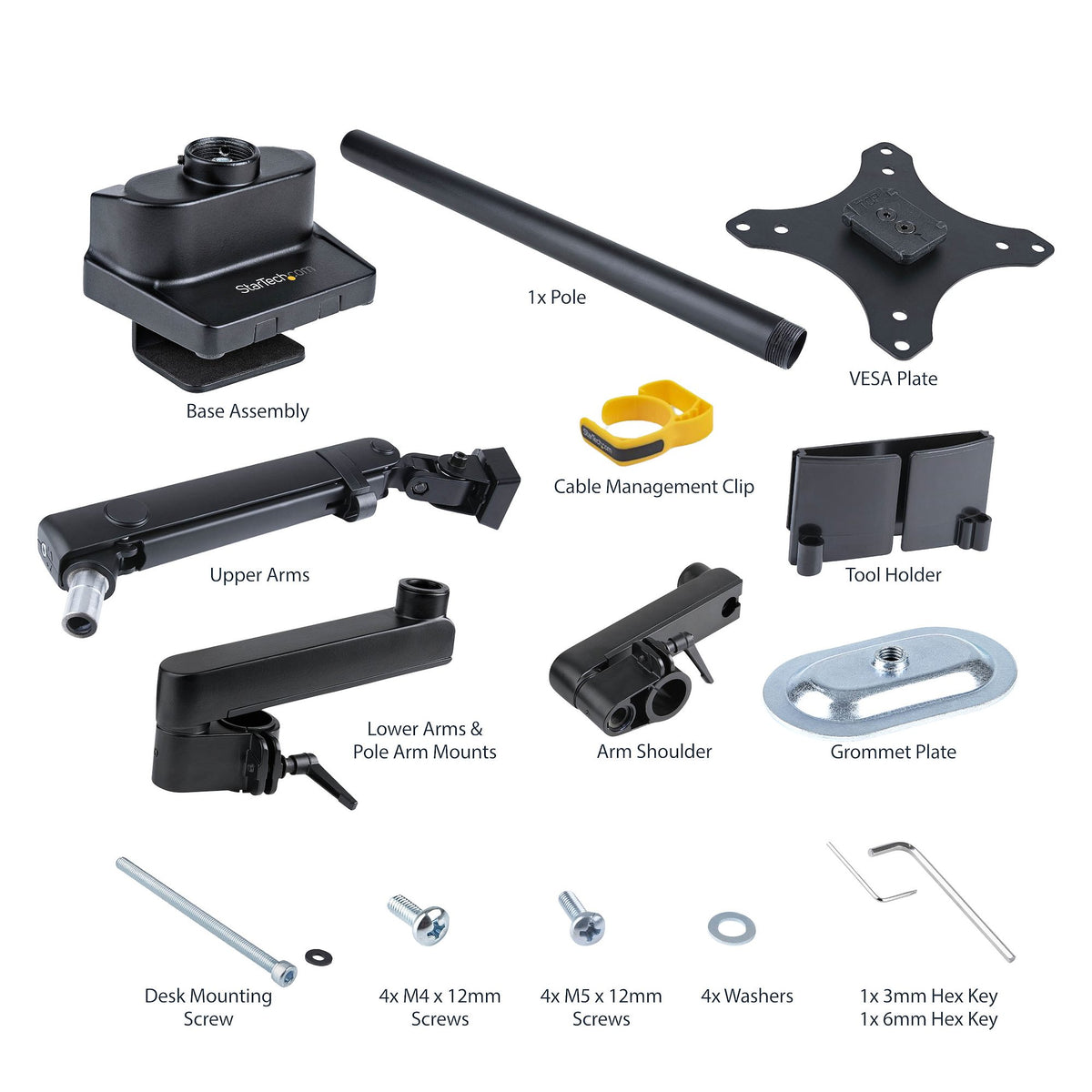

Packaging content
VESA mount included
Number of cable clips
1
Screws included
Number of screws
9
Number of washers included
4
Grommet plate included
