STARTECH laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Grey (QUAD-USB-DP-ADAPT)
- Regular price
- 186.95$
- Sale price
- 186.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
StarTech.com QUAD-USB-DP-ADAPT laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Grey
Brand:StarTech.com
Product name:USB-C to Quad-Monitor Workstation Adapter, 4K 60Hz DisplayPort, 140W PD Passthrough for Laptop Charging, USB Port for Wireless Keyboard / Mouse, TAA
Product code:QUAD-USB-DP-ADAPT
EAN/UPC:
0065030915908
0065030915908, 065030915908
- <b>Quad 4K60 Workstation Adapter</b>: Transform your laptop into a productivity workstation by connecting four 4K 60Hz DisplayPort 1.4 monitors while charging your laptop and connecting a wireless mouse or keyboard dongle, all through a single USB-C connection
- <b>Expand Your Setup Without Losing Ports</b>: 140W power delivery passthrough lets you charge your laptop through the adapter, while the USB-A 2.0 passthrough port allows you to connect USB peripherals such as a mouse, keyboard, or wireless dongle
- <b>Plug-and-Play</b>: DisplayLink drivers automatically install on most Windows and ChromeOS systems, reducing setup time for end users and streamlining enterprise deployments; Manual driver installation is required for macOS devices
- <b>Versatile Deployment</b>: Designed for IT, finance, engineering, and education environments where powerful multi-display solutions are required; Compact, travel-ready form factor designed for seamless transitions between home, office, and on-the-go work
- <b>The IT Pro's Choice</b>: Our display and video adapters are rigorously tested in our Innovation Lab to ensure enterprise-grade reliability and durability; Built to support large-scale deployments, Windows 11 upgrades, and the shift to AI-enabled PCs
Description
Power your workflow with a quad-display mini-docking station featuring 140W charging and USB-A peripheral support
This quad-display USB-C mini-dock expands your visual workspace and streamlines connectivity without sacrificing ports or power.

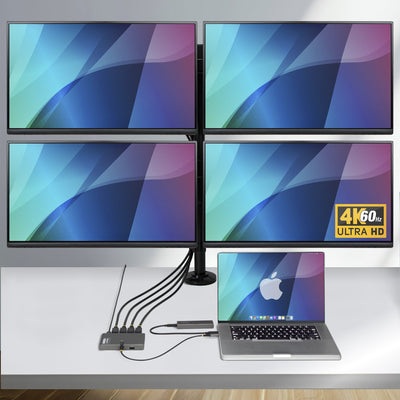

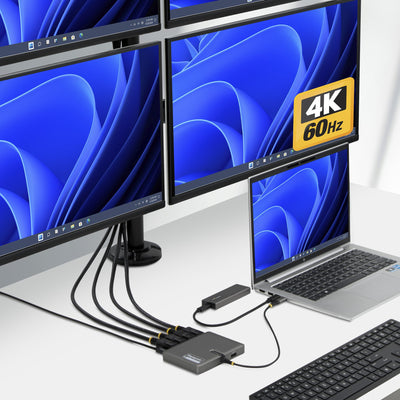

Quad 4K Display Expansion
Turn a single USB-C port into a high-performance workstation by connecting up to four 4K 60Hz DisplayPort 1.4 monitors. Ideal for multitasking across large desktops, even on systems with limited GPU or native video output capabilities.
Power and Connectivity Without Compromise
140W power delivery passthrough charges your laptop, while the USB-A 2.0 port supports essential peripherals like a mouse, keyboard, or wireless dongle. This helps you stay productive with no compromise on available ports.
Plug-and-Play
DisplayLink drivers install automatically on most Windows and ChromeOS systems, reducing setup time and simplifying large scale IT deployments. For macOS devices, a manual driver installation is required.
Ideal for Hybrid Workflows
Designed for IT, finance, engineering, and education use, this compact, travel-ready workspace adapter enables easy transitions between home, office, and on-the-go setups. Its durable design and broad compatibility make it the perfect choice for professionals who require consistent performance wherever they work.
This quad-display USB-C mini-dock expands your visual workspace and streamlines connectivity without sacrificing ports or power.
Quad 4K Display Expansion
Turn a single USB-C port into a high-performance workstation by connecting up to four 4K 60Hz DisplayPort 1.4 monitors. Ideal for multitasking across large desktops, even on systems with limited GPU or native video output capabilities.
Power and Connectivity Without Compromise
140W power delivery passthrough charges your laptop, while the USB-A 2.0 port supports essential peripherals like a mouse, keyboard, or wireless dongle. This helps you stay productive with no compromise on available ports.
Plug-and-Play
DisplayLink drivers install automatically on most Windows and ChromeOS systems, reducing setup time and simplifying large scale IT deployments. For macOS devices, a manual driver installation is required.
Ideal for Hybrid Workflows
Designed for IT, finance, engineering, and education use, this compact, travel-ready workspace adapter enables easy transitions between home, office, and on-the-go setups. Its durable design and broad compatibility make it the perfect choice for professionals who require consistent performance wherever they work.
Video
Specs
Ports & interfaces
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
Host interface
Interface that enables a host controller to communicate with a driver.
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity
USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
1
USB 2.0 Type-C ports quantity
1
USB Power Delivery
USB Power Delivery up to
140 W
DisplayPorts quantity
Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.
4
DisplayPort version
1.2
Microphone in
The socket where a microphone is connected to the device.
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 60 °C
Operating relative humidity (H-H)
0 - 95%
Weight & dimensions
Width
The measurement or extent of something from side to side.
87 mm
Depth
The distance from the front to the back of something.
119 mm
Height
The measurement of the product from head to foot or from base to top.
16 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
146 g
Packaging content
Quick start guide
Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
Technical details
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)
Other features
Chipset
Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
DisplayLink - DL7400
Network
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Performance
Card reader integrated
A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.
HD type
Type of supported High Definition (e.g. Full HD, 4K Ultra HD).
4K Ultra HD
Maximum digital resolution
3840 x 2160 pixels
Number of displays supported
The number of displays that can be used with this product.
4
Product color
The colour e.g. red, blue, green, black, white.
Grey
Plug and Play
Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.
Power
Power source type
What the power source is.
USB
Software
Windows operating systems supported
Windows vesions wich can be used with the device.
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported
Mac operating systems e.g. OS X can be used with the device.
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia
Linux operating systems supported
8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Ubuntu 14.04, Ubuntu 18.04 LTS, Ubuntu 20.04 LTS, Ubuntu 22.04, Ubuntu 22.04 LTS, Ubuntu 24.04 LTS
Other operating systems supported
ChromeOS
Packaging data
Quantity per pack
1 pc(s)
Package width
The distance from one side of the packaging to the other.
145 mm
Package depth
The distance from the front to the back of the packaging.
210 mm
Package height
The distance from the top to the bottom of the packaging.
40 mm
Package weight
Weight of the packaged product in gram.
220 g
Logistics data
Quantity per master (outer) case
20 pc(s)
Master (outer) case width
225 mm
Master (outer) case length
420 mm
Master (outer) case height
320 mm
