STARTECH KVM switch Rack mounting Black (SV831DVIU)
- Regular price
- 981.95$
- Sale price
- 981.95$
- Regular price
-
Free shipping
Couldn't load pickup availability
StarTech.com SV831DVIU KVM switch Rack mounting Black
Brand:StarTech.com
Product name:8 Port 1U Rackmount DVI USB KVM Switch - TAA
Product code:SV831DVIU
EAN/UPC:
0065030842303
0065030842303, 065030842303, 0172302708806, 172302708806
- Supports DVI/HDMI resolutions up to 1920x1200
- Can be used with DVI to HDMI adapters to connect HDMI based systems
- Support for most combo/wireless keyboard and mice
- OS independent – No software or drivers required

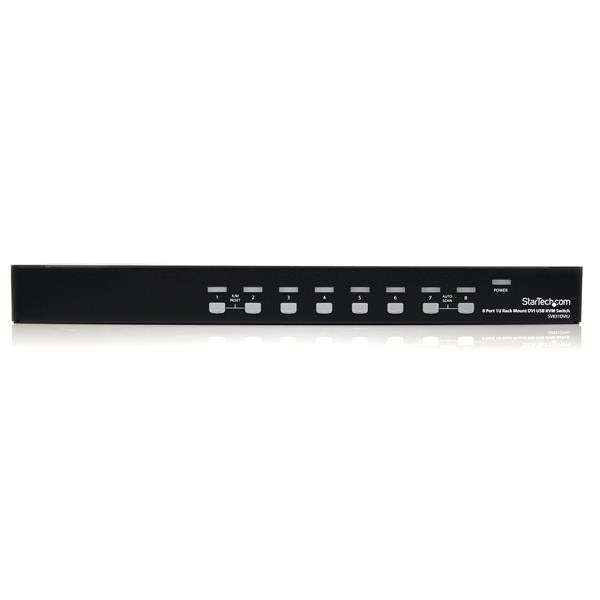

- Front panel push-buttons and Hot-key functions allow for easy switching
- Auto-scan function cycles through computers sequentially
- Connects to USB-based computer systems
- USB console interfaces for keyboard and mouse
- Supports Mac® and Sun keyboard mapping - Keyboard states automatically saved
- and restored when switching
- computers
- Supports Microsoft IntelliMouse
- (Pro)
Description
Control up to 8 USB computers with DVI or HDMI® video, from one keyboard, mouse and monitor
The SV831DVIU 8-Port 1U Rack Mount DVI USB KVM Switch lets you control up to 8 USB-connected computers (each with DVI or HDMI display output) from a single keyboard, mouse and monitor.
The KVM switch offers maximum control, allowing you to switch computers using hot-key commands or front panel push-buttons. Supporting digital resolutions up to 1920x1200 via DVI or HDMI connection (using DVI to HDMI adapter - see accessories), the KVM provides the high resolutions recommended for newer displays, allowing you to take full advantage of your monitor/screen capability.
A perfect addition to any server room or software test lab, this 8-port switch can be rack-mounted into 1U of cabinet space.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
Note: This KVM supports digital signals only, and cannot be used with DVI-to-VGA adapters.
The SV831DVIU 8-Port 1U Rack Mount DVI USB KVM Switch lets you control up to 8 USB-connected computers (each with DVI or HDMI display output) from a single keyboard, mouse and monitor.
The KVM switch offers maximum control, allowing you to switch computers using hot-key commands or front panel push-buttons. Supporting digital resolutions up to 1920x1200 via DVI or HDMI connection (using DVI to HDMI adapter - see accessories), the KVM provides the high resolutions recommended for newer displays, allowing you to take full advantage of your monitor/screen capability.
A perfect addition to any server room or software test lab, this 8-port switch can be rack-mounted into 1U of cabinet space.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
Note: This KVM supports digital signals only, and cannot be used with DVI-to-VGA adapters.
Specs
Ports & interfaces
Number of computers controlled
The amount of computers controlled by this device.
8
Keyboard port type
The type of socket in the device for connecting a keyboard e.g. USB.
USB
Mouse port type
USB
Video port type
The type of socket in the device for connecting a video e.g. SCART.
DVI-I
USB 2.0 ports quantity
USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
10
Audio connections
Cables used to connect audio inputs or audio outputs to another device e.g, audio amplifier.
Power
Input voltage
The voltage (V) which is required to power the product.
100-240 V
Input current
1.8 A
Output voltage
12 V
Output current
4 A
External power adapter
Power plug type
Type M
Compatible power plug types
AU, EU, UK, US
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Packaging data
Package width
The distance from one side of the packaging to the other.
595 mm
Package depth
The distance from the front to the back of the packaging.
265 mm
Package height
The distance from the top to the bottom of the packaging.
90 mm
Package weight
Weight of the packaged product in gram.
3,77 kg
Logistics data
Harmonized System (HS) code
85176200
Master (outer) case width
288 mm
Master (outer) case length
610 mm
Master (outer) case height
408 mm
Quantity per master (outer) case
4 pc(s)
Network
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Performance
Maximum resolution
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
1920 x 1200 pixels
Maximum analog resolution
1920 x 1200 pixels
Daisy chain
Design
Rack mounting
The type of mounting that can position devices in a shelving system (rack).
Rack capacity
The spase that device fill in rack.
1U
Product color
The colour e.g. red, blue, green, black, white.
Black
Housing material
What the casing of the product is made of.
Steel
LED indicators
Yes
Hot keys
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
45254 h
Certification
CE, FCC
Sustainability
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Weight & dimensions
Width
The measurement or extent of something from side to side.
438 mm
Depth
The distance from the front to the back of something.
180 mm
Height
The measurement of the product from head to foot or from base to top.
44 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
3,5 kg

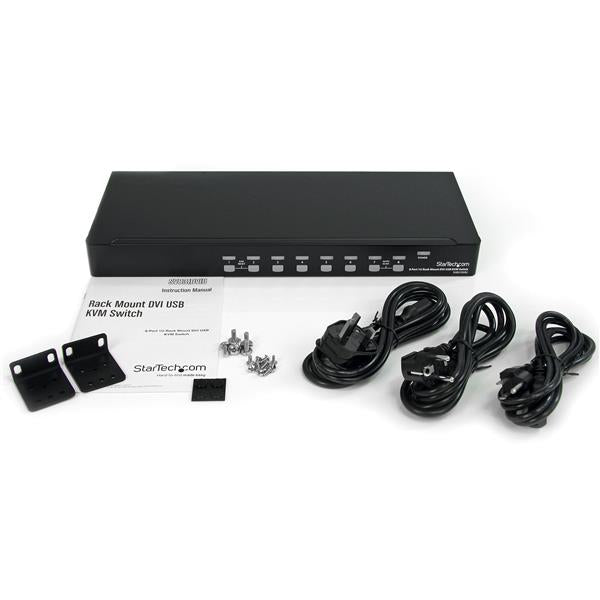

Packaging content
Manual
Rack mount kit
Other features
IP control
