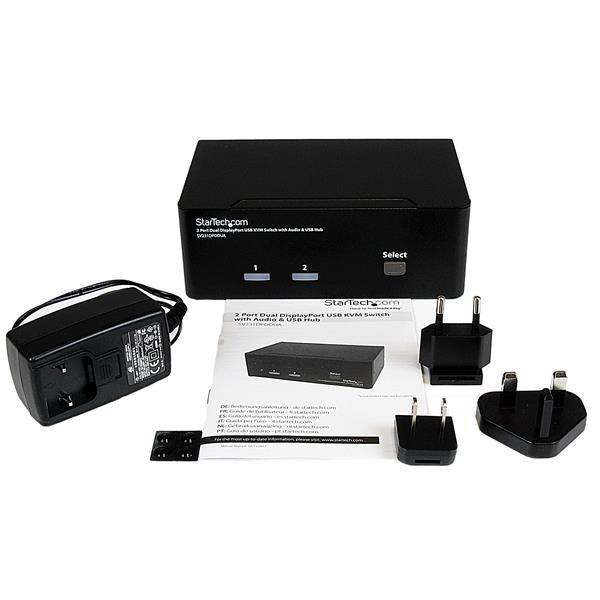

STARTECH KVM switch Black (SV231DPDDUA)
- Regular price
- 439.95$
- Sale price
- 439.95$
- Regular price
-
Free shipping
Couldn't load pickup availability

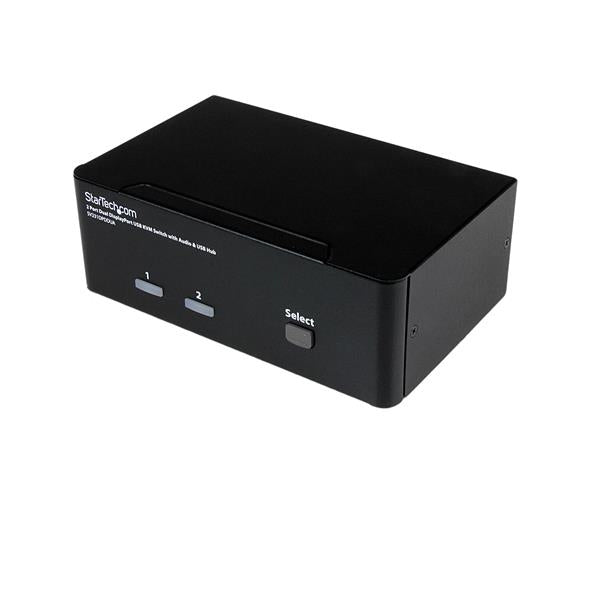

StarTech.com SV231DPDDUA KVM switch Black
Brand:StarTech.com
Product name:2 Port Dual DisplayPort USB KVM Switch with Audio & USB 2.0 Hub - TAA
Product code:SV231DPDDUA
EAN/UPC:
0065030839266
0065030839266, 065030839266, 5052179609565
- Native dual DisplayPort connections - no adapter required
- Supports 2560x1600 @ 60Hz resolutions; beyond 1080p
- Maximum resolutions of 3840x2400 at lower refresh rates
- 7.1 Channel High Definition Digital Audio supported via the DisplayPort interface
- 3.5mm 2-channel stereo audio and microphone
- Integrated 2 port hub for USB 2.0 peripheral sharing
- No driver or software installation required
- OS Independent

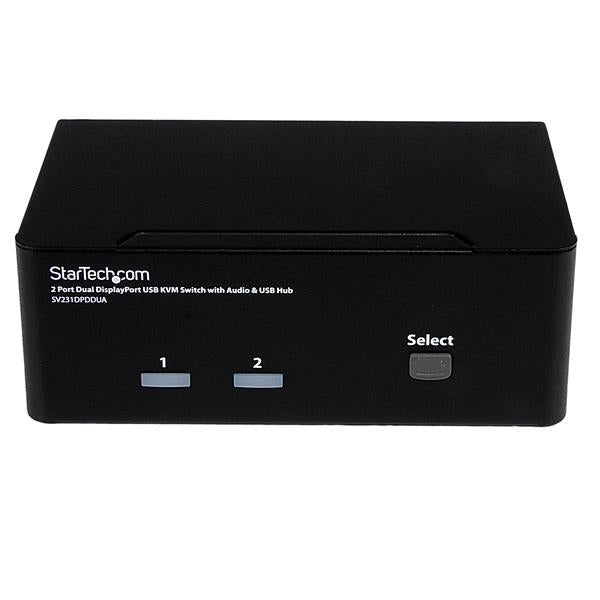

- Hotkey and push-button switching
- Full plug-and-play support with USB console interfaces
Description

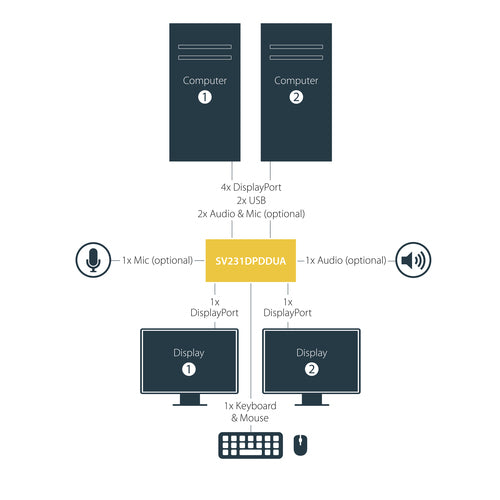

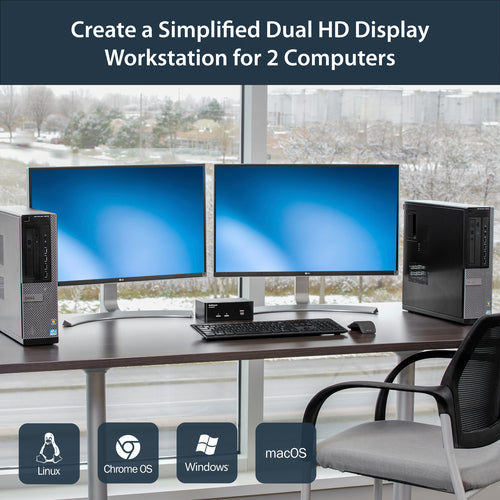

Control 2 high-resolution dual DisplayPort computers with a single console
The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter.
Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560x1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input.
Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter.
Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560x1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input.
Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
Specs

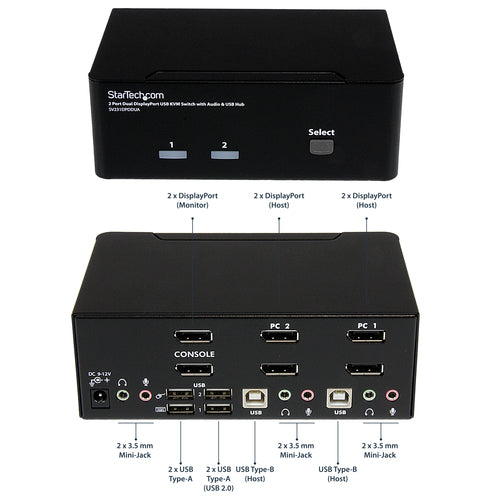

Ports & interfaces
Number of computers controlled
The amount of computers controlled by this device.
2
Keyboard port type
The type of socket in the device for connecting a keyboard e.g. USB.
USB
Mouse port type
USB
Video port type
The type of socket in the device for connecting a video e.g. SCART.
DisplayPort
DisplayPorts quantity
Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.
6

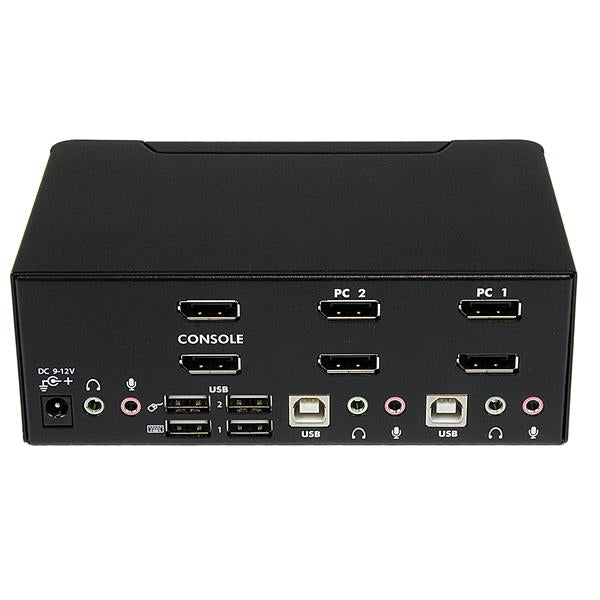

Console ports
3.5mm headphone, 3.5mm mic, DisplayPort, USB A
Console USB ports quantity
2
USB hub
USB connector type
The type of USB connector/port that this product has.
USB Type-A
Audio connections
Cables used to connect audio inputs or audio outputs to another device e.g, audio amplifier.
Headphone outputs
Number of sockets /ports where headphones are connected.
3
Number of microphone inputs
3
DC-in jack
The socket/plug where the DC electricity supply connects to the device.
Display
Built-in display
A display which is part of the product, so you do not need to attach another display.
On Screen Display (OSD)
Power
Input voltage
The voltage (V) which is required to power the product.
110 - 240 V
Input current
0.8 A
Output voltage
12 V
Output current
1,5 A
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
18 W
External power adapter
Power plug type
Type M
Compatible power plug types
AU, EU, UK, US
Packaging data
Package width
The distance from one side of the packaging to the other.
252 mm
Package depth
The distance from the front to the back of the packaging.
188 mm
Package height
The distance from the top to the bottom of the packaging.
100 mm
Package weight
Weight of the packaged product in gram.
1,19 kg
Network
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Performance
HD type
Type of supported High Definition (e.g. Full HD, 4K Ultra HD).
4K Ultra HD
Maximum resolution
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
3840 x 2400 pixels
DDC2B support
Hot-Plug support
Device has hot-plug capability, which means that user can replace system components without shutting down the system.
Daisy chain
Number of users
The number of people that use or can use this product.
1 user(s)
Audio channels
7.1
Design
Rack mounting
The type of mounting that can position devices in a shelving system (rack).
Product color
The colour e.g. red, blue, green, black, white.
Black
Housing material
What the casing of the product is made of.
Steel
LED indicators
Yes
Push button
Hot keys
Certification
CE, FCC, REACH, TAA
Sustainability
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
20 - 60 °C
Operating relative humidity (H-H)
0 - 80%

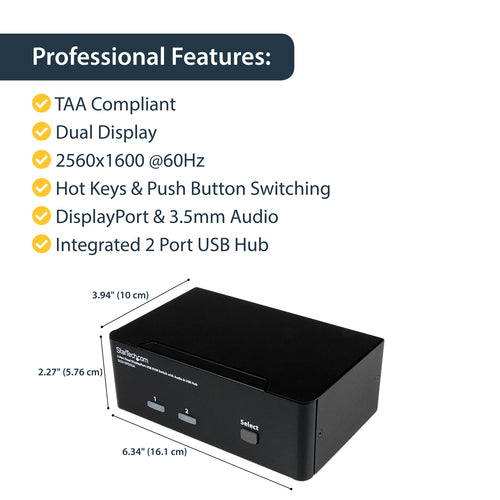

Weight & dimensions
Width
The measurement or extent of something from side to side.
161 mm
Depth
The distance from the front to the back of something.
100 mm
Height
The measurement of the product from head to foot or from base to top.
57,5 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
734 g

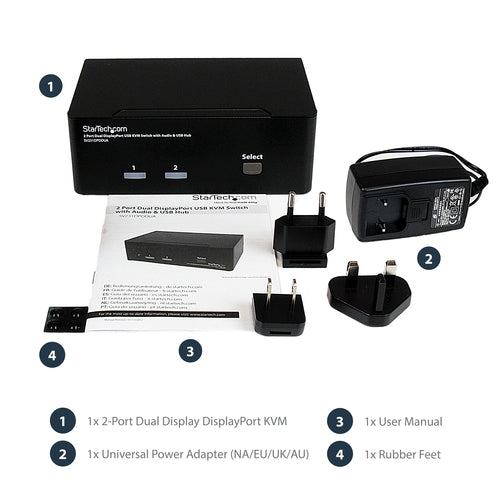

Packaging content
Manual
Other features
Audio support
IP control
Logistics data
Harmonized System (HS) code
85176200
Master (outer) case width
403 mm
Master (outer) case length
322 mm
Master (outer) case height
285 mm
Quantity per master (outer) case
6 pc(s)
