STARTECH interface cards/adapter (PEX2PCIE4L)
- Regular price
- 683.95$
- Sale price
- 683.95$
- Regular price
-
Free shipping
Couldn't load pickup availability

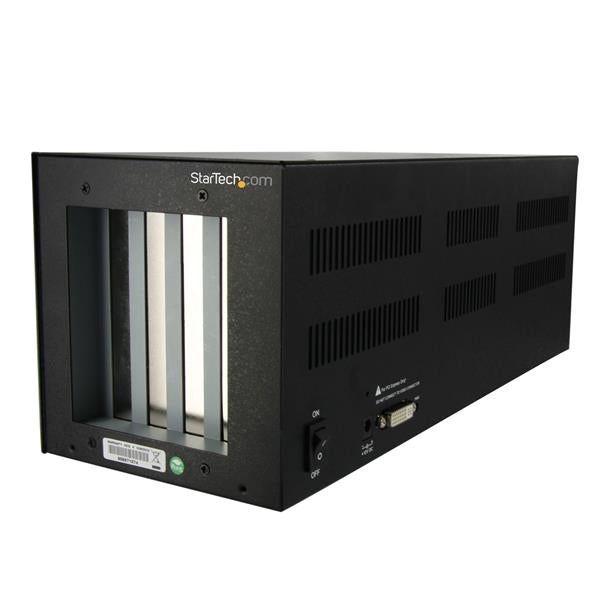

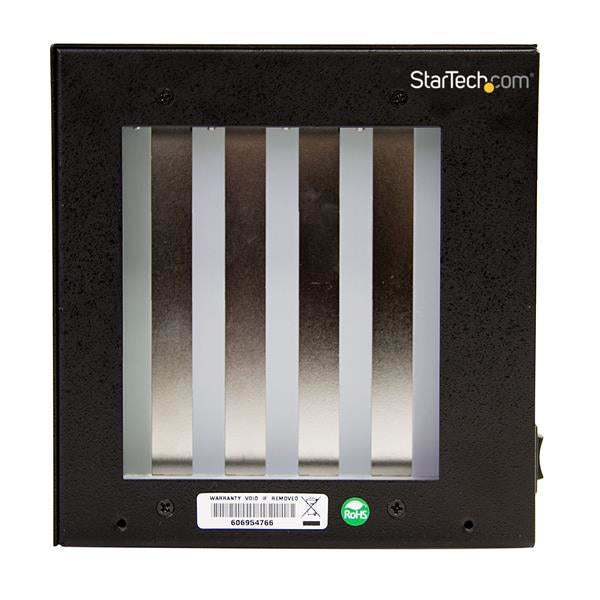

StarTech.com PEX2PCIE4L interface cards/adapter
Brand:StarTech.com
Product name:PCI Express to 2 PCI & 2 PCIe Expansion Enclosure System - Full Length - TAA
Product code:PEX2PCIE4L
EAN/UPC:
0065030835305
0065030835305, 065030835305, 5051964737216, 0042111259656, 042111259656, 0700604025132, 700604025132
- Expansion bay providing 2 PCI ports (32-bit/33 MHz), and 2 PCIe single-lane ports (250MBps)
- Self-powered PCI/PCIe expansion system with an on/off button
- Rugged steel construction satisfies demands of industrial and server environments
- Supports both 5V and 3.3V & 5V add-in PCI cards
- Complies with PCI 2.3 and PCIe 1.1 specifications
- Supports advance error reporting including ECRC support
- Support add-in cards with extended length (35cm)
Description
Add two PCI and two PCI Express expansion card slots to your desktop computer
The PEX2PCIE4L PCI/PCI Express Expansion Chassis provides a quick and simple I/O expansion solution to almost any PCI Express (PCIe) enabled system. Adding PCI/PCIe cards to a server or workstation, or providing a platform to swap cards between a mobile and desktop setup is a cost-effective and time-saving solution for maximizing the I/O capabilities of your system.

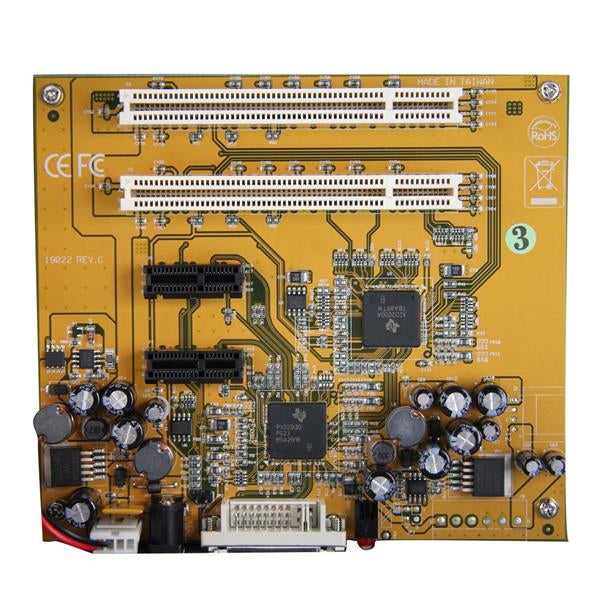

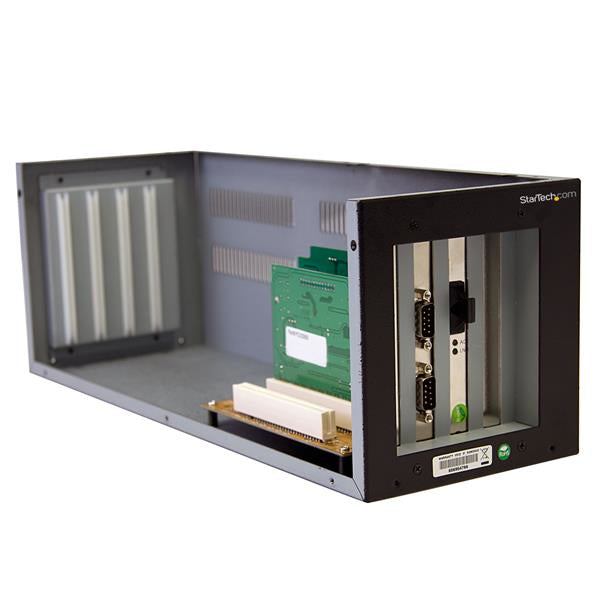

The external expansion chassis adds two full-length (35cm) PCI slots (32-bit/33MHz), as well as two PCIe x1 (single-lane) slots to a host computer through a single PCI Express connection. Providing total bandwidth up to 250MBps from the PCIe x1 host controller card allows the computer to function as though the expansion chassis cards were connected directly to the motherboard.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The PEX2PCIE4L PCI/PCI Express Expansion Chassis provides a quick and simple I/O expansion solution to almost any PCI Express (PCIe) enabled system. Adding PCI/PCIe cards to a server or workstation, or providing a platform to swap cards between a mobile and desktop setup is a cost-effective and time-saving solution for maximizing the I/O capabilities of your system.
The external expansion chassis adds two full-length (35cm) PCI slots (32-bit/33MHz), as well as two PCIe x1 (single-lane) slots to a host computer through a single PCI Express connection. Providing total bandwidth up to 250MBps from the PCIe x1 host controller card allows the computer to function as though the expansion chassis cards were connected directly to the motherboard.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specs
Design
Certification
ROHS, CE, FCC
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 55 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 75 °C
Operating relative humidity (H-H)
5 - 95%
Packaging data

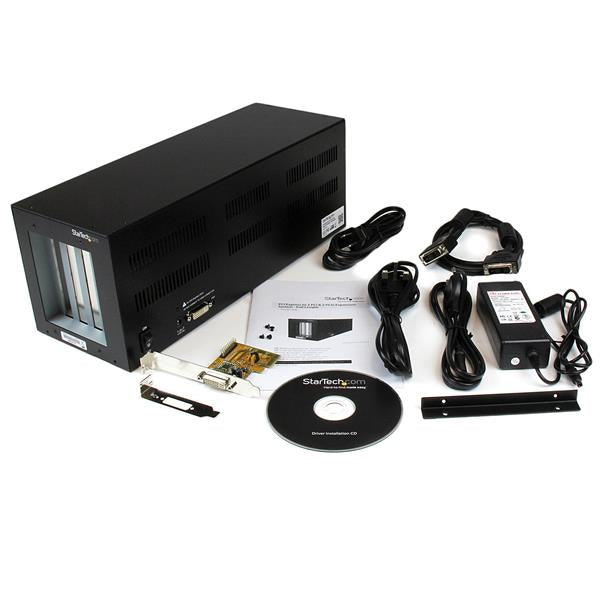

Cables included
AC, DVI
Manual
Package width
The distance from one side of the packaging to the other.
443 mm
Package depth
The distance from the front to the back of the packaging.
209 mm
Package height
The distance from the top to the bottom of the packaging.
248 mm
Package weight
Weight of the packaged product in gram.
2,1 kg
Other features
Data transfer rate
Rate at which data can be transferred, usually measured in units per second. May vary with network configurations.
250 Mbit/s
Ports quantity
The number of ports or external interfaces to which other equipment can be connected.
4
Cable length
How long the cable is.
0,9 m
Power
Output voltage
12 V
Output current
3 A
Weight & dimensions
Width
The measurement or extent of something from side to side.
137 mm
Depth
The distance from the front to the back of something.
382 mm
Height
The measurement of the product from head to foot or from base to top.
143 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
2 kg
Logistics data
Harmonized System (HS) code
84719000
Quantity per master (outer) case
2 pc(s)
Master (outer) case width
524 mm
Master (outer) case length
436 mm
Master (outer) case height
283 mm
