STARTECH interface cards/adapter Internal Serial (PLATE9M16)
- Regular price
- 11.95$
- Sale price
- 11.95$
- Regular price
-
Free shipping on orders over $99
Couldn't load pickup availability
StarTech.com PLATE9M16 interface cards/adapter Internal Serial
Brand:StarTech.com
Product name:16in (40cm) 9 Pin Serial Male to 10 Pin Motherboard Header Slot Plate
Product code:PLATE9M16
EAN/UPC:
0065030827287
0065030827287, 065030827287, 5054629103104, 0650308272878, 650308272878
- 1* DB9 serial expansion port and bracket
Description
Add an extra serial port to the back of your PC from your motherboard.

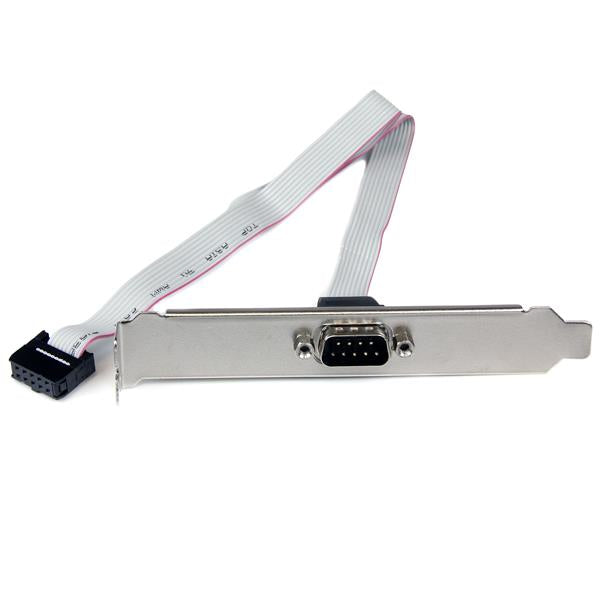

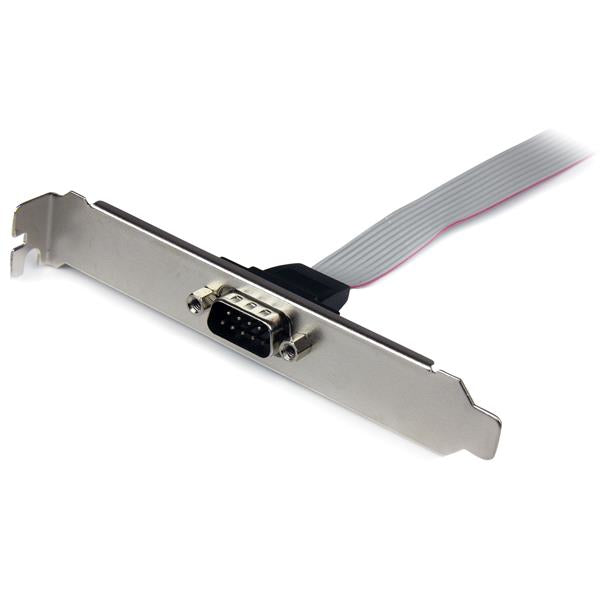

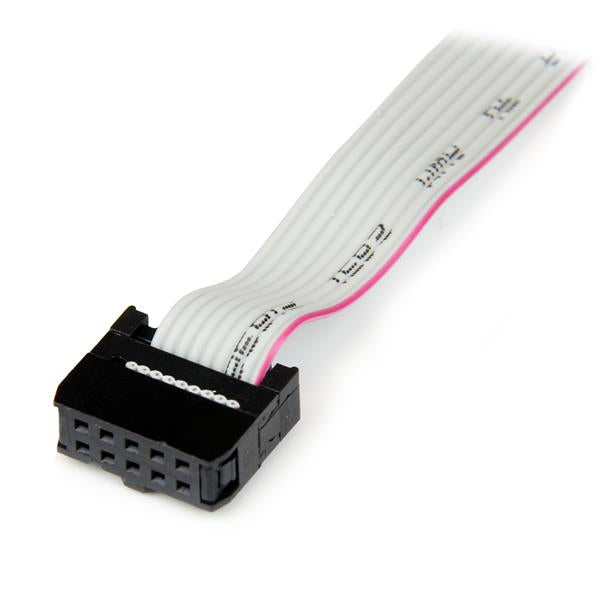

This 9-pin Serial to 10-pin Header Slot Plate adapter features one DB9 male connector and one IDC10 connector. The adapter is constructed of high quality components and expertly designed to ensure durability and reliability.
Please refer to the Technical Specifications to ensure your motherboard is compatible with this product.
This 9-pin Serial to 10-pin Header Slot Plate adapter features one DB9 male connector and one IDC10 connector. The adapter is constructed of high quality components and expertly designed to ensure durability and reliability.
Please refer to the Technical Specifications to ensure your motherboard is compatible with this product.
Specs
Ports & interfaces
Host interface
Interface that enables a host controller to communicate with a driver.
IDC
Output interface
The socket (port) where the output connectors are connected.
Serial
Serial ports quantity
The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces.
1
Serial interface type
RS-232
Weight & dimensions
Width
The measurement or extent of something from side to side.
121 mm
Depth
The distance from the front to the back of something.
406,4 mm
Height
The measurement of the product from head to foot or from base to top.
21 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
31 g
Logistics data
Harmonized System (HS) code
84733020
Quantity per master (outer) case
250 pc(s)
Master (outer) case width
451 mm
Master (outer) case length
315 mm
Master (outer) case height
344 mm
Design
Internal
The product is built in.
Product color
The colour e.g. red, blue, green, black, white.
Grey
Certification
CE, REACH
Technical details
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Packaging data
Quantity
The number of products there are.
1
Package width
The distance from one side of the packaging to the other.
126 mm
Package depth
The distance from the front to the back of the packaging.
153 mm
Package height
The distance from the top to the bottom of the packaging.
24 mm
Package weight
Weight of the packaged product in gram.
36 g
Other features
Cable length
How long the cable is.
0,406 m
