STARTECH interface cards/adapter Internal SATA (PEXESAT322I)
- Regular price
- 66.95$
- Sale price
- 66.95$
- Regular price
-
Free shipping on orders over $99
Couldn't load pickup availability

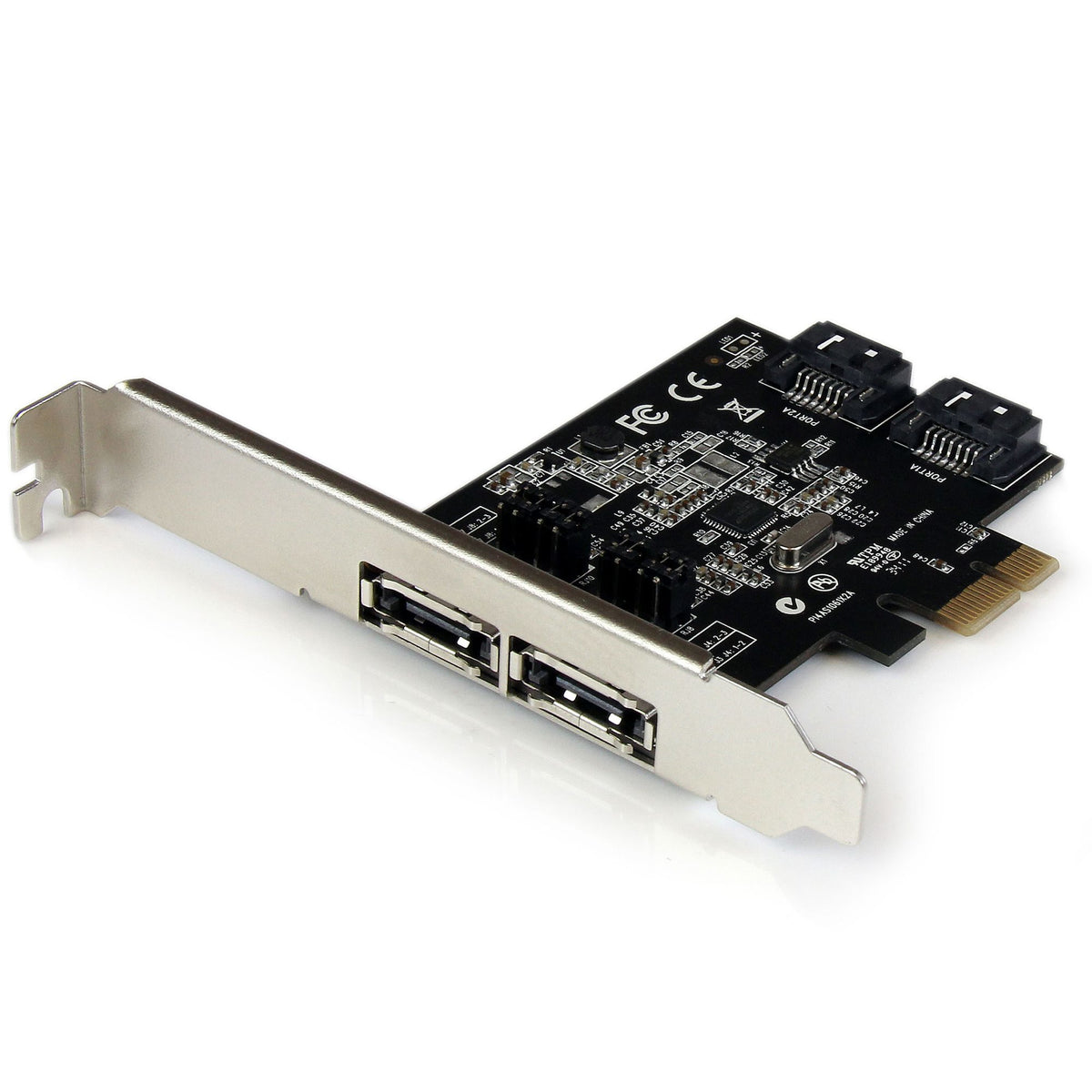

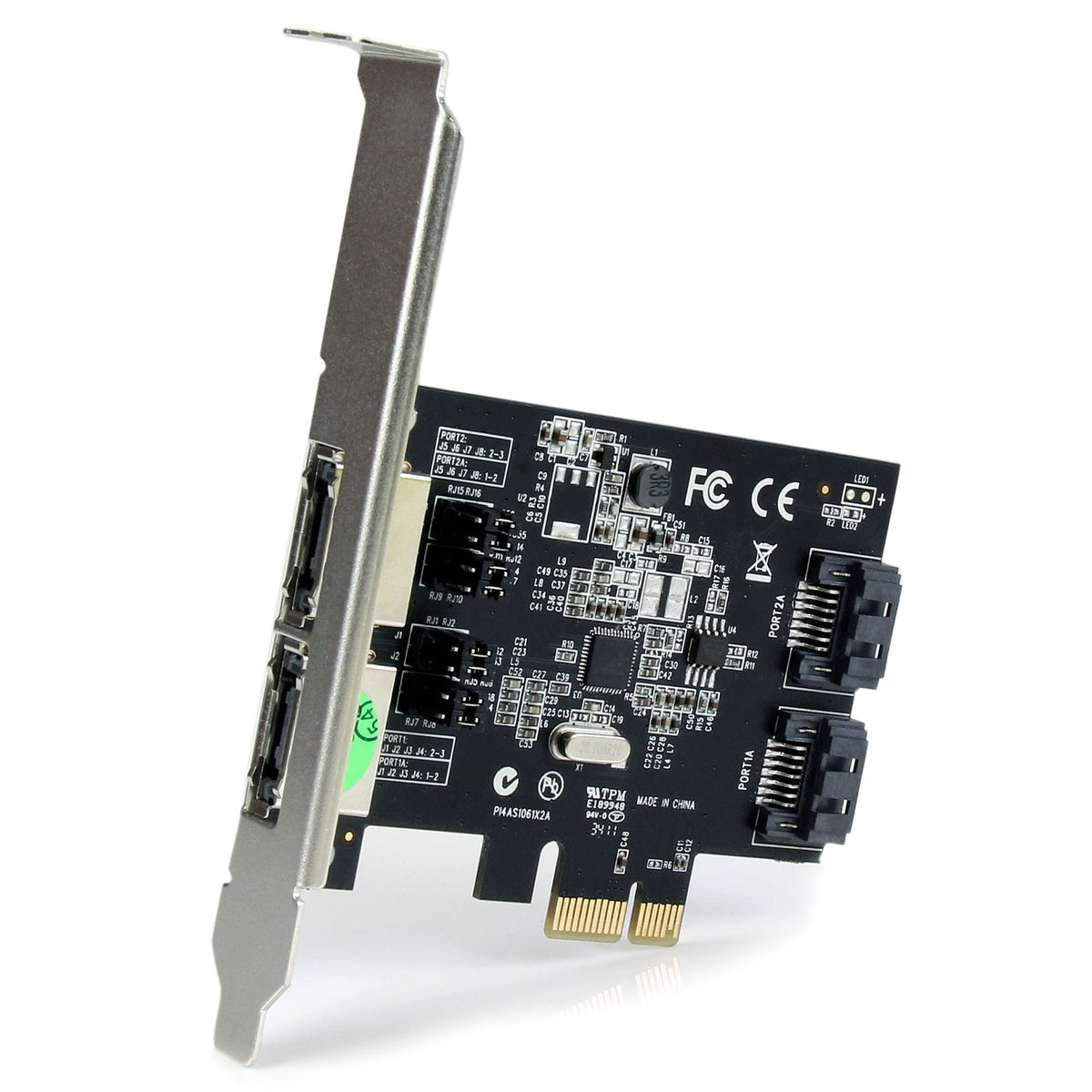

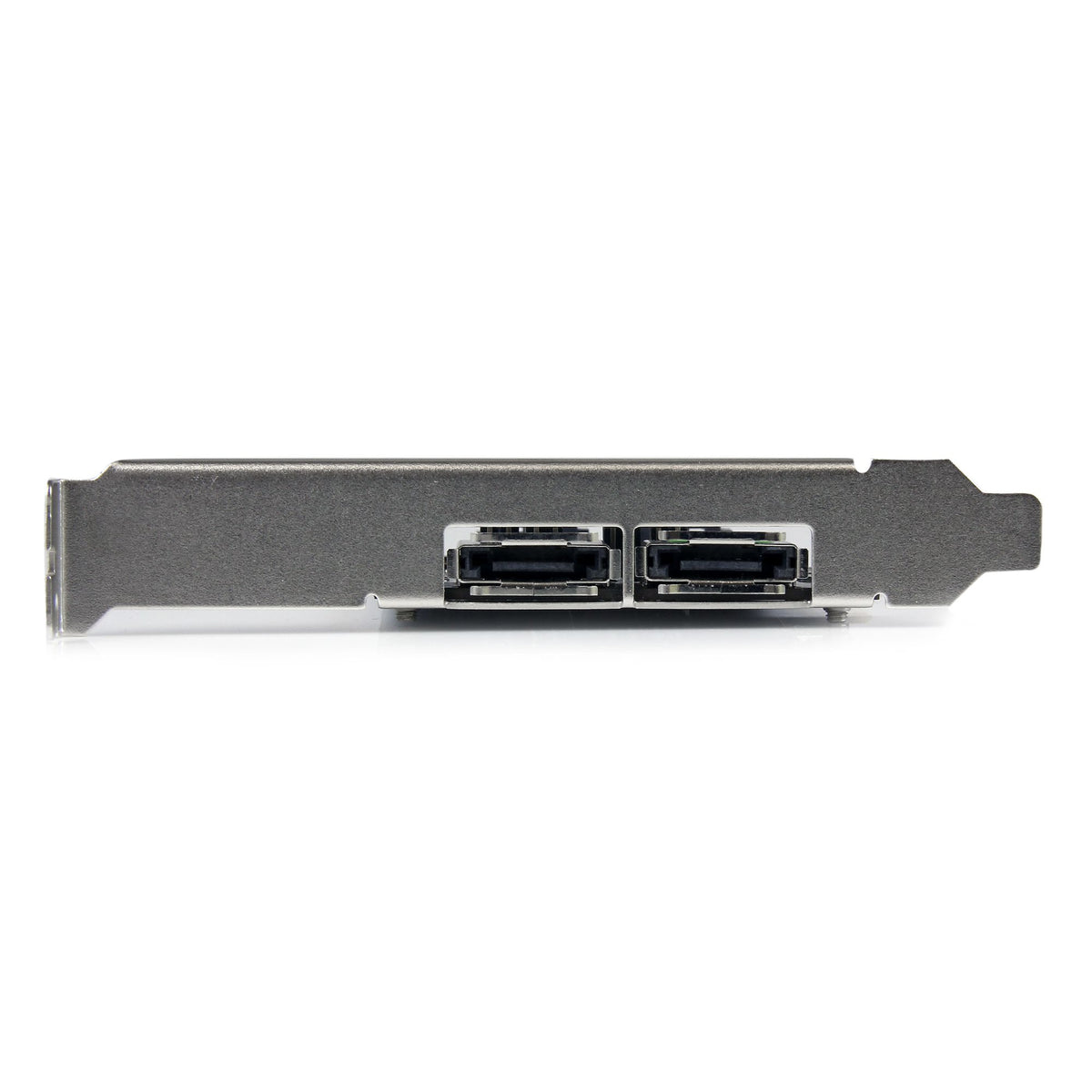

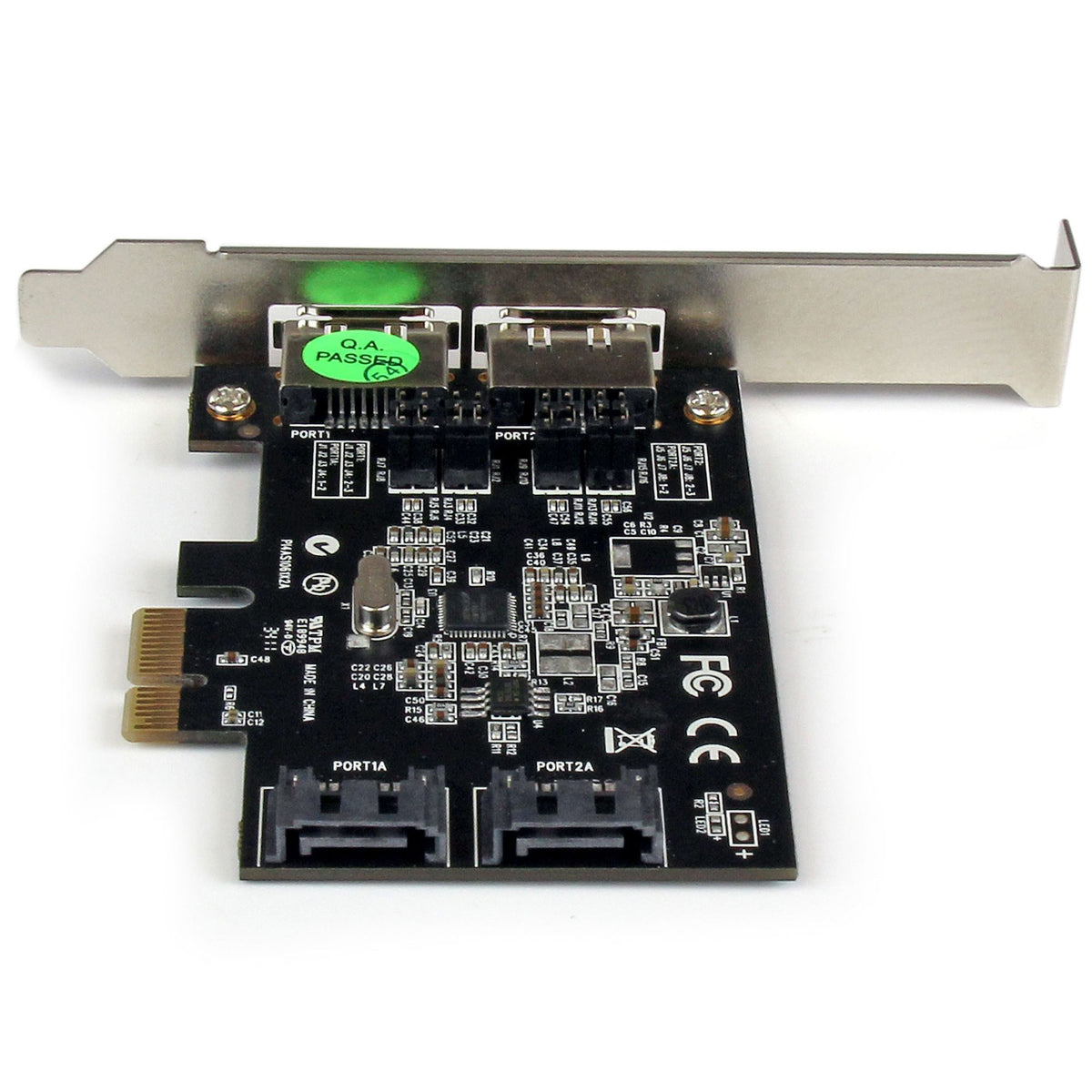

StarTech.com PEXESAT322I interface cards/adapter Internal SATA
Brand:StarTech.com
Product name:2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe x1 SATA III Adapter with Configurable Internal/External Connectivity
Product code:PEXESAT322I
EAN/UPC:
0065030848428
0065030848428, 065030848428, 0172304231487, 172304231487, 5706998929327
- IMPROVE STORAGE CAPACITY: This 2-Port PCIe SATA and eSATA Controller Card enables support of two internal SATA or external (eSATA) drives through PCI Express; A cost-effective solution to increase your system's storage capacity
- ASM1061 CONTROLLER: This SATA and eSATA controller card features a dedicated chipset to enable two switchable SATA and eSATA 6Gbps ports via a single x1 PCIe slot; Supports FIS-based Port Multiplier, Command-based switching, NCQ, and ATA/ ATAPI commands
- WIDE COMPATIBILITY: Supports Windows and standard SATA and eSATA SSDs (solid-state drives) and HDDs (hard drives); Supports SATA III (6 Gbps) and earlier revisions; Compliant with PCI Express 2.0

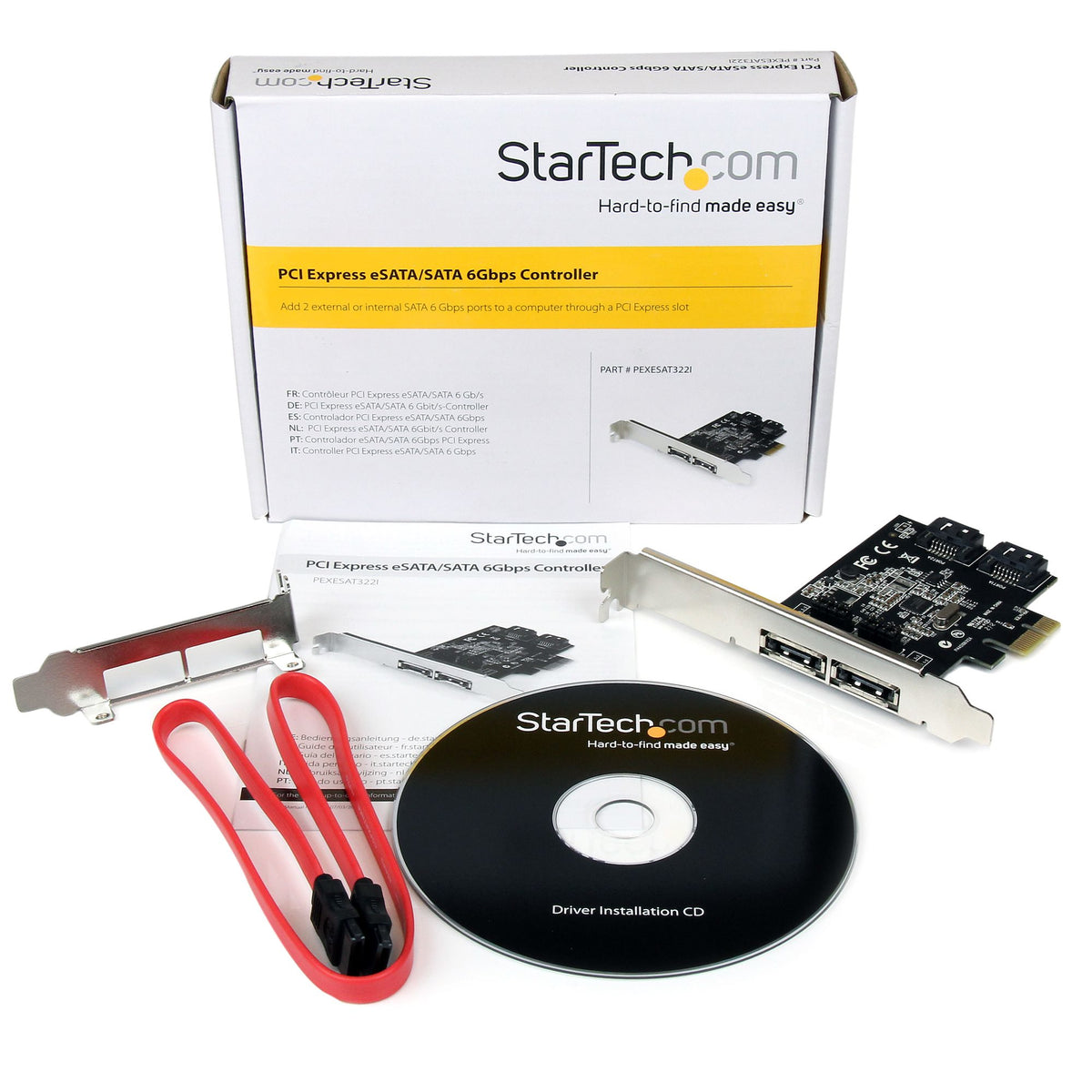

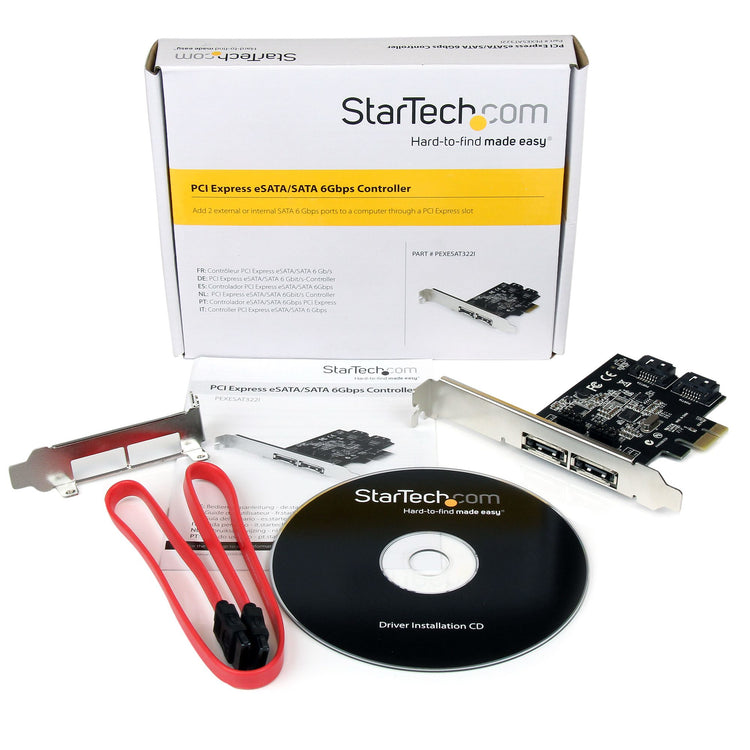

- CONVENIENT SETUP: This 2-port SATA/eSATA controller card installs in a full or low-profile PCIe slot; Compatible with PCIe x1, x4, x8, or x16 slots; Includes full-profile (pre-installed) & low-profile brackets, and 7-pin SATA cable
- THE IT PRO'S CHOICE: Designed and built for IT professionals, this 2-Port SATA and eSATA Controller Card is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance
Description
Add 2 external or internal SATA 6 Gbps ports to a computer, through a PCI Express slot
The PEXESAT322I PCI Express SATA III Controller Card (6 Gbps) gives you the option to add 2 internal or external SATA ports to your computer, through a single PCI Express (x1) card slot. The card features on board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as needed.
The SATA III card features Port Multiplier (PM) support on each port, which allows multiple drives to be connected over a single cable when necessary to maximize the number of SATA device connections while reducing the amount of cabling required.
The card is fully compliant with the SATA revision 3.0 specification (up to 6Gbps of data bandwidth), enabling you to utilize the speeds of high performance hard drives and Solid State Drives (SSD), as well as SATA-based optical drives (CD-ROM, DVD-ROM, Blu-Ray).
The PEXESAT322I SATA III Controller card is backed by our 2-year manufacturer warranty and free lifetime technical support.
The PEXESAT322I PCI Express SATA III Controller Card (6 Gbps) gives you the option to add 2 internal or external SATA ports to your computer, through a single PCI Express (x1) card slot. The card features on board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as needed.
The SATA III card features Port Multiplier (PM) support on each port, which allows multiple drives to be connected over a single cable when necessary to maximize the number of SATA device connections while reducing the amount of cabling required.
The card is fully compliant with the SATA revision 3.0 specification (up to 6Gbps of data bandwidth), enabling you to utilize the speeds of high performance hard drives and Solid State Drives (SSD), as well as SATA-based optical drives (CD-ROM, DVD-ROM, Blu-Ray).
The PEXESAT322I SATA III Controller card is backed by our 2-year manufacturer warranty and free lifetime technical support.
Specs
Ports & interfaces
Host interface
Interface that enables a host controller to communicate with a driver.
PCIe
Output interface
The socket (port) where the output connectors are connected.
SATA
SATA revision
3.0
eSATA ports quantity
The number of ports (interfaces) for eSATA. eSATA is a a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives.
2
Internal SATA ports quantity
2
Port multiplier
System requirements
Windows operating systems supported
Windows vesions wich can be used with the device.
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Server operating systems supported
Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Technical details
Compliance certificates
Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS
Packaging data
Quantity
The number of products there are.
1
Cables included
SATA
Mounting brackets included
Drivers included
Manual
Package width
The distance from one side of the packaging to the other.
216 mm
Package depth
The distance from the front to the back of the packaging.
148 mm
Package height
The distance from the top to the bottom of the packaging.
36 mm
Package weight
Weight of the packaged product in gram.
152 g
Design
Internal
The product is built in.
Certification
CE, FCC, REACH
Features
Chipset
Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
ASMedia - ASM1061
Logical block addressing (LBA) support
48 bit
Native Command Queuing (NCQ)
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 50 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 60 °C
Operating relative humidity (H-H)
5 - 85%
Weight & dimensions
Width
The measurement or extent of something from side to side.
92 mm
Depth
The distance from the front to the back of something.
121 mm
Height
The measurement of the product from head to foot or from base to top.
20 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
48 g
Logistics data
Harmonized System (HS) code
84733020
Quantity per master (outer) case
40 pc(s)
Master (outer) case width
451 mm
Master (outer) case length
379 mm
Master (outer) case height
325 mm
